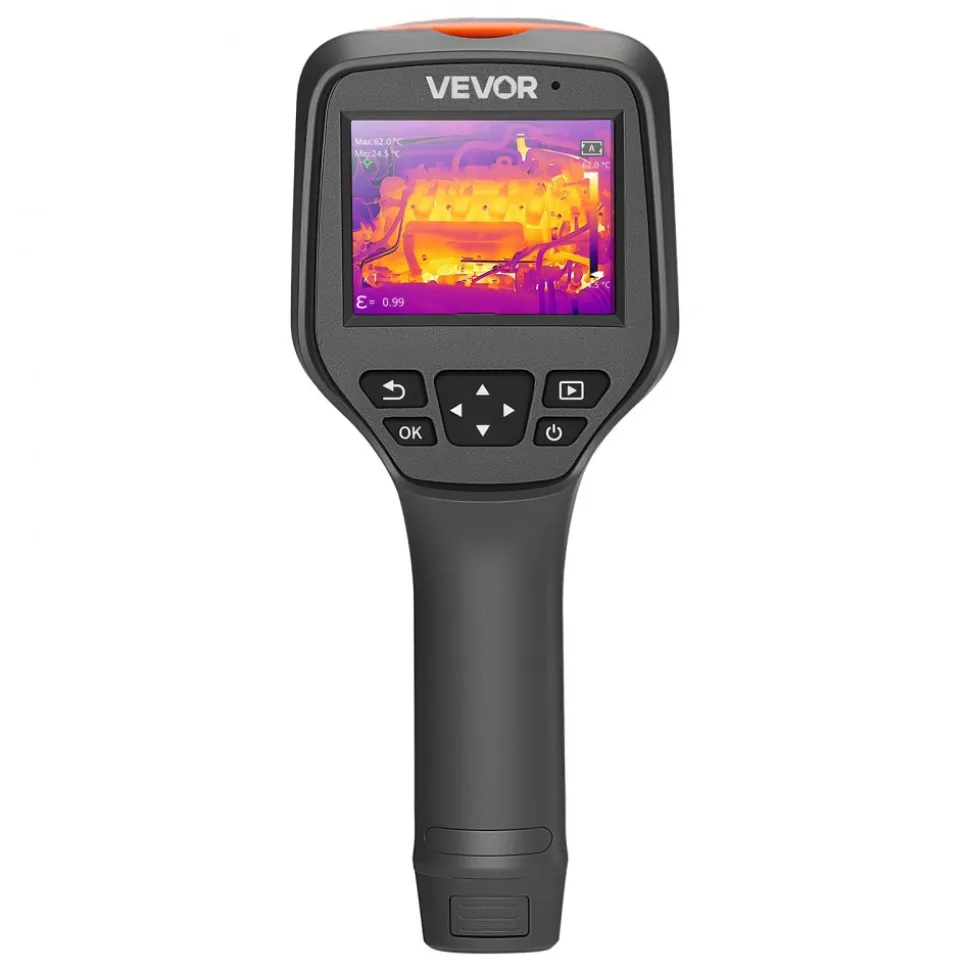

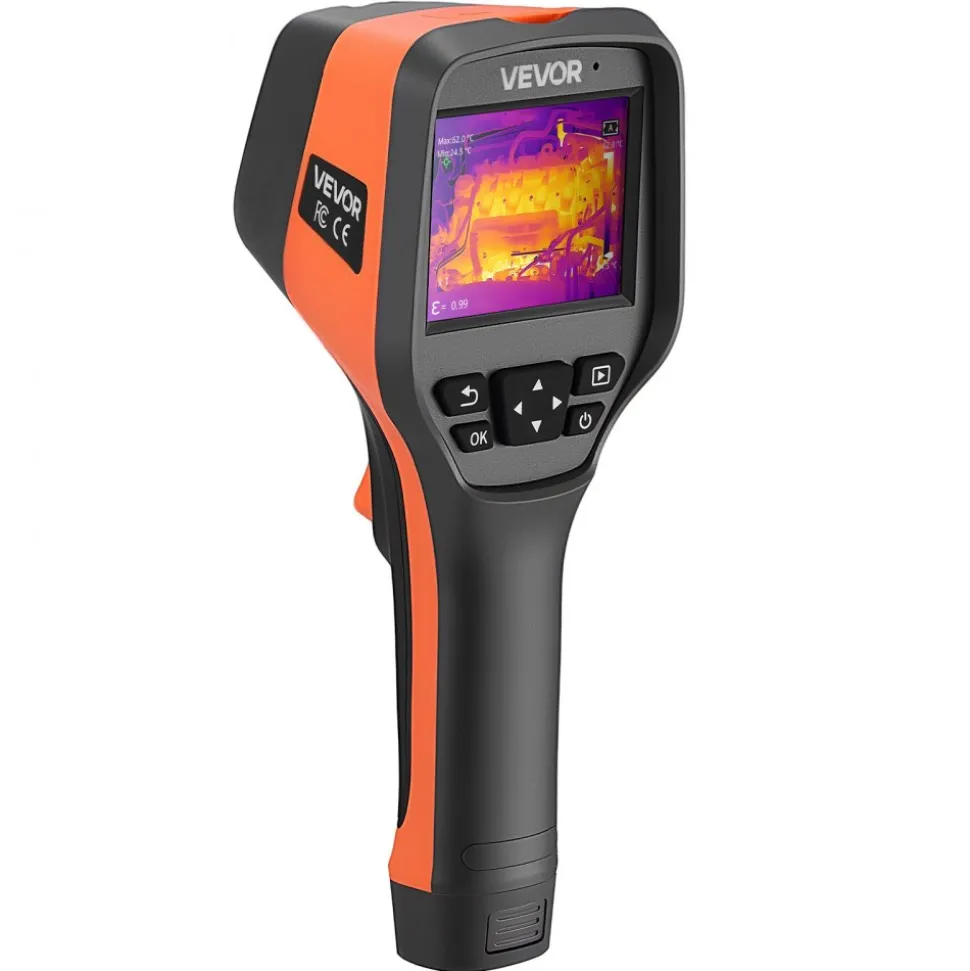

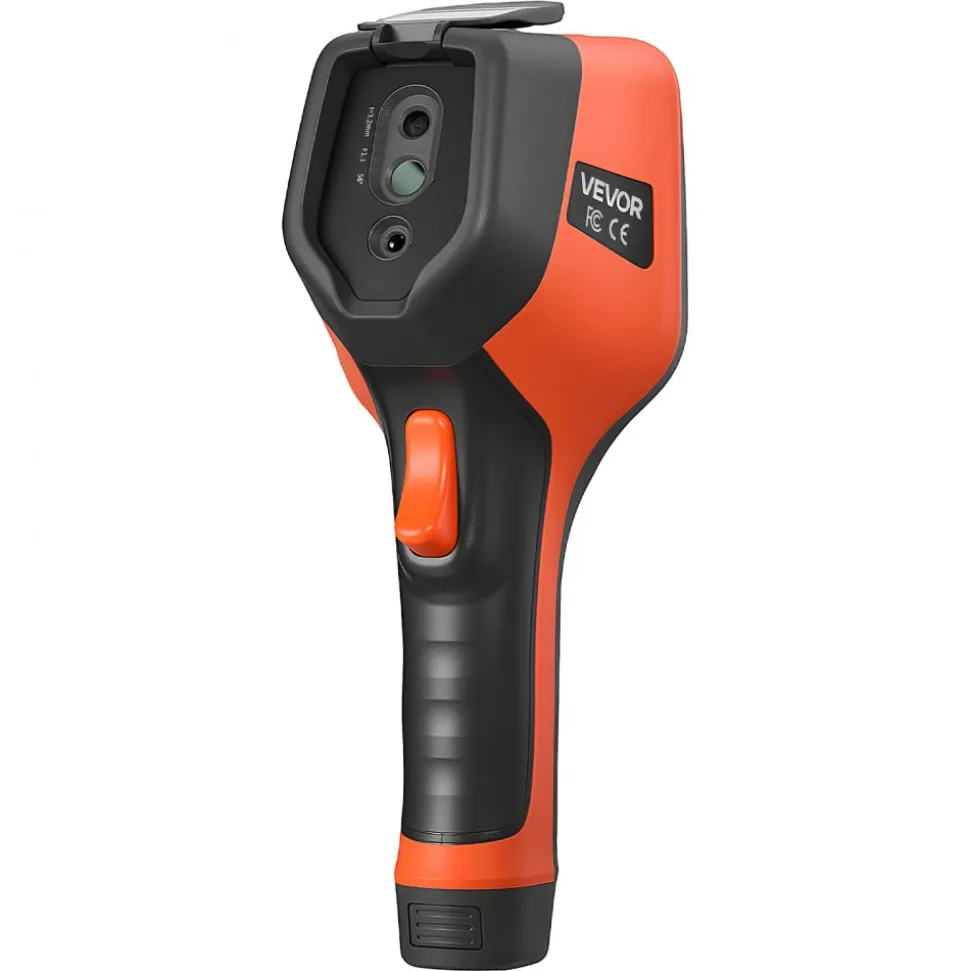

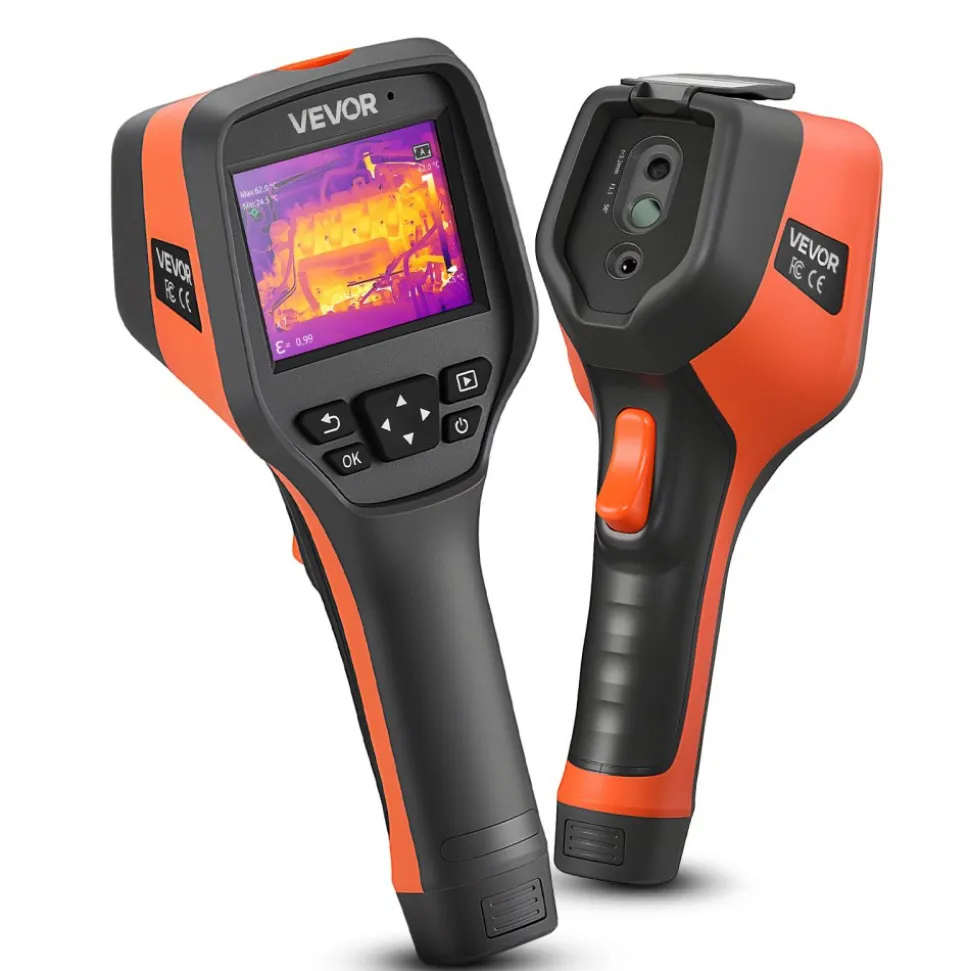

VEVOR Thermal Camera, 256 x 192 IR Resolution, Handheld Thermal Imaging Camera with 2MP Visual Camera, 25HZ Refresh Rate Infrared Imager with 3.5-Inch Touch Screen, -4°F to 1022°F, WIFI Supported

VEVOR Thermal Camera, 256 x 192 IR Resolution, Handheld Thermal Imaging Camera with 2MP Visual Camera, 25HZ Refresh Rate Infrared Imager with 3.5-Inch Touch Screen, -4°F to 1022°F, WIFI Supported

Original price was: $595.00.Current price is: $140.89.

SKU: SKU1HeijvtLb6 Categories: Electrical, Electrical Testers, Electrical Tools Tag: VEVOR Brand: VEVOR

Description
Reviews (0)

High-Resolution Thermal Imager: Our handheld thermal imager is equipped with a 2MP visible light camera and 256 x 192 IR resolution, delivering sharper images to detect subtle heat variations. With a 56° x 42° FOV, 25Hz refresh rate, ≤35 mK thermal sensitivity, image sharpening algorithms, and an advanced AI chip, it captures heat details with exceptional clarity

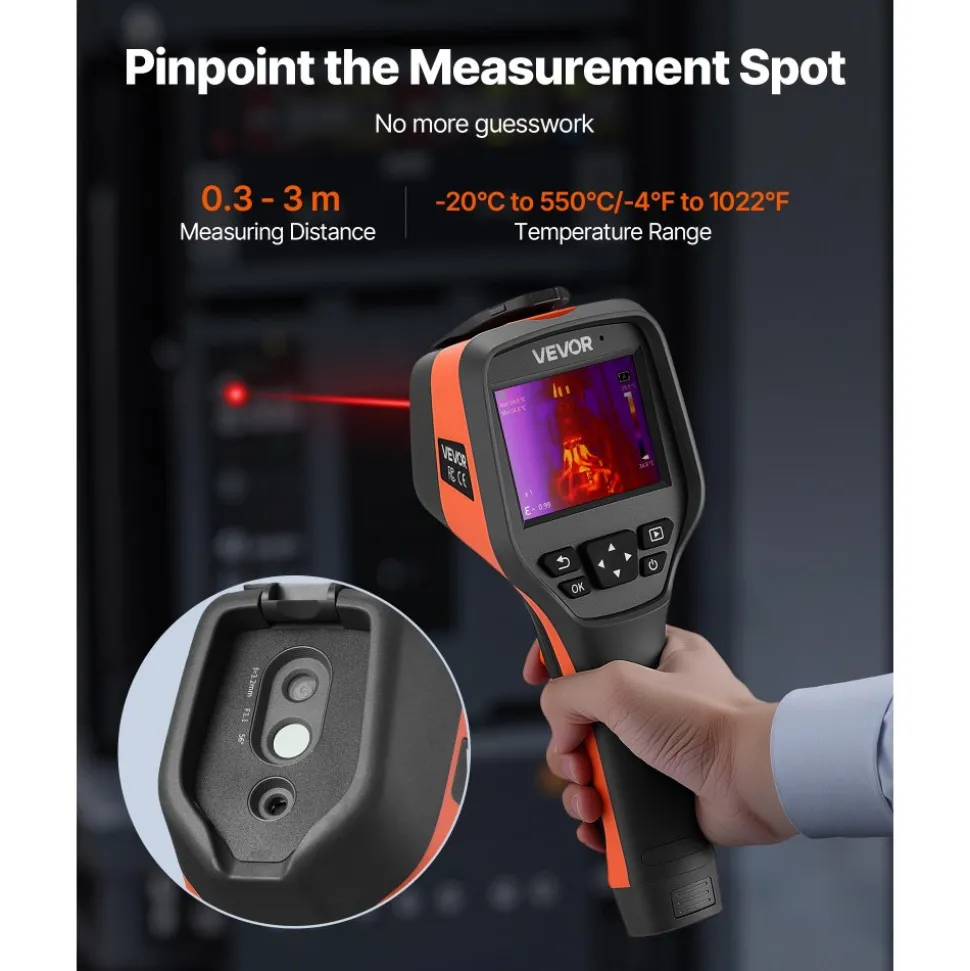

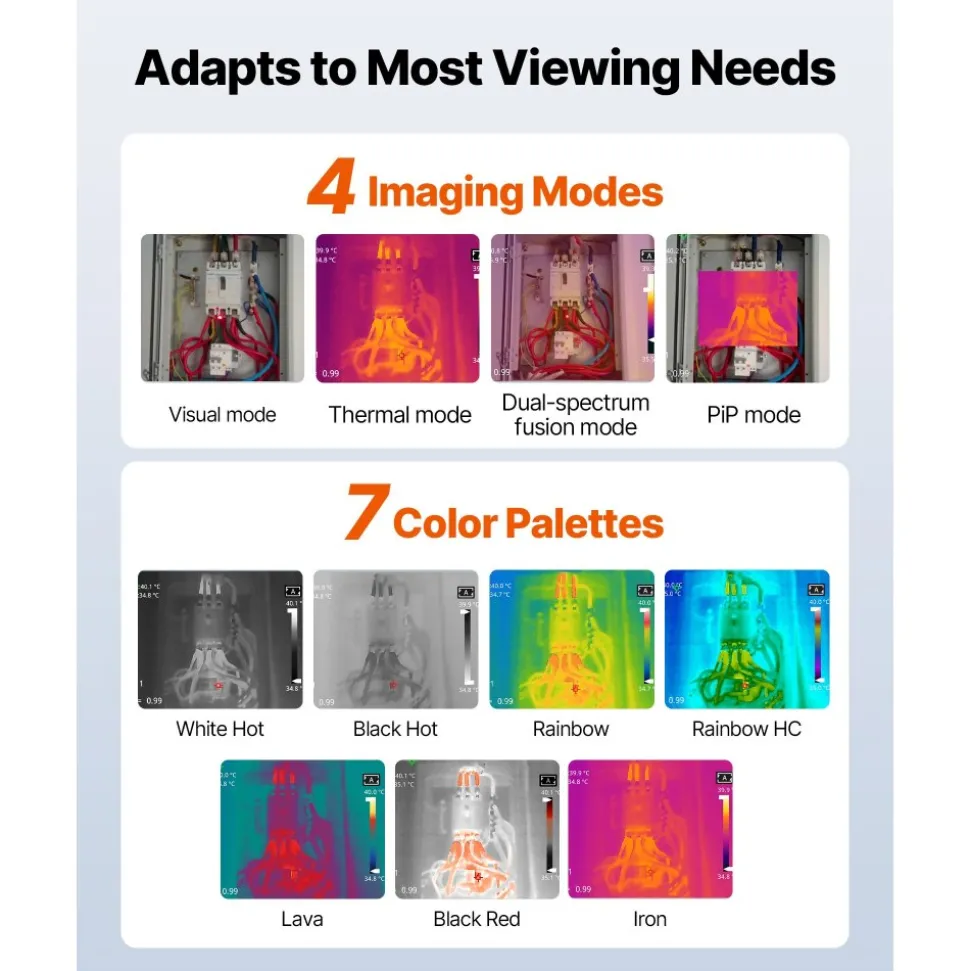

Precise Targeting & Temperature Measurement: The laser pointer of this infrared camera allows accurate heat source targeting, supporting a wide temperature range from -4°F to 1022°F. It automatically identifies and marks hot, cold, and center points. With 4 thermal imaging modes, 7 color palettes, and digital zoom (1x/2x/4x) for enhanced observation, you can observe finer details in diverse scenarios

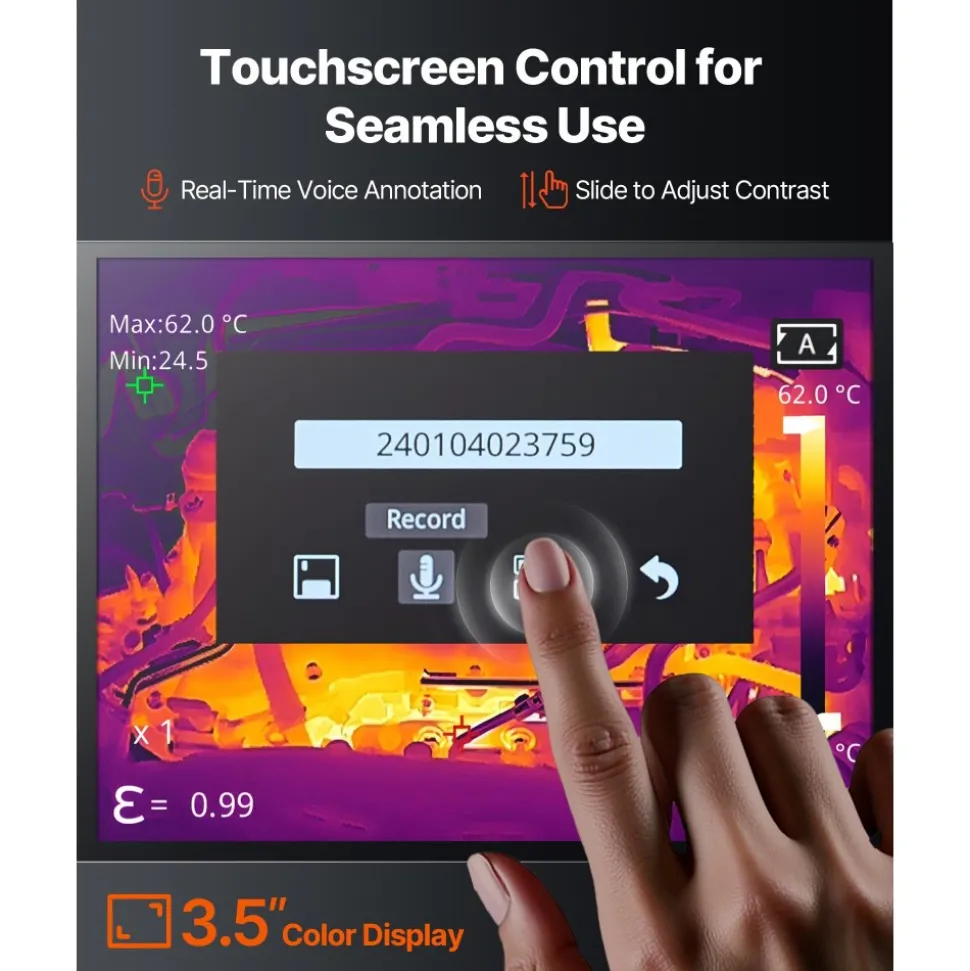

Quick Anomaly Detection: This infrared thermal imager has a 3.5-inch touchscreen that allows instant voice annotations. It is equipped with high/low temperature alarms that automatically monitor deviations and issue real-time alerts, helping you quickly detect overheating or cooling areas. With precise temperature anomaly detection, it easily pinpoints faults such as equipment overheating
Long-Lasting & Durable: Powered by 2 pieces of 4500mAh batteries, our thermal camera ensures extended runtime. With 32GB built-in storage, it saves over 120,000 images, supporting both photo and video recording. WiFi transfer and 13-language operation add convenience. Its lightweight, rugged design withstands 2m drops and meets IP54 water resistance, adapting to various environments
Convenient to Use: This thermal imaging camera is widely applicable for electrical inspections (distribution cabinets, cables, motors, transformers), HVAC (underfloor heating, leaks, AC maintenance, insulation checks), and pipelines (heat leaks or sewage systems)

Item Model Number: SC256M

Infrared Resolution: 256 x 192 pixels

Display Size: 3.5 inch

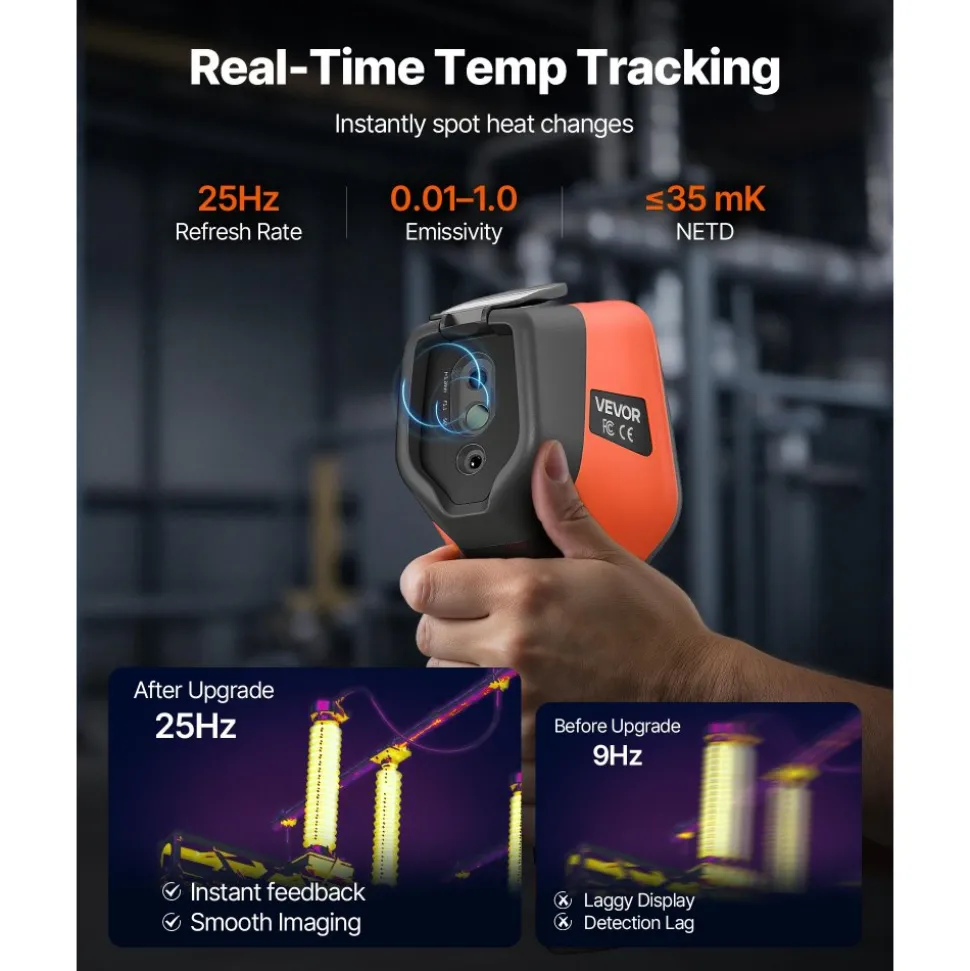

Frame Rate: 25 Hz

Thermal Sensitivity: ≤ 35 mK

Focus Mode: Focus-Free

Visible Light Resolution: 1600 x 1200 pixels

Emissivity: 0.01 – 1.0

Measuring Distance: 0.3 – 3 m

Temperature Measurement Range: -4℉ to 1022℉ / -20℃ to 550℃

Temperature Resolution: 0.1°C

Temperature Accuracy: ±2°C / ±2%

Temperature Display: Center / Hot / Cold Spot

Battery Capacity: 2 x 4500 mAh

Internal Storage: 32 GB

Drop Resistance: 2 m Drop Resistance

Waterproof Rating: IP54

Language Options: 13 Languages

Operating Temperature: 14℉ to 122℉ / -10℃ to 50℃

Storage Temperature: -4℉ to 140℉ / -20℃ to 60℃

Tripod Support: Supported (Standard 1/4-inch Thread)

Net Weight: 1.4 lbs / 0.64 kg

Professional Handheld Thermal Imager

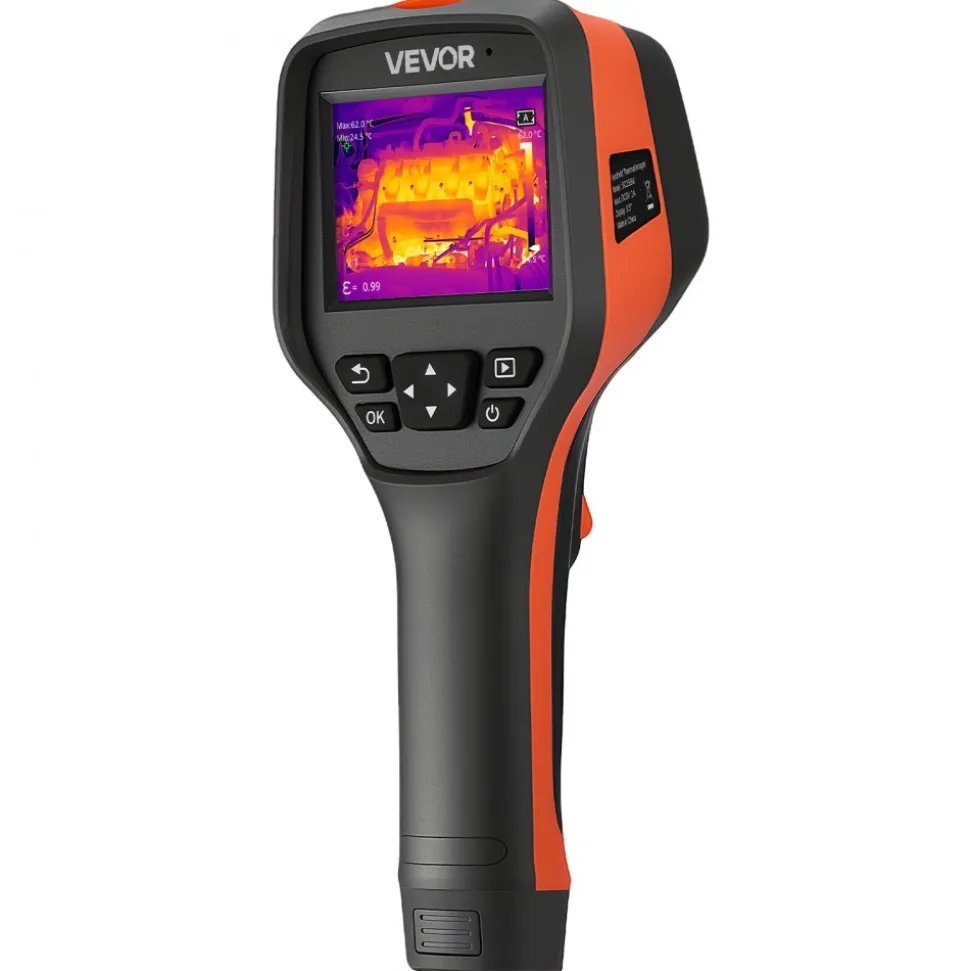

This thermal imager features a 256×192 IR resolution display, providing clear thermal images to spot hidden issues before they escalate. After capturing a photo, you can add notes directly on the 3.5-inch touchscreen for easy documentation and organization.

HD ImagingPrecise TargetingHigh/Low Temp Alerts

Quick FocusEasy Job RecordingWIFI Transfer

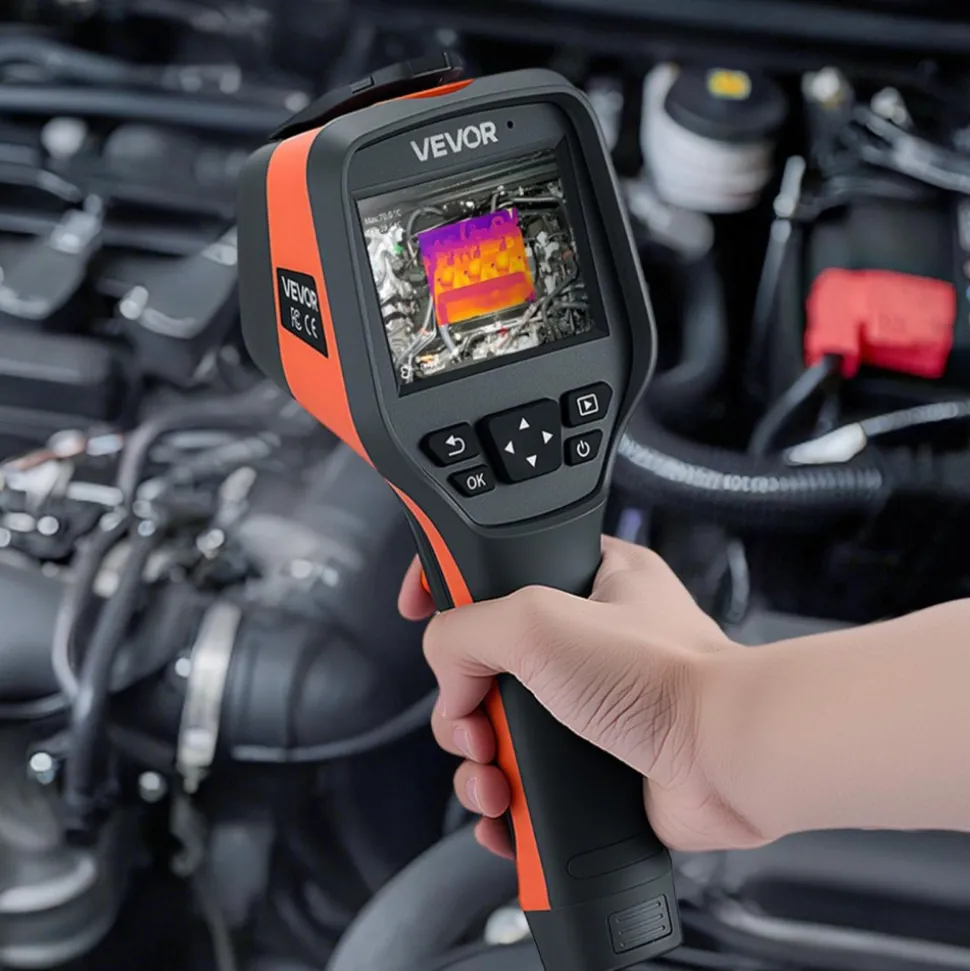

Electrical InspectionHVAC System DiagnosisAutomotive Diagnostics

Key Features

3.5-inch Color Display

Live Thermal Imaging

Visible Light Assist

Clearer Thermal Overlay

4500mAh x 2

Built for Long Sessions
