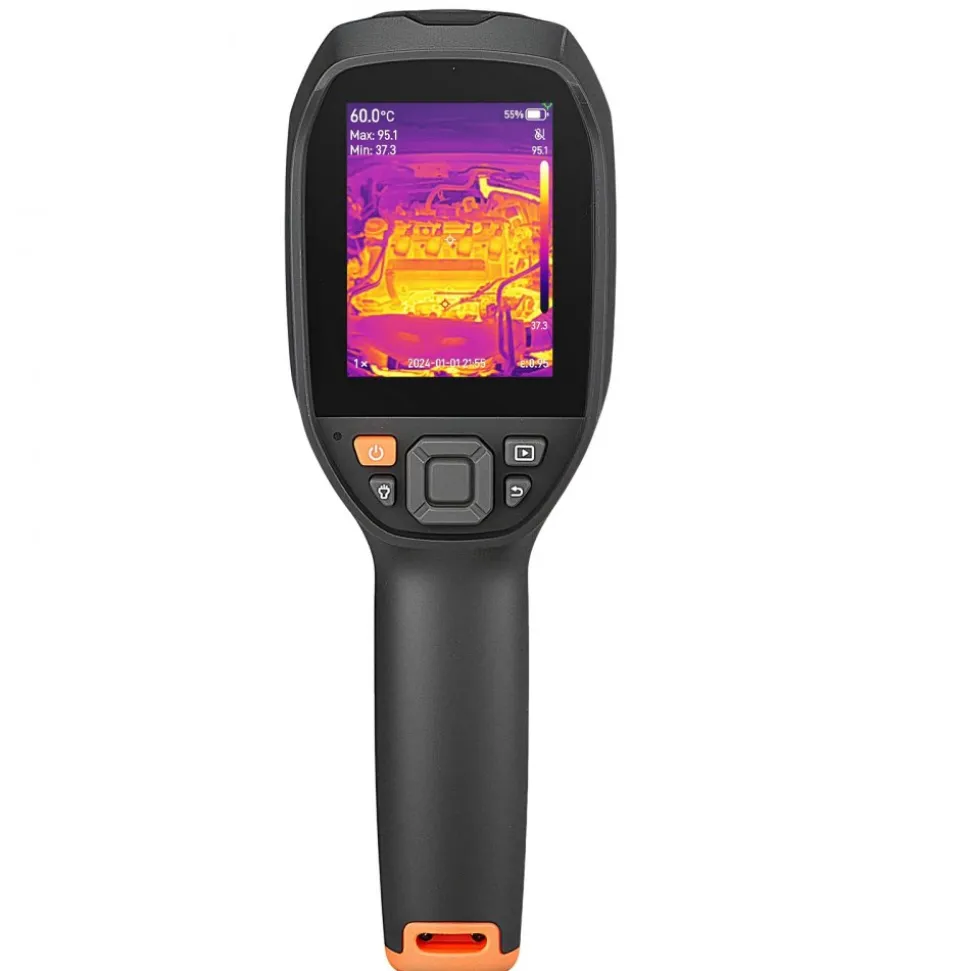

VEVOR Pro Thermal Imaging Camera, Upgraded 512 x 384 TISR Super Resolution, 3.45" LCD Infrared Thermal Imager with 2MP Visual Camera, 25HZ Refresh Rate, -4°F - 1022°F, 4 Image Modes & 7 Color Palettes

VEVOR Pro Thermal Imaging Camera, Upgraded 512 x 384 TISR Super Resolution, 3.45″ LCD Infrared Thermal Imager with 2MP Visual Camera, 25HZ Refresh Rate, -4°F – 1022°F, 4 Image Modes & 7 Color Palettes

$120.89

SKU: SKUBuyzpEtWpT Categories: Electrical, Electrical Testers, Electrical Tools Tag: VEVOR Brand: VEVOR

Description
Reviews (0)

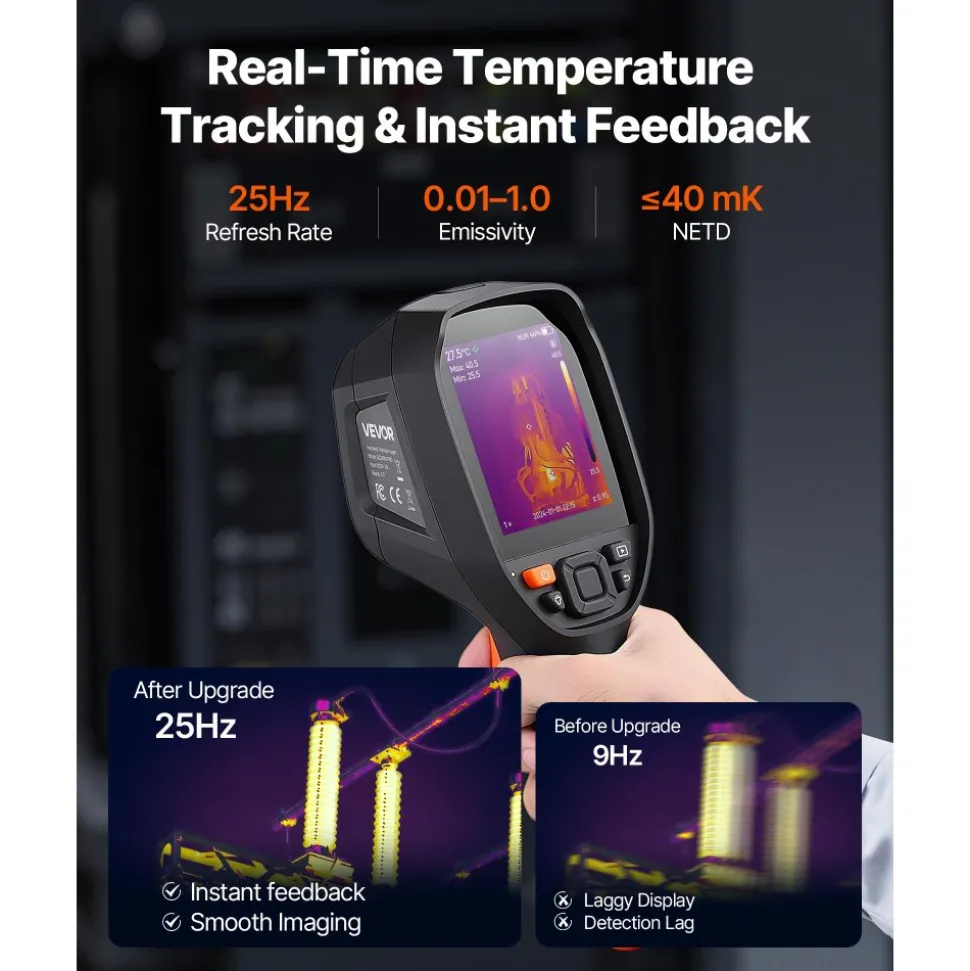

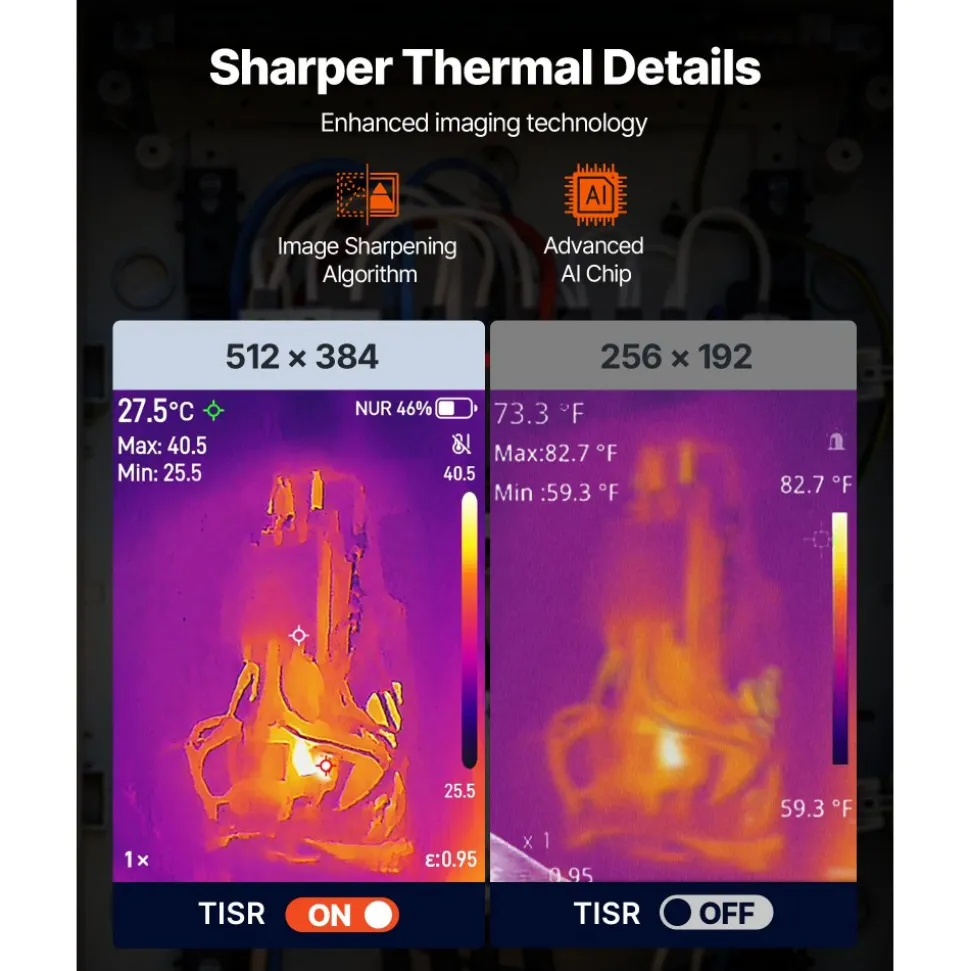

Image Enhancement Technology: VEVOR pro thermal imager adopts TISR enhancement technology, upgrading the original infrared resolution of 256×192 to a 4x super resolution of 512×384. With a 25Hz refresh rate, ≤40 mK thermal sensitivity, and a wide 56° x 42° field of view, combined with image sharpening algorithms and a high-performance AI chip, its 3.45-inch LCD screen captures and displays heat source details with greater clarity

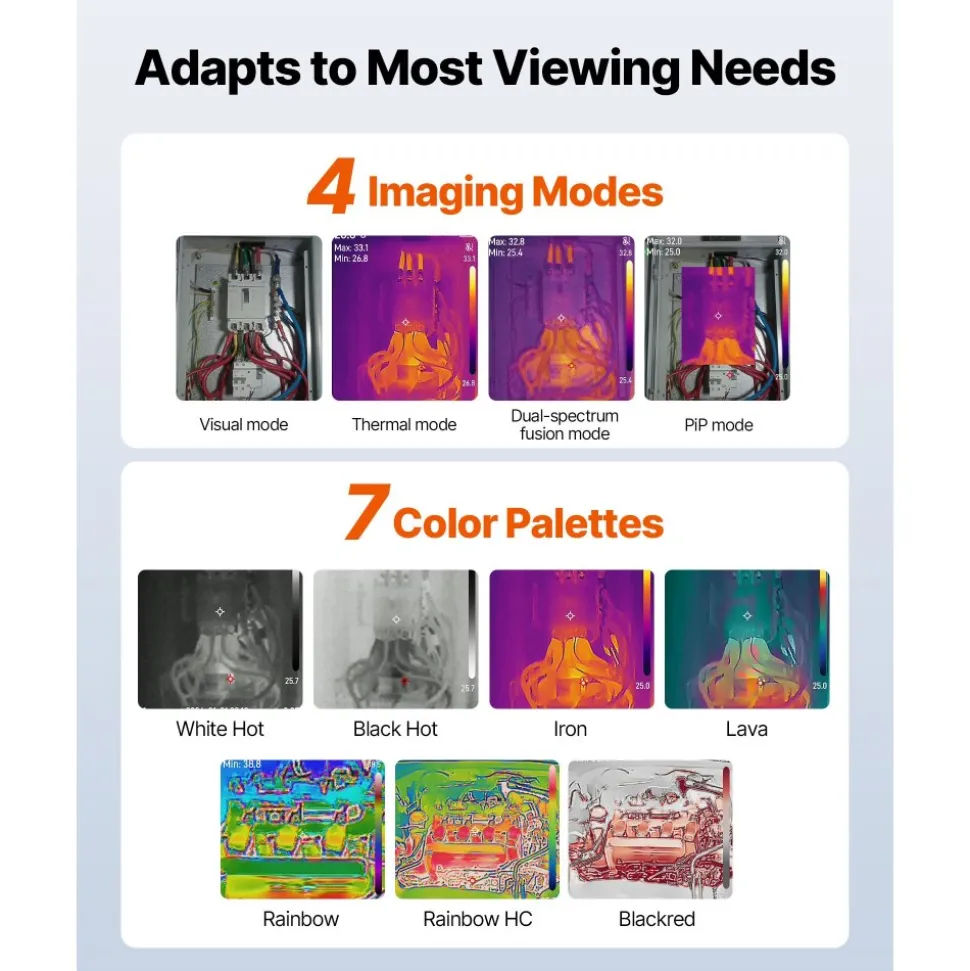

Accurate Temperature Measurement: This infrared camera supports a temperature range from -4°F to 1022°F, automatically identifying and marking hot, cold, and central spots. It offers 4 thermal imaging modes and 7 color palettes for better adaptability to different tasks. The 2x and 4x digital zoom functions enhance observation, helping you capture more subtle details
Quick Fault Detection: Our infrared thermal imager features built-in high/low-temperature alarms to automatically monitor deviations and issue alerts in real time. Equipped with a laser pointer, it allows easy fault positioning and detection of hidden heat risks, making potential issues visible and manageable in advance

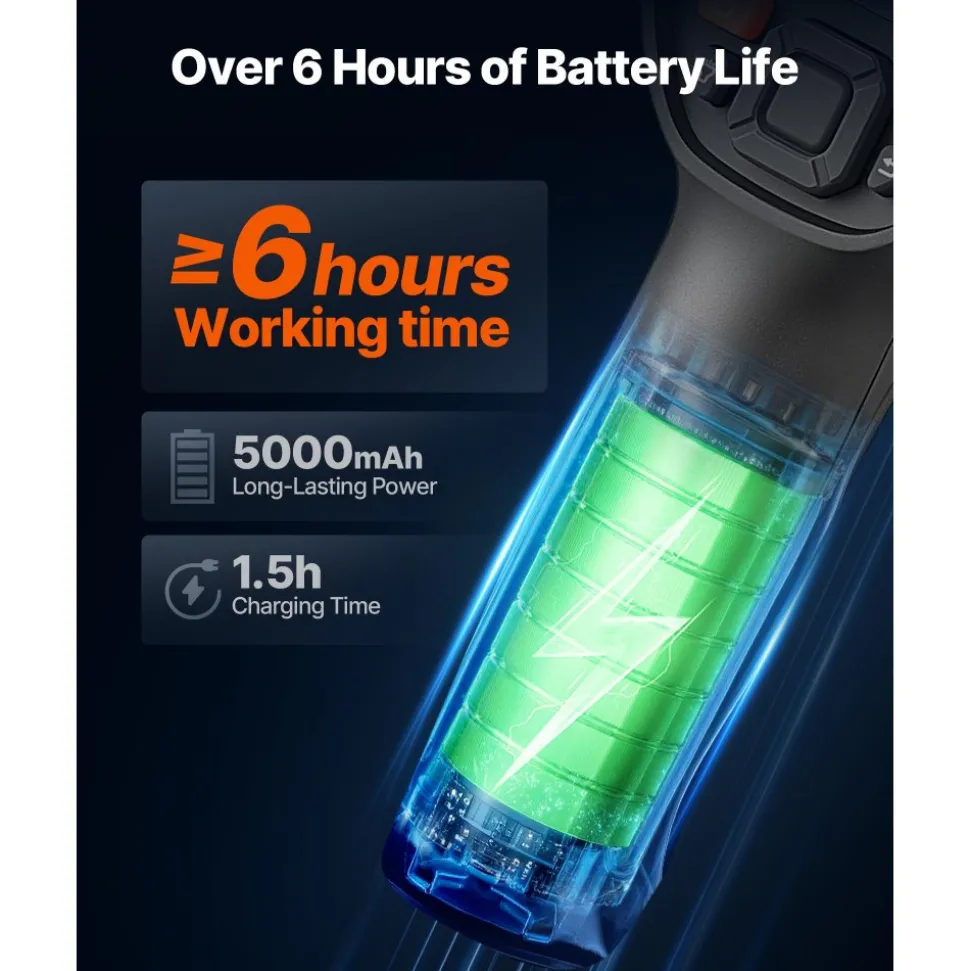

Multiple Upgrades: This thermal camera comes with a 5000mAh large-capacity battery, offering up to 6 hours of runtime. It supports auto power-off, photo and video recording, and an LED work light. The compact and sturdy body withstands drops up to 2 m and, with IP54-rated dust and water resistance, performs reliably in demanding environments

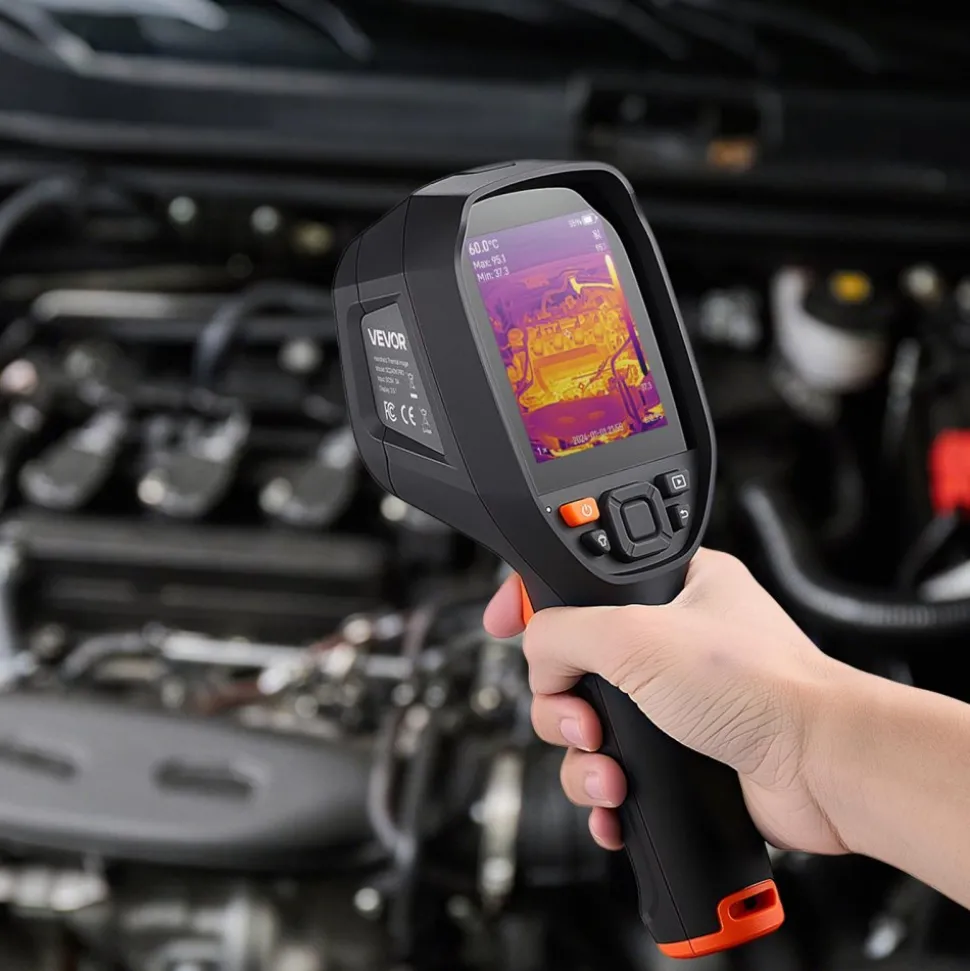

Portable and Reliable: Charging is made convenient with a USB cable. The built-in 32GB storage can hold over 120,000 images, and WiFi connectivity allows easy file transfer. Supporting 13 languages, this device is widely suitable for circuit board inspection, HVAC troubleshooting, electrical checks, building diagnostics, vehicle maintenance, and industrial detection

Item Model Number: SC240M PRO

Infrared Resolution: 256 x 192 pixels

Enhanced Resolution: 512 x 384 pixels (4 x Super Resolution)

Display Size: 3.45 inch LCD

Refresh Rate: 25Hz

Thermal Sensitivity: ≤ 40 mK

Visible Light Resolution: 1600 × 1200 pixels

Emissivity: 0.01 – 1.0

Measuring Distance: 0.5-4m

Temperature Measurement Range: -4℉ to 1022℉ / -20℃ to 550℃

Temperature Resolution: 0.1°C

Temperature Accuracy: ±2°C

Temperature Display: Center / Hot / Cold Spot

Battery Capacity: 5000 mAh

Internal Storage: 32 GB

Drop Resistance: 2 m Drop Resistance

Waterproof Rating: IP54

Language Options: 13 Languages

Operating Temperature: 14℉ to 122℉ / -10℃ to 50℃

Storage Temperature: -4℉ to 140℉ / -20℃ to 60℃

Tripod Support: Supported (Standard 1/4-inch Thread)

Net Weight: 1.5 lbs / 0.68 kg

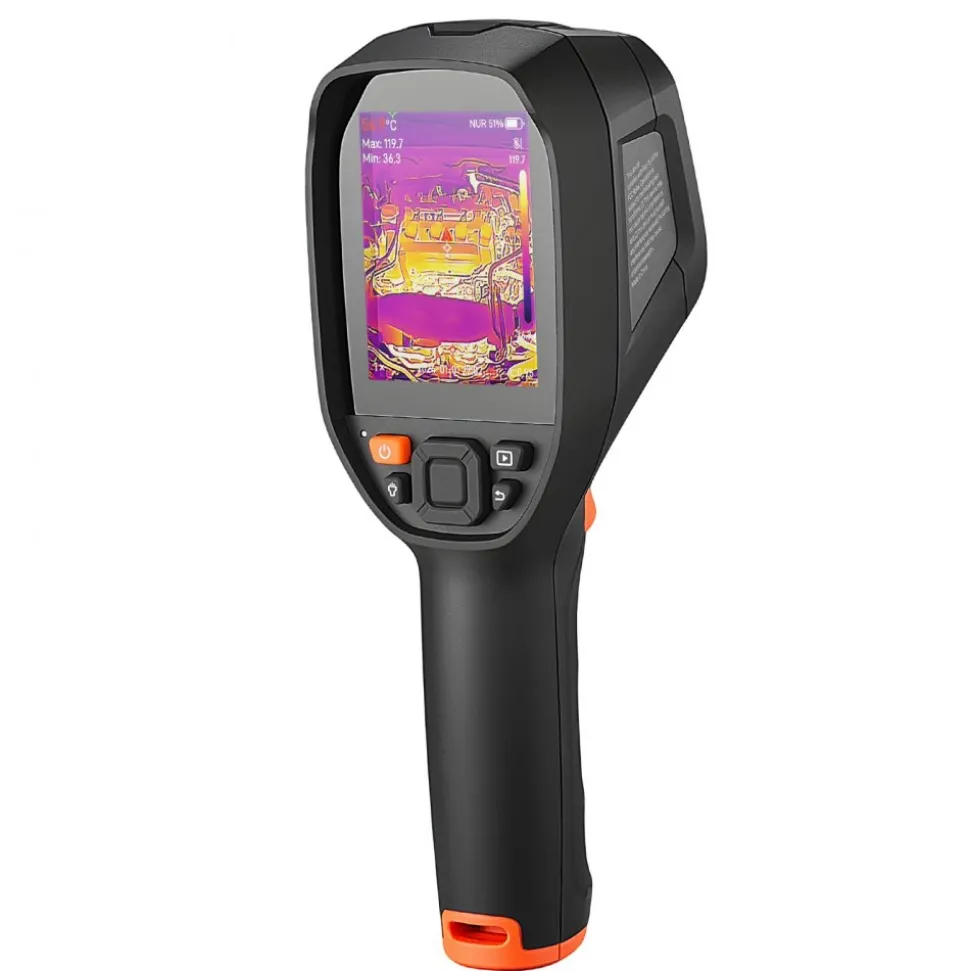

Professional Handheld Thermal Imager

Operate in the palm of your hand with instant imaging! This handheld thermal imager quickly reveals invisible temperature differences, making complex inspections effortless.

Clear Detail DisplayPrecise Temp MeasuringHigh/Low Temp AlertsBuilt-in Flashlight

Wide Field of View4 Image Modes7 Color PalettesBuilt to Last

Electrical InspectionHVAC System DiagnosisAutomotive DiagnosticsCircuit Board Inspections

Key Features

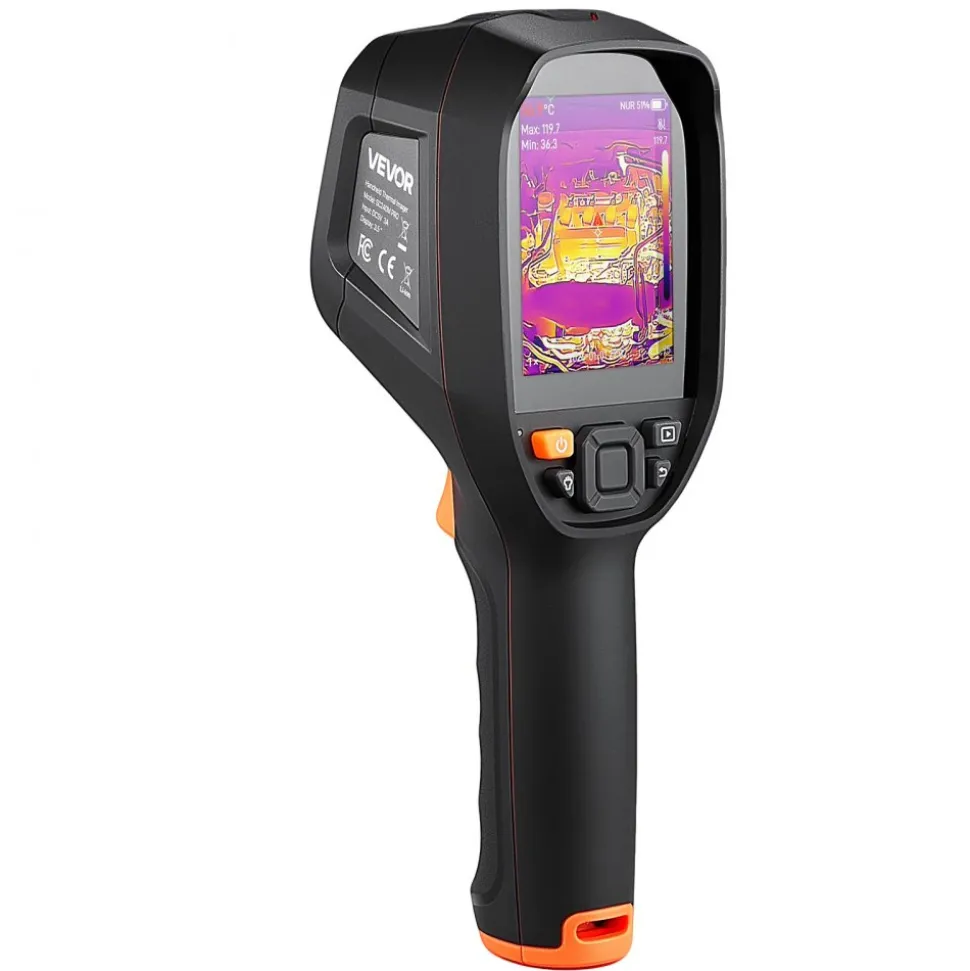

3.45″ Color Display

The large, vivid screen provides real-time thermal visuals, allowing you to easily distinguish temperature variations and identify problem areas.

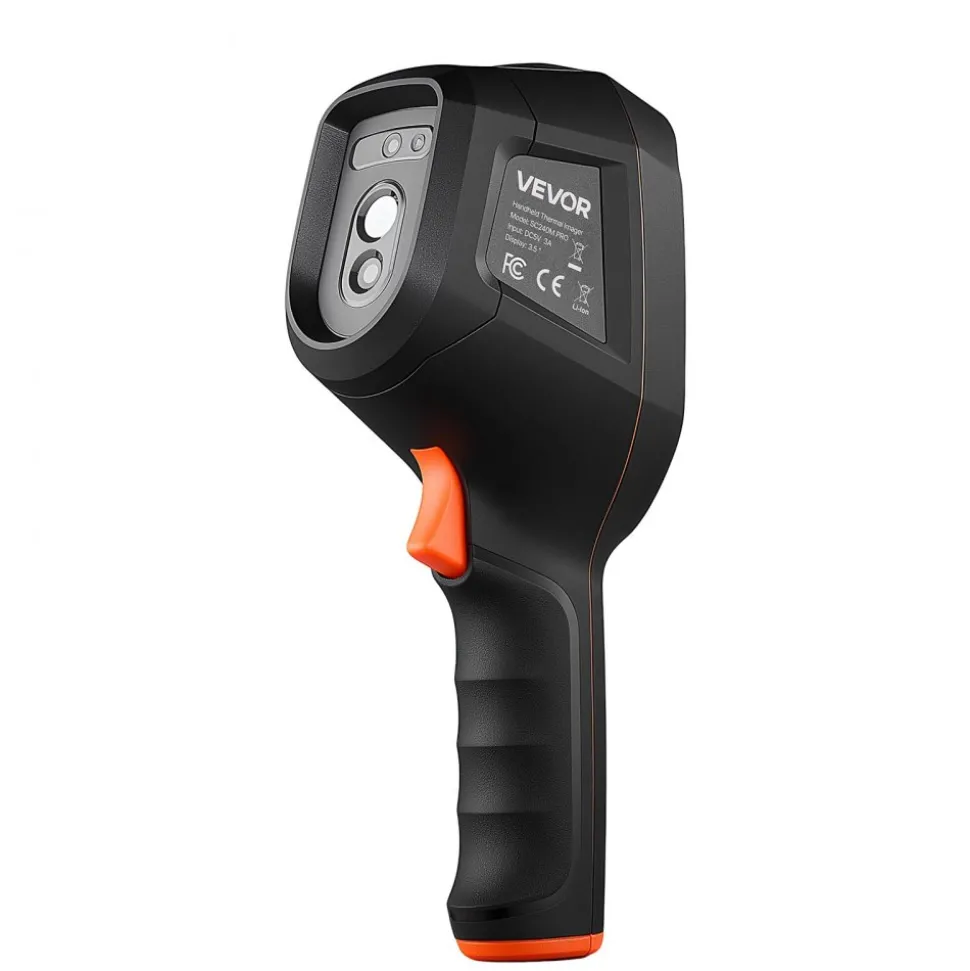

Visible Light Assist

Equipped with a visible light camera, this thermal imaging device combines infrared and visible images for clearer and more accurate results.

5000mAh

Built with a powerful 5000mAh rechargeable battery, this thermal imaging camera supports extended working sessions without frequent recharging.
