VEVOR Pool Heat Exchanger, 600K BTU Swimming Pool Heater Exchanger, 316L Stainless Steel Construction, High Efficiency Water to Water Transfer Heating System for Spa, Hot Tub, Indoor/Outdoor, Silver
Original price was: $309.00.$132.89Current price is: $132.89.

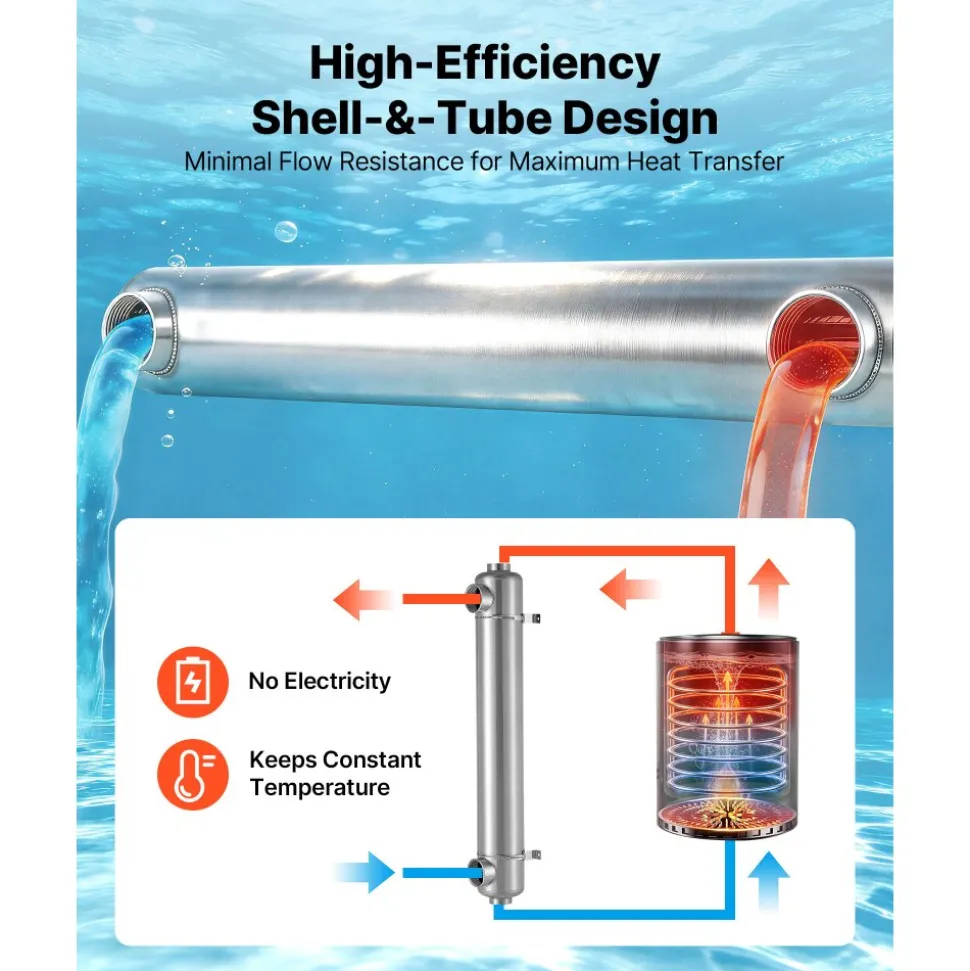

- High Efficiency & Energy Saving: The pool heat exchanger is constructed with 316 stainless steel tubing to enhance heat transfer efficiency. It delivers high thermal capacity of up to 600k BTU/h, making it ideal for demanding pool heating applications

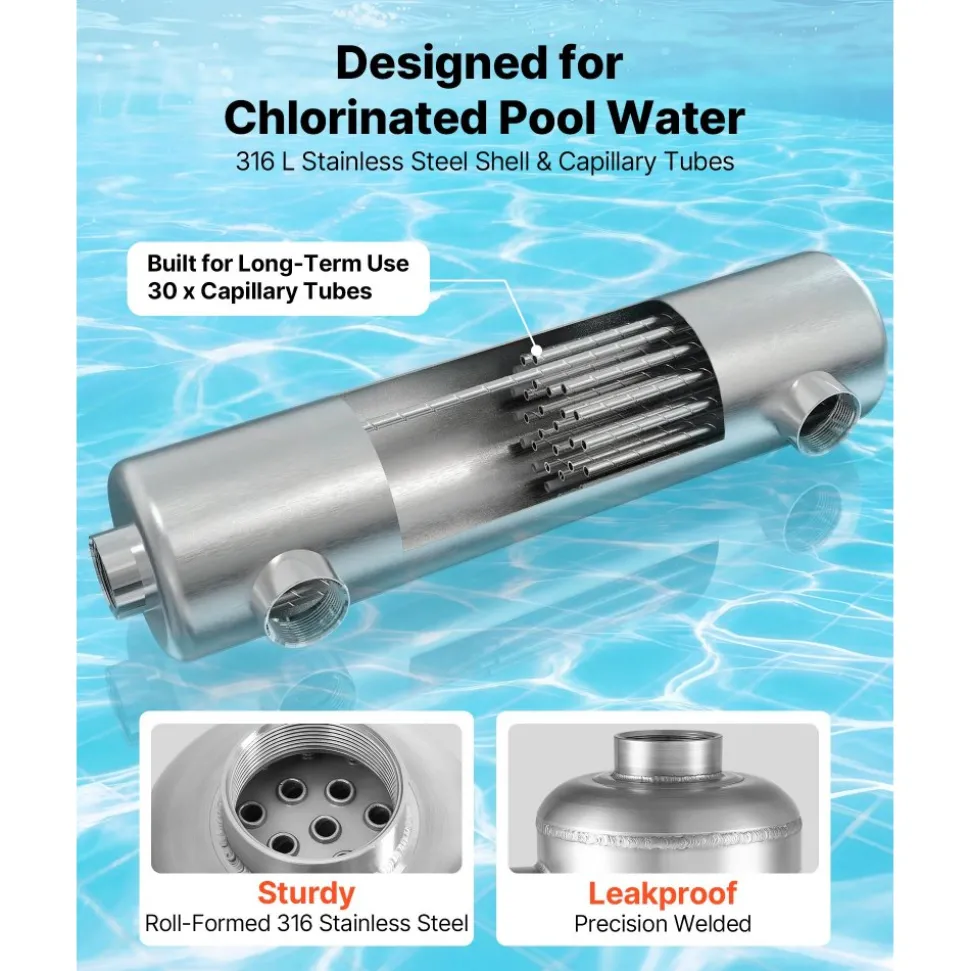

- Large Heat Transfer Area: This heat exchanger features 30 capillary tubes and an effective heat transfer area of 8.1 ft², delivering efficient and reliable performance for a wide range of applications
- Solid Construction: Built from high-quality 316 stainless steel, this pool heater heat exchanger withstand high temperatures and pressure, not prone to rust, suitable for use in humid environments, operating temperature -18-230 ℉
- Sealed and Leakproof: Built to perform as a reliable swimming pool heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This pool water heat exchanger is suitable for indoor and outdoor swimming pools, spa pools, hot tubs, aquaculture, and water treatment systems, providing fast heat transfer and consistent temperature control for enhanced comfort
- Item Model Number
- MF-600K
- Port Connection
- Tube side
- Material
- Stainless Steel 316L
- Color
- Silver

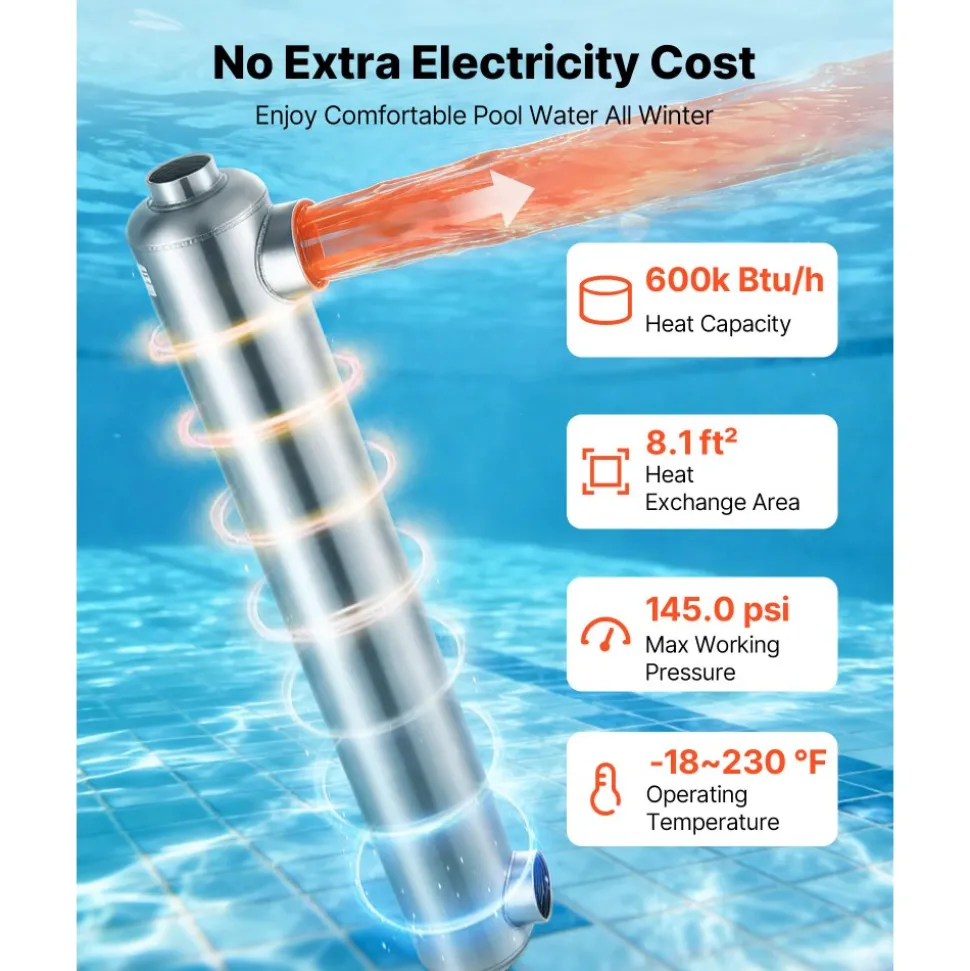

- Heat Capacity
- 600k Btu/h
- Heat Exchange Area
- 8.1 ft² / 0.75 m²
- Number of Tubes
- 30
- Operating Temperature
- -28-110 ℃/ -18-230 ℉
- Net Weight
- 20.9 lbs / 9.5 kg

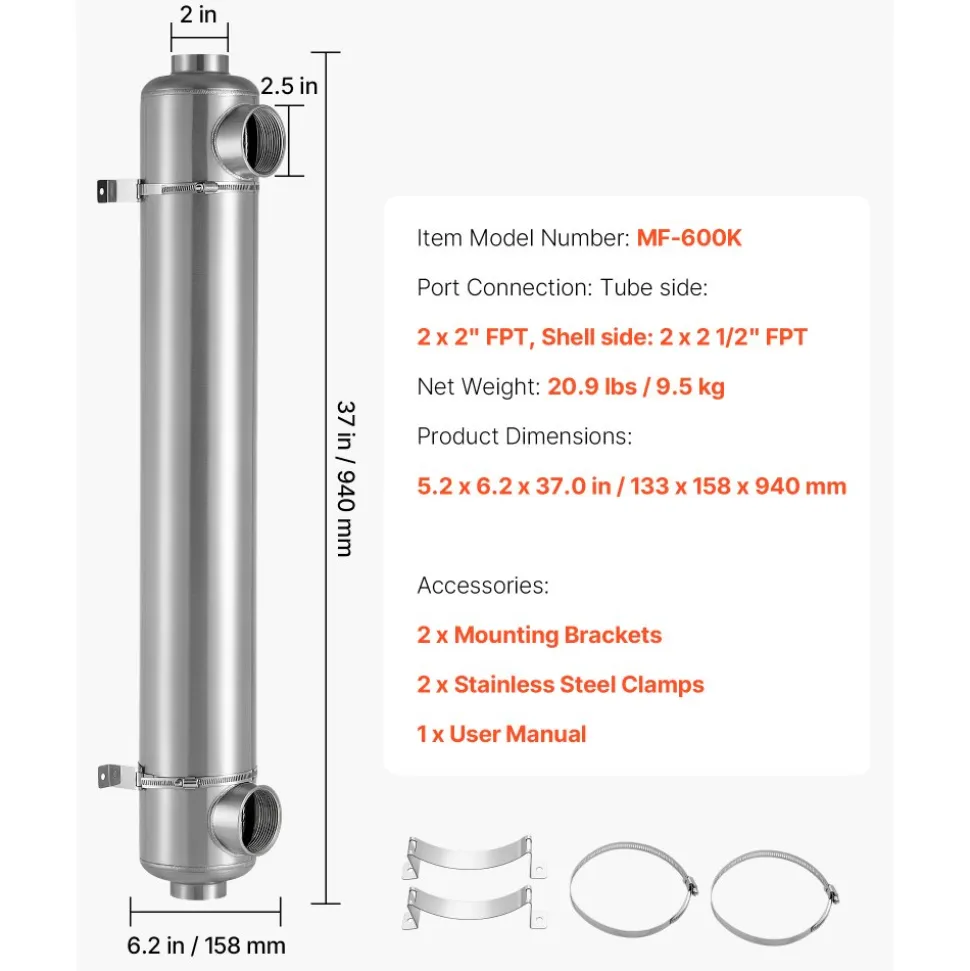

- Product Dimensions
- 5.2 x 6.2 x 37.0 in / 133 x 158 x 940 mm
Pro-level performance without the pro-level cost
This heat exchanger is a smart choice for heat exchange in both large and small swimming pools.
Key Features
S304 Inlet & Outlet

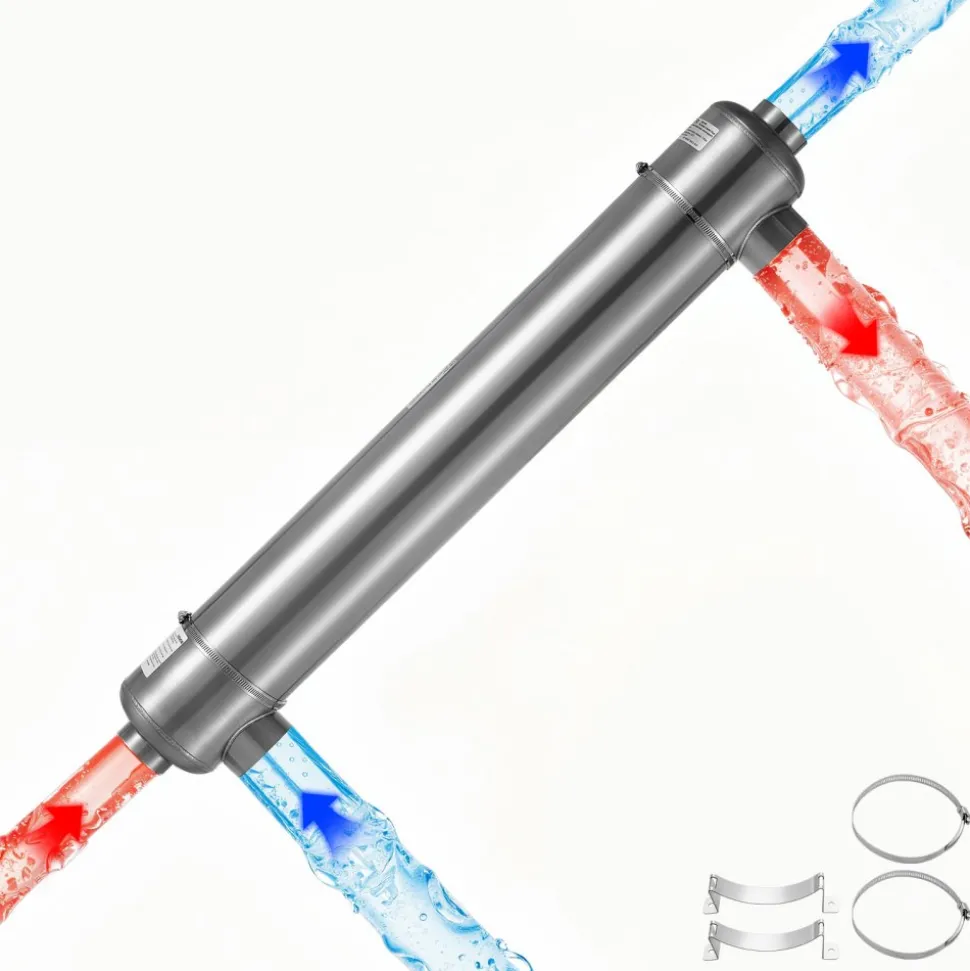

2 in FPT tube-side ports, 2-1/2 in FPT shell-side ports. Please confirm the inlet & outlet ports before use to ensure correct connection.

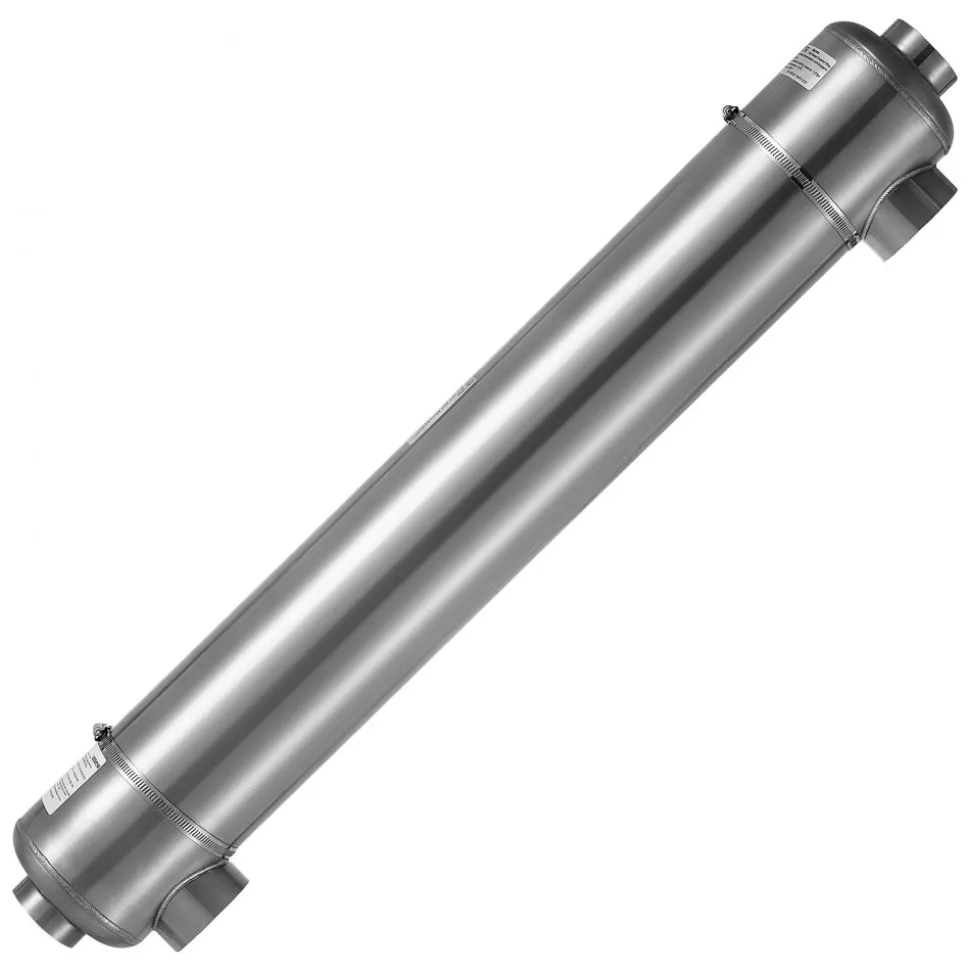

316 Stainless Steel Shell
Seamless one-piece roll-formed construction, built for high temperature & high pressure, helps handle freeze expansion, & made for long-lasting use.
Mounting Brackets & Clamps
Securely fixed with excellent durability in demanding conditions, providing stable continuous operation.
| Size | 210K Btu/h, 360K Btu/h, 600K Btu/h |
|---|
