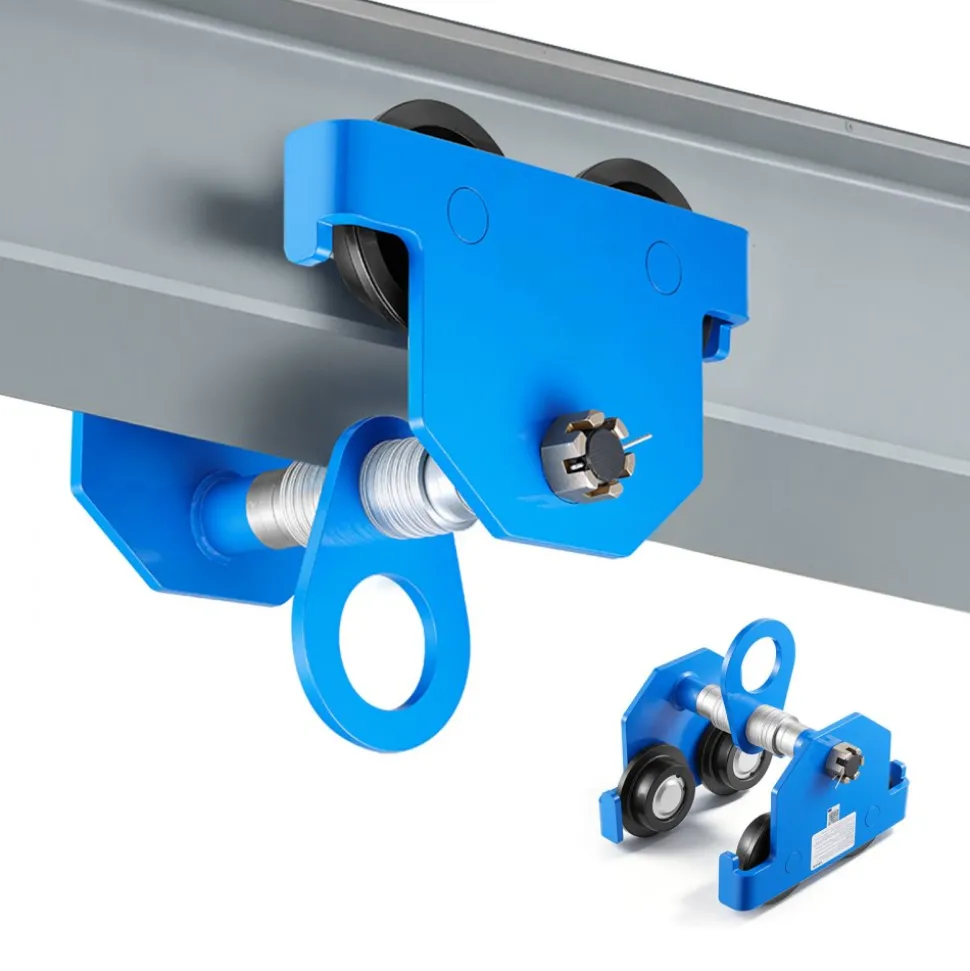

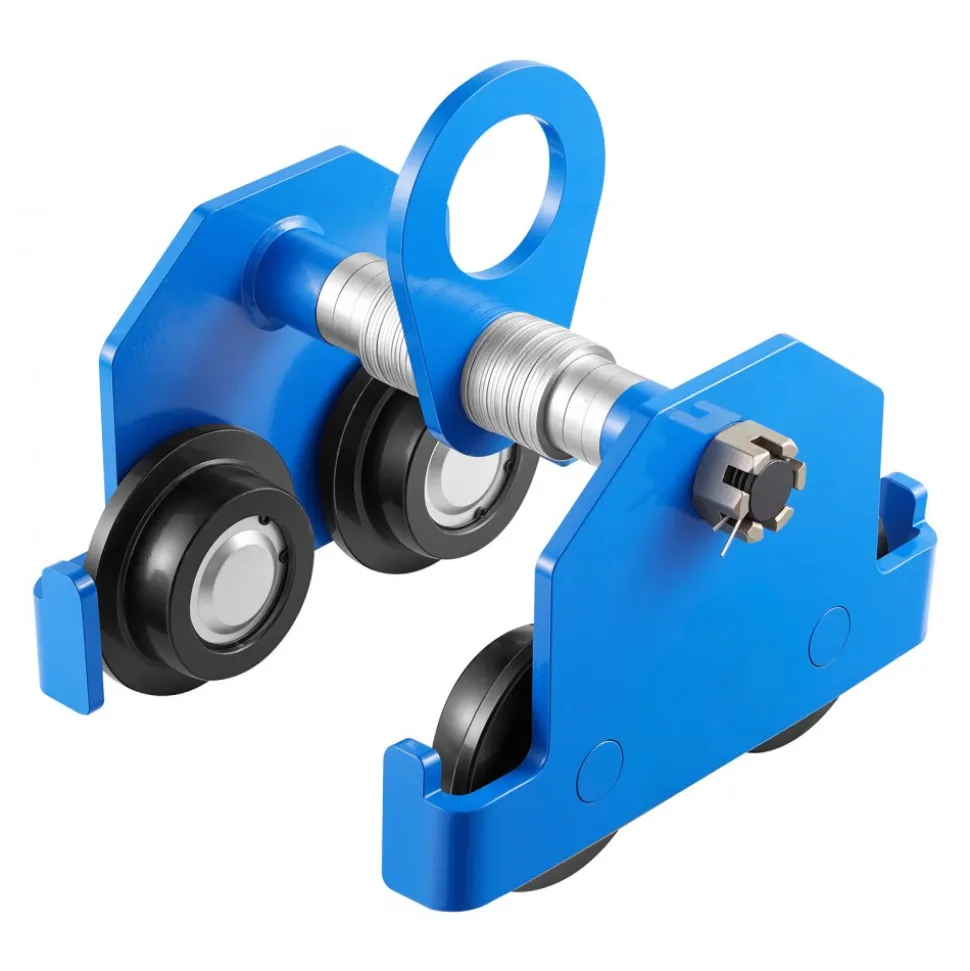

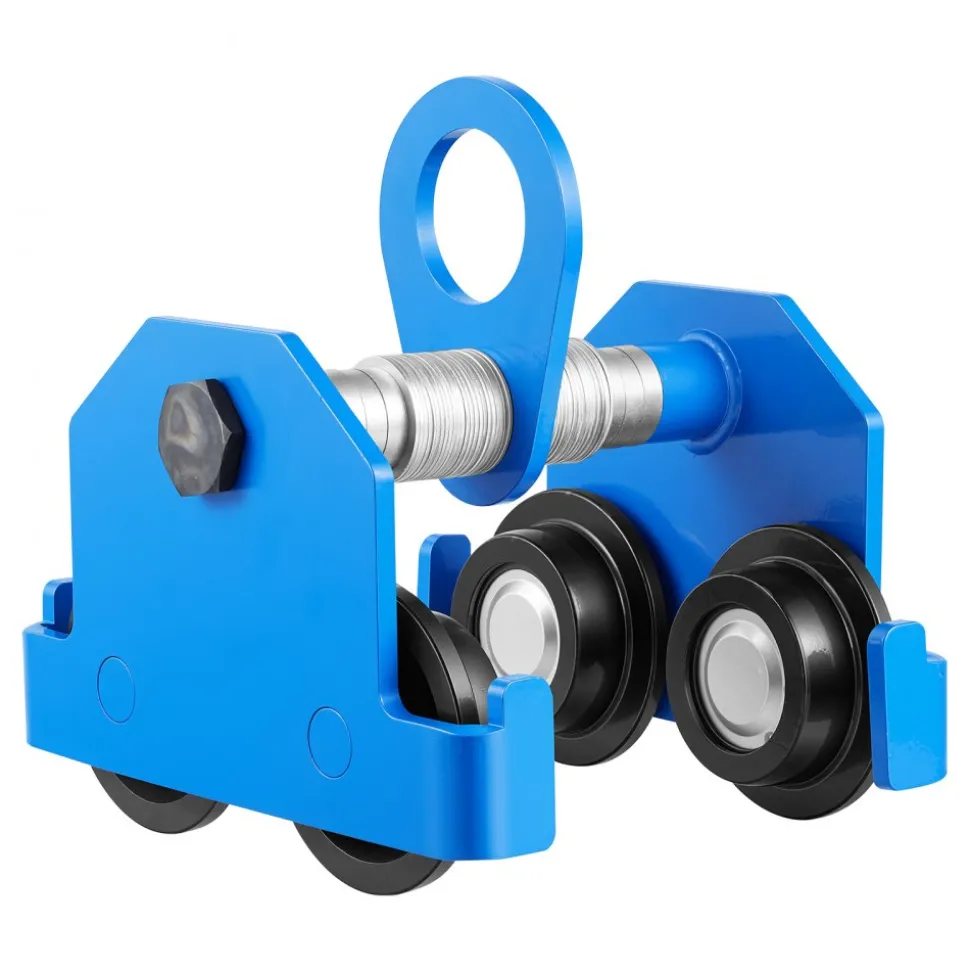

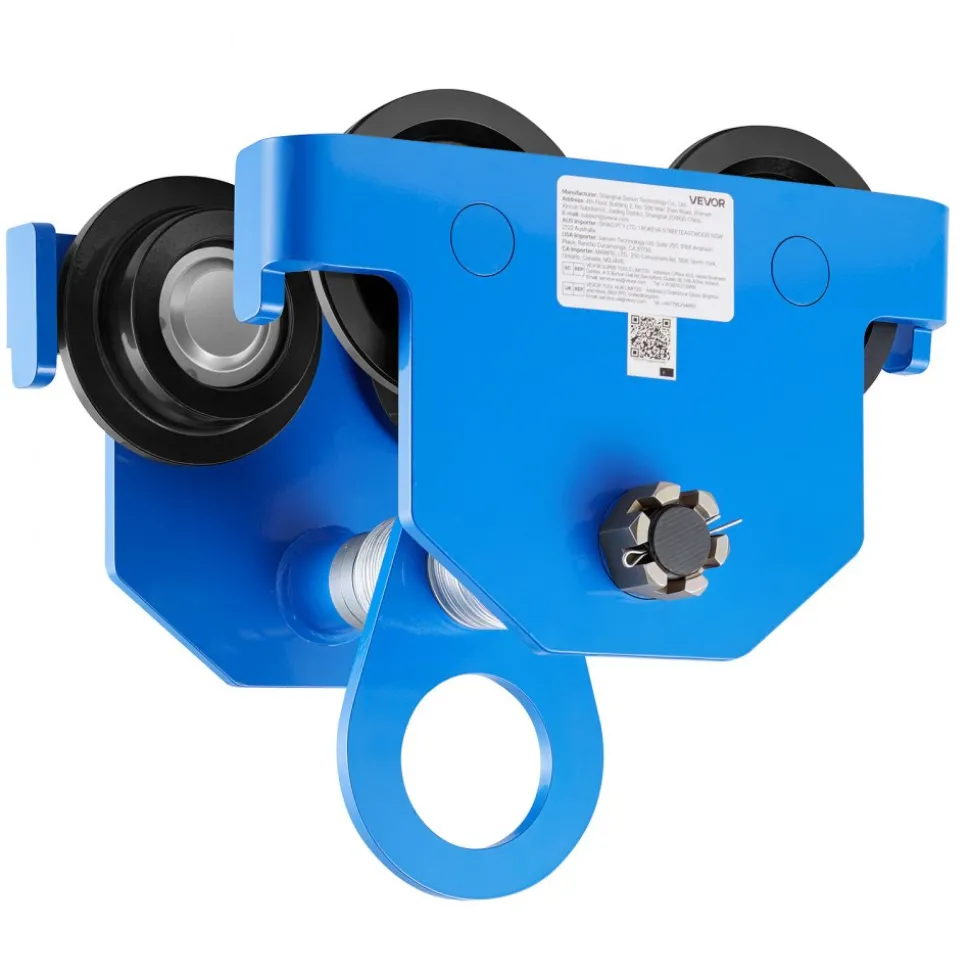

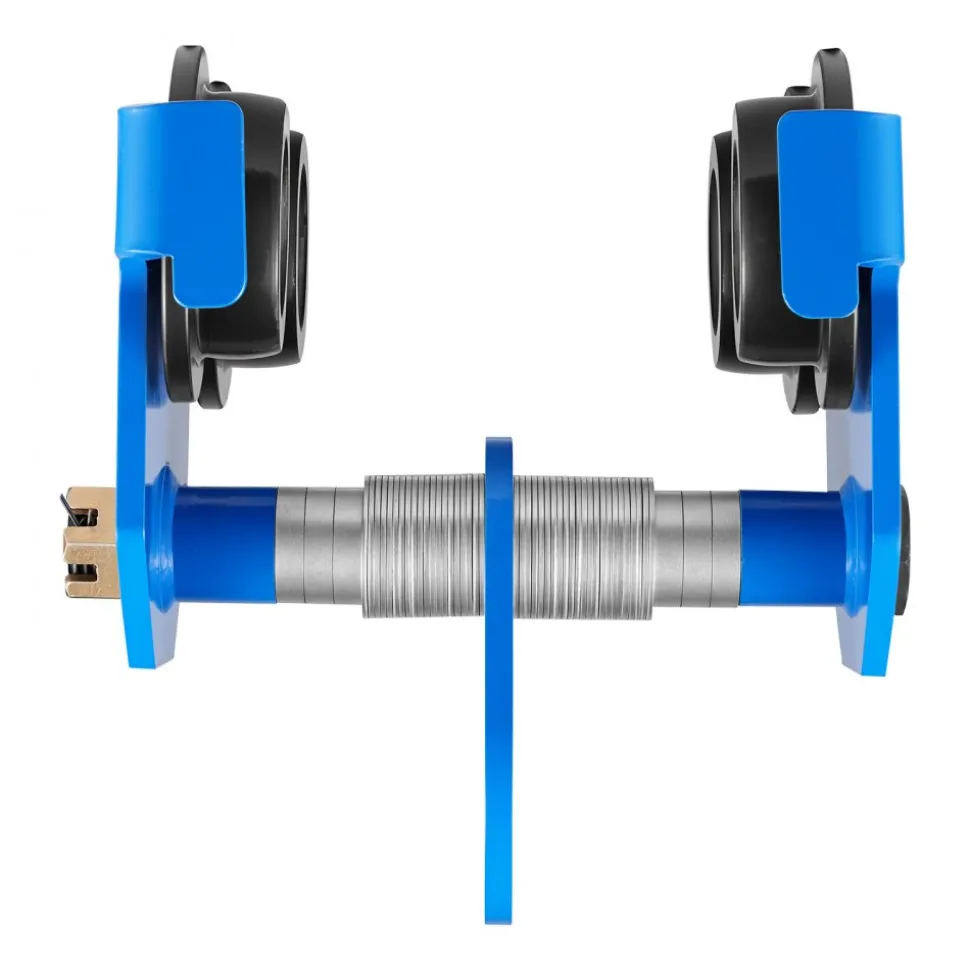

VEVOR Manual Trolley, 6600 lbs/3 Ton Load Capacity, Push Beam Trolley with Dual Wheels, Adjustable for I-Beam Flange Width 2.5″ to 8″, Heavy Duty Carbon Steel Garage Hoist for Straight & Curved I Beam

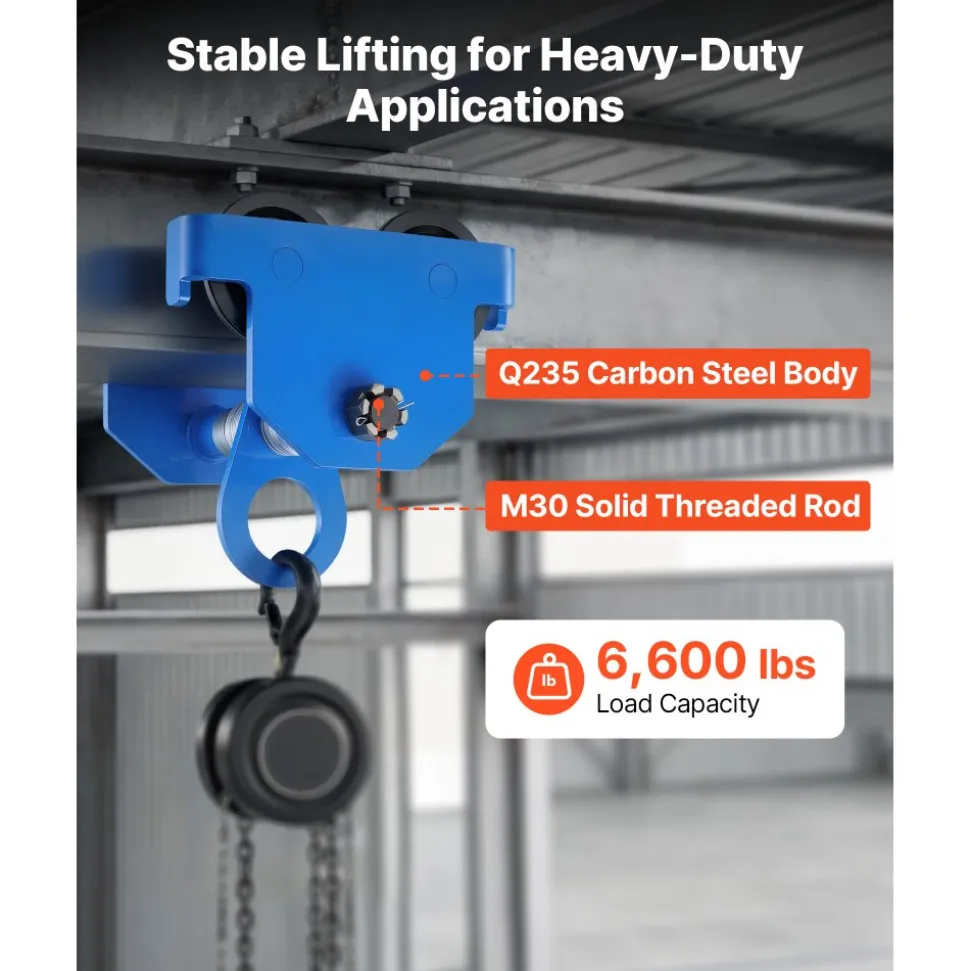

3 Ton Push Beam Trolley with Q235 Carbon Steel Body for 6600 lbs Deformation Resistance

The VEVOR 3 ton push beam trolley is made entirely of Q235 carbon steel, which gives it the tensile strength and impact toughness to support loads of up to 6600 lbs (2994 kg) while maintaining structural stability during heavy-duty lifting operations. Q235 carbon steel provides a reliable balance of strength, toughness, and durability for heavy-duty trolley applications. These qualities are especially useful in a trolley application, where both vertical loads and lateral vibrations act on the structure during hoist operation.

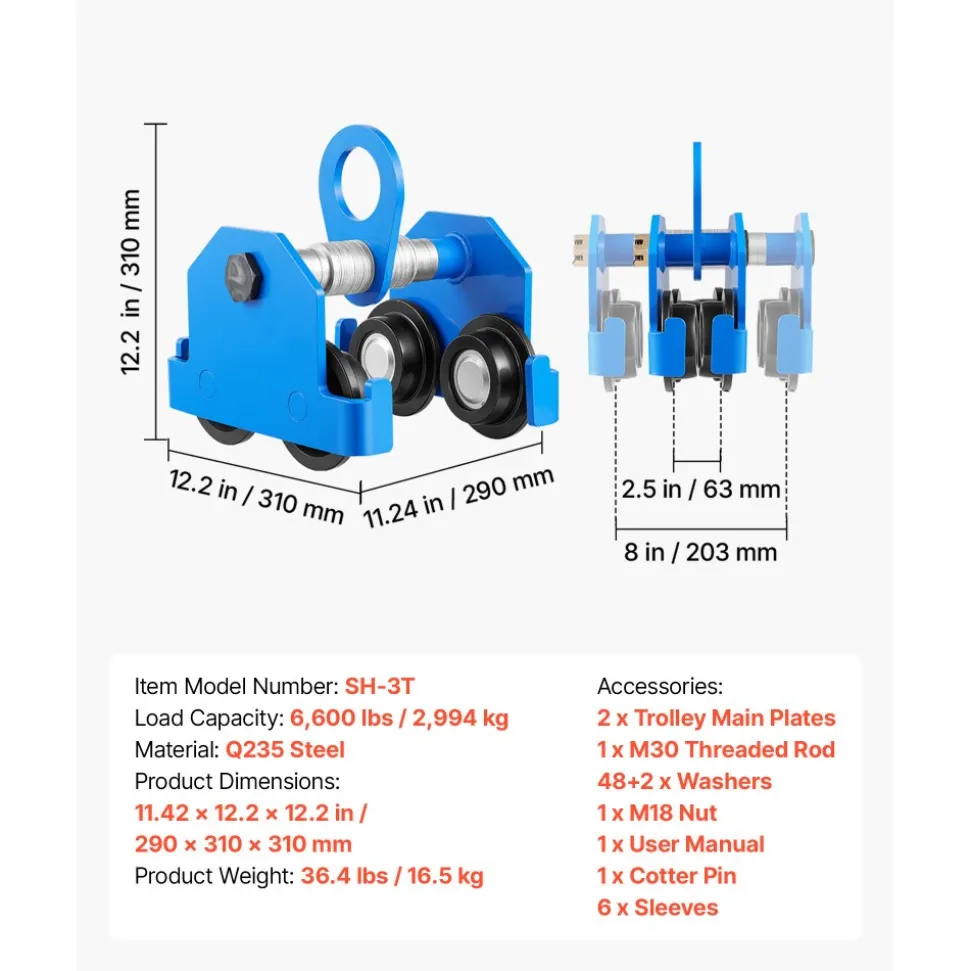

With daily multi-ton load cycles, the solid Q235 construction maintains the trolley’s shape, preventing frame distortion and side-plate spread that occur with lower-grade steel at high loads over time. The trolley weighs 36.4 pounds (16.5 kg) and has dimensions of 11.42 by 12.2 by 12.2 inches (290 by 310 by 310 mm). Its compact design makes setup, handling, and installation easier.

Widened Side Plates for Impact Absorption and Rail Edge Protection During Load Travel

This 3 ton push beam trolley’s side plates are wider than many push-beam trolley side plates. This creates a protective edge that extends beyond the wheel contact zone, preventing collision forces from reaching the wheel assembly. When a loaded trolley hits an end stop, a beam fitting, or an adjacent piece of hanging equipment while moving, the widened side plates provide additional structural support and help keep the trolley assembly aligned on the beam. This reduces peak stress on the wheel bearings, axle pins, and side plate fasteners during impact.

The wider plate also protects against damage from rail edges touching it. When moving across the width of an I-beam, the side plate design improves overall stability and helps maintain proper alignment. This is helpful because the flange edge may have burrs, weld spatter, or other surface irregularities from installation or prior use.

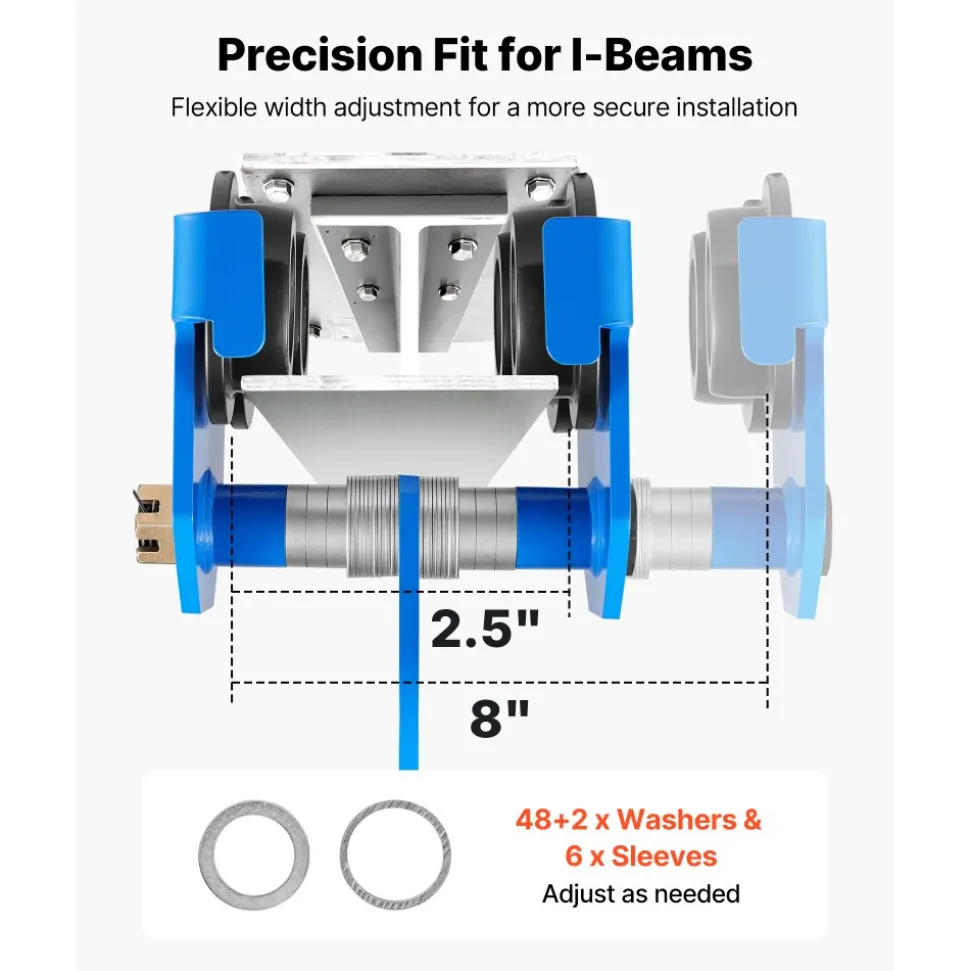

2.5–8 in Spacer-Adjustable Flange Width Across I-Beam and H-Beam Configurations

By adding or removing spacers and sleeves on the side plate bolts, the cart can change the beam flange contact width from 2.5 in to 8 in (63–203 mm). This 5.5-inch total adjustment range goes from standard narrow-flange I-beams used in light residential gantry setups to wide-flange structural H-beams used in large-span industrial facilities. This allows compatibility with a wide range of I-beam and H-beam configurations within the adjustable flange range.

The spacer and sleeve system allows the installer to set the flange gap exactly to match the beam flange width. This provides the clearance needed for stable tracking along the beam. When the gap is set correctly, the trolley stays in the middle of the beam while the load moves across it. This prevents the motion that occurs when the load is not evenly distributed, which happens when the trolley is set too loosely on the flange.

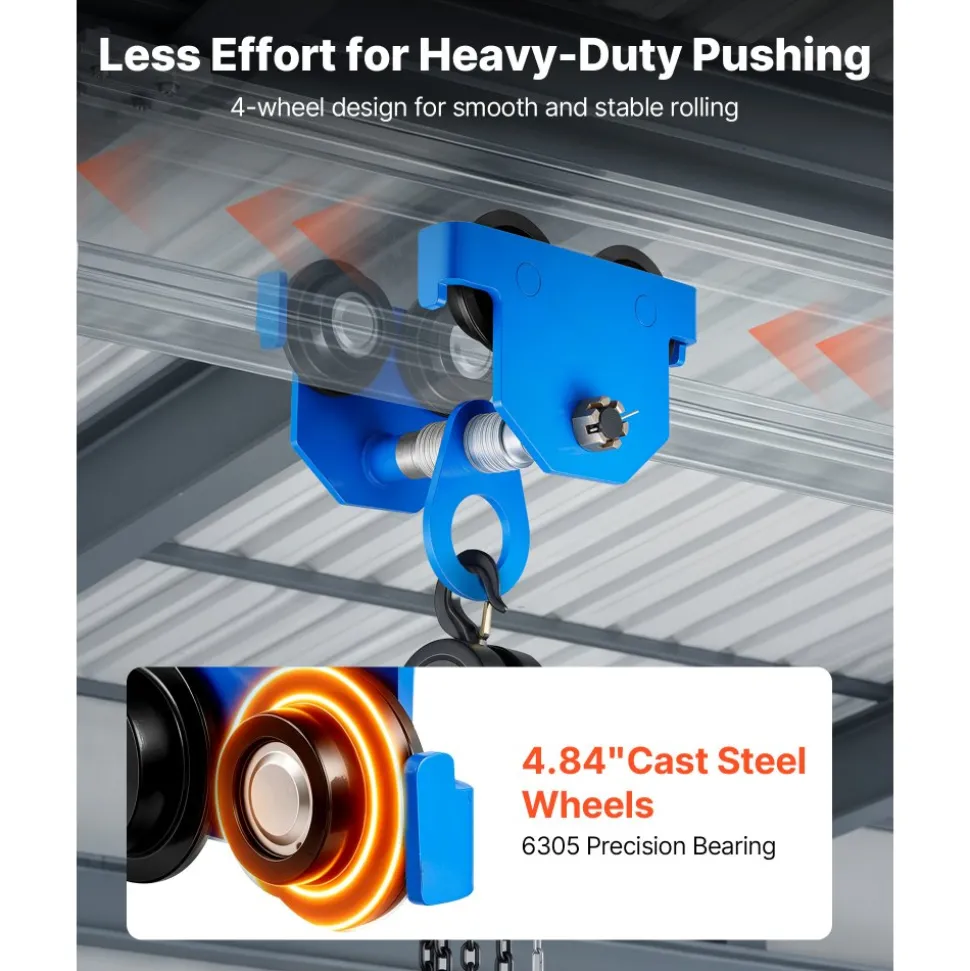

Large-Diameter Cast Steel Wheels and Precision Bearings for Steady Heavy-Load Rolling

The 3 ton push beam trolley moves on large-diameter cast-steel wheels with precision bearings that reduce rolling resistance under the 6,600-lb rated load. This lets the operator move heavy loads suspended from the beam with smooth, steady motion rather than the jerky, hard-to-control rolling that occurs with small-diameter or low-quality wheels at the same load levels. The big wheel diameter spreads the trolley’s contact load over a larger rolling area on the beam flange. This reduces contact stress at the rolling surface, helping the beam flange last longer and move more smoothly.

Precision bearings maintain consistent rolling characteristics from light load to full maximum load by minimizing internal bearing play and friction variation across the load range. This rolling consistency is especially important when the operator needs to know how the trolley will react to a push force. Uneven resistance makes it difficult to place loads correctly and increases the risk of straying from the goal position.

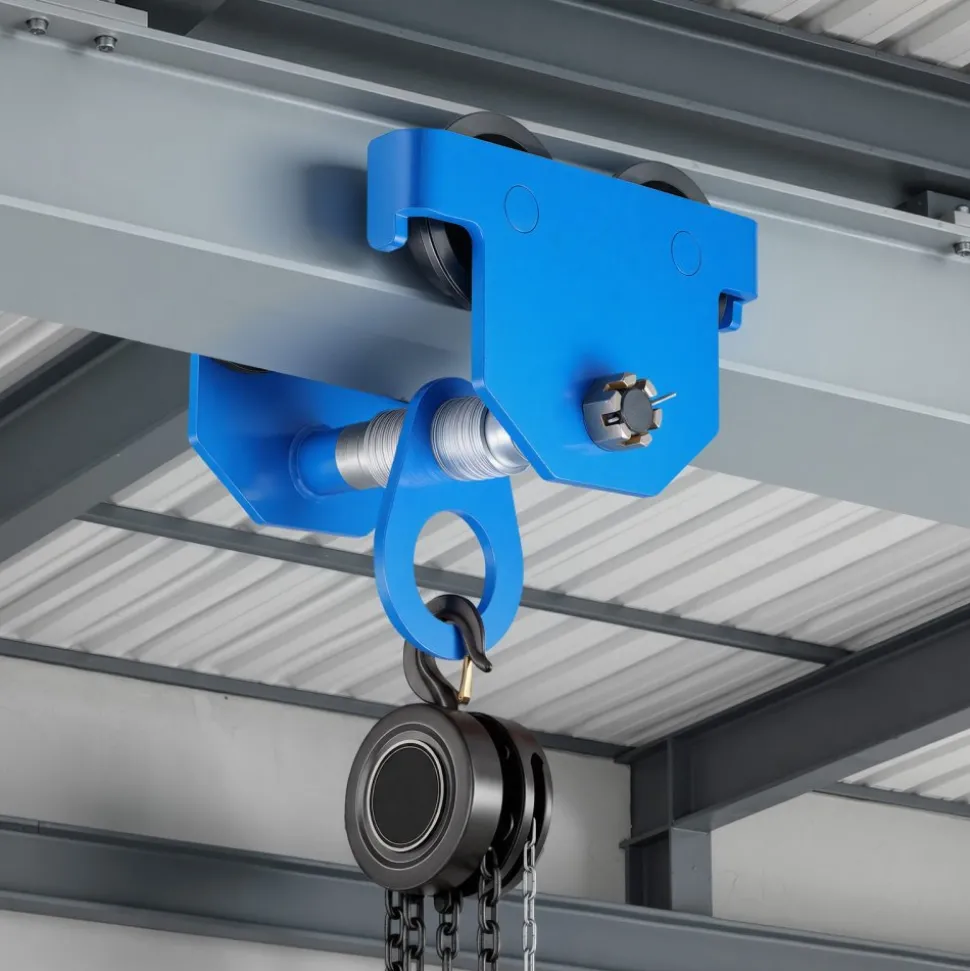

3 Ton Push Beam Trolley with Single-Wrench No-Weld Assembly for Fast Installation

Installation does not require welding, drilling, or permanent beam modifications. All you need is a single wrench. To finish the installation, measure the width of the beam flange, choose the appropriate spacer and sleeve combination to set the side plate gap, place the trolley on the beam flange from below, and tighten the fasteners with the wrench.

The trolley can be used in rental spaces, leased facilities, and temporary buildings or job-site installations where the beam infrastructure cannot be permanently altered, since no welding is required. The trolley can be placed and removed without leaving any marks on the beam structure. This means it can be moved to a different beam position or site and put back in place without any extra work. The simple assembly design makes setup easier with basic tools.

Rust and Wear Resistance for Dusty Workshops and Outdoor Job Site Conditions

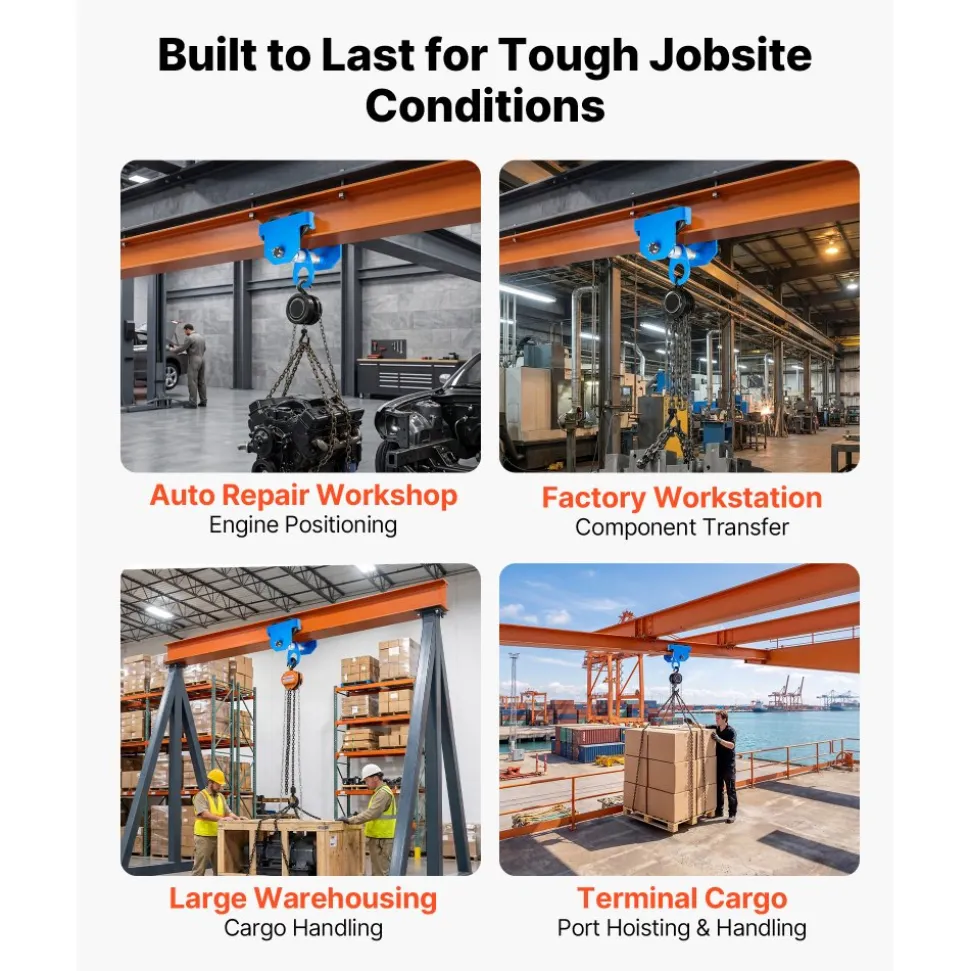

People use this 3 ton push beam trolley in many different places, such as dusty fabrication shops, auto repair garages, covered outdoor construction areas, agricultural buildings with high humidity, and roofed industrial sites where the trolley may get wet from rain, condensation, or washing down. The Q235 steel construction is treated to resist rust and surface wear.

The durable wheel-and-bearing design helps reduce wear during repeated lifting operations. The corrosion-resistant body treatment and long-lasting wheel materials ensure the trolley remains reliable for year-round daily industrial use. This lowers the total cost of ownership compared to lower-quality trolleys that need wheel or bearing replacements more often in the same conditions.
