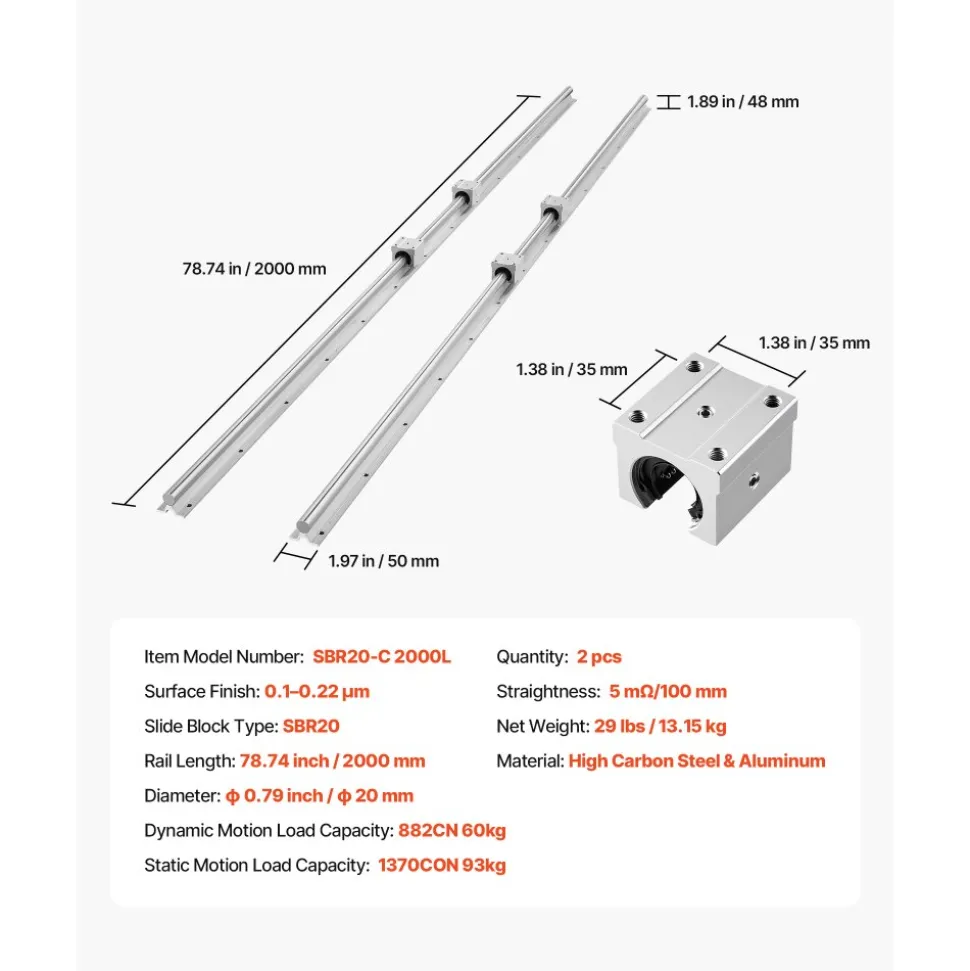

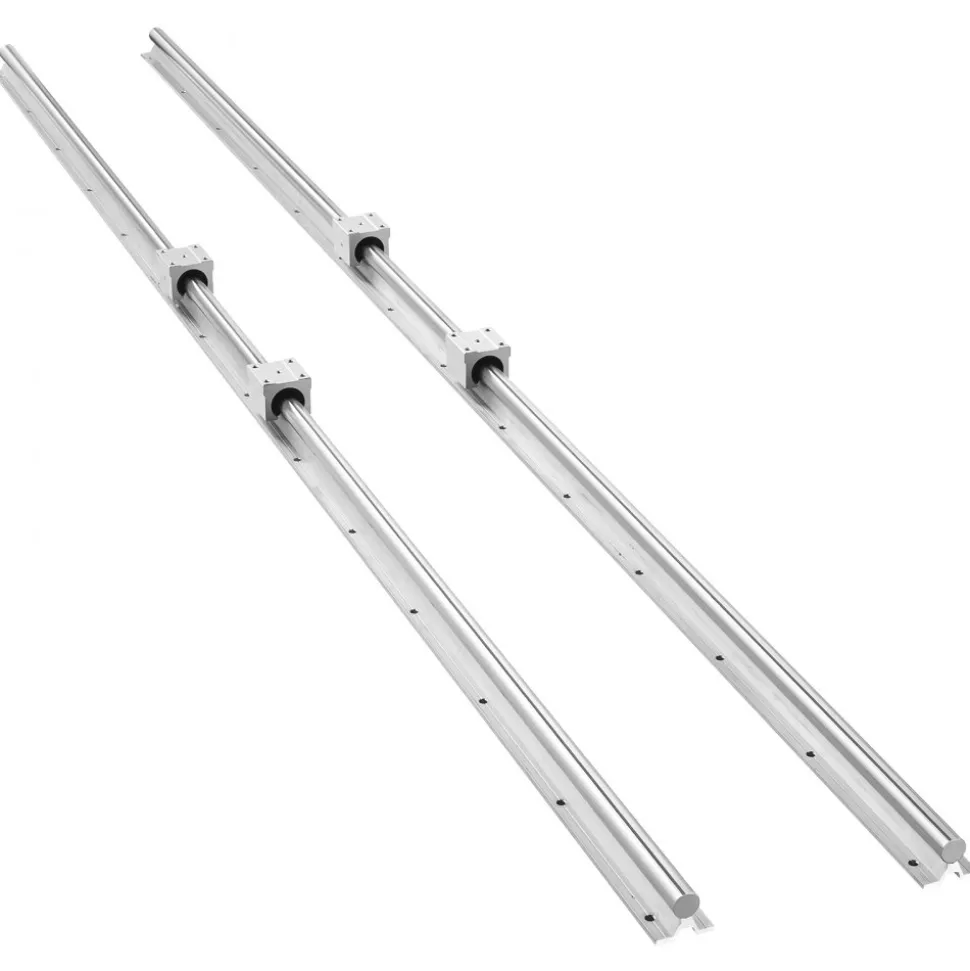

VEVOR Linear Rail Kit, SBR20, 2Pcs 2000 mm (78.74 inch) Linear Motion Guide Rails and 4Pcs Bearing Slide Blocks, Fully Supported Shaft, for Cutting, Grinding, Milling, Drilling Machines, and More

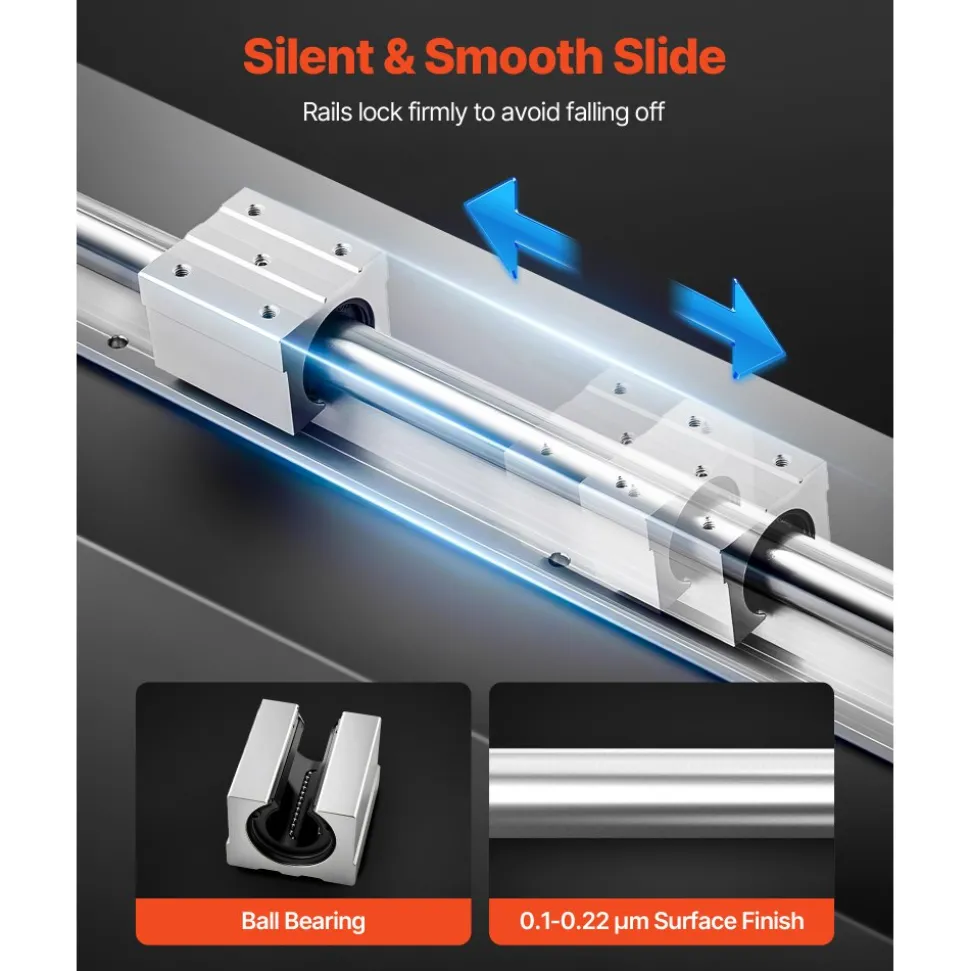

Linear Motion Guide Rails with 0.1 to 0.22μm Surface Finish and 5mΩ Straightness for High Positioning Accuracy

The surface finish of these linear motion guide rails is 0.1 to 0.22 micrometers Ra, which is within the range typically associated with precision ground parts used in automated machinery and CNC systems. This excellent surface quality ensures that the bearing blocks maintain constant contact with the shaft throughout the entire travel distance and reduces micro vibration during high speed travel. Repeatable positioning, or the carriage’s capacity to consistently return to the same location on each pass, is directly supported by consistent contact.

This linear motion guide rail specification’s tight straightness tolerance guarantees that the shaft will not bow or deviate laterally over its 2000mm length. In long travel applications such as CNC gantry axes, where any curvature in the rail directly translates into positioning error at the tool or workpiece, straightness is crucial. The kit is appropriate for applications that require precise tolerances over the entire travel distance due to this characteristic.

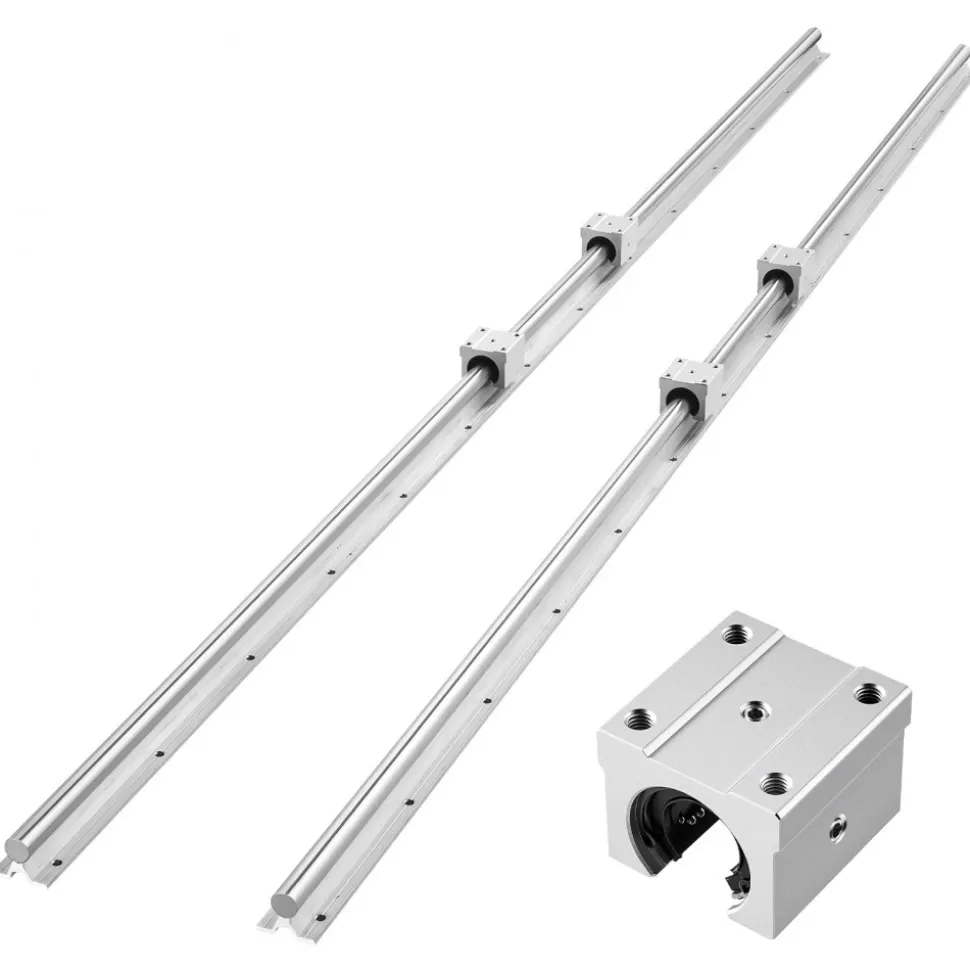

Ball Bearing SBR20UU Slide Blocks with 882N Dynamic and 1370N Static Load Ratings

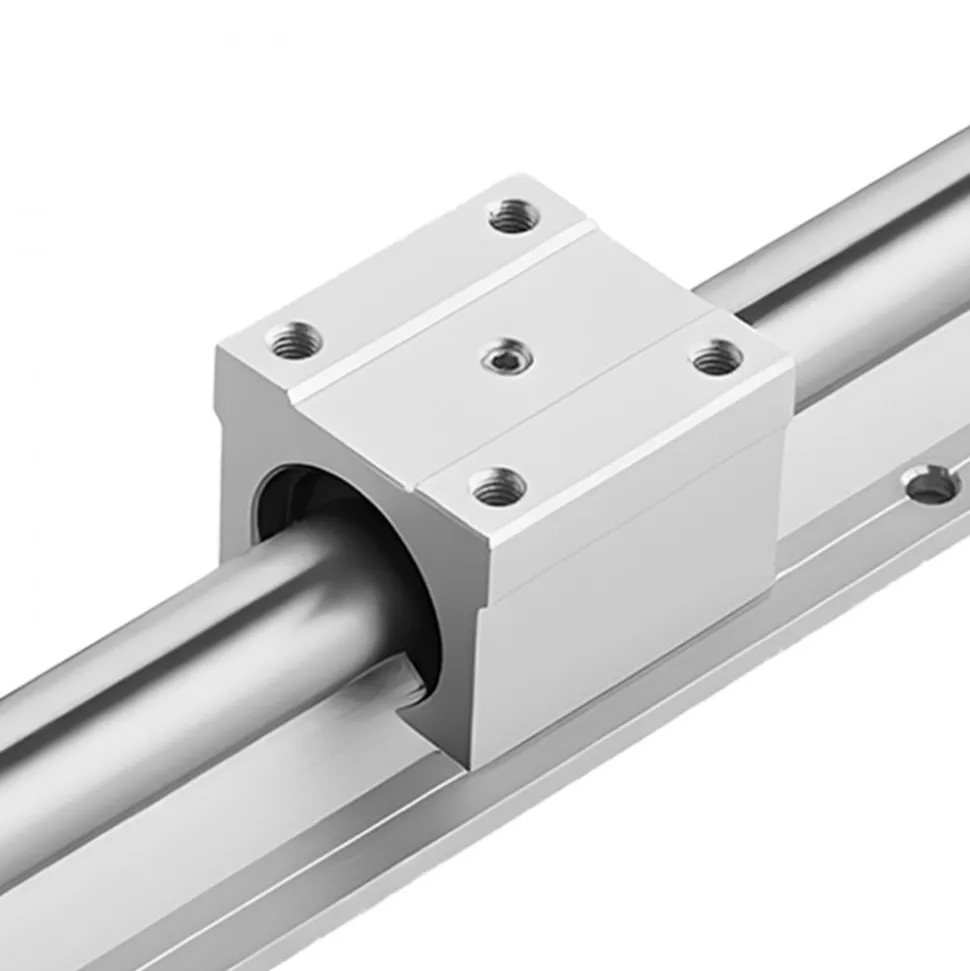

The four SBR20UU slide blocks provided feature aluminum alloy housings with built in, precisely fitted ball bearings that move within the bearing race as the block moves along the shaft. The carriage can travel with little difficulty, even under load, thanks to the rolling contact of the ball bearings, which generates much less friction than sliding contact alternatives. This low friction travel extends the life of drive components, reduces motor torque requirements, and improves the machine’s overall smoothness and quietness.

With ratings of 882 N for dynamic load and 1370 N for static load, each block has sufficient capacity to handle the forces encountered in common CNC routing, milling, drilling, and grinding operations. The block’s aluminum casing maintains the dimensional rigidity required for precise guidance while keeping it lightweight. In addition to compensating for slight shaft deflection, the ball bearing arrangement enables the blocks to move smoothly even under modest side stresses during cutting or machining.

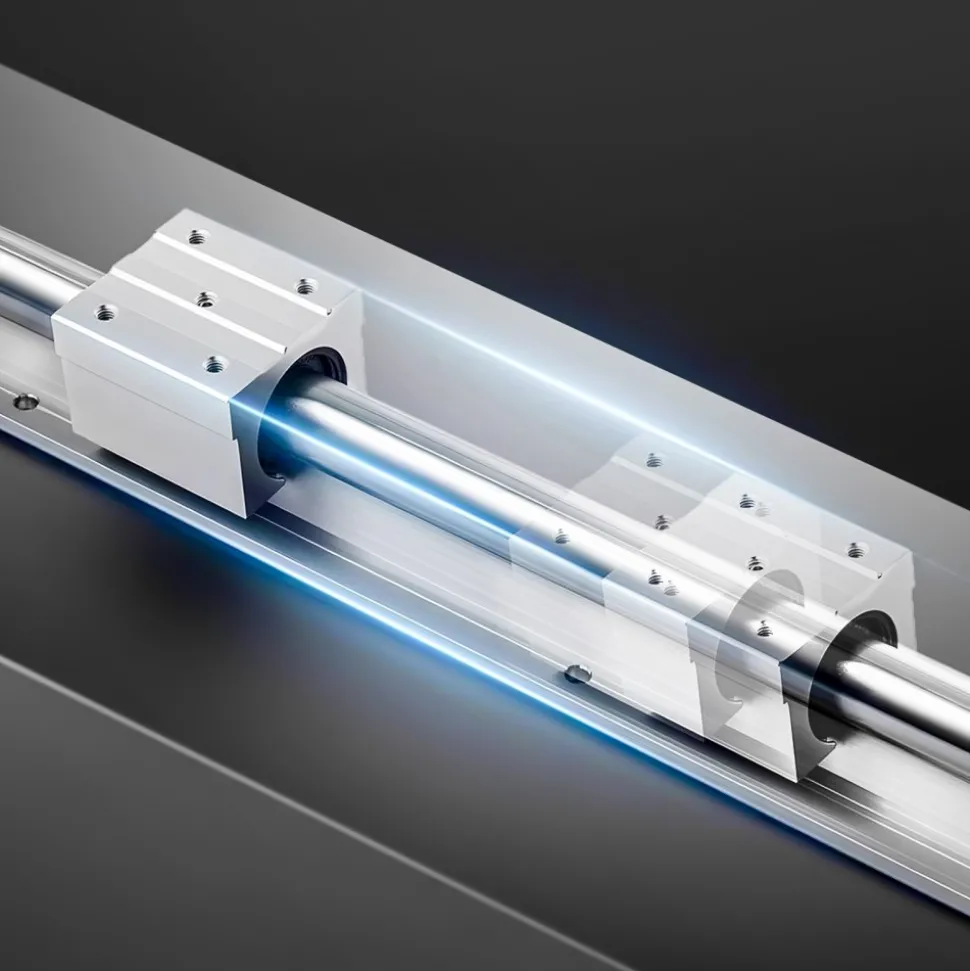

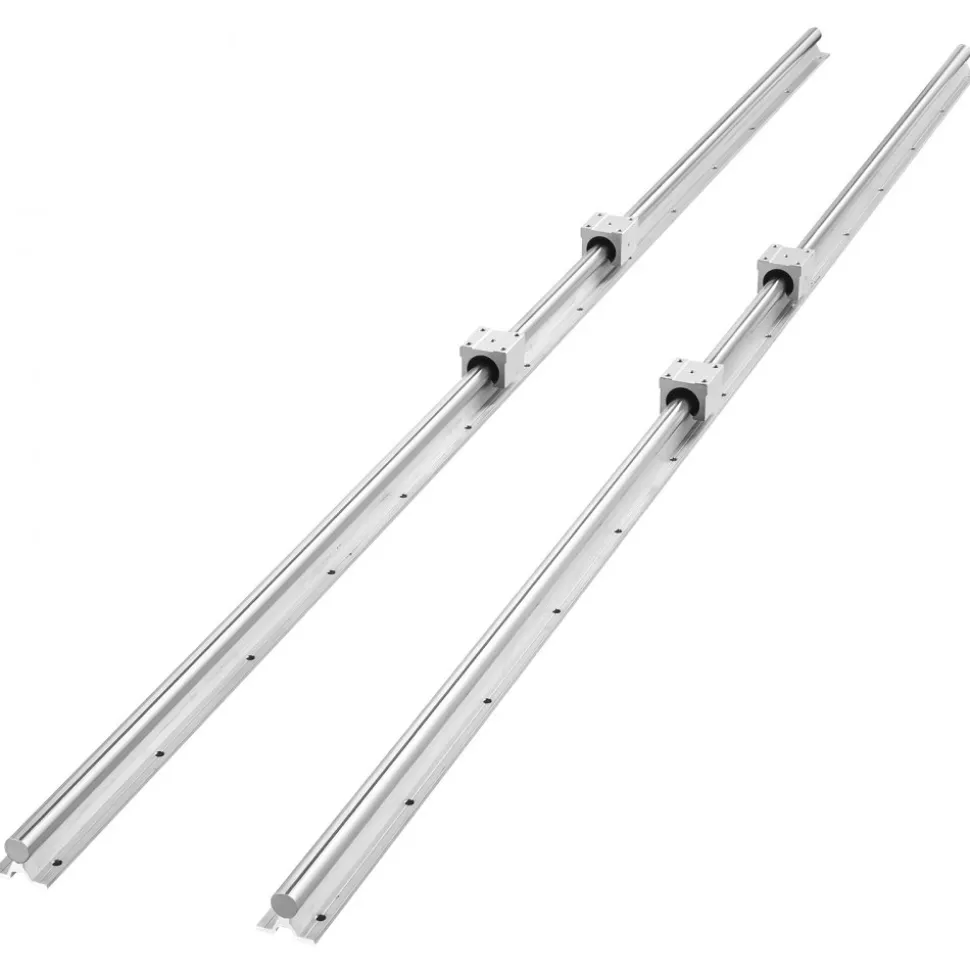

Fully Supported Shaft Design with Aluminum Base for Enhanced Rigidity Across 2000mm Length

This SBR20 system employs a fully supported design, where the shaft sits on a continuous aluminum base that runs the full 2000mm length, in contrast to unsupported round-rail arrangements, where the shaft spans freely between end mounts. To prevent drooping or deflection under mid-span loading, the aluminum support makes contact with the shaft’s underside over its entire span. This is especially crucial at the 2000mm length, when even mild stresses applied at the center of travel would cause an unsupported shaft with a 20mm diameter to noticeably flex.

Additionally, the aluminum base increases the assembly’s stability when fastened to a machine frame or bed by distributing the mounting load over a larger surface area. Because the base has pre-drilled mounting holes spaced at regular intervals, aligning and securing the rails to the machine structure is simple and does not require special drilling. A supported shaft and a solid aluminum base work together to create a rail system that operates smoothly and rigidly over the whole travel distance.

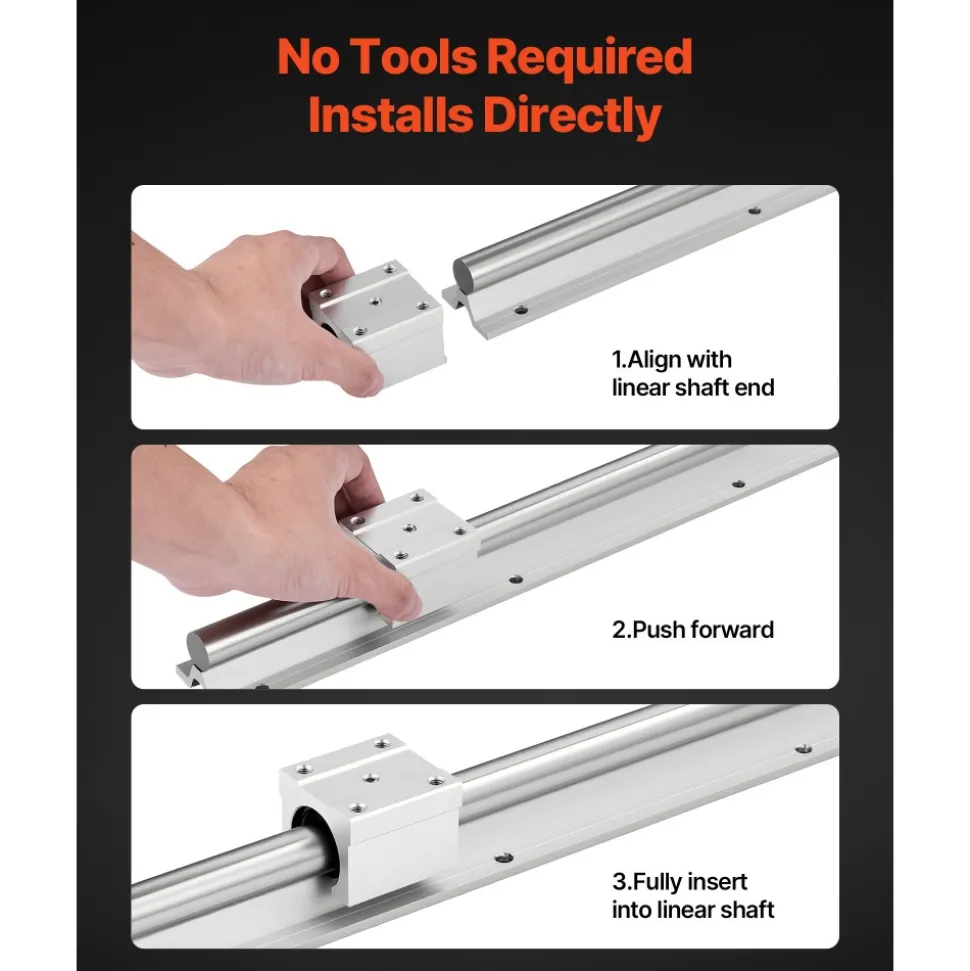

Precise Mounting Hole Spacing for Easy Installation on CNC Routers, Lathes, and Custom Machines

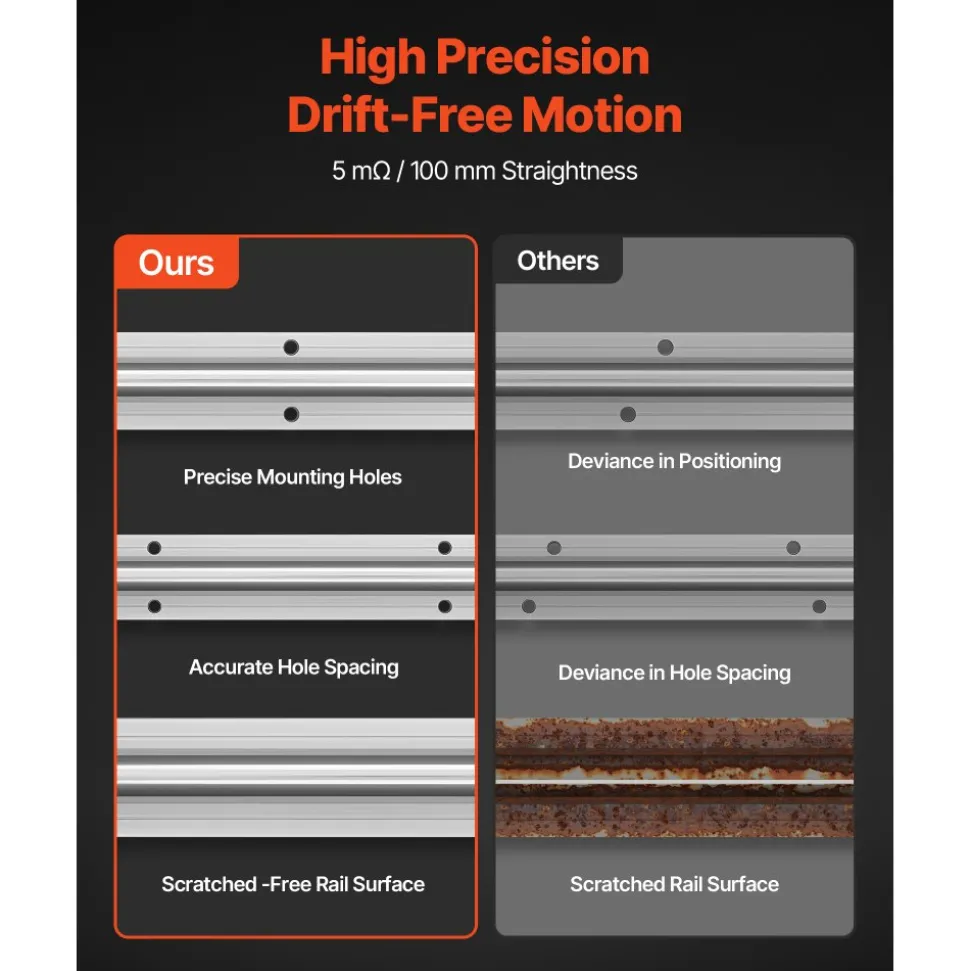

Both the linear guide rail bases and the sliding blocks have precisely positioned mounting holes that align with typical machine layouts, making integration with CNC routers, lathes, milling machines, and other machines, as well as custom DIY constructions, easier. The rails may be bolted into place swiftly and precisely aligned without the need for shimming or rework, since the hole sizes and spacing are machined to precision, allowing fasteners to seat cleanly without adjustment.

Pre-drilled, precisely sized mounting points eliminate one of the most frequent causes of installation error for do-it-yourself machine builders: mismatched mounting holes that push the rail into a skewed or twisted position. Without measuring each hole location against a reference, the installer can obtain precise alignment by simply aligning the rail, inserting fasteners, and tightening them.

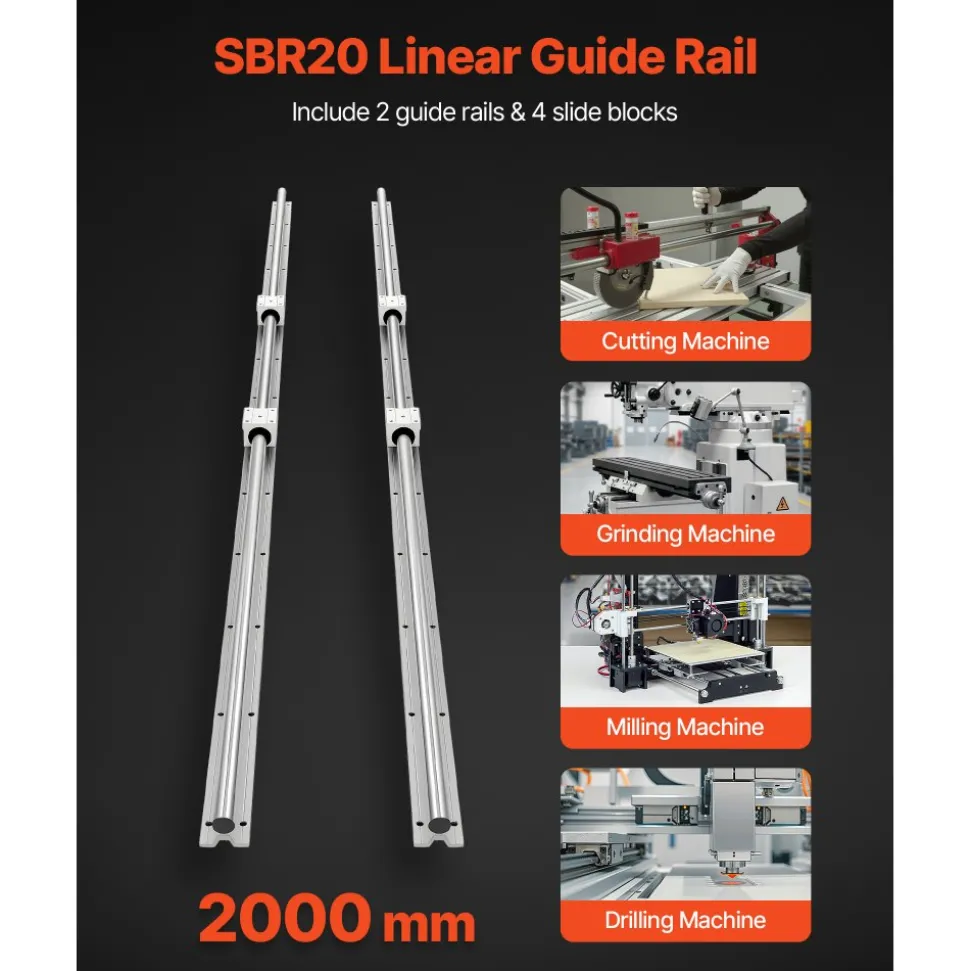

Versatile Linear Motion Guide Rails for Milling, Drilling, and Automated Systems

A wide variety of machine types can use this SBR20 kit as a linear motion component. The supported shaft design’s high stiffness and load capacity are advantageous for cutting machines. The ball-bearing blocks’ low-noise, low-friction travel is necessary for grinding machines. The precise surface polish and consistent shaft alignment provide the positional accuracy required by milling and drilling equipment.

The 2000mm rail length also suits larger machines and builds where a shorter rail would restrict the usable travel range. Whether used as the X, Y, or Z axis on a gantry-style CNC router or as the primary carriage guide on a custom-built lathe, this kit provides the structural and precision characteristics needed for reliable, accurate, and durable linear motion across a wide variety of professional and workshop applications.

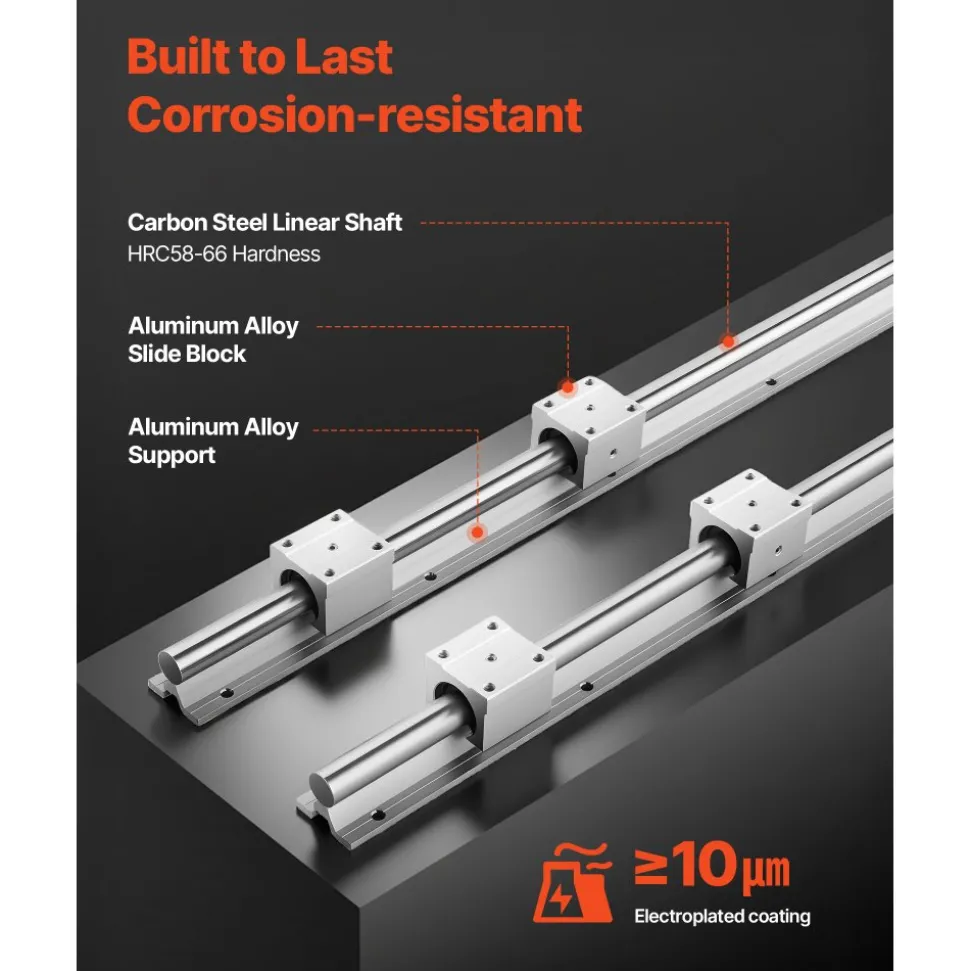

HRC58 to 66 Carbon Steel Shafts with 10μm+ Chrome Plating for Corrosion-Resistant Durability

The high-hardness carbon steel used to make the SBR20 rail shafts in this kit has a Rockwell hardness value of HRC58–66. With its exceptional resistance to surface deformation, indentation from bearing contact, and wear throughout multiple load cycles, this hardness range firmly establishes the material in the high-performance category for industrial linear guidance components.

Every rail has a chrome electroplating layer that helps protect against corrosion. This coating protects the carbon steel surface from condensation, moisture, and the slightly corrosive environment found in basement and workshop installations. The chrome coating provides significant corrosion protection, maintaining the rail’s dimensional integrity and smooth surface finish over time, for machine builders working in humid areas or keeping equipment inactive for extended periods between projects.
