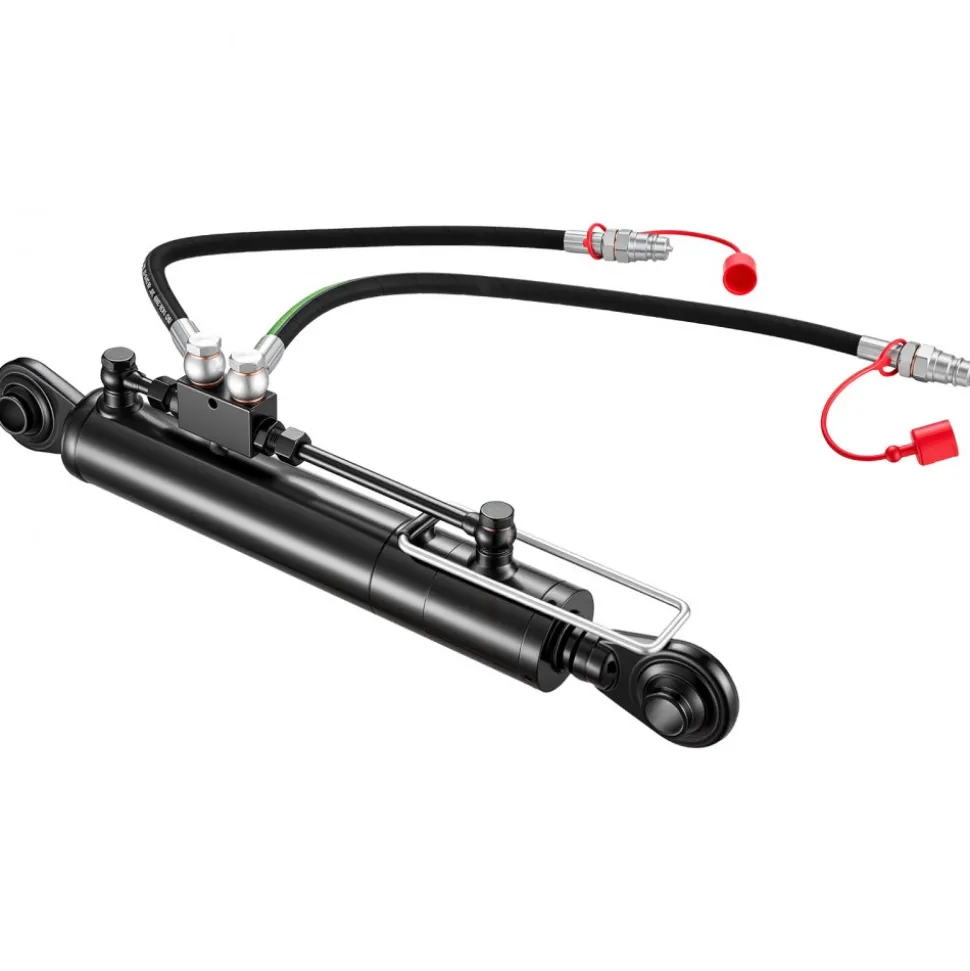

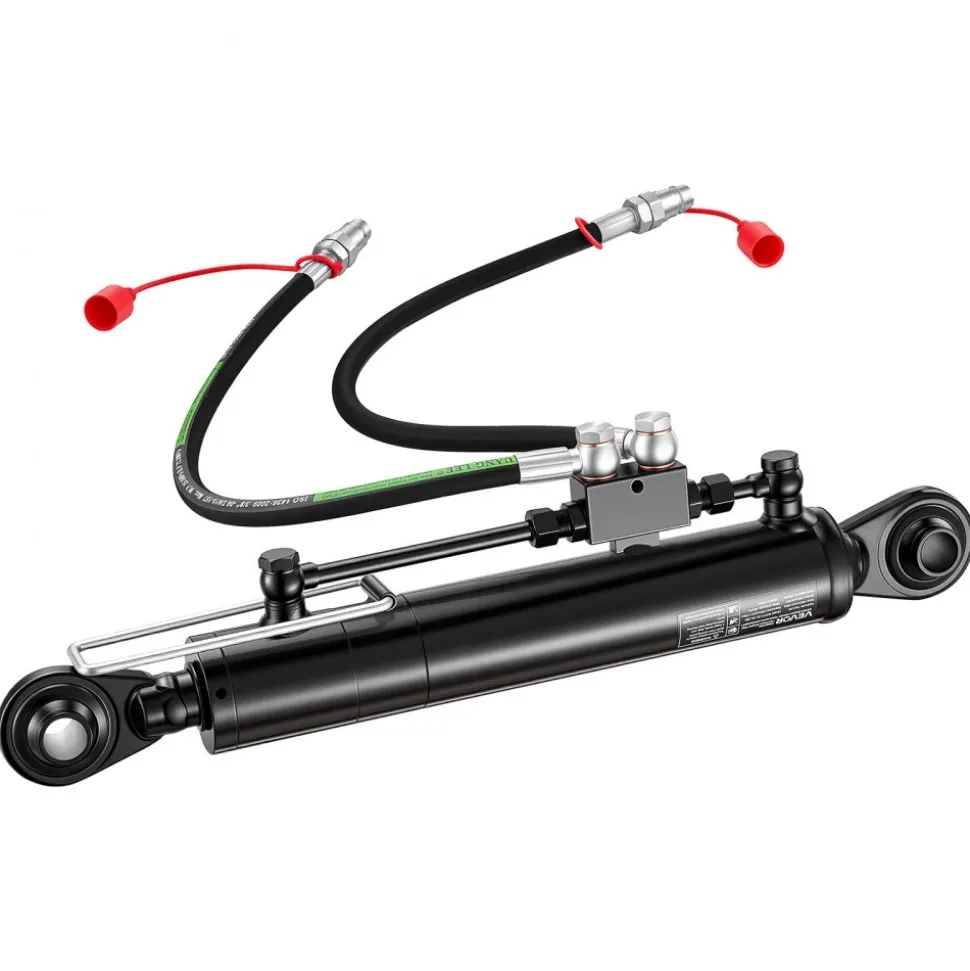

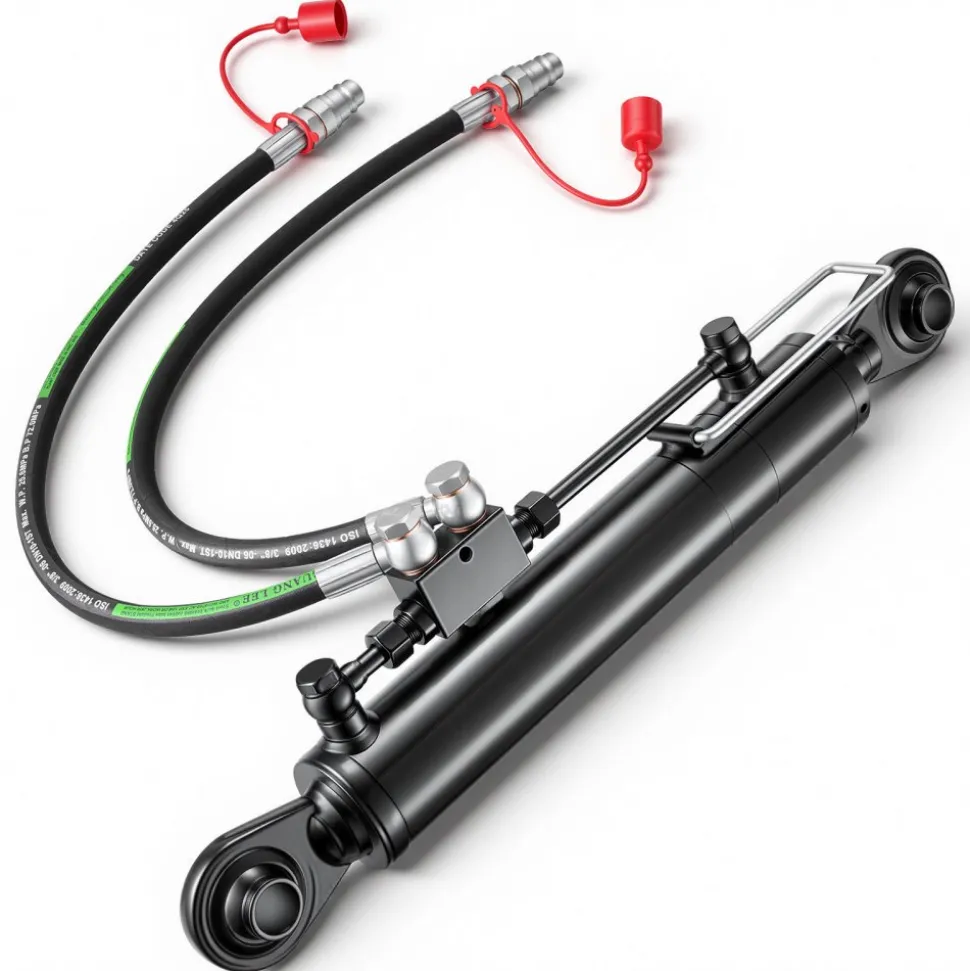

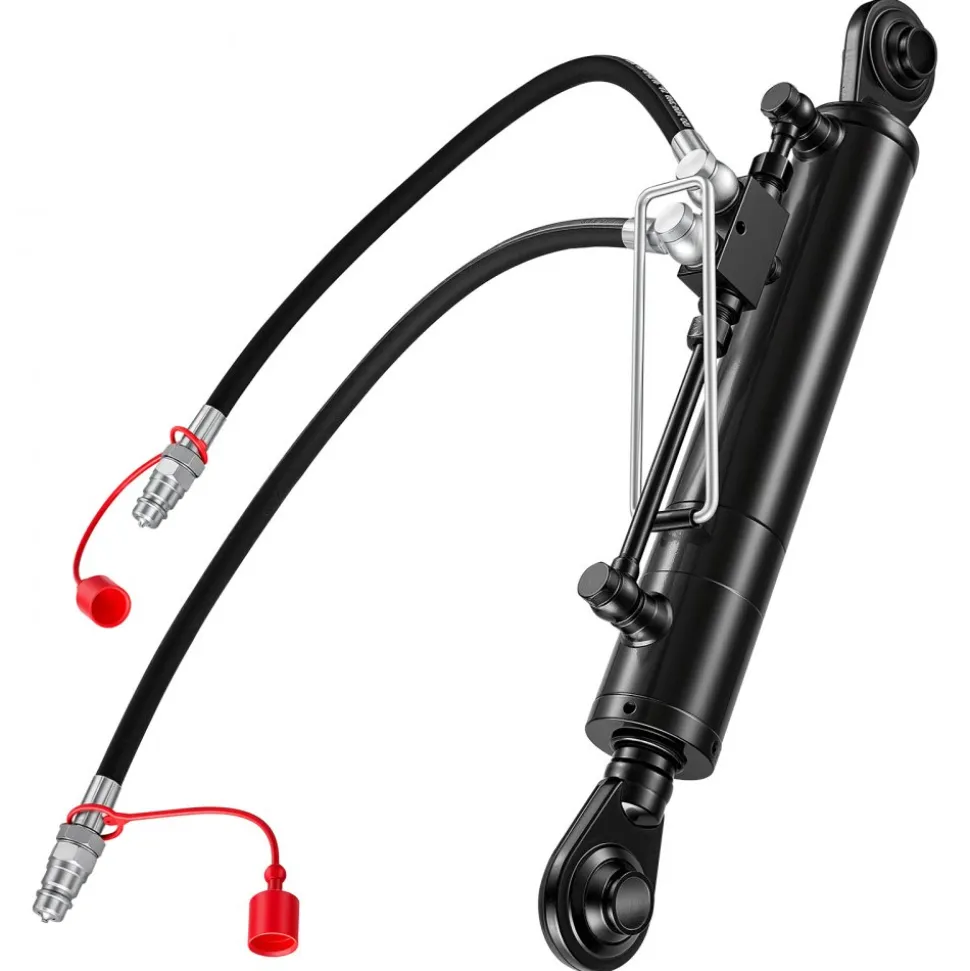

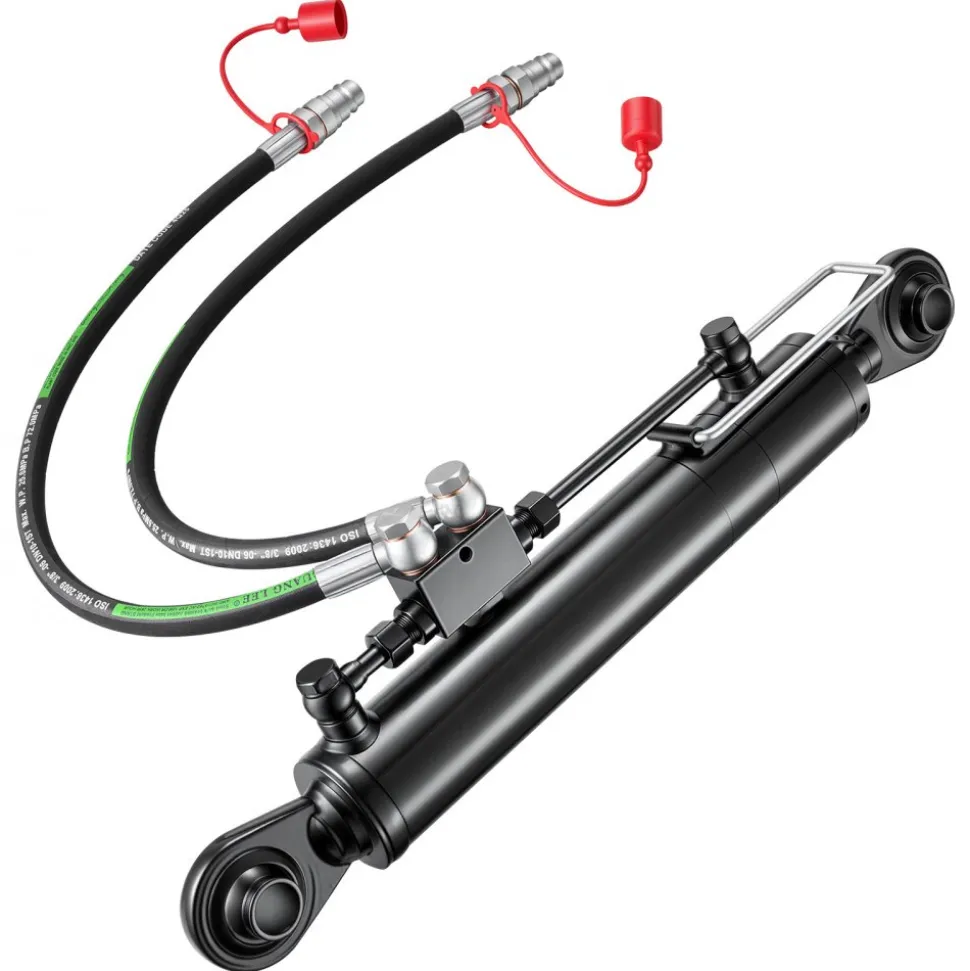

VEVOR Hydraulic Top Link Cat. 2-2 (11 in Stroke, 22-7/16 in to 33-7/16 in), Max 2900PSI Hydraulic Cylinder with 2 Hoses & G3/8" Check Valves for Tractors

VEVOR Hydraulic Top Link Cat. 2-2 (11 in Stroke, 22-7/16 in to 33-7/16 in), Max 2900PSI Hydraulic Cylinder with 2 Hoses & G3/8″ Check Valves for Tractors

$138.89

SKU: SKUqfBvwKuKS9 Categories: Lawn & Garden, Outdoor Power Equipment, Outdoor Power Equipment Parts Tag: VEVOR Brand: VEVOR

Description
Reviews (0)

Key Specifications: Bore: 2.48 in (63 mm), Stroke: 11 in (280 mm), Retracted Length: 22-7/16 in (570 mm), Extended Length: 33-7/16 in (850 mm), Check Valve: G3/8″, Pin Hole Diameter: 1 in

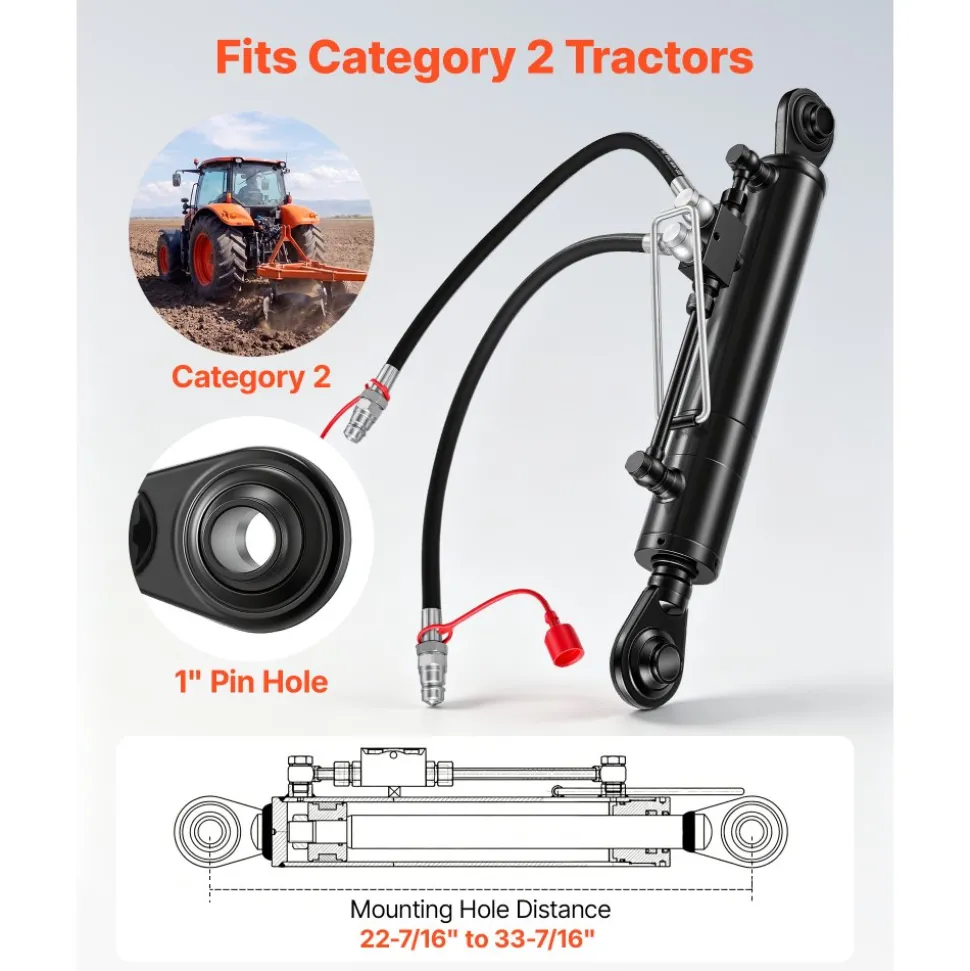

Fits Category 2-2 Tractors: This hydraulic top link is designed for tractor three-point hitch systems. Operators can adjust implement angles directly from the driver’s seat, improving fieldwork efficiency and operating convenience

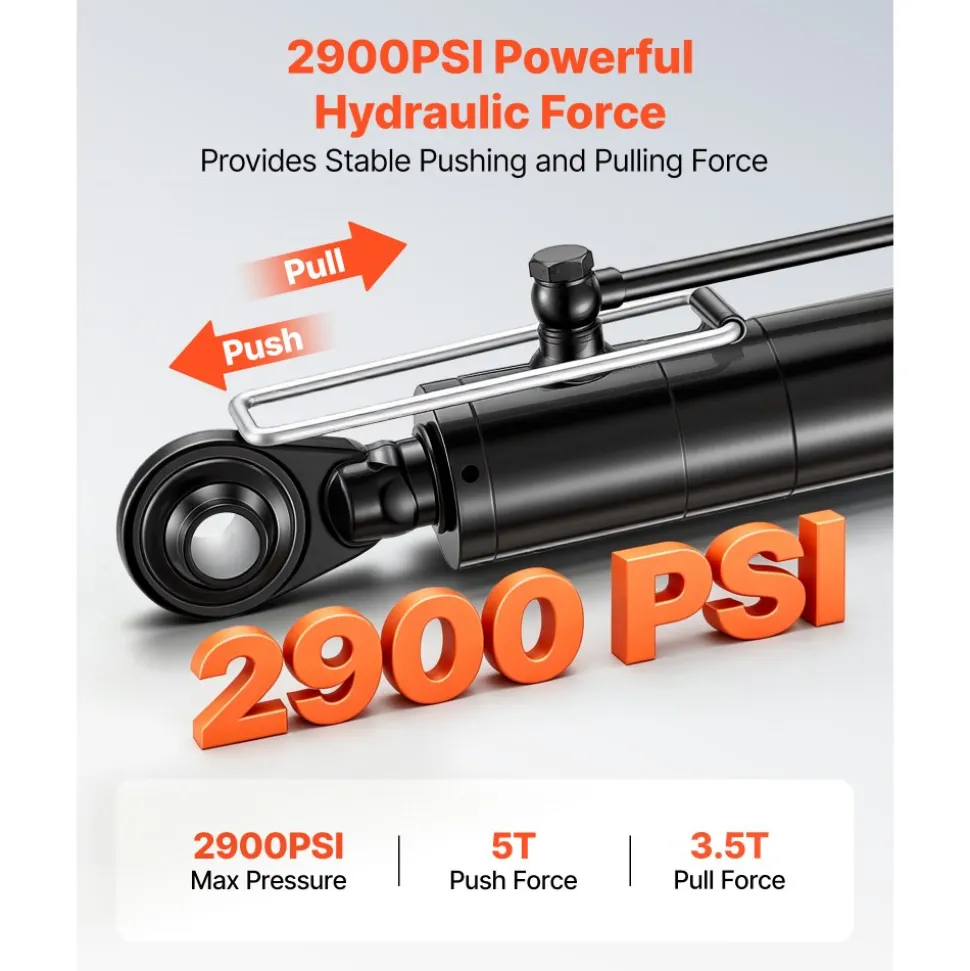

High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2320 PSI rated pressure and up to 2900 PSI max pressure, delivering steady hydraulic force to improve tractor operating efficiency
Powerful Hydraulic Force: This hydraulic top link supports up to 9420 lbs (4.27 Ton) column load capacity while delivering 5 Ton push force and 3.5 Ton pull force (at 16 MPa), providing reliable power for pushing and pulling applications

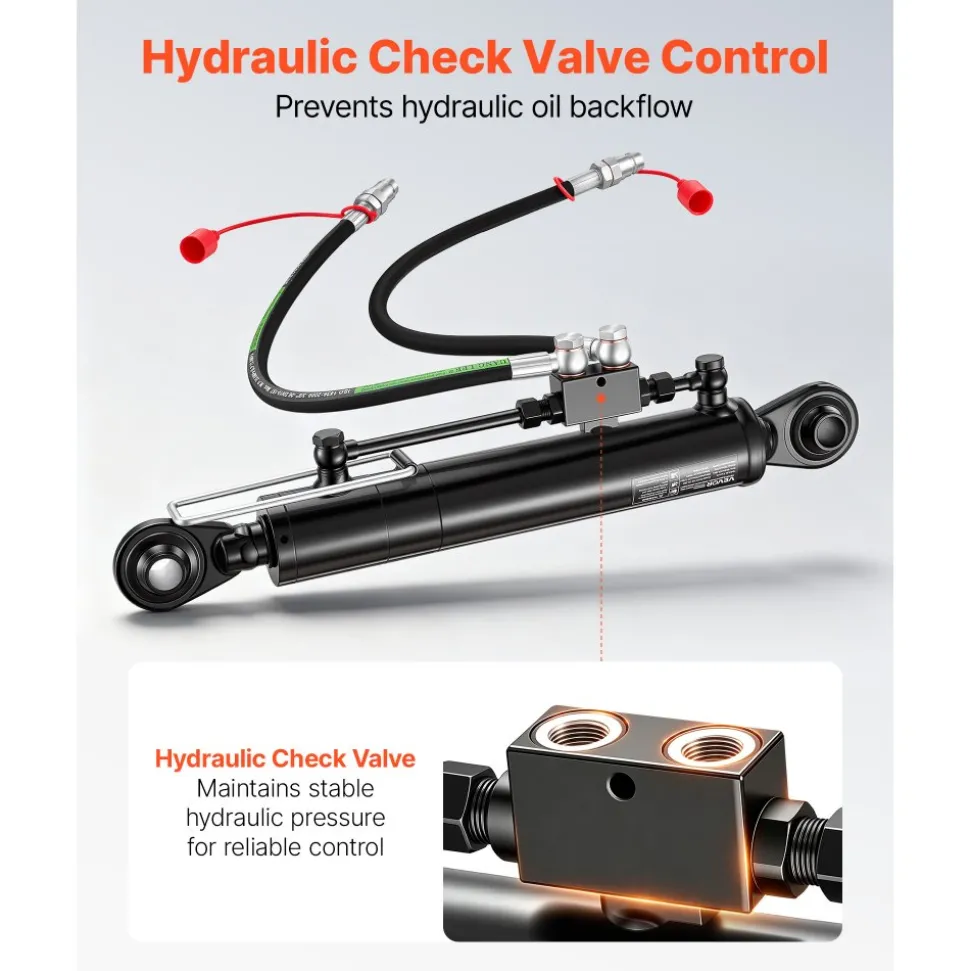

High-Sealing Check Valve: Equipped with G3/8″ check valves and heavy-duty painted steel construction, this hydraulic cylinder helps minimize oil leakage and ensures precise control during push and pull operations

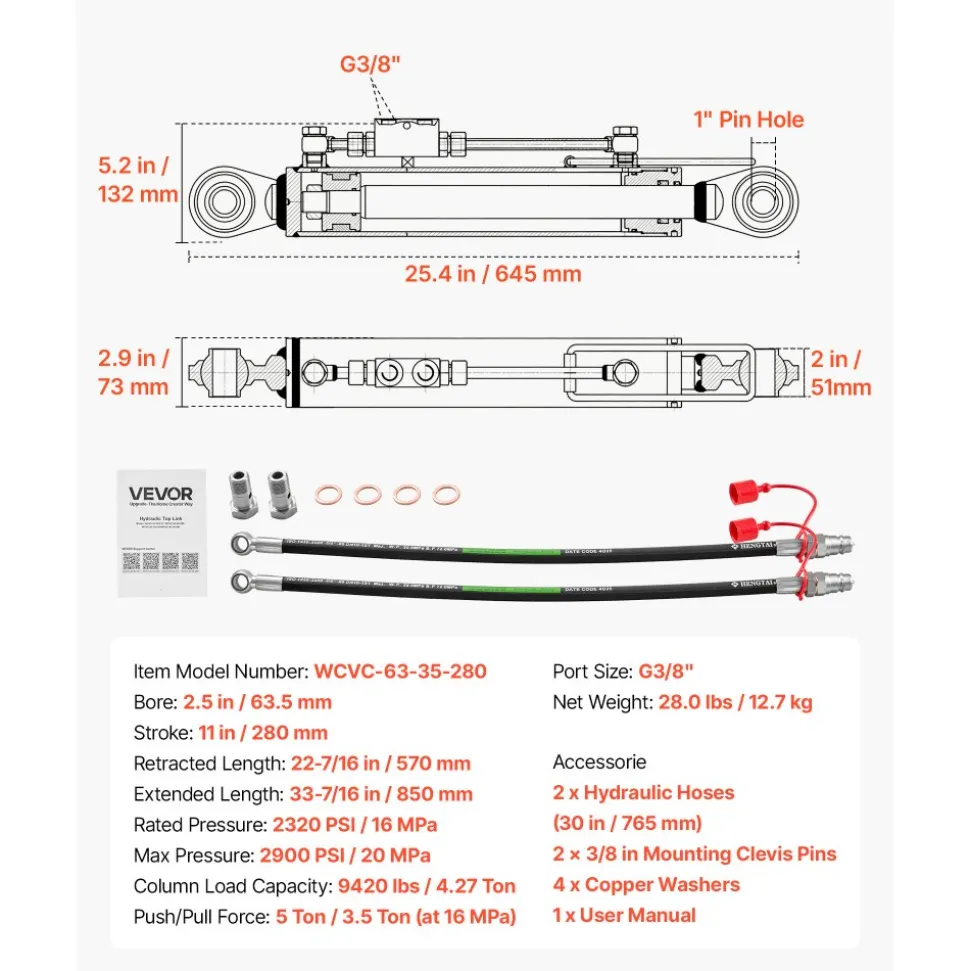

Item Model Number: WCVC-63-35-280

Bore: 2.5 in / 63.5 mm

Stroke: 11 in / 280 mm

Rated Pressure: 2320 PSI / 16 MPa

Max Pressure: 2900 PSI / 20 MPa

Column Load Capacity: 9420 lbs / 4.27 Ton

Push/Pull Force: 5 Ton / 3.5 Ton (at 16 MPa)

Port Size: G3/8″

Net Weight: 28.0 lbs / 12.7 kg

Pro-level performance without the pro-level cost

This hydraulic top link fits category 2-2 tractors and combines high-pressure hydraulic power, strong push-pull force, and a high-sealing check valve for stable, efficient operation.

Performance HighlightsPowerful Hydraulic ForceCheck Valves

Sturdy ConstructionHigh-Sealing System

TractorsLand Leveling EquipmentAgricultural Machinery

Key Features

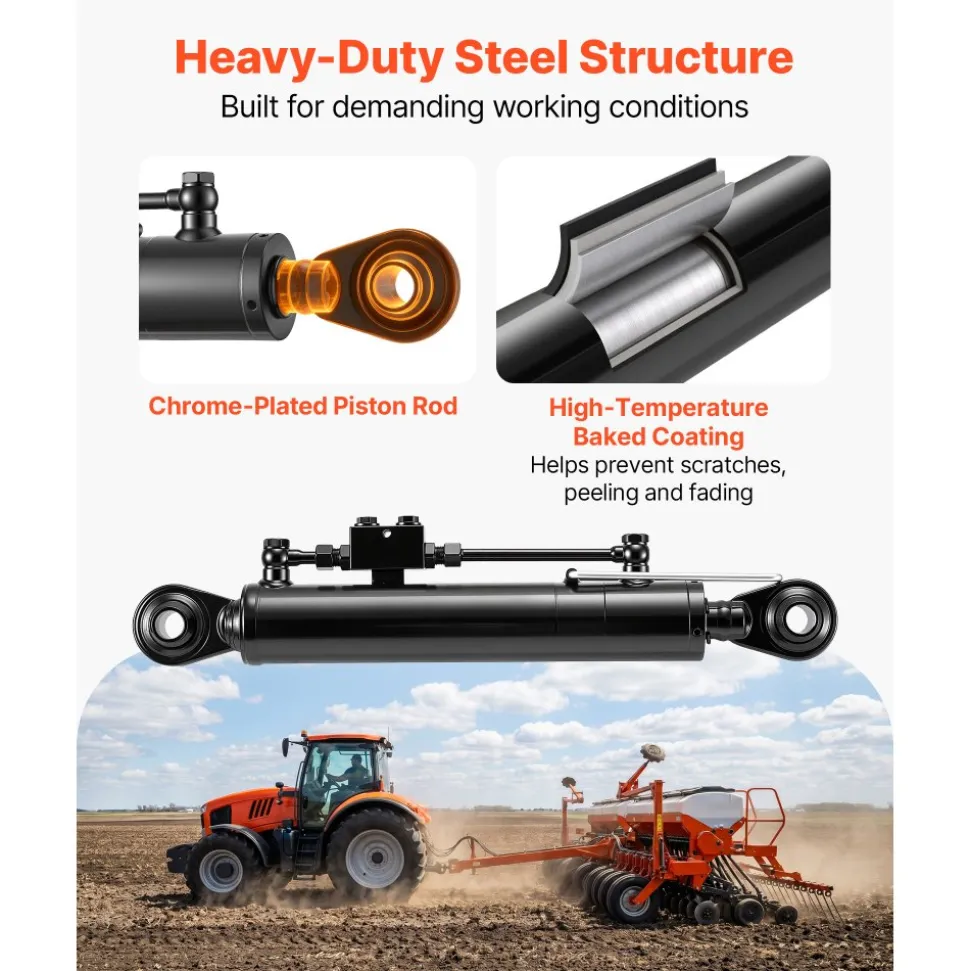

Durable Rod End

The heavy-duty steel rod end with a precision-machined pin hole ensures secure attachment.

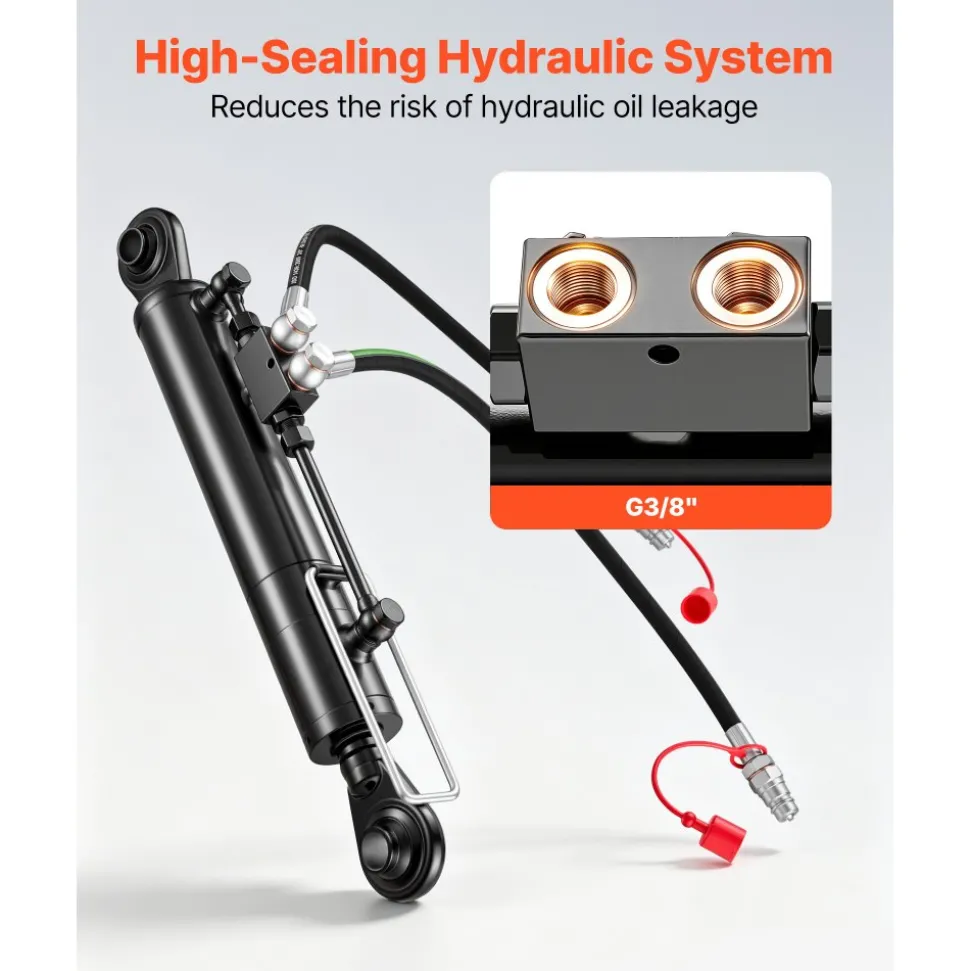

High-Performance Sealing System

Reduces hydraulic fluid leakage and maintains stable pressure output during operation.

High-Strength Construction

Built with durable steel to handle heavy-duty agricultural and industrial applications.
