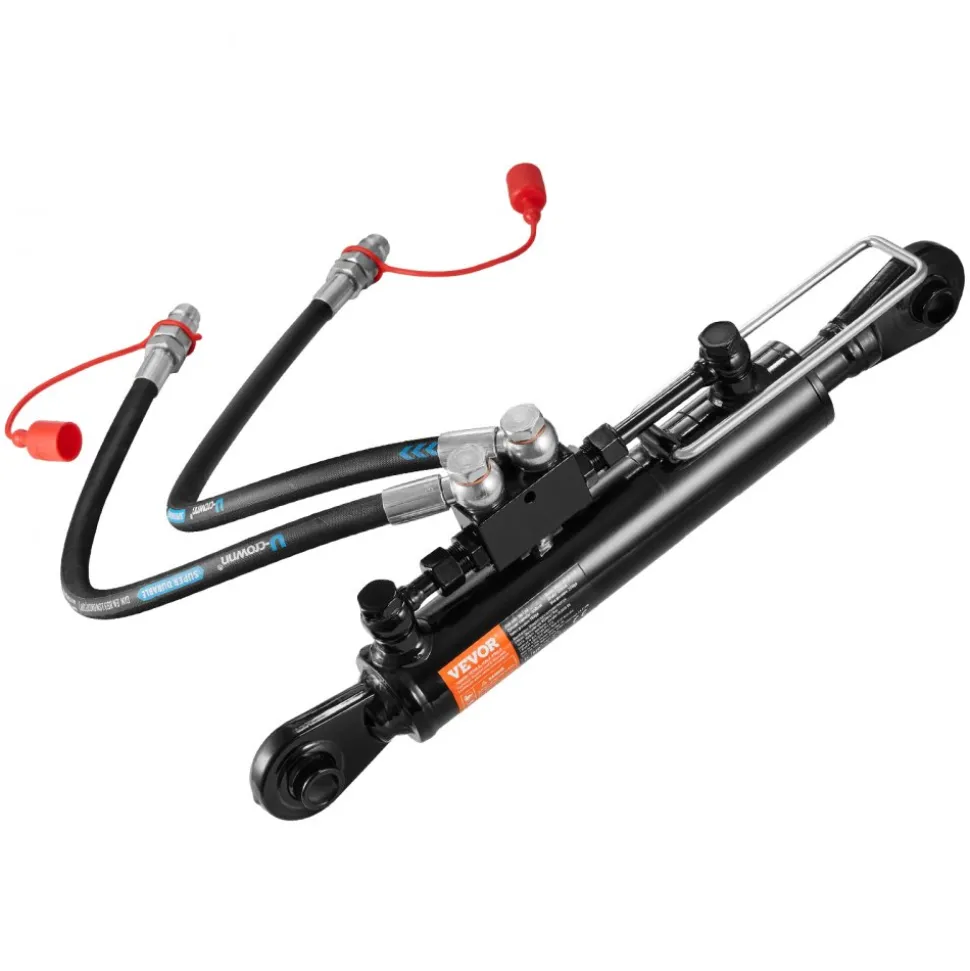

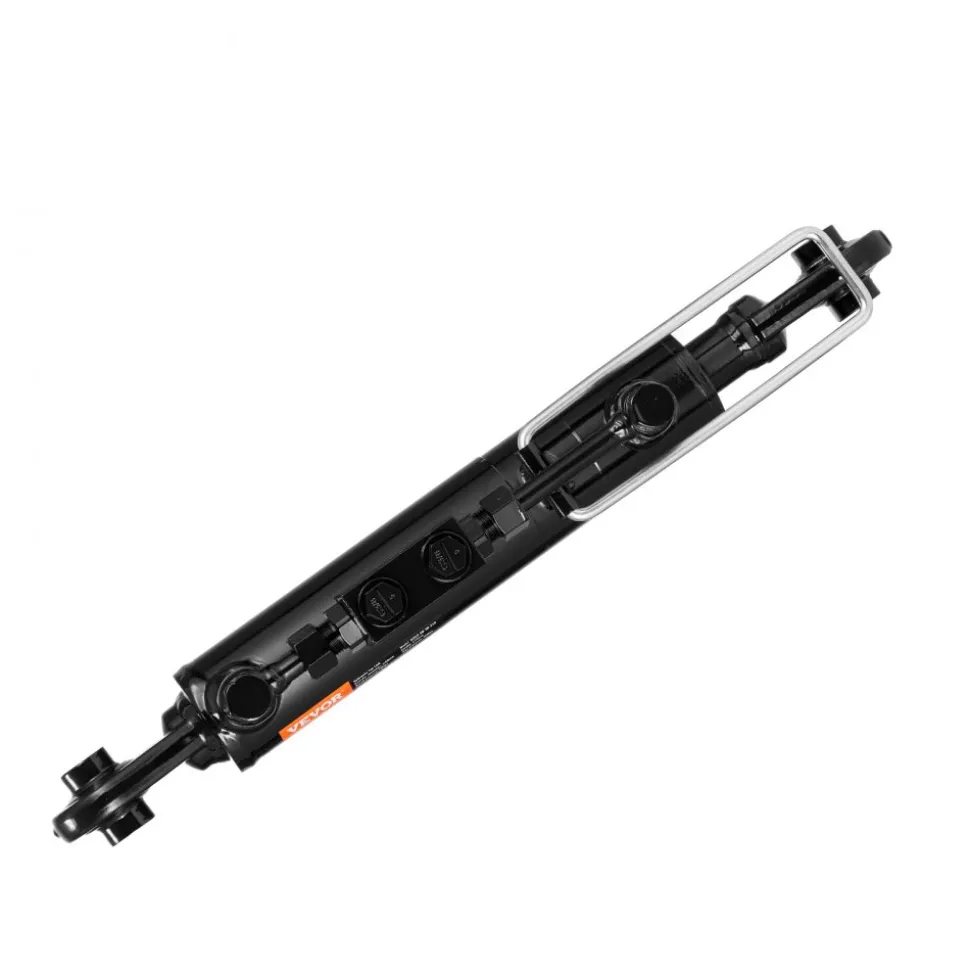

VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8″ Check Valve
$124.99

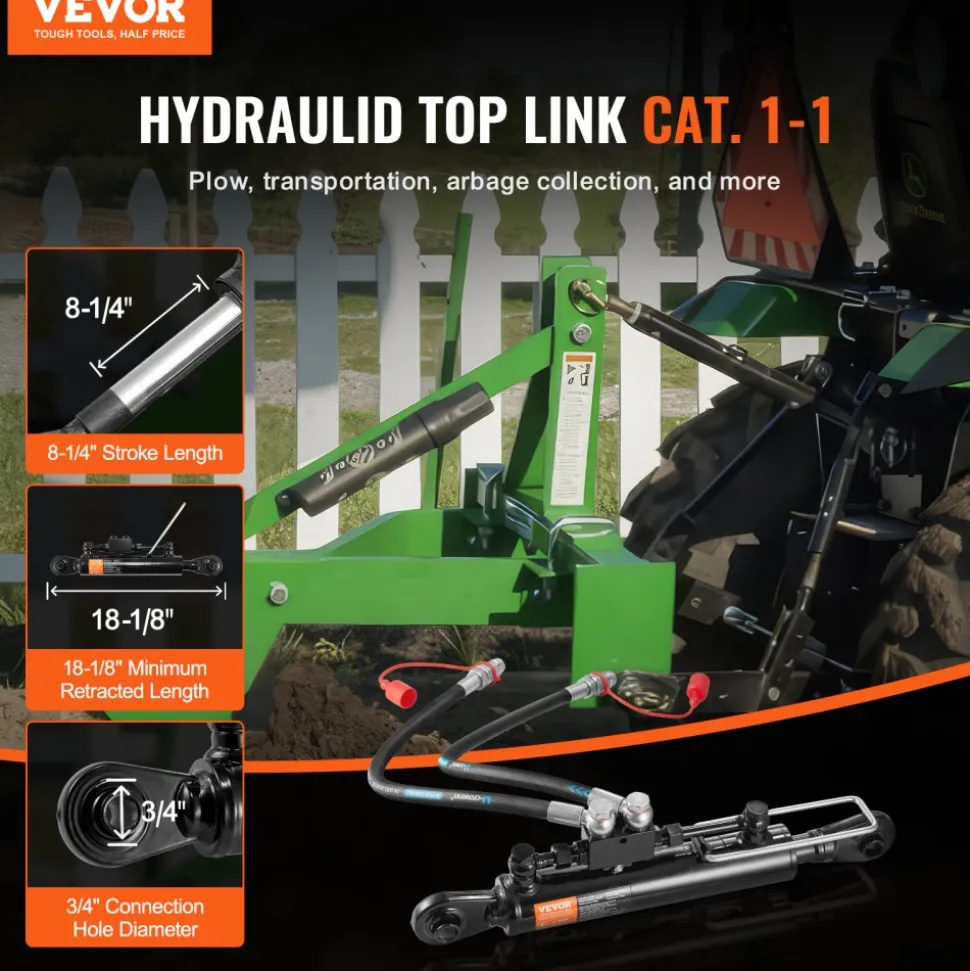

- Adaptation for Cat. 1-1 Tractors: The hydraulic top link cat. 1-1’s rod inlet/outlet diameter: 3/8 in; Min retracted length: 8-1/8 in (460 mm); Stroke length: 8-1/4 in (210 mm); Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.
- High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.
- Enhanced Hydraulic Power: The hydraulic top link is capable of providing 3.5 tons of pushing force and 2.3 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
- Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.

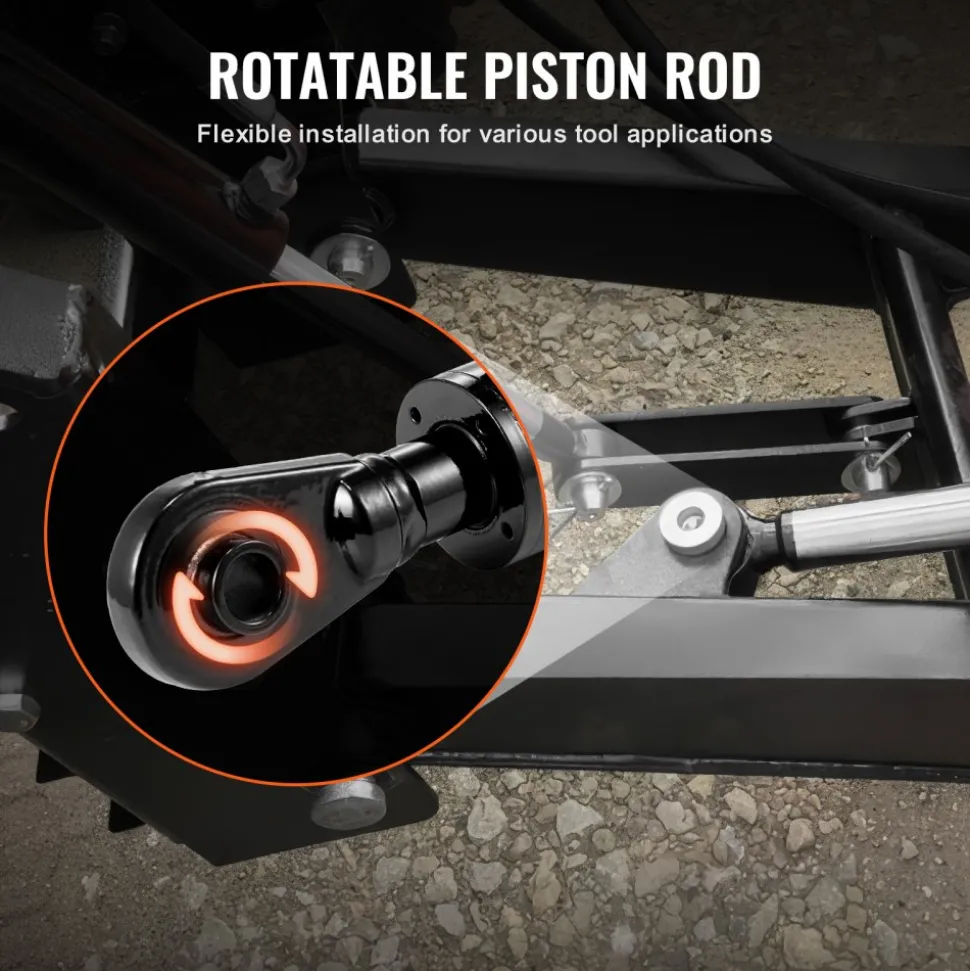

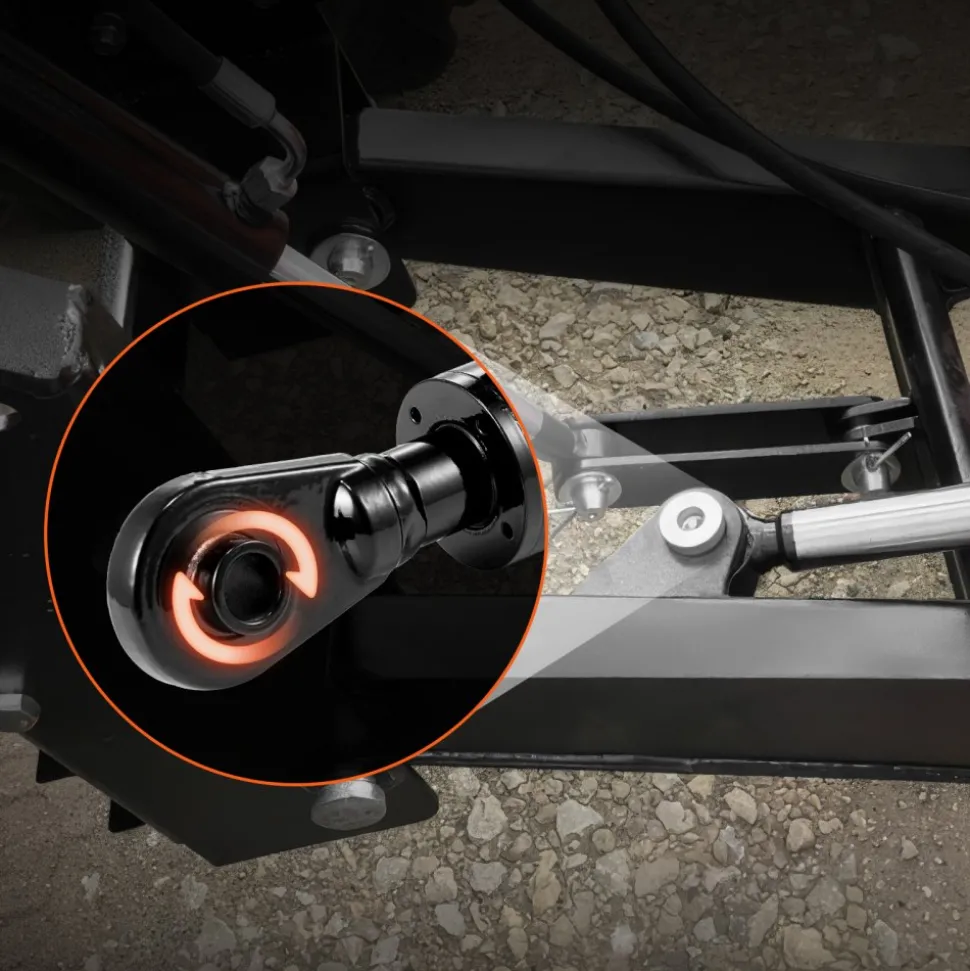

- Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.

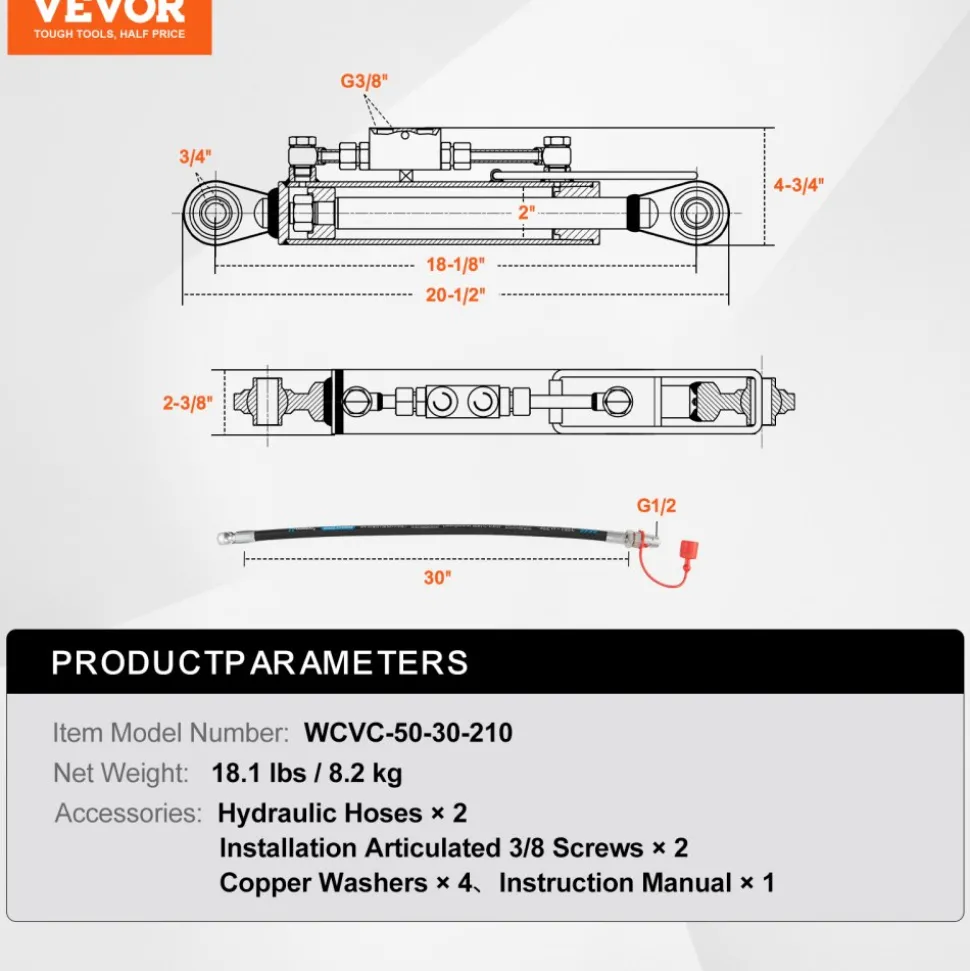

- Item Model Number
- WCVC-50-30-210
- Minimum Retracted Length
- 18-1/8 inch (460 mm)
- Stroke
- 8-1/4 inch/210 mm
- Cylinder Diameter (I.D.)
- 2.0 inch / Φ50 mm
- Outer Diameter
- 2-3/8 inch (Φ60 mm)
- Piston Rod Diameter
- 1.2 inch / Φ30 mm
- Connection Hole Diameter
- 0.8 inch / Φ19.4 mm
- Connection Hole Width
- 1.7 inch / 44 mm
- Thrust Force
- 3.5 Tons
- Pull Force
- 2.3 Tons
- Check Valve Inlet/Outlet Port
- G3/8″
- Rotatable Piston Rod
- Ball Joint Linkage Structure
- Maximum/Rated Working Pressure
- 20/18 MPa (2900/2610 psi)
- Compatible Equipment
- ClassⅠTractors
- Hydraulic Hose
- (I.D.&L.)
- Fitting Type
- G1/2
- Color and Surface Treatment
- Black Paint
- Main Material
- 45#
- Service Life
- 1-year Warranty
- Net Weight
- 18.1 lbs / 8.2 kg
- Product Dimensions
- 20.5×4.7×2.4 inch / 520×120×60 mm
Hydraulic Top Link for Cat. 1-1 Tractors Enhances Heavy-Duty Performance
This hydraulic cylinder is perfect for tasks like plowing, recycling, and transportation. It fits seamlessly onto these tractors. The difference in the tractor’s efficiency is great. A high-sealing check valve ensures minimal leakage of hydraulic oil. It provides precise control of pushing and pulling operations. Even after the pump stops, the hydraulic piston rod stays stable. This feature is important for maintaining position under force. Our Cat. 1 hydraulic cylinder allows for stronger push/pull actions. It performs efficiently within a maximum working pressure range of 20–18 MPa. So, you can tackle tough jobs easily.

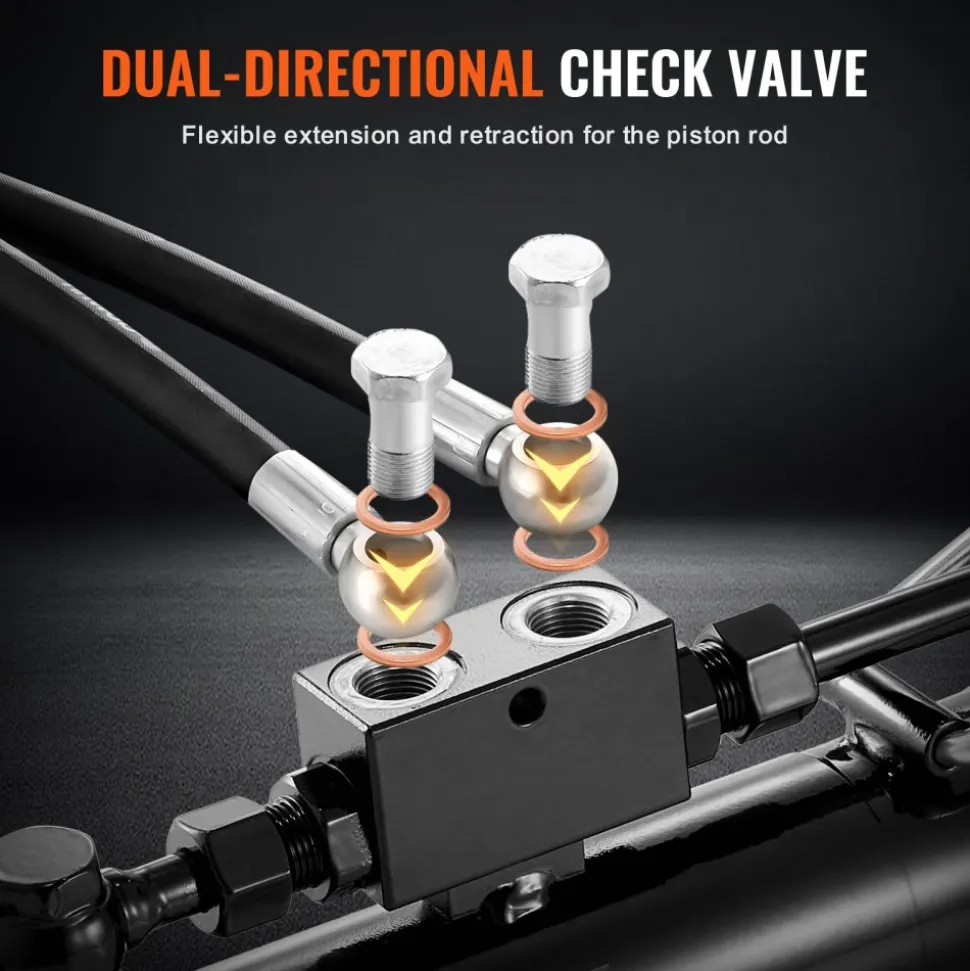

High-Sealing Bidirectional Check Valve Ensures Precision
The hydraulic top link is equipped with a high-sealing bidirectional check valve. This valve structure ensures minimal leakage of hydraulic oil. It provides precise control for pushing and pulling operations. The hydraulic cylinder can hold its position even when the pump is not working. This feature is important for stability under force. The check valve inlet and outlet ports are G3/8″. This allows for a secure connection and optimal performance. The high-seal check valve is a must for operating efficiently and reliably in hydraulic applications.

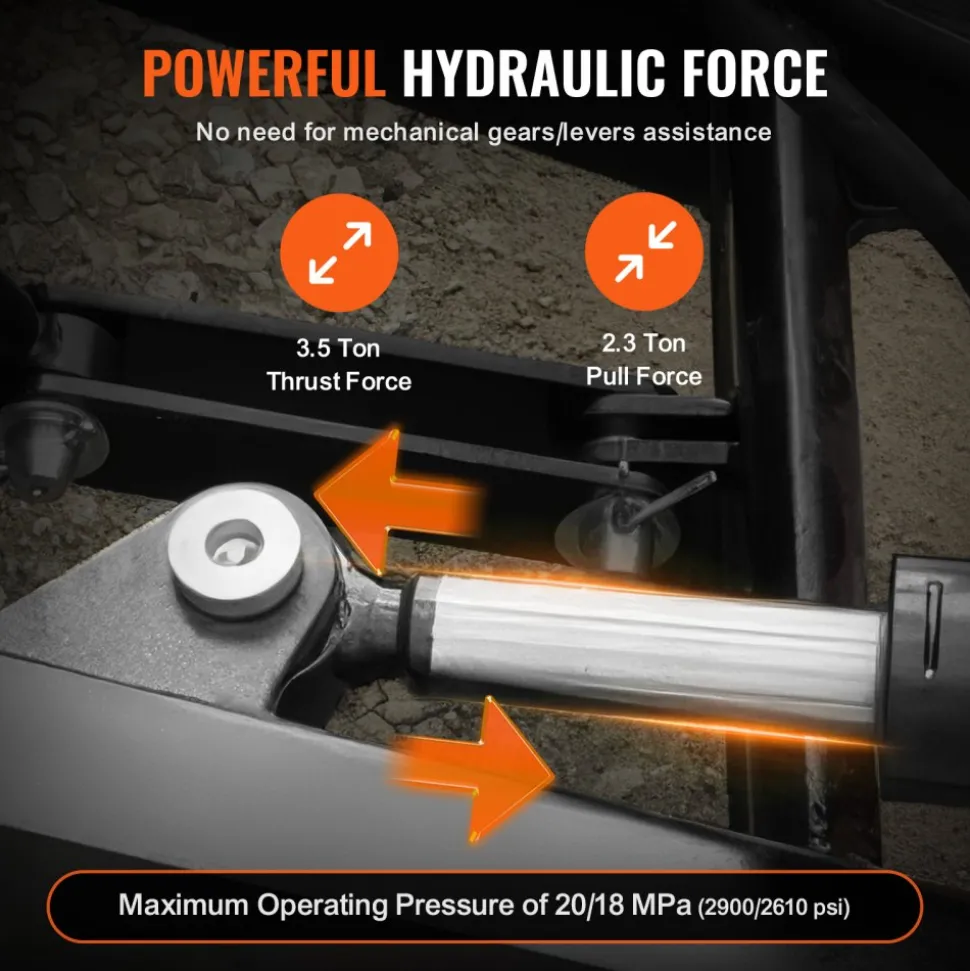

Delivers 3.5 Tons of Pushing Force and 2.3 Tons of Pulling Force
It provides 3.5 tons of pushing force and 2.3 tons of pulling power. These capabilities make it ideal for heavy-duty tasks. It performs well within a maximum working pressure range of 20/18 MPa. This ensures it can handle tough jobs efficiently. The hydraulic piston rod is rotatable, so you can meet various installation requirements. The assembly includes high-pressure-resistant and sturdy hydraulic hoses. So, assembly is easy with no hassle. Our hydraulic top link is designed for durability and high performance.

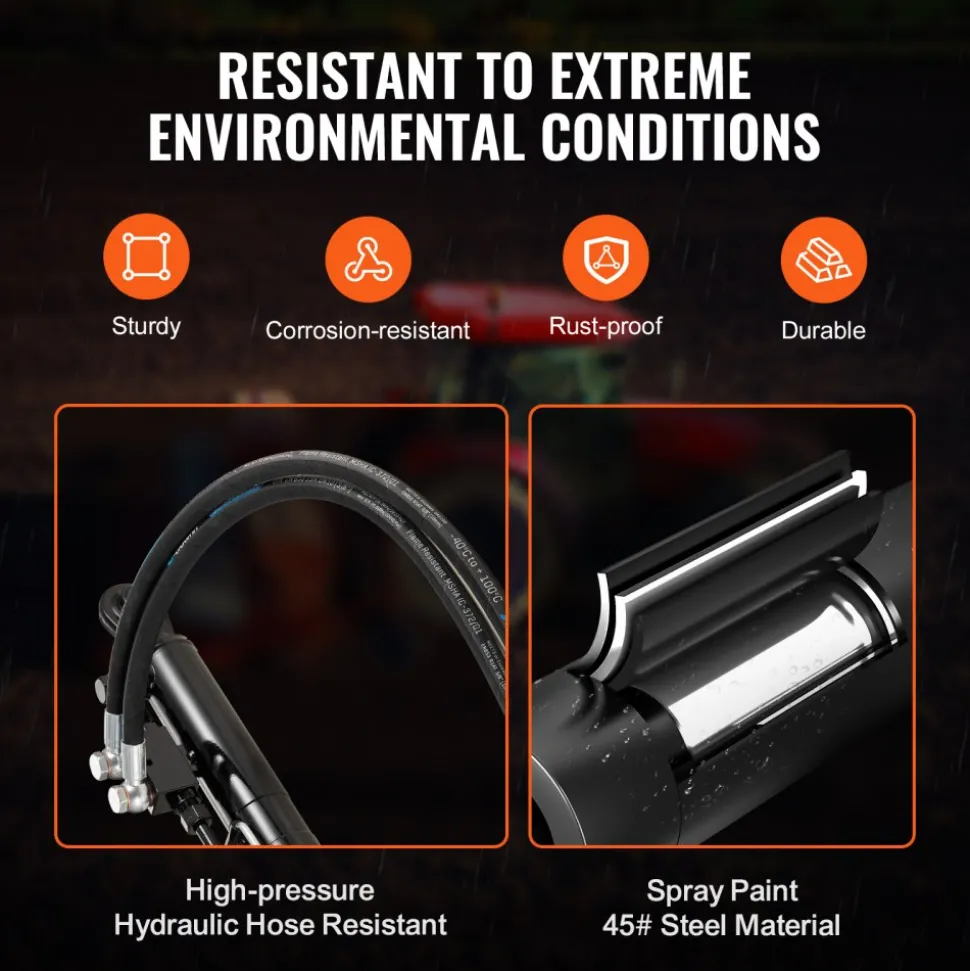

Durable 45# Steel Resists Rust and Wear
The hydraulic cylinder with hoses is made from thick 45# steel. This material offers excellent rust resistance and wear resistance. The surface is coated with paint to improve durability. It can withstand harsh conditions like mud, rain, and high temperatures. These features ensure long-lasting performance and reliability. Our hydraulic top link has been designed to endure tough environments. Even in the worst conditions, it will remain functional. So, this durability makes it a valuable investment for heavy-duty tasks.

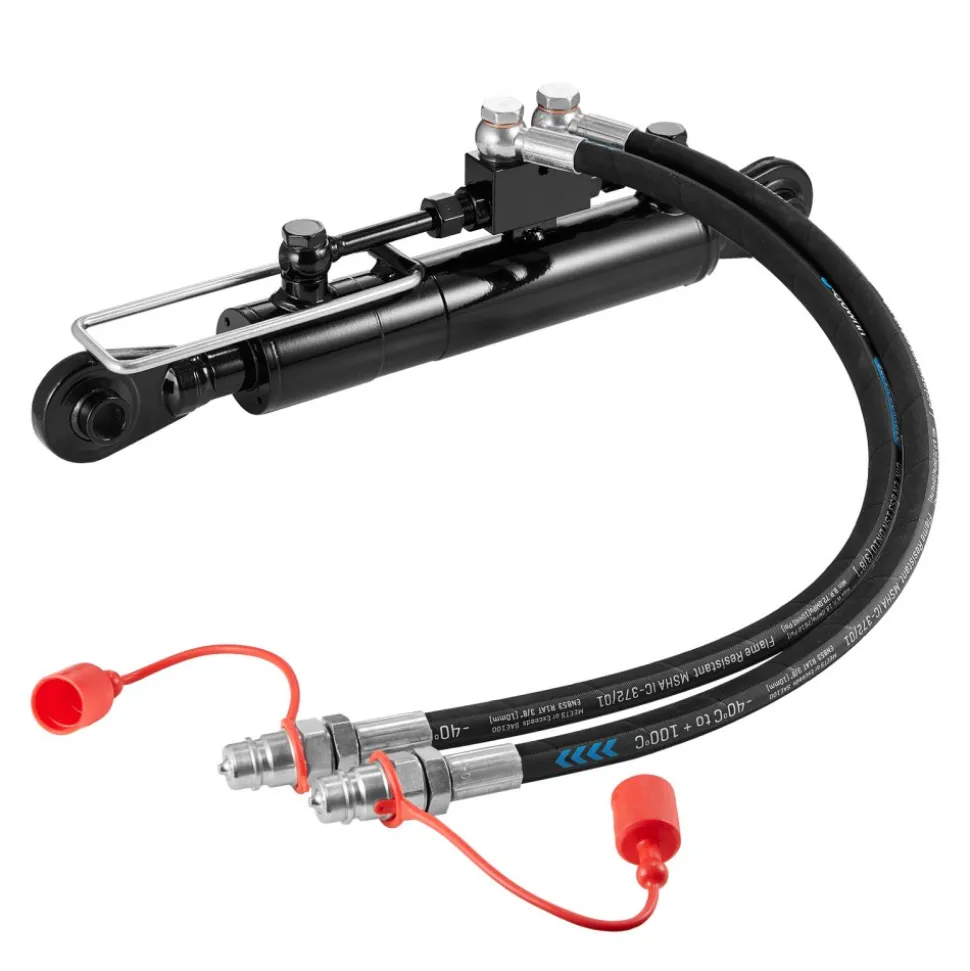

Easy Installation with Included Hoses and Fittings
The G3/8 check valve cylinder is very simple to install. It includes high-pressure-resistant hydraulic hoses. These hoses are sturdy and reliable. The product includes all necessary fittings, making assembly hassle-free. Also, the rotatable piston rod can meet different installation requirements. This flexibility simplifies the setup process. You can assemble and use the product without needing additional components. That saves time and effort during installation. Ease of installation adds to the overall convenience of the hydraulic top link.
Ideal for Plowing, Recycling, and Transportation
The hydraulic top link is versatile. It can be used for heavy-duty tasks like plowing, recycling, and transportation. This makes it easy to handle demanding conditions. So, it’s a valuable tool for various applications. The hydraulic top link helps improve efficiency in these tasks. With its robust performance, reliable operations are guaranteed. No matter if you’re working in agriculture or waste management, this adjustable hydraulic cylinder provides the power you need. Because of its versatility, it offers flexibility and ease of use, making it able to work effectively on your equipment.
Reliable Performance Under Harsh Conditions
The hydraulic top link is built for reliability. It performs well under harsh conditions. Mud, rain, and high temperatures do not affect its performance. The 45# steel construction ensures durability. Paint coating enhances rust resistance and wear resistance. This hydraulic top link can handle tough environments. It remains functionally stable even in the face of adverse conditions; this quality makes it an essential tool for heavy-duty tasks. You get consistent performance no matter the conditions or circumstances.
