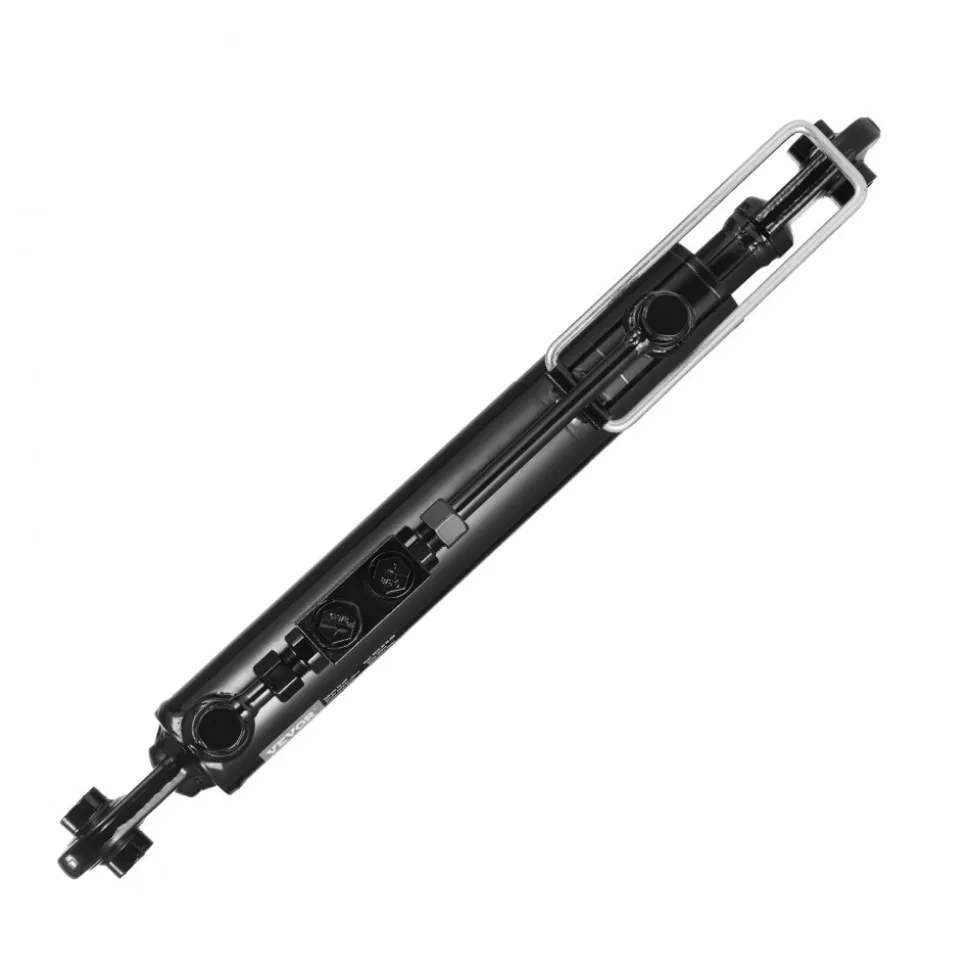

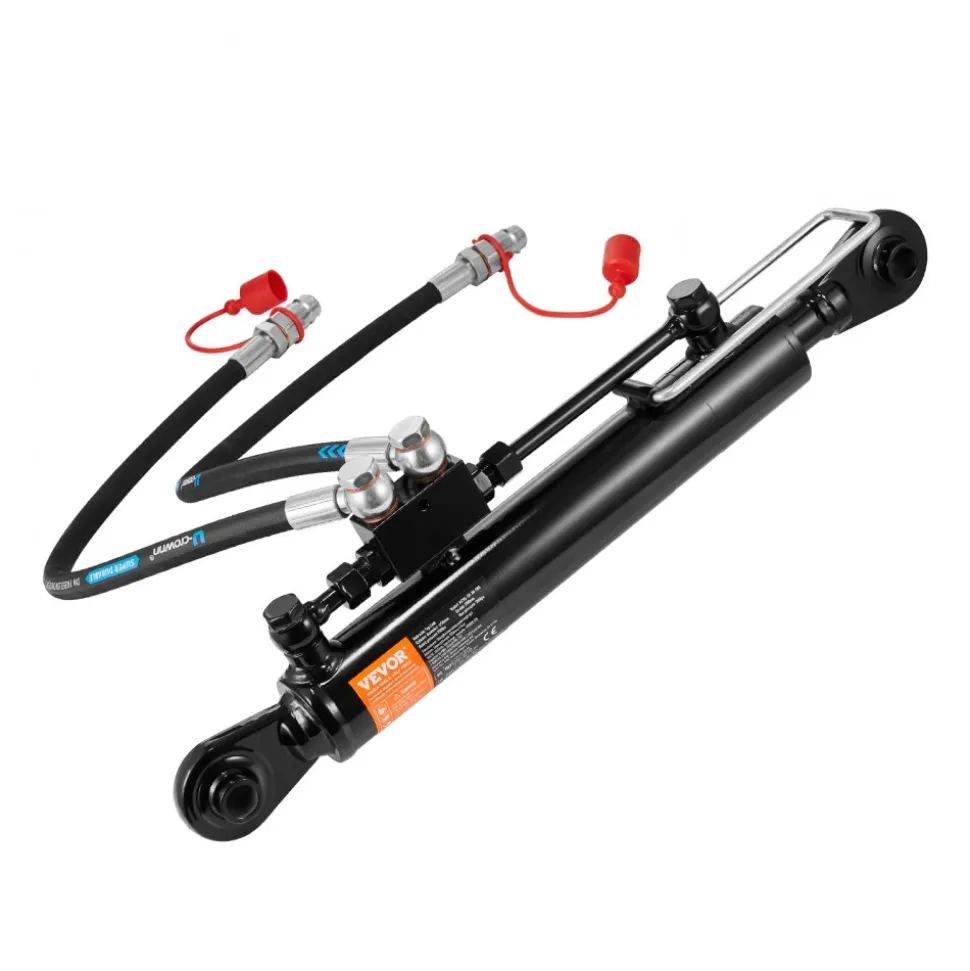

VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8″ Check Valve
Original price was: $199.00.$135.99Current price is: $135.99.

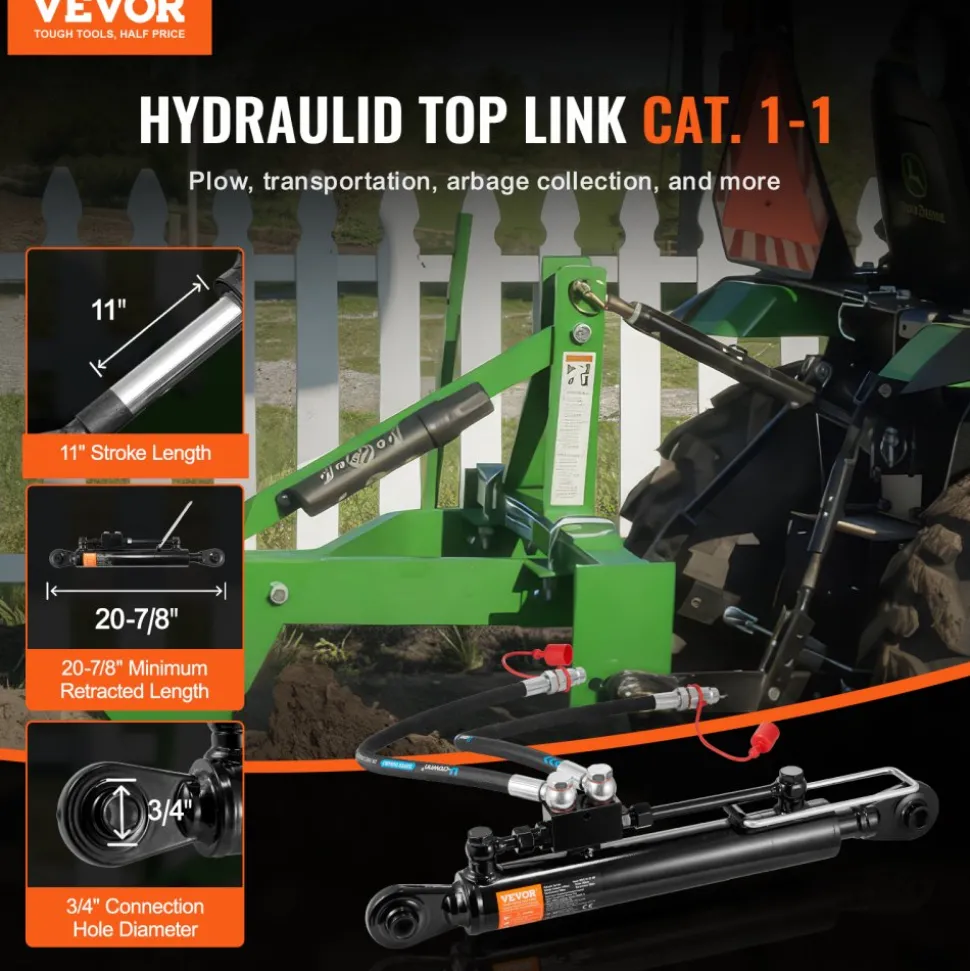

- Adaptation for Cat. 1-1 Tractors: The hydraulic top link cat. 1-1’s rod inlet/outlet diameter: 3/8 in; Min retracted length:20-7/8 in(530 mm); Stroke length: 11 in (280 mm); Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.
- High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.
- Enhanced Hydraulic Power: The hydraulic top link is capable of providing 3.5 tons of pushing force and 2.3 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
- Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.

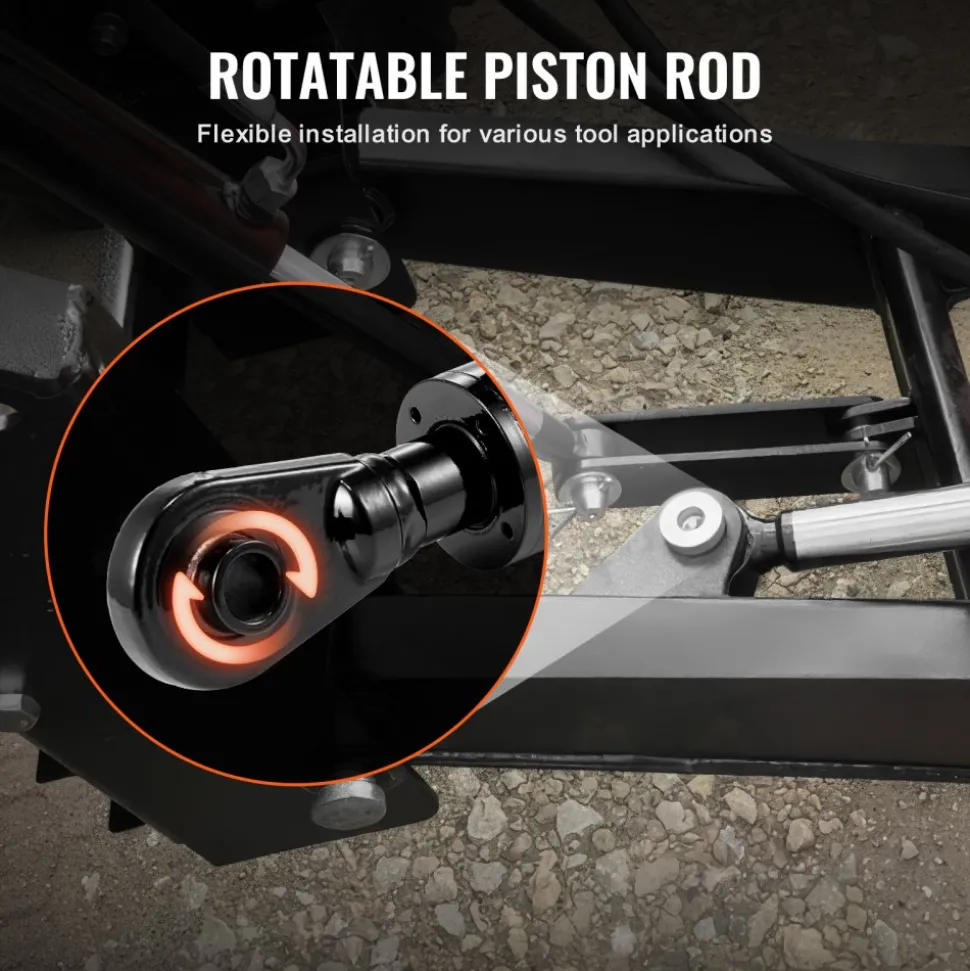

- Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.

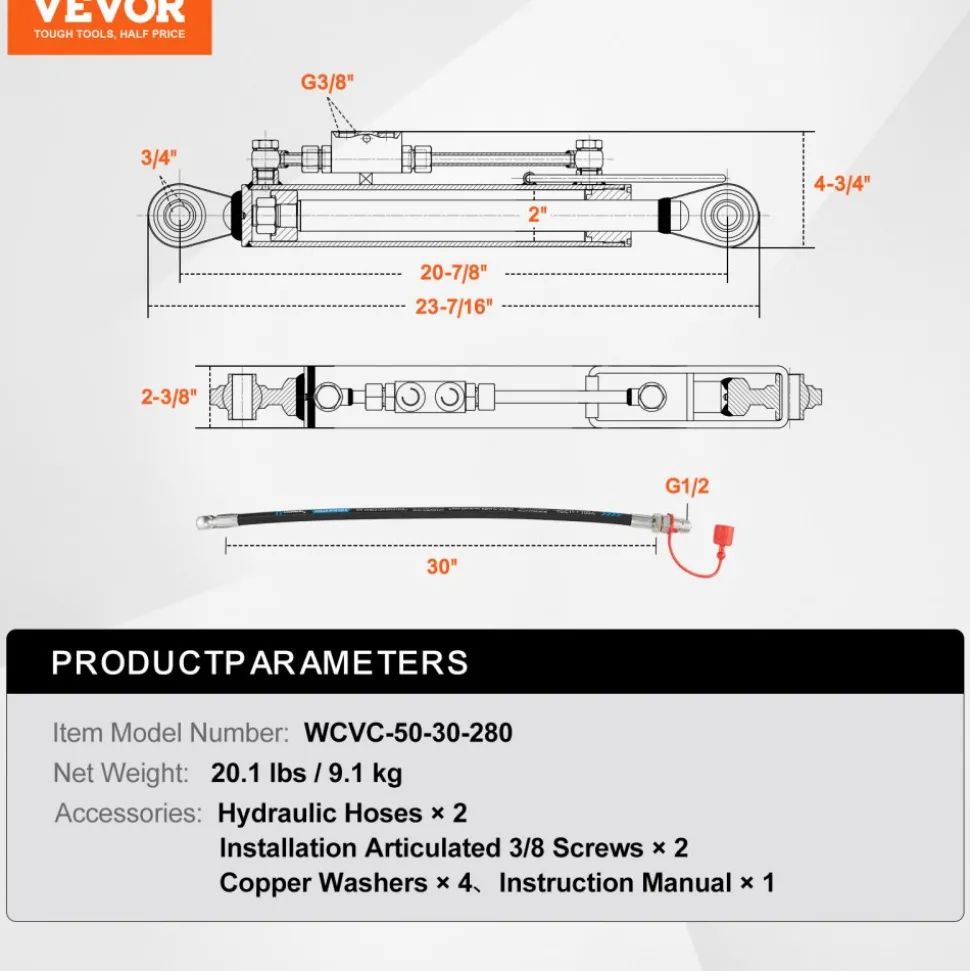

- Item Model Number
- WCVC-50-30-280
- Minimum Retracted Length
- 20-7/8 inch (530 mm)
- Stroke
- 11 inch/280 mm
- Cylinder Diameter (I.D.)
- 2.0 inch / Φ50 mm
- Outer Diameter
- 2-3/8 inch (Φ60 mm)
- Piston Rod Diameter
- 1.2 inch / Φ30 mm
- Connection Hole Diameter
- 0.8 inch / Φ19.4 mm
- Connection Hole Width
- 1.7 inch / 44 mm
- Thrust Force
- 3.5 Tons
- Pull Force
- 2.3 Tons
- Check Valve Inlet/Outlet Port
- G3/8″
- Rotatable Piston Rod
- Ball Joint Linkage Structure
- Maximum/Rated Working Pressure
- 20/18 MPa (2900/2610 psi)
- Compatible Equipment
- ClassⅠTractors
- Hydraulic Hose
- (I.D.&L.)
- Fitting Type
- G1/2
- Color and Surface Treatment
- Black Paint
- Main Material
- 45#
- Service Life
- 1-year Warranty
- Net Weight
- 20.1 lbs/9.1 kg
- Product Dimensions
- 23.4×4.7×2.4 inch/595×120×60 mm
Hydraulic Top Link for Versatile Tractor Applications
The VEVOR hydraulic cylinder is ideal for Cat. 1-1 tractors. It fits perfectly and works well for various tasks. Use it for heavy-duty plowing, waste recycling, and transportation. The compact design allows for easy installation. You can use it to handle tough conditions like mud and rain. A high-sealing check valve prevents oil leakage. This makes hydraulic operations precise and efficient. Our hydraulic cylinder is designed for durability and efficiency. So, you can trust it on both light and heavy tasks with ease. It is a versatile addition to your tractor setup.

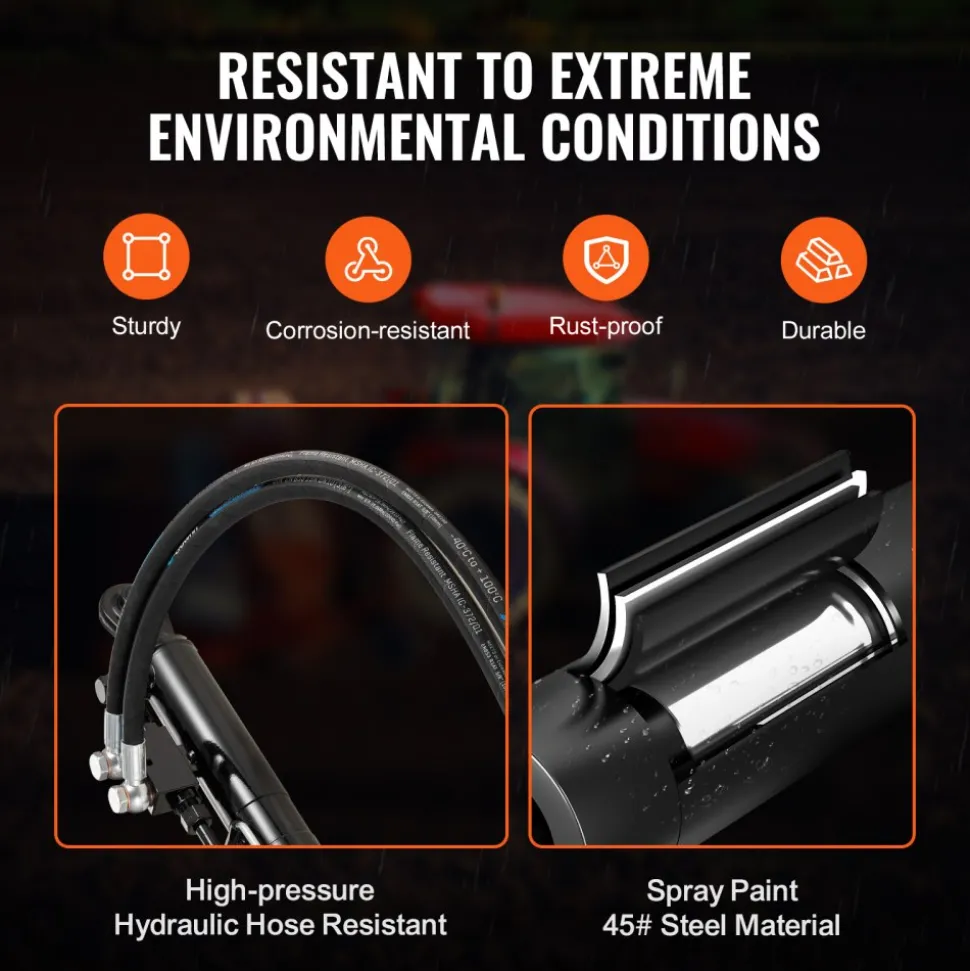

Durable 45# Steel Construction Ensures Long-Lasting Use
It is made from thick 45# steel, known for its strength and durability. The paint coating improves rust and wear resistance. The hydraulic cylinder can handle mud, rain, and high temperatures, ensuring it lasts longer and stays reliable. Steel construction makes the hydraulic mechanical cylinder strong. It withstands heavy-duty tasks’ wear and tear. You can use it often without worrying about damage. A durable build is ideal for long-term use.

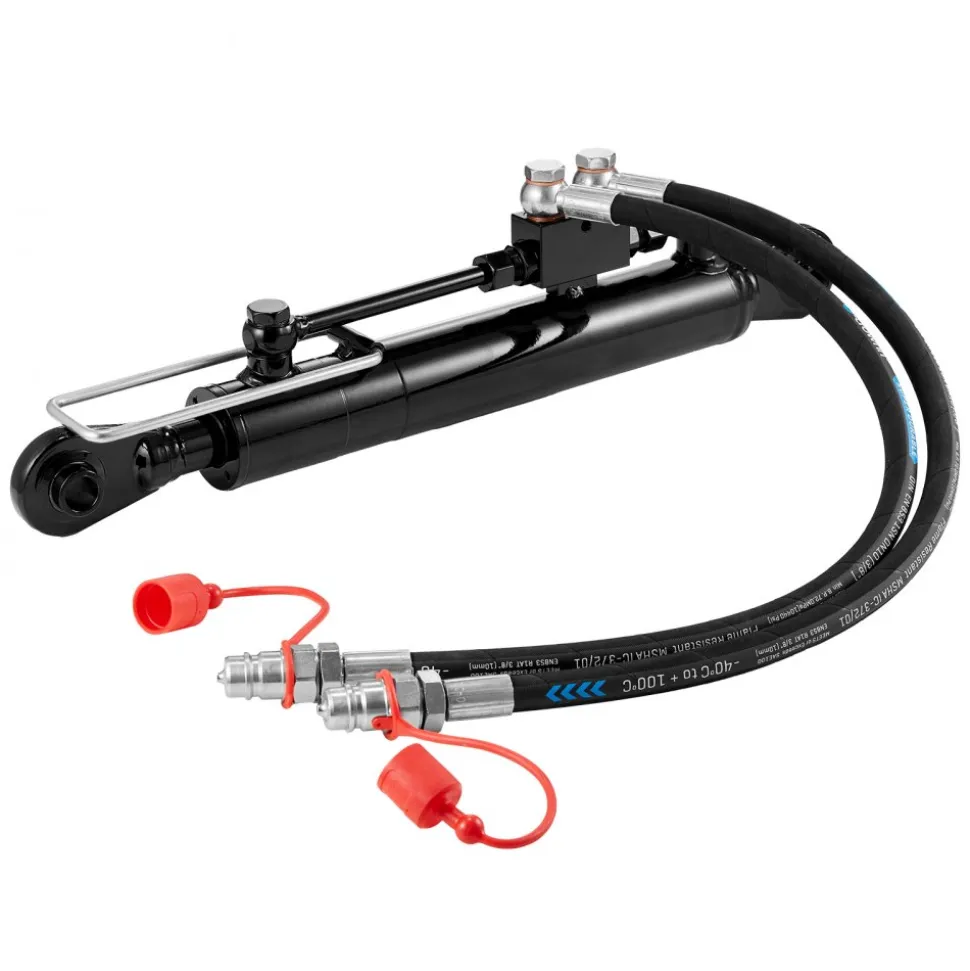

Easy Installation with Pre-Attached Hoses and Check Valve
This hydraulic cylinder with hoses is super easy to install. It includes pre-attached hoses and a check valve. You don’t need to buy additional parts. The installation process is straightforward. The rotatable piston rod caters to a variety of mounting requirements. High-pressure-resistant hydraulic hoses ensure secure encasement. This hassle-free setup saves you time and effort, offering immediate use of the hydraulic top link. It is especially convenient for busy tasks.

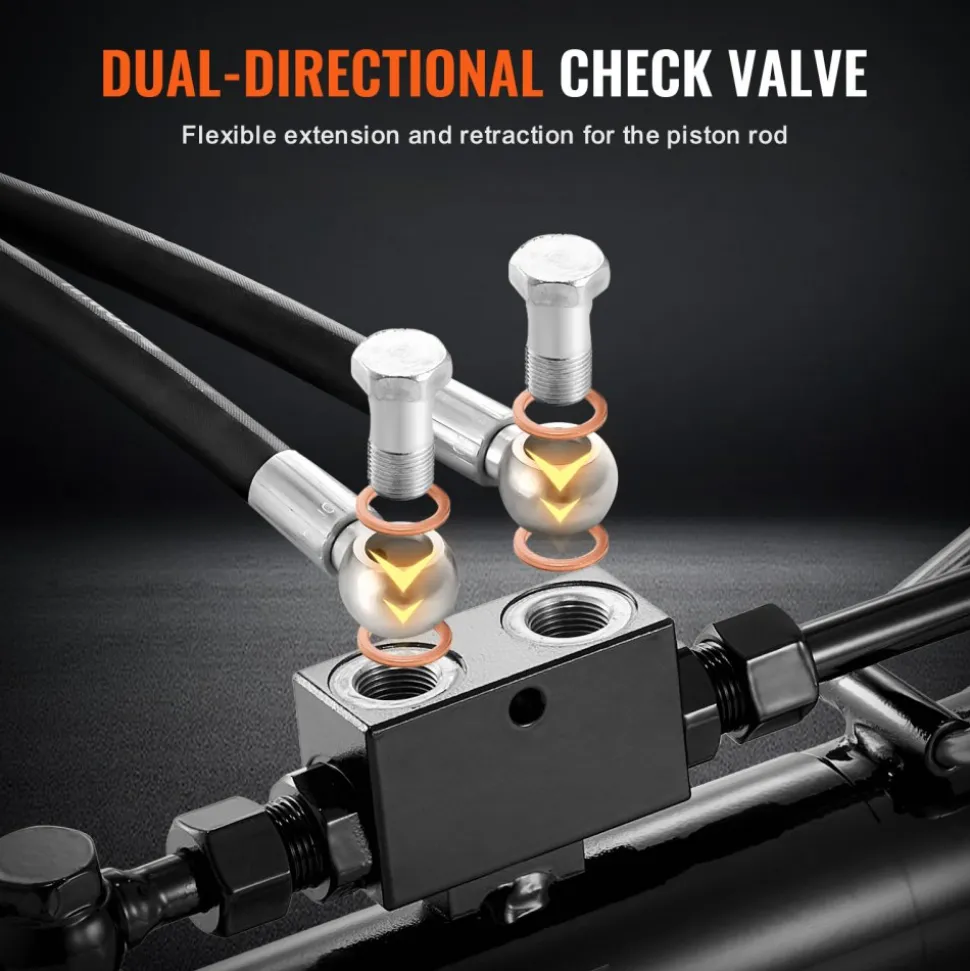

High-Sealing Bidirectional Check Valve for Precise Control
The hydraulic cylinder features a high-sealing bidirectional check valve. This structure ensures minimal oil leakage. It also provides precise control for push and pull operations. The hydraulic mechanics hold its position even after the pump stops. Due to this stability under force, it is essential for heavy-duty tasks. You can move only when there is enough oil pressure. That means safe and controlled operations are possible. High-seal design reduces maintenance needs. This check valve has become one of the most important features for precise control.

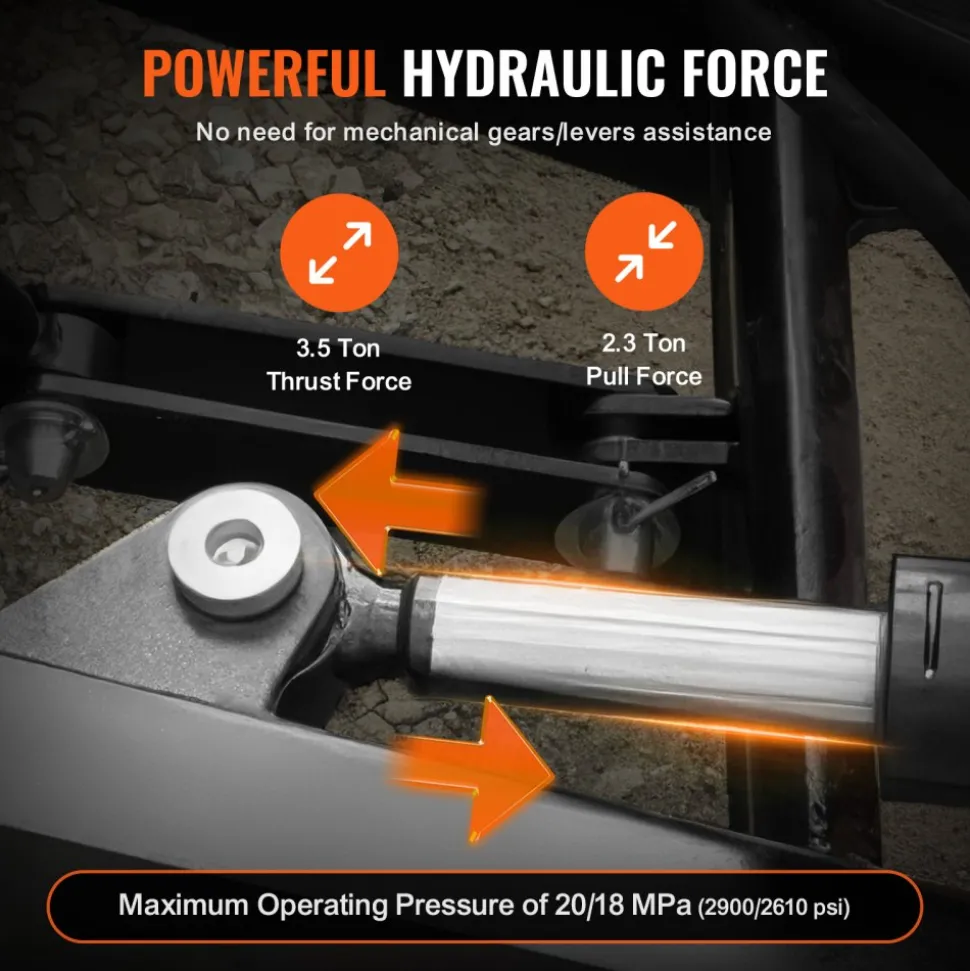

Delivers 3.5 Tons of Pushing Force and 2.3 Tons of Pulling Force
This is a powerful G3/8 check valve. It delivers 3.5 tons of pushing force. Also, it provides 2.3 tons of pulling force, which makes it suitable for heavy-duty tasks. The hydraulic cylinder works well under high pressure. You can handle up to 20/18 MPa (2900/2610 psi). This ensures strong performance for various jobs. Pushing and pulling tasks become easier with this hydraulic top link because the force it gives is reliable and consistent. So, it is not only excellent for demanding tasks but also useful in various applications.
Ideal for Heavy-Duty Tasks in Agriculture and Recycling
This hydraulic top link is ideal for heavy-duty tasks. It is perfect for agricultural plowing. You can also do good in waste recycling and transportation. The durable construction ensures it can handle tough conditions. Mud, rain, and high temperatures won’t affect its performance. Our hydraulic cylinder’s power makes it suitable for demanding jobs. Use it for moving heavy loads with ease. Due to its versatility, it becomes an asset for various tasks as well. So, you get reliable and efficient performance every time. This adjustable hydraulic cylinder is a must-have for heavy-duty needs.

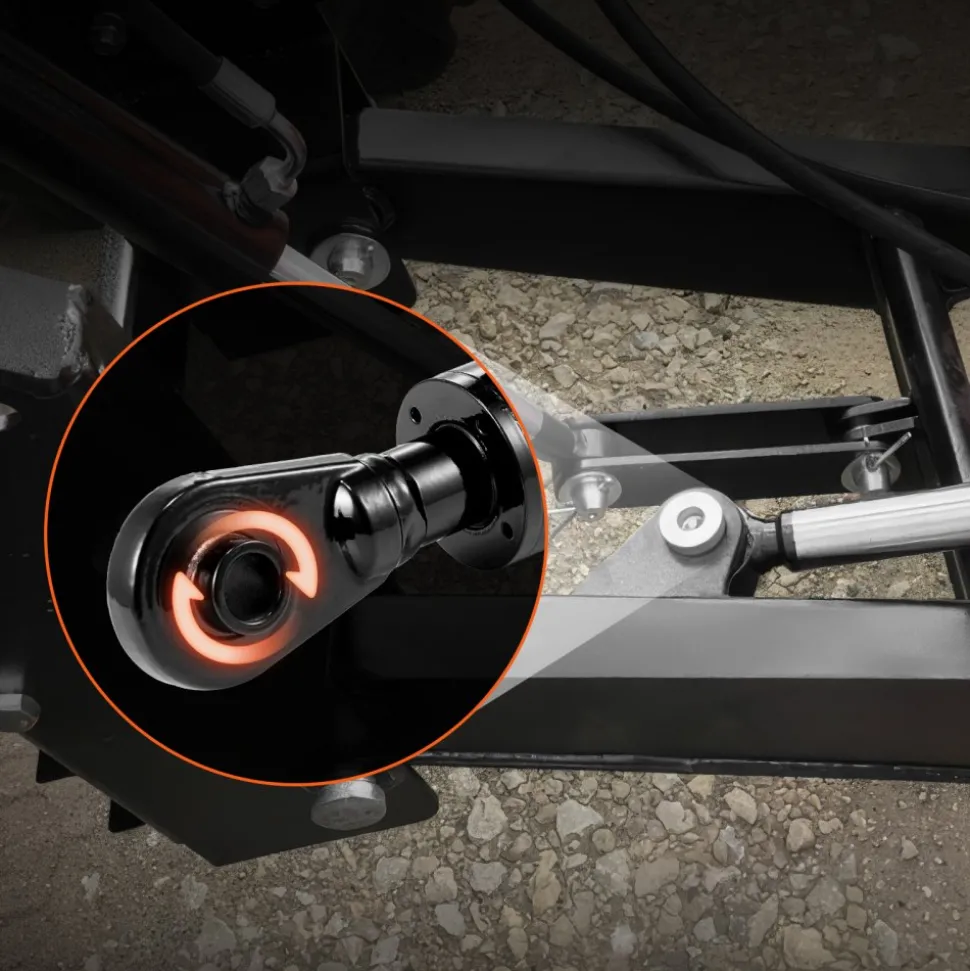

Adjustable Hydraulic Cylinder for Customized Performance
This is the hydraulic top link that you can use. It has a minimum retracted length of 20–7/8 inches. The stroke length is 11 inches, which allows for customized performance. You can adjust the length to suit different tasks. Your options are flexible too. Our rotatable piston rod adds an extra layer of flexibility to its versatility. The hydraulic cylinder adapts to various installation requirements. This flexibility makes it suitable for different setups. You can trust it for both light and heavy tasks because the adjustable feature ensures it meets specific needs. So, it is able to perform custom work on your project with ease.
