VEVOR Hydraulic Steering Kit, 200 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 26ft High-Strength Hoses, for Single Station, Single-Engine Use

VEVOR Hydraulic Steering Kit, 200 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 26ft High-Strength Hoses, for Single Station, Single-Engine Use

$126.99

SKU: SKUZApJPihbCN Categories: Hydraulic Pumps, Hydraulic Steering Pump, Plumbing Tag: VEVOR Brand: VEVOR

Description
Reviews (0)

Handle Up to 200 HP Engines: This hydraulic steering kit delivers steady, efficient steering performance for outboards up to 200 HP, providing a 6 turns lock-to-lock for precise and responsive handling on every trip

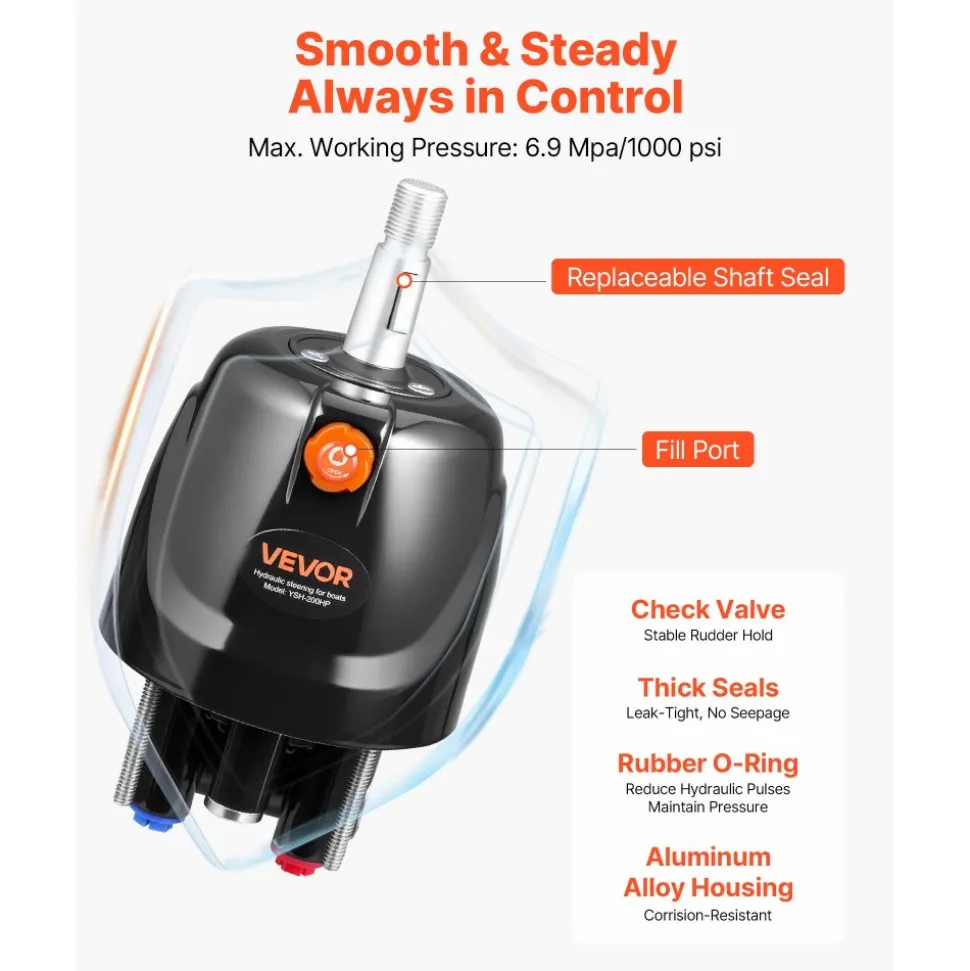

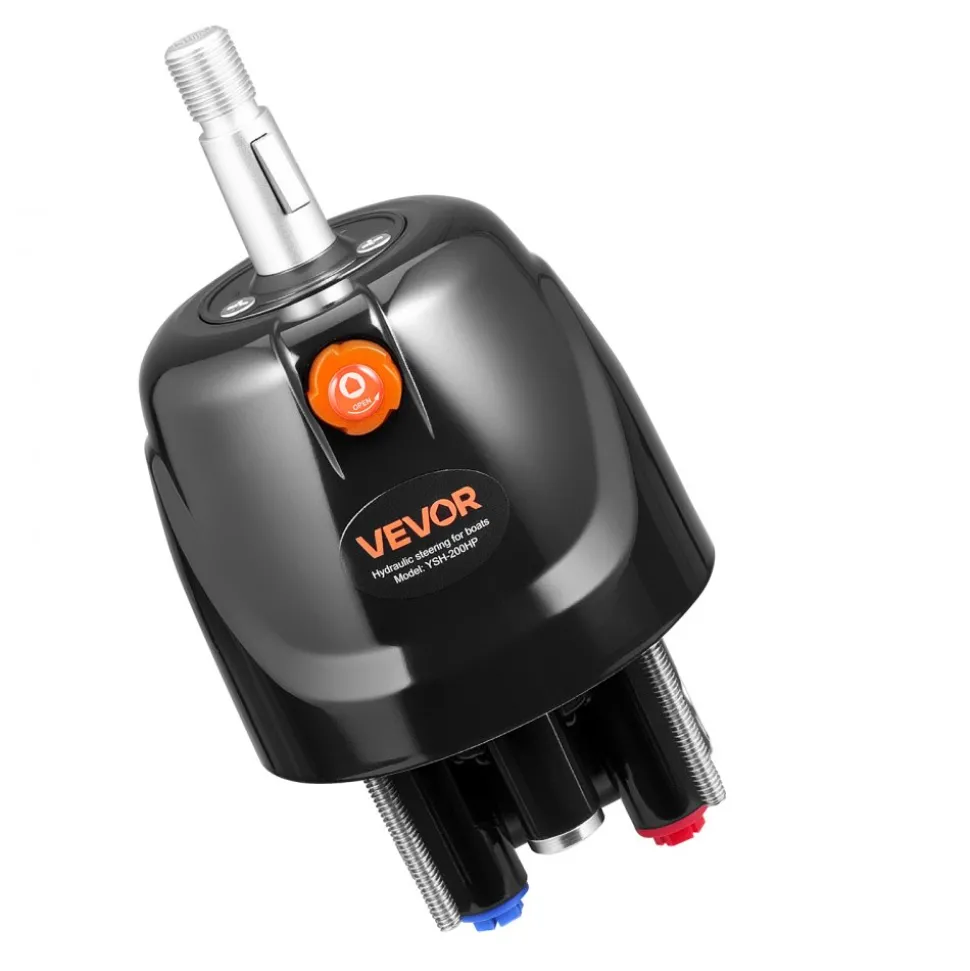

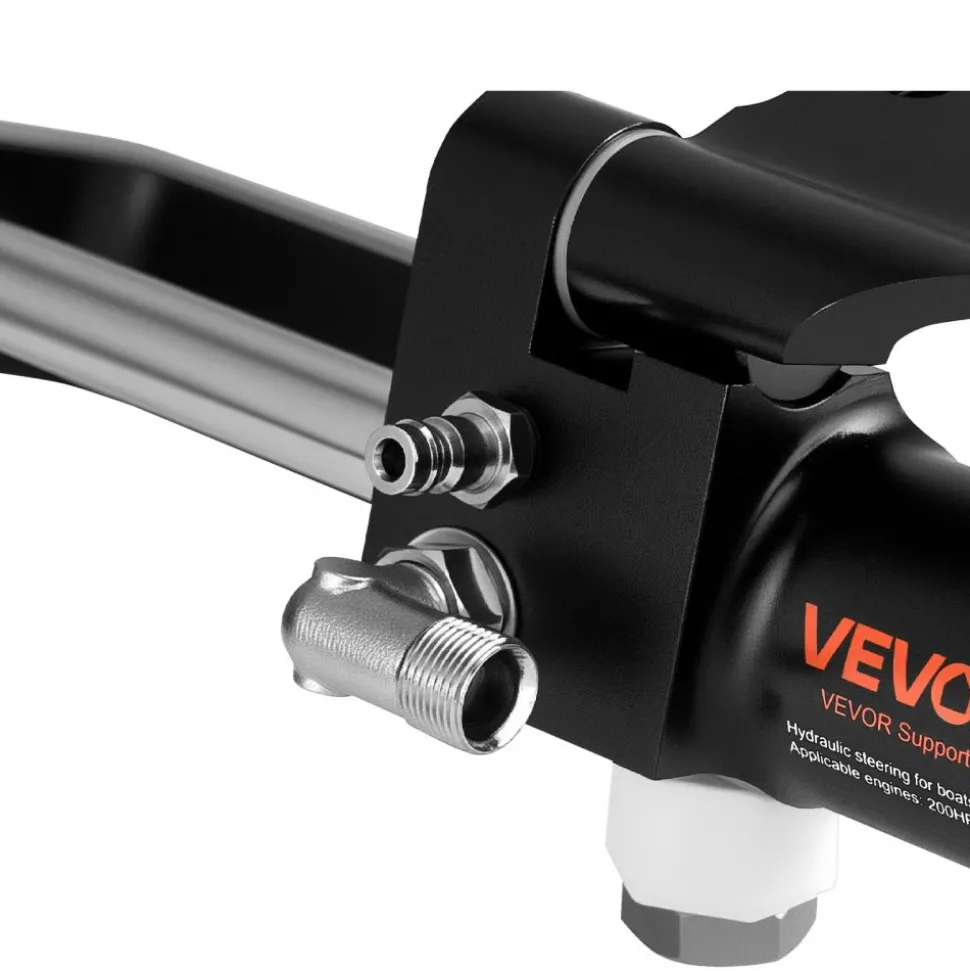

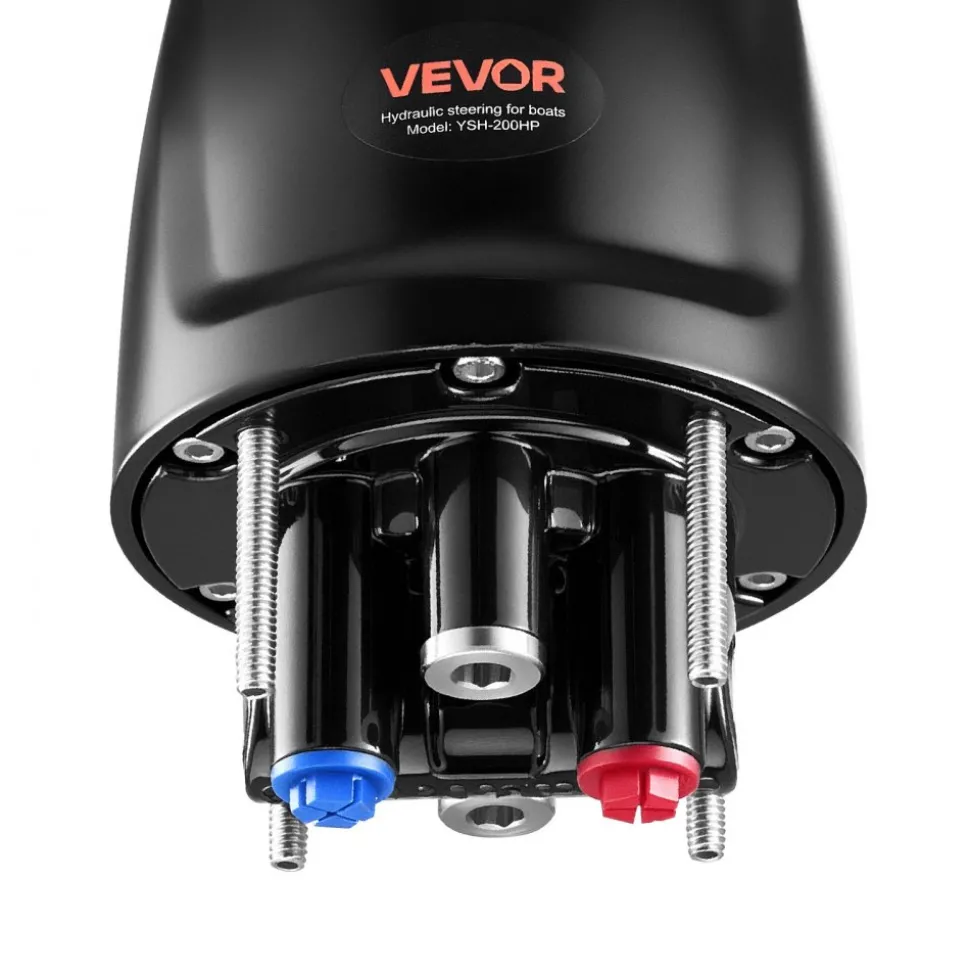

Durable & Reliable Helm Pump: Built to handle 6.9 MPa/1000 psi, this marine hydraulic steering kit features a check valve, fill port, stainless steel ORB fittings, and a replaceable shaft seal. The aluminum alloy housing ensures long-term use

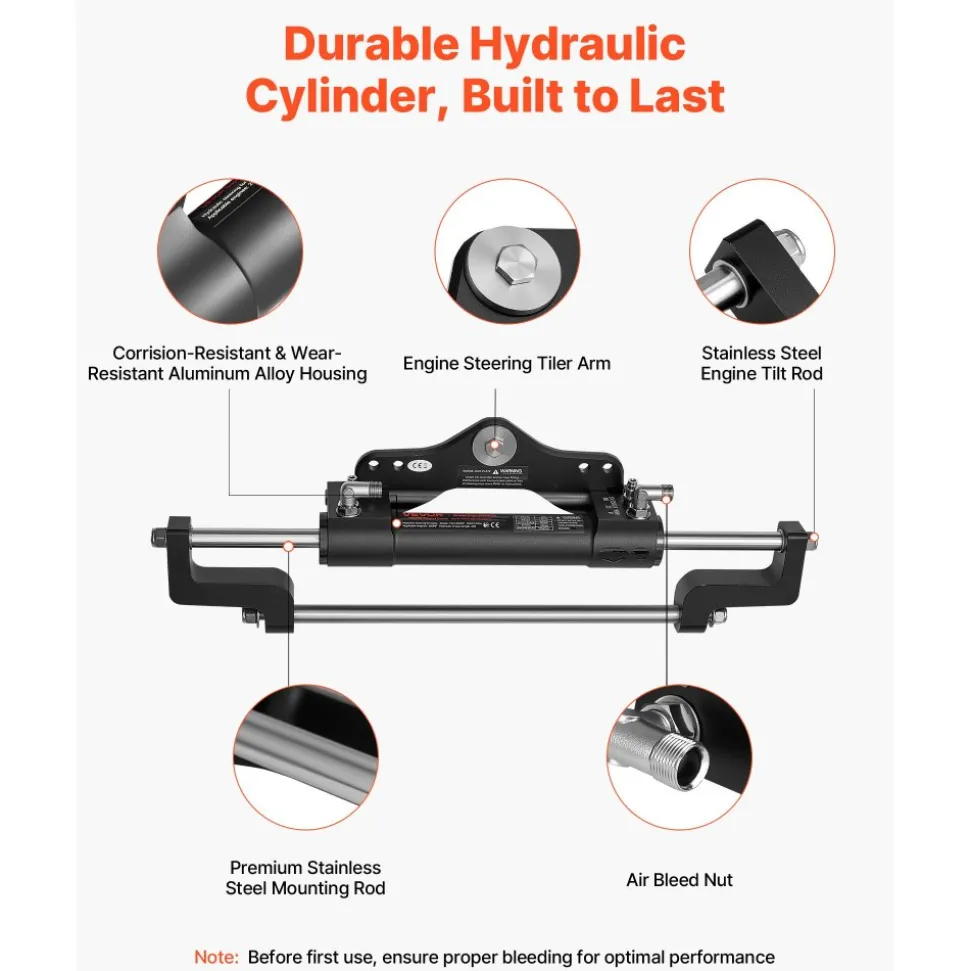

Compact Hydraulic Cylinder: The boat hydraulic steering system includes a space-saving cylinder that fits a variety of boat types. Its reinforced sealing structure ensures smooth steering performance and durability even in rough marine conditions

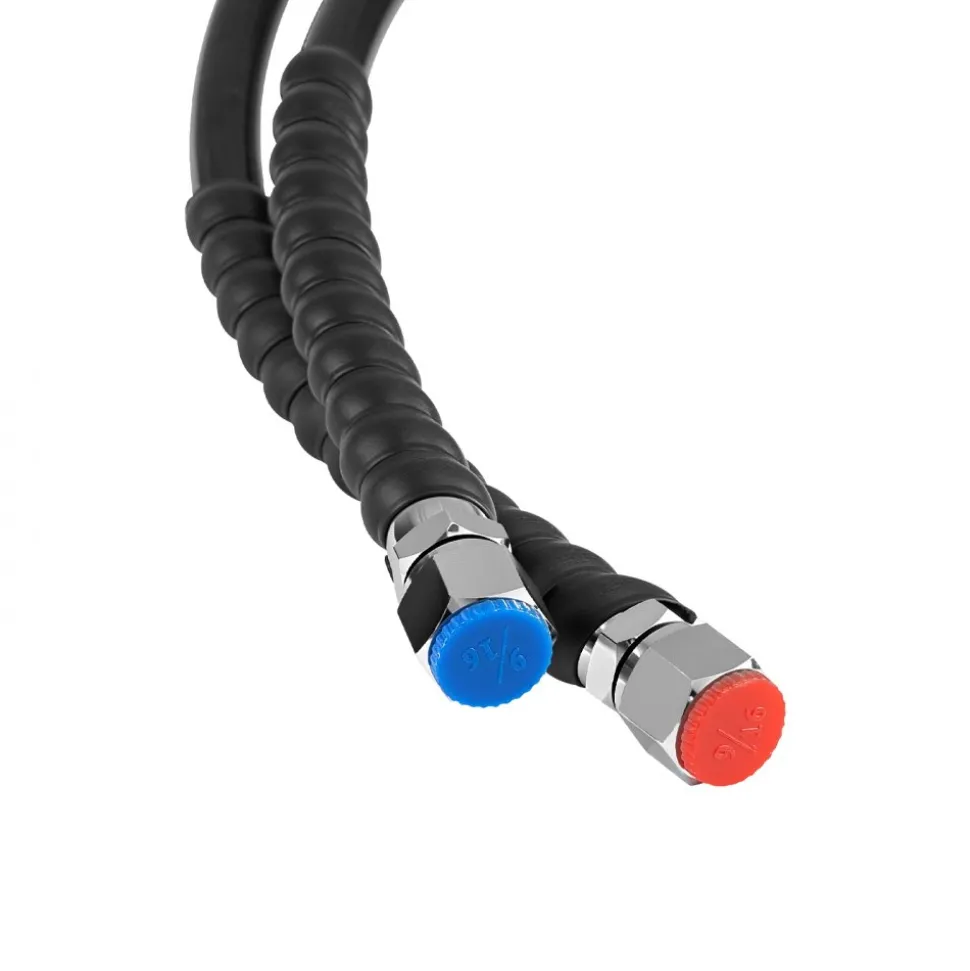

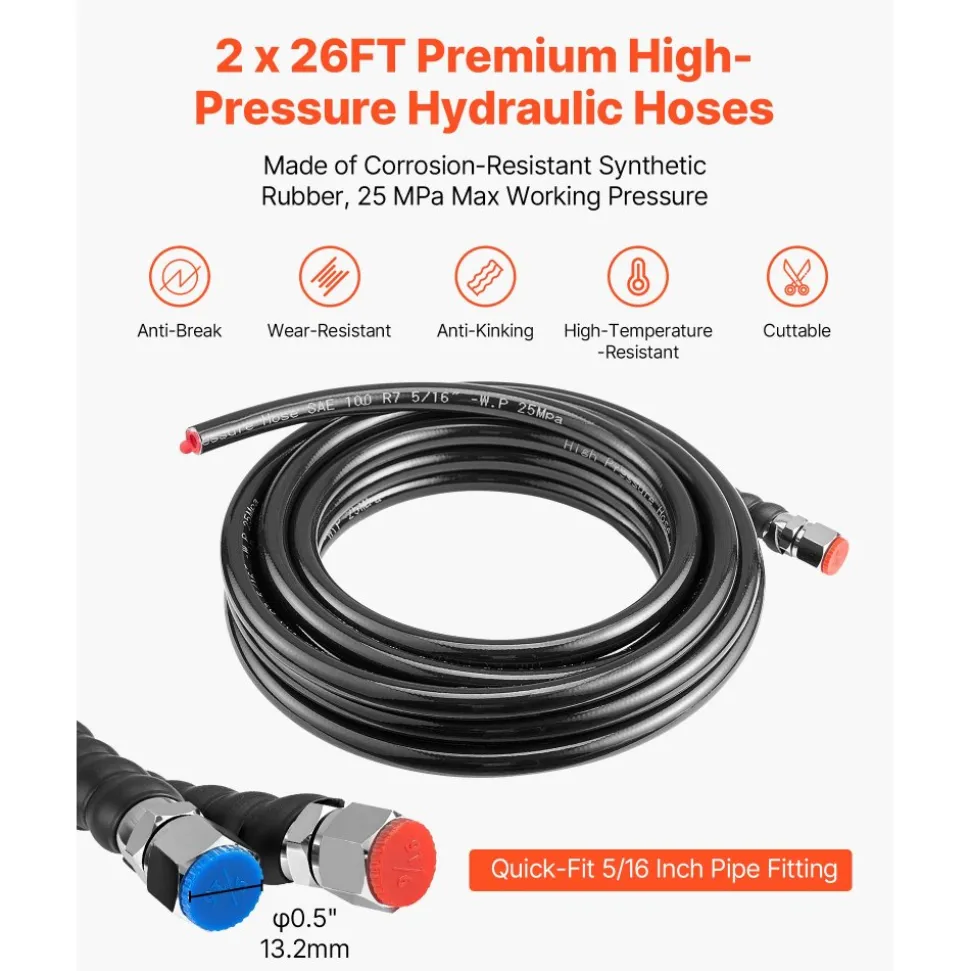

2 x 26FT High-Strength Hoses: With a max working pressure of 25MPa, these premium hoses resist bursting, kinking, and leakingunder heavy load. Equipped with a quick-fit 5/16-inch fitting, allowing for flexible, fast installation across various boats
Wide Boat Compatibility: This hydraulic steering helm pump kit works with cruisers, center consoles, speedboats, and offshore fishing boats, making it a versatile choice for a wide range of outboard setups

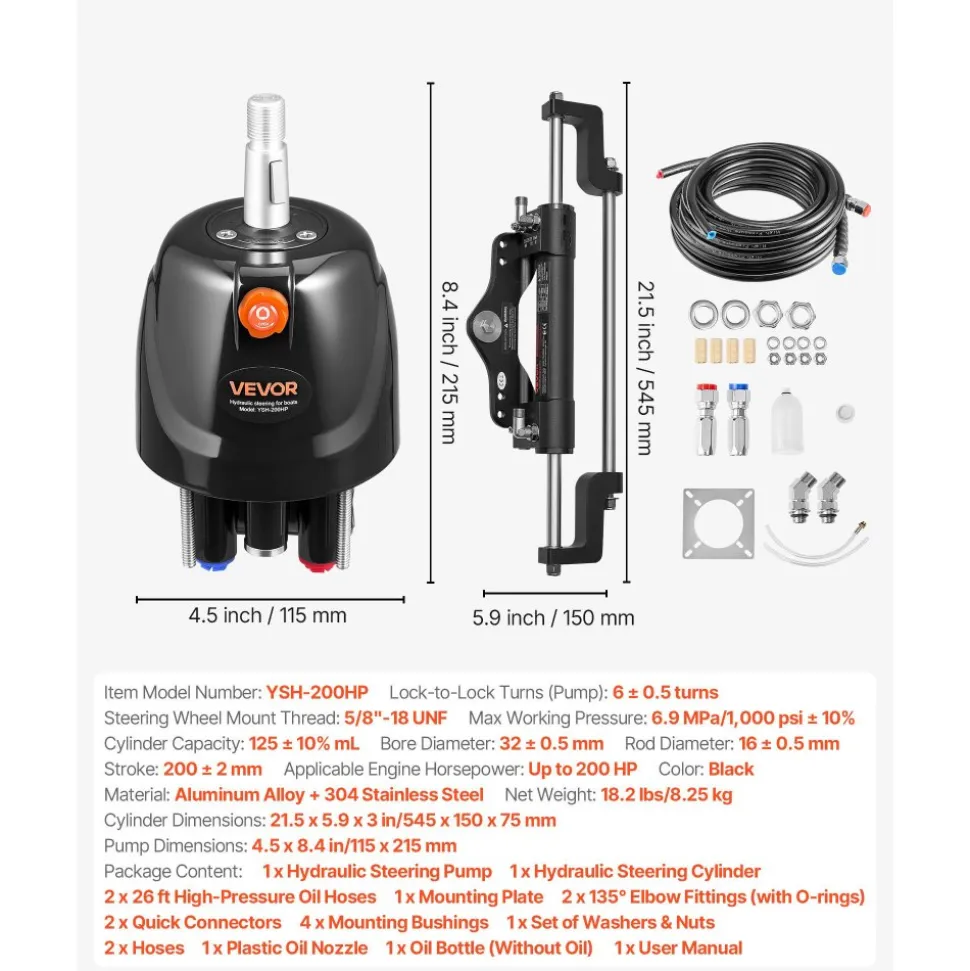

Item Model Number: YSH-200HP

Lock-to-Lock Turns (Pump): 6 ± 0.5 turns

Steering Wheel Mount Thread: 5/8″-18 UNF

Max Working Pressure: 6.9 MPa/1,000 psi ± 10%

Cylinder Capacity: 125 ± 10% mL

Bore Diameter: 32 ± 0.5 mm

Rod Diameter: 16 ± 0.5 mm

Stroke: 200 ± 2 mm

Applicable Engine Horsepower: Up to 200 HP

Color: Black

Material: Aluminum Alloy + 304 Stainless Steel

200 HP Hydraulic Outboard Steering Kit

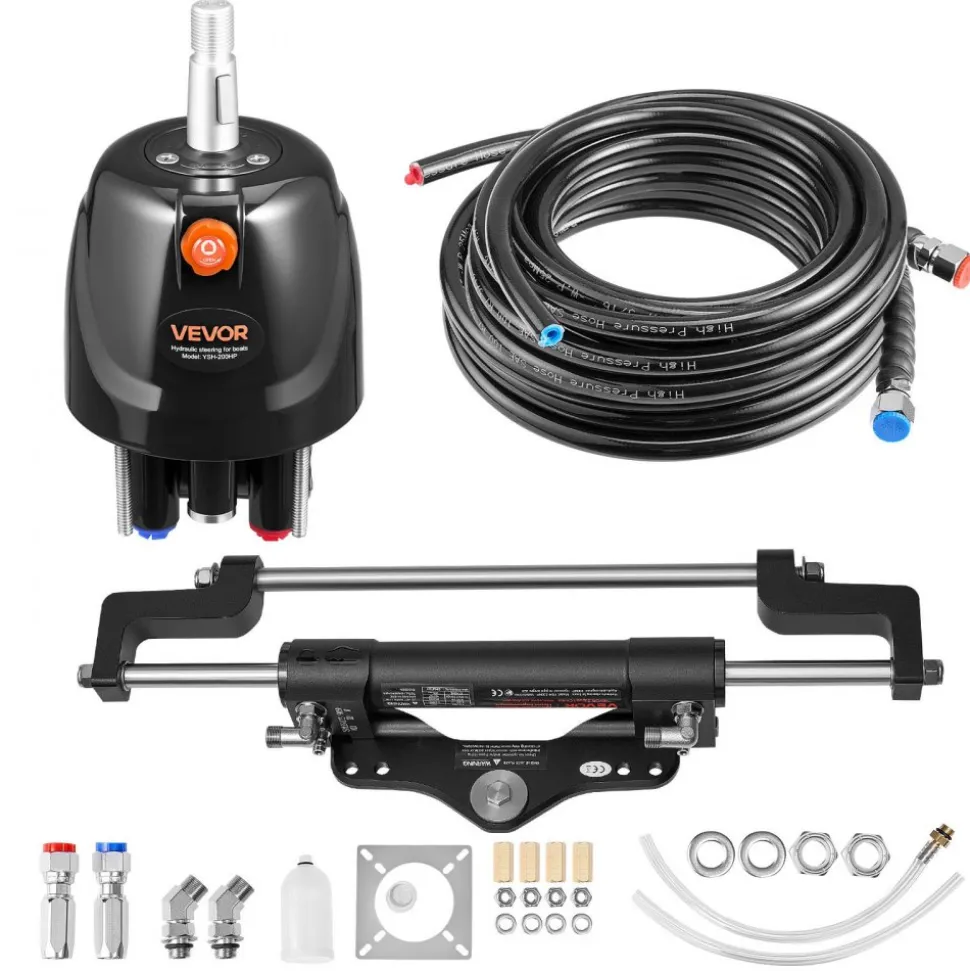

Experience smooth, precise, and reliable steering control for cruisers, center consoles, and fishing boats. Designed with a high-pressure helm pump, a compact hydraulic cylinder, and two corrosion-resistant high-strength hoses, it provides long-lasting performance in tough marine environments.

Hydraulic PumpEasy Pump Connection

Hydraulic Steering CylinderSimple Cylinder ConnectionHoseBroad Compatibility

Fishing BoatsSmall SailboatsSpeedboatsLifeboats

Q: Is this pump compatible with my 200 HP outboard engine?
A: Yes. It is specifically designed for outboards up to 200 HP, delivering smooth, reliable steering performance.

Q: Is there a risk of hydraulic oil leakage?
A: No. The quality seals ensure leak-free operation and support hydraulic oils rated ISO VG 15–32.

Q: Can I install it myself easily?
A: Yes. It comes with a complete kit and simple step-by-step instructions.

Q: How do I know if this hydraulic steering kit fits my outboard model?
A: We provide detailed compatibility images on the product page. Simply compare your outboard model with the chart shown to confirm the correct match before purchasing.

Q: How to solve the abnormal reactions of the system in practical operation?
A: Please refer to the bleed method in the user manual, completely bleeding the air out before restarting.
