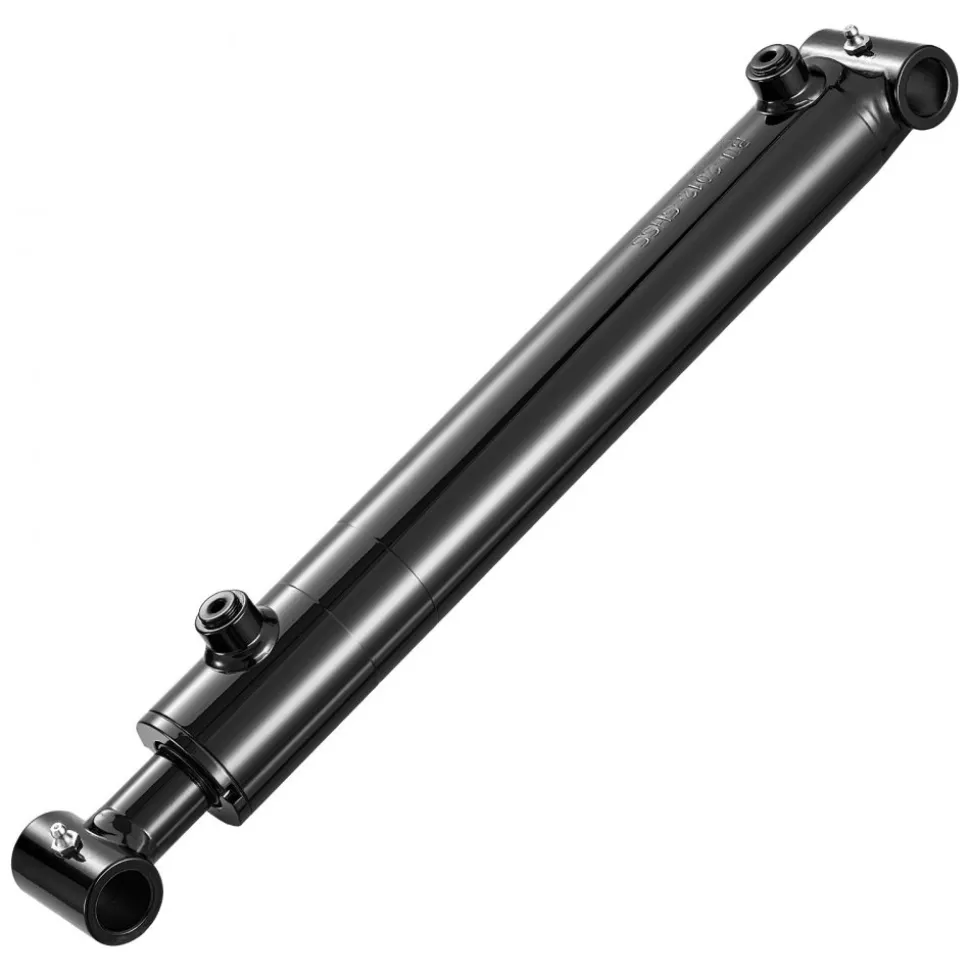

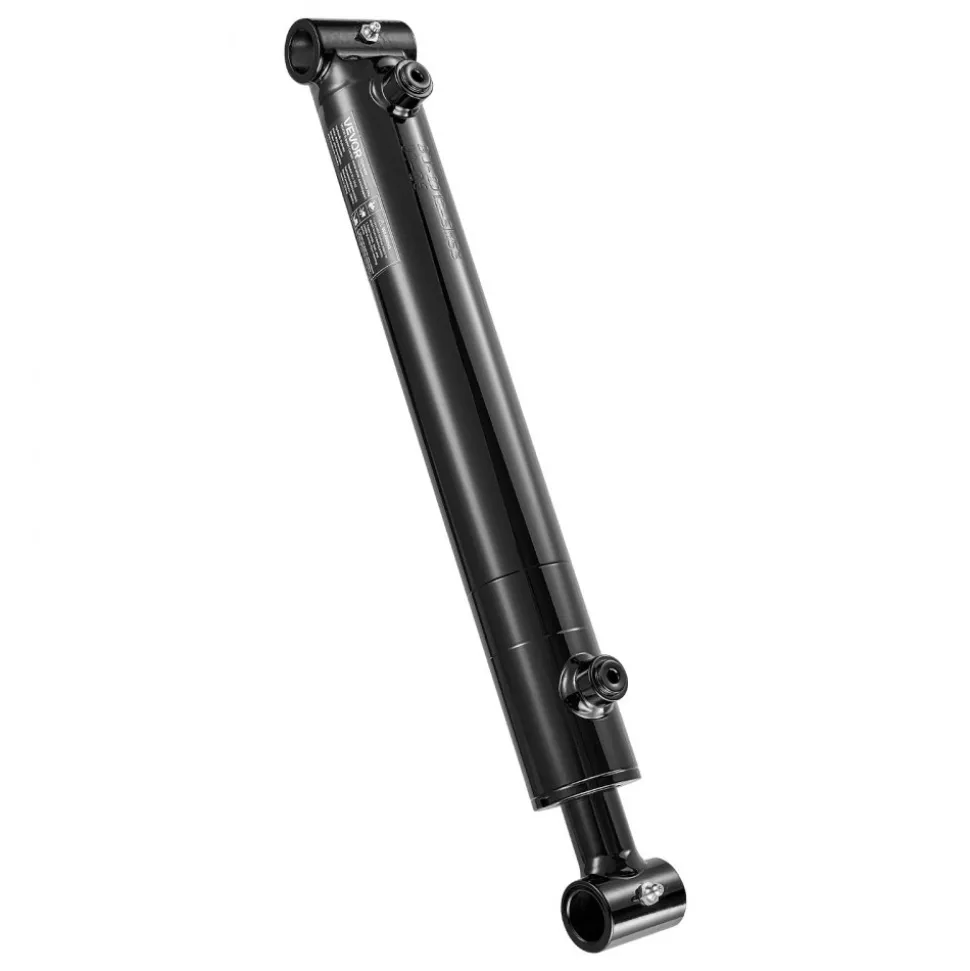

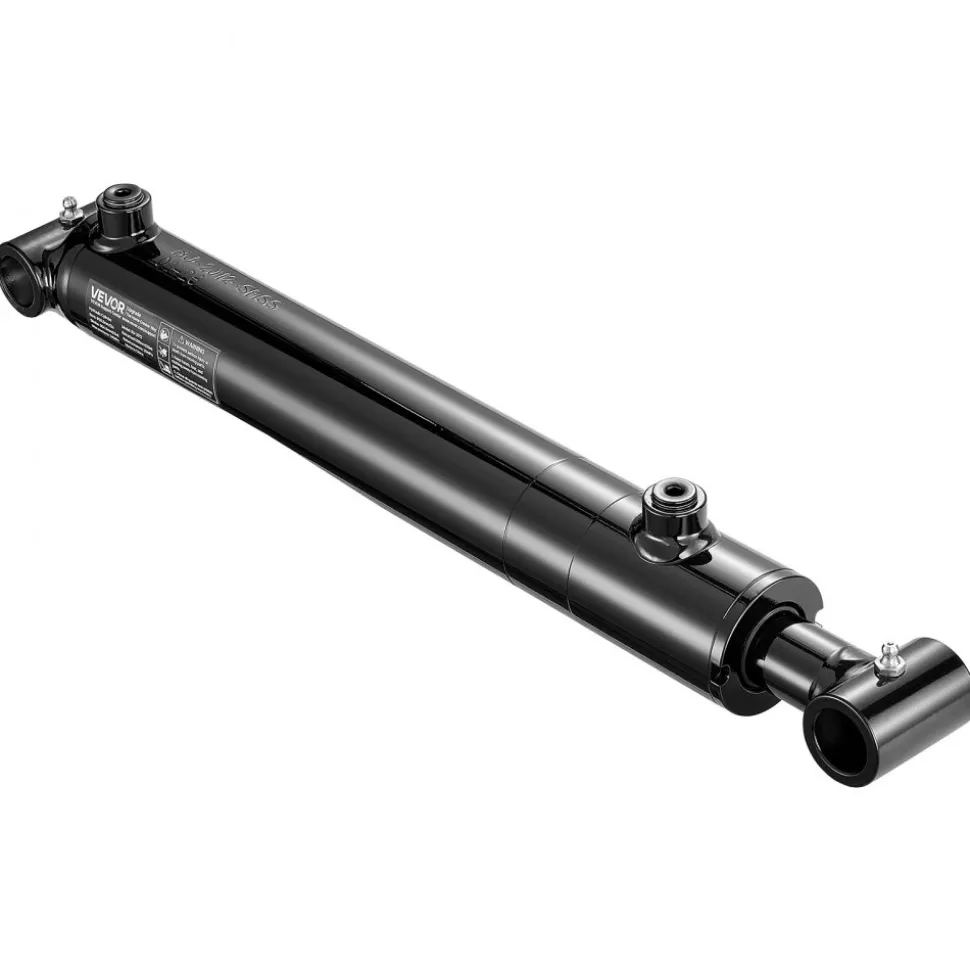

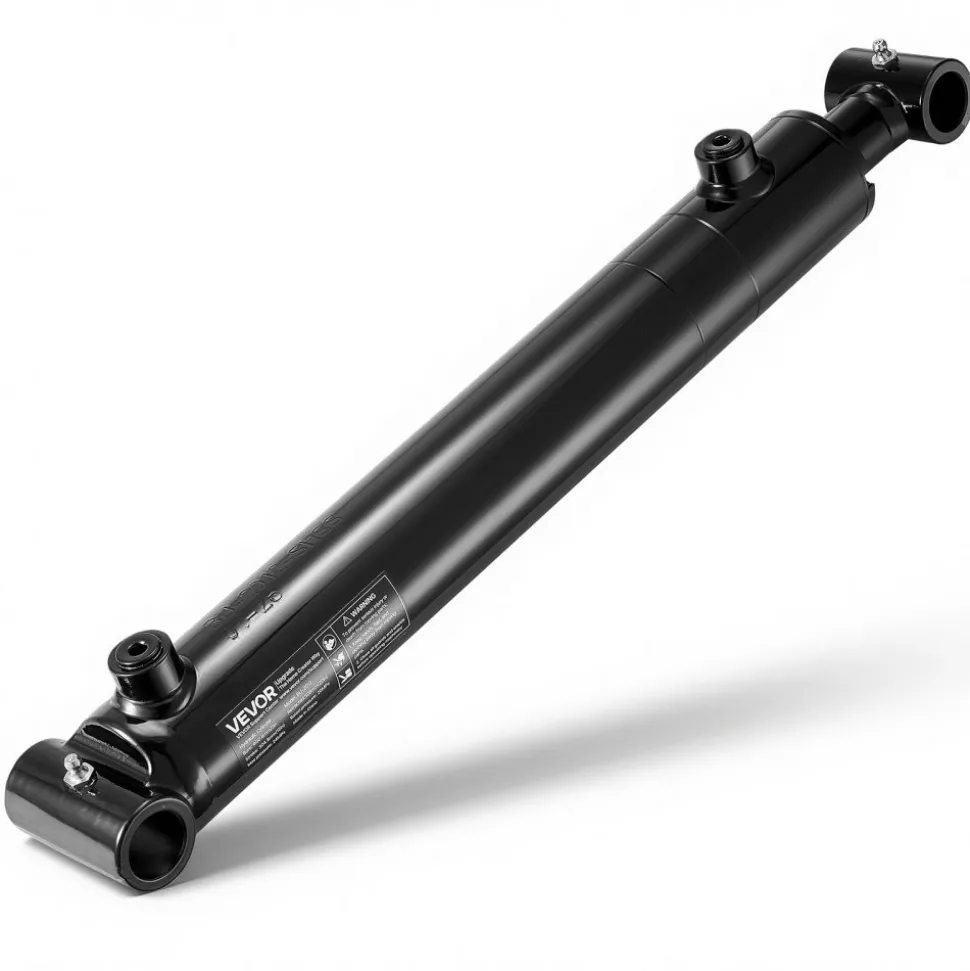

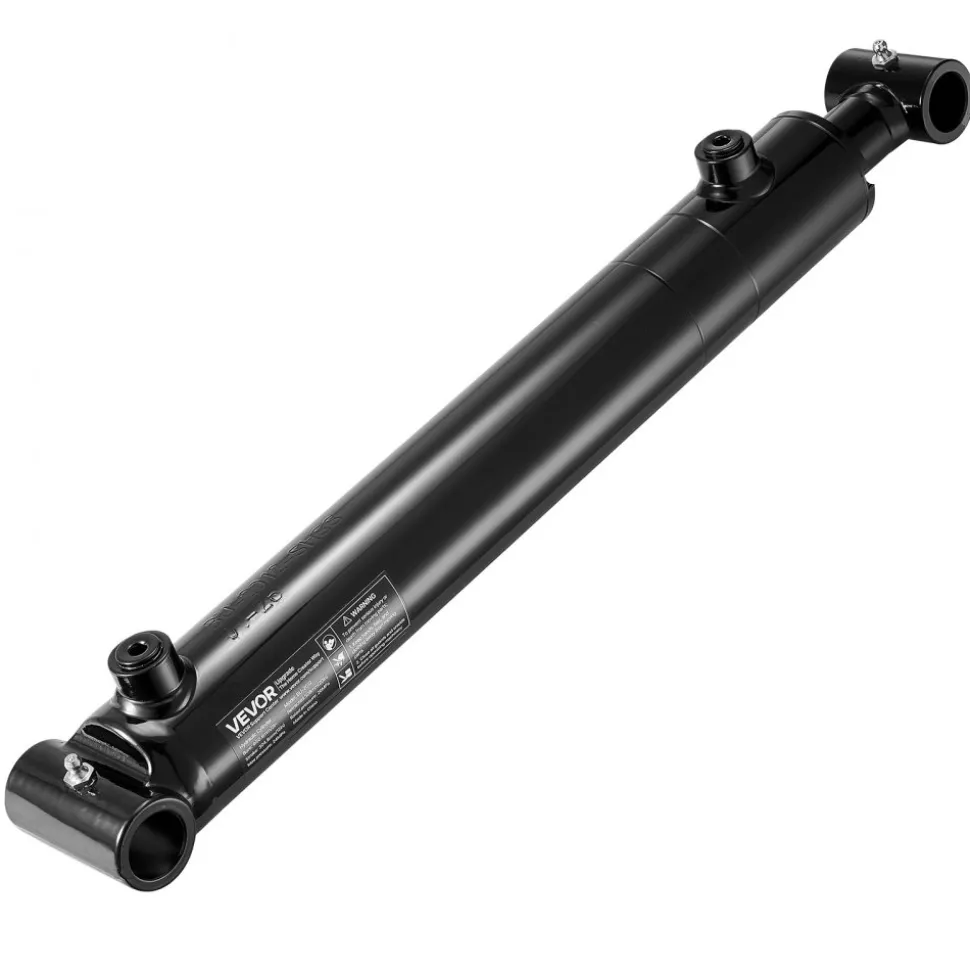

VEVOR Double Acting Hydraulic Cylinder, 2″ Bore x 12″ Stroke, Max 3500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 1″ Pin Hole & SAE #6 Port for Agricultural Machinery, Tractors
Original price was: $114.00.$76.99Current price is: $76.99.

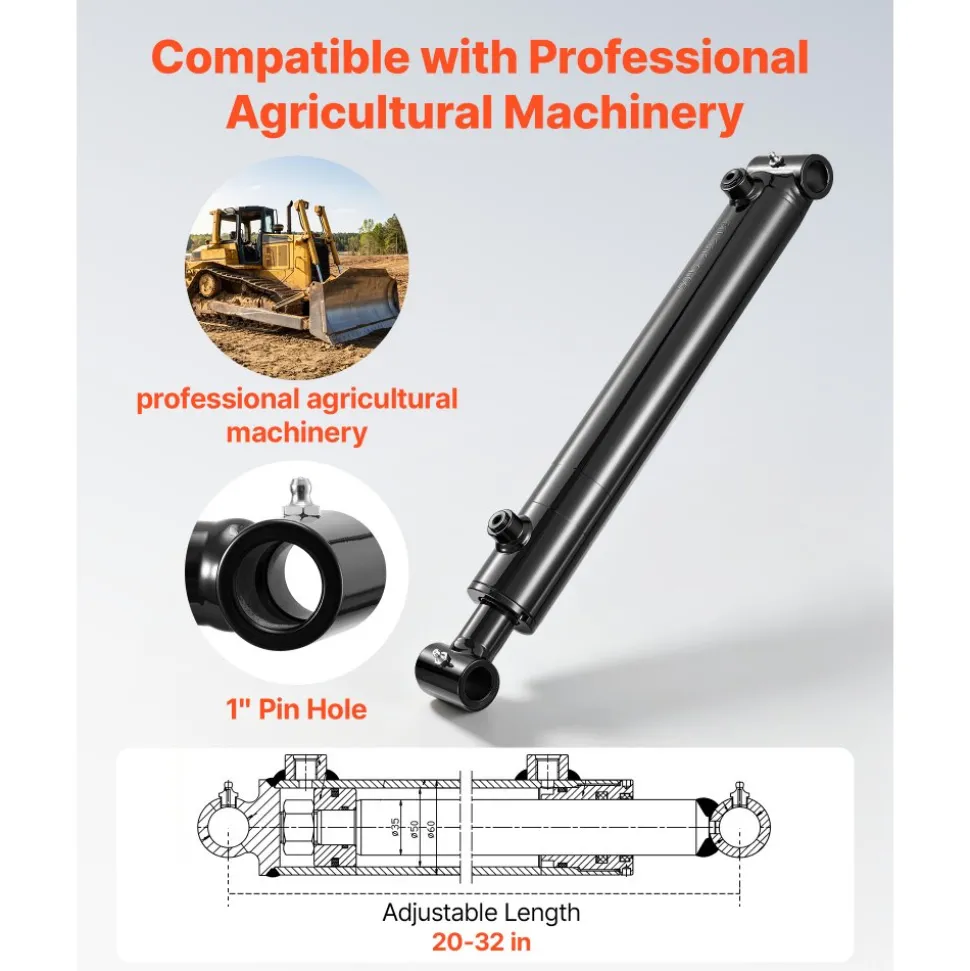

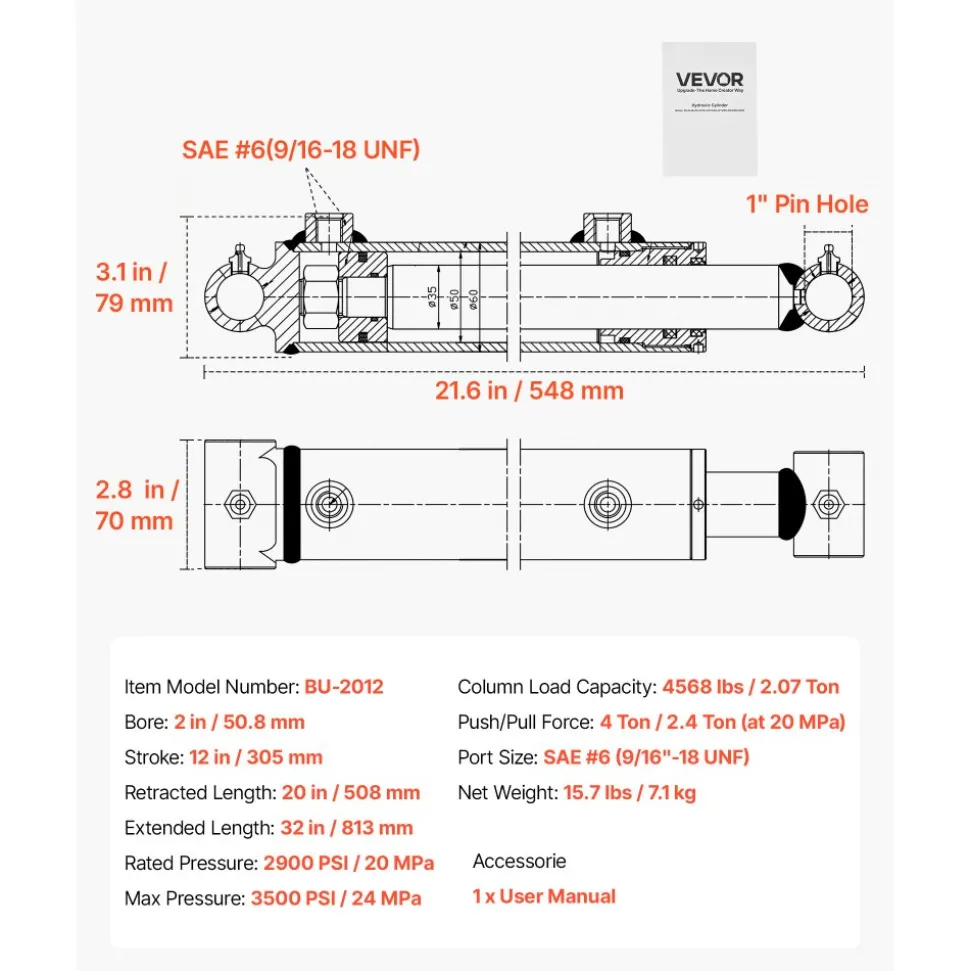

- Key Specifications: Bore: 2 in (50.8 mm), Stroke: 12 in (305 mm), Retracted Length: 20 in (508 mm), Extended Length: 32 in (813 mm), Port Size: SAE #6, Pin Hole Diameter: 1 in

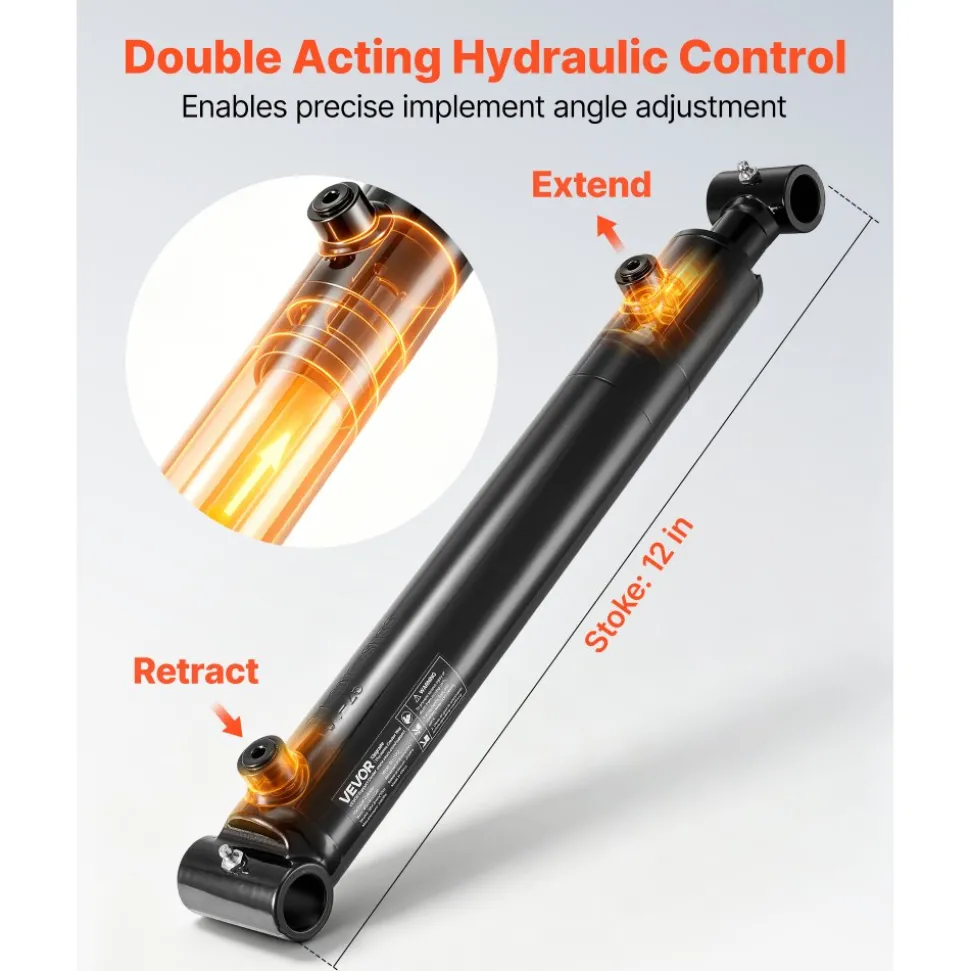

- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation
- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency

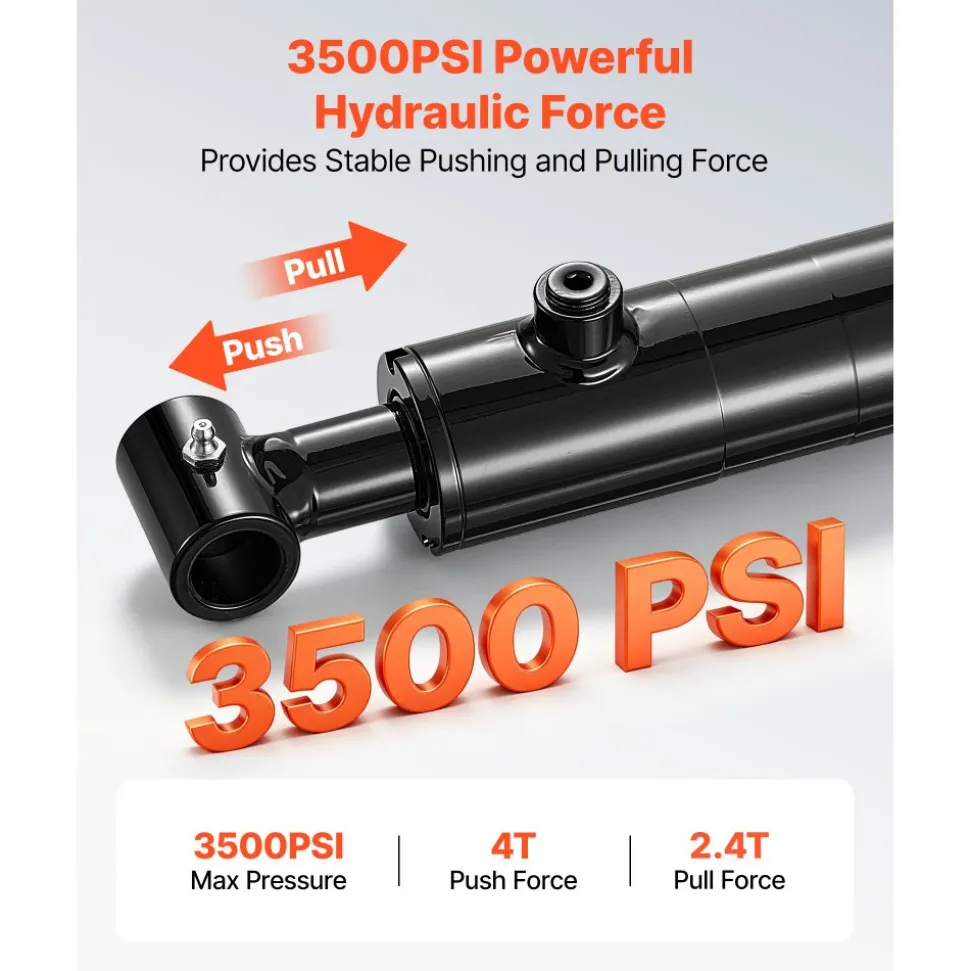

- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 4568 lbs (2.07 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications
- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions
- Item Model Number
- BU-2012
- Bore
- 2 in / 50.8 mm
- Stroke
- 12 in / 305 mm
- Retracted Length
- 20 in / 508 mm
- Extended Length
- 32 in / 813 mm
- Rated Pressure
- 2900 PSI / 20 MPa
- Max Pressure
- 3500 PSI / 24 MPa
- Column Load Capacity
- 4568 lbs / 2.07 Ton
- Push/Pull Force
- 4 Ton / 2.4 Ton (at 20 MPa)
- Port Size
- SAE #6 (9/16″-18 UNF)
- Net Weight
- 15.7 lbs / 7.1 kg
Pro-level performance without the pro-level cost
With high-pressure capacity and powerful hydraulic force, this double acting hydraulic cylinder delivers smooth, powerful push-pull motion to help agricultural equipment operate more efficiently.
Key Features

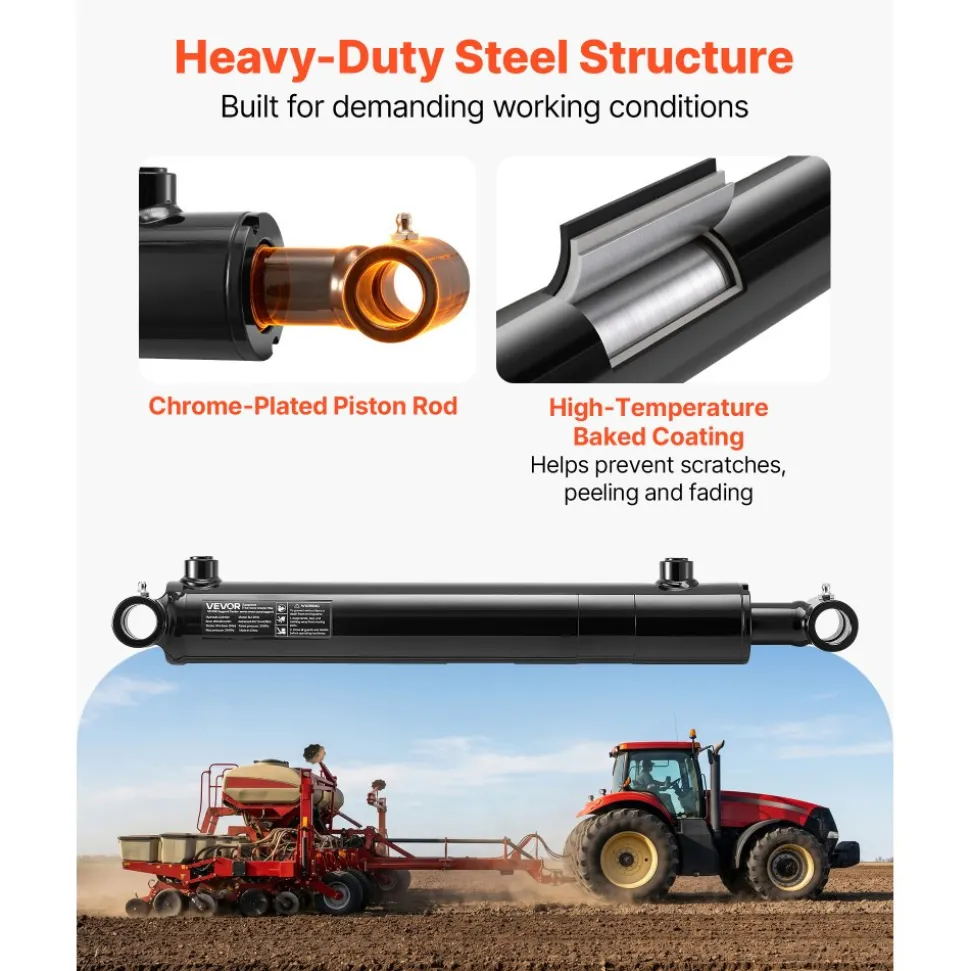

Chrome-Plated Piston Rod
Resists wear and corrosion for smoother movement and longer service life.

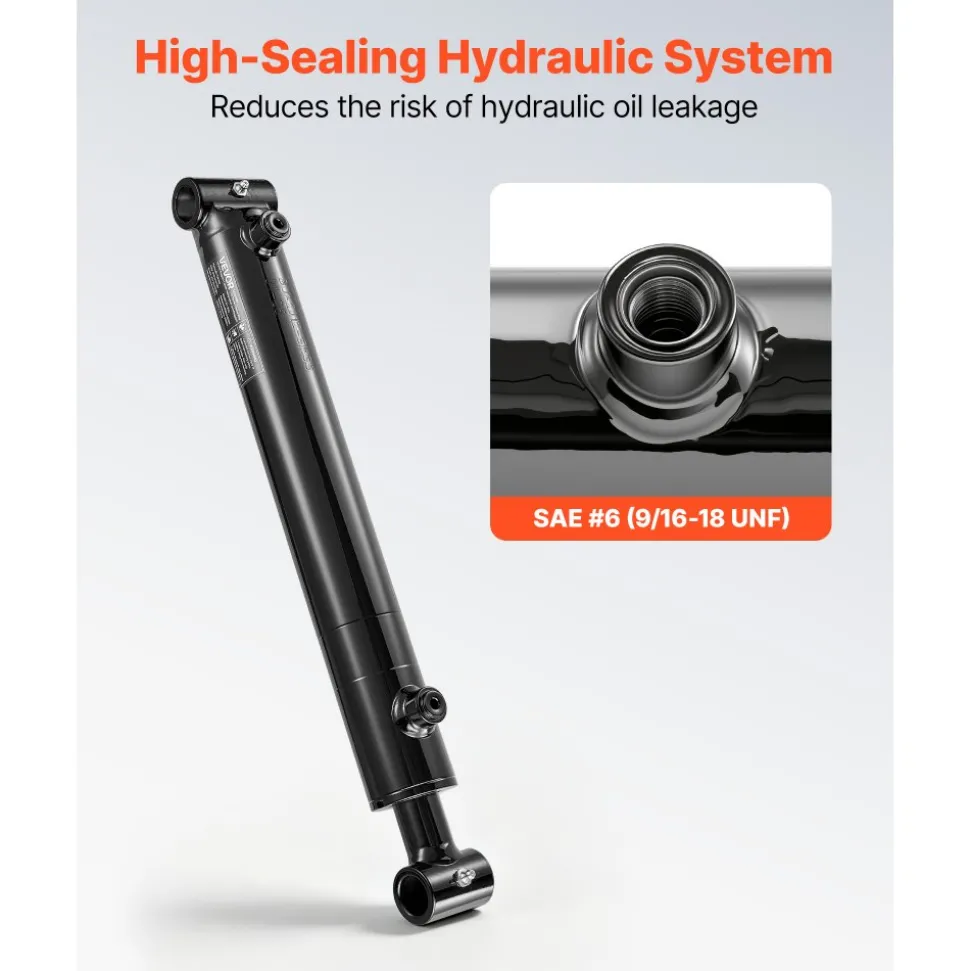

High-Performance Sealing System
Reduces hydraulic fluid leakage and maintains stable pressure output during operation.
High-Strength Construction
Built with durable steel to handle heavy-duty agricultural and industrial applications.
