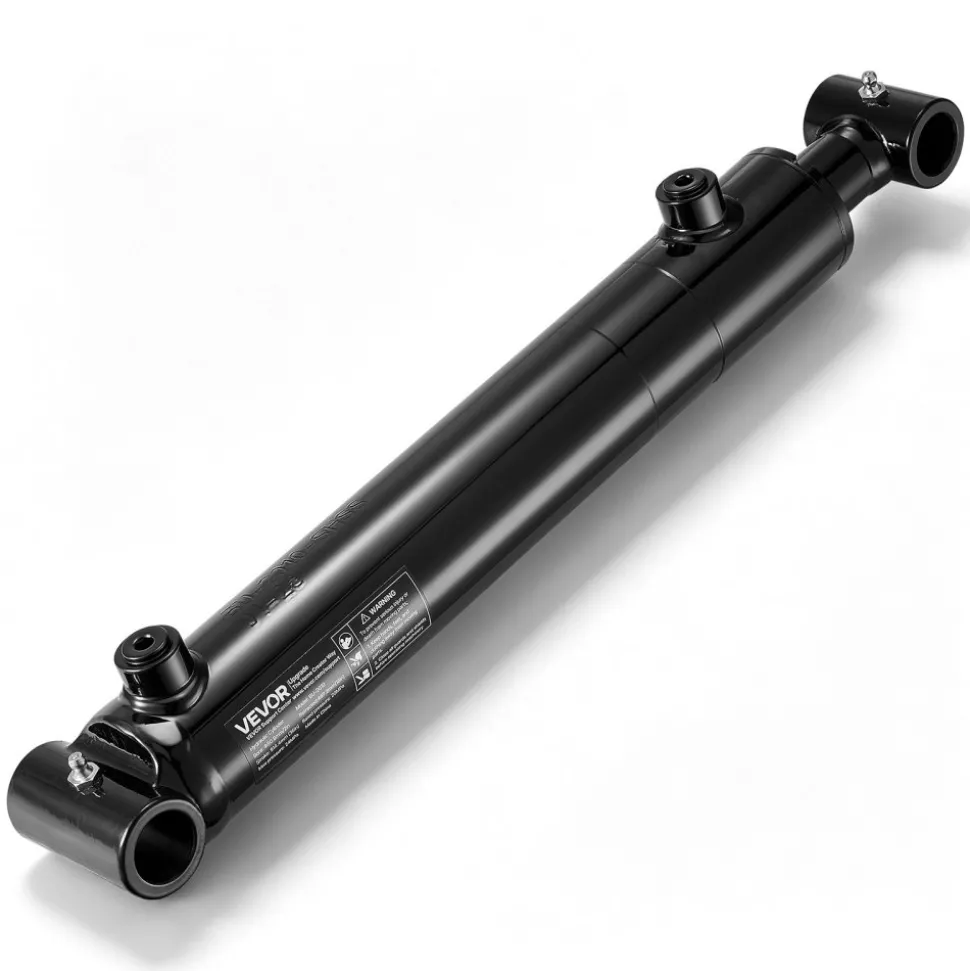

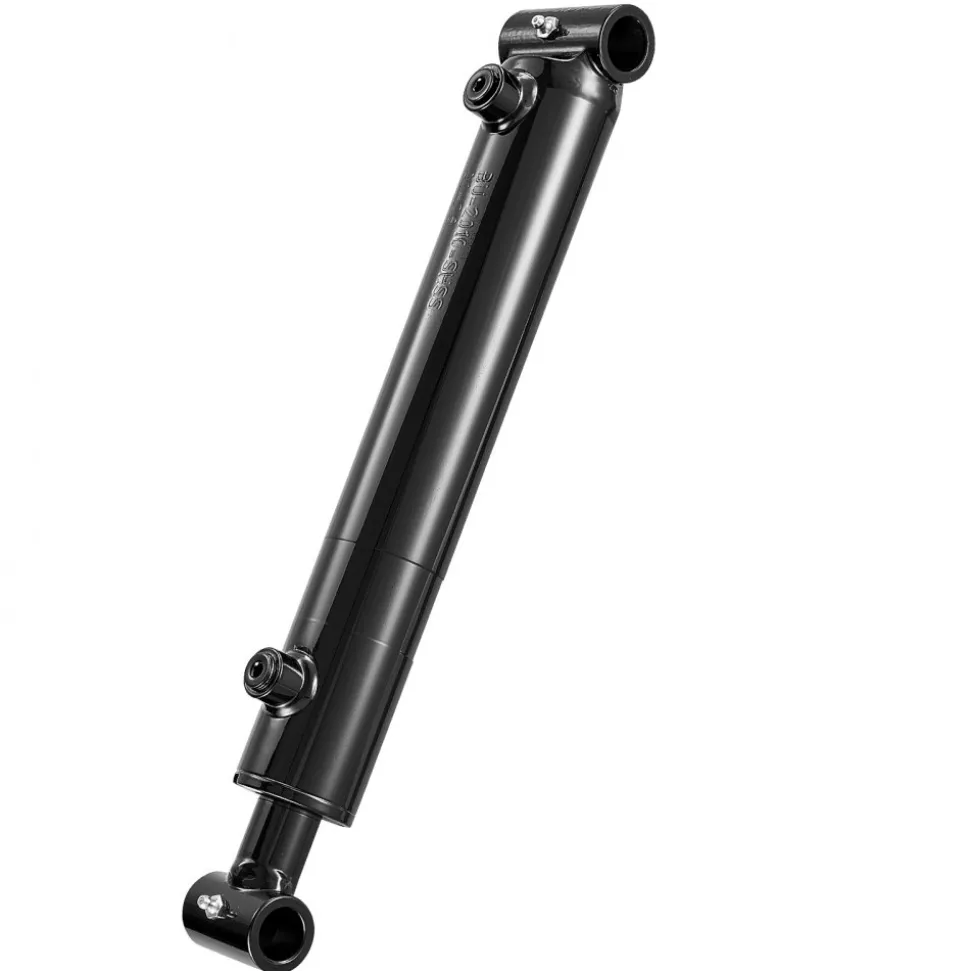

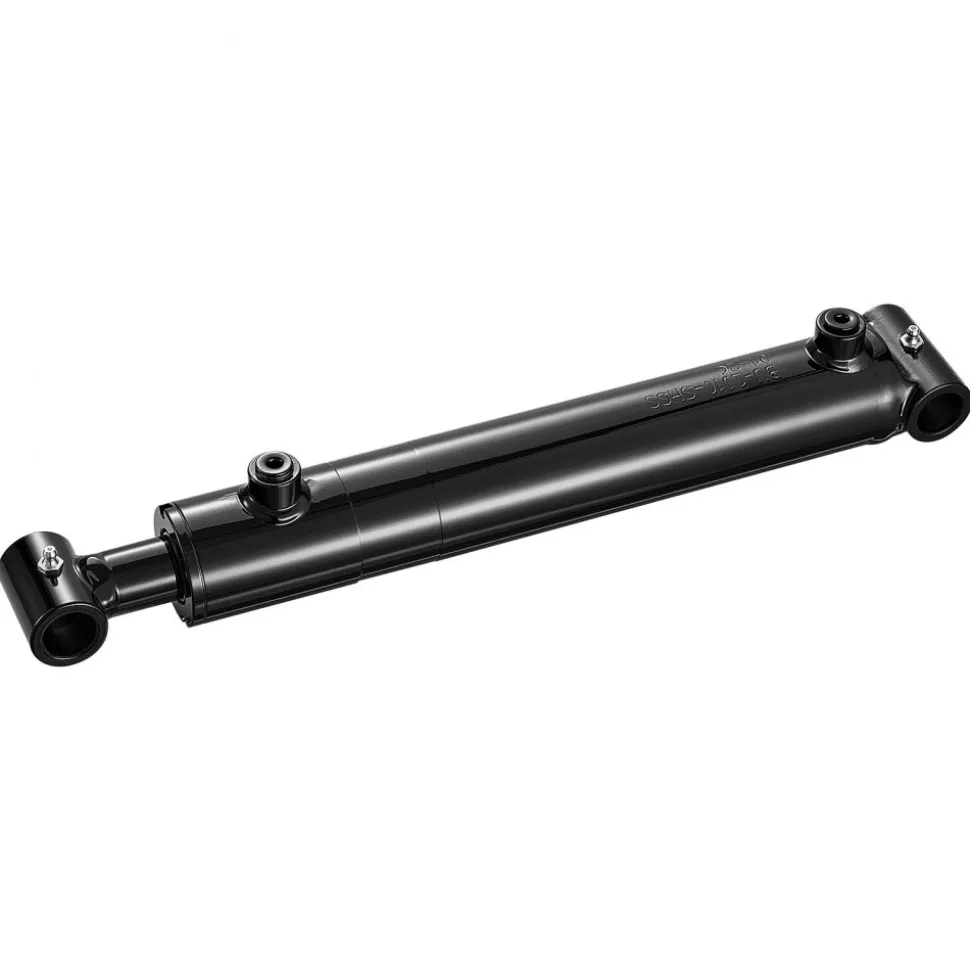

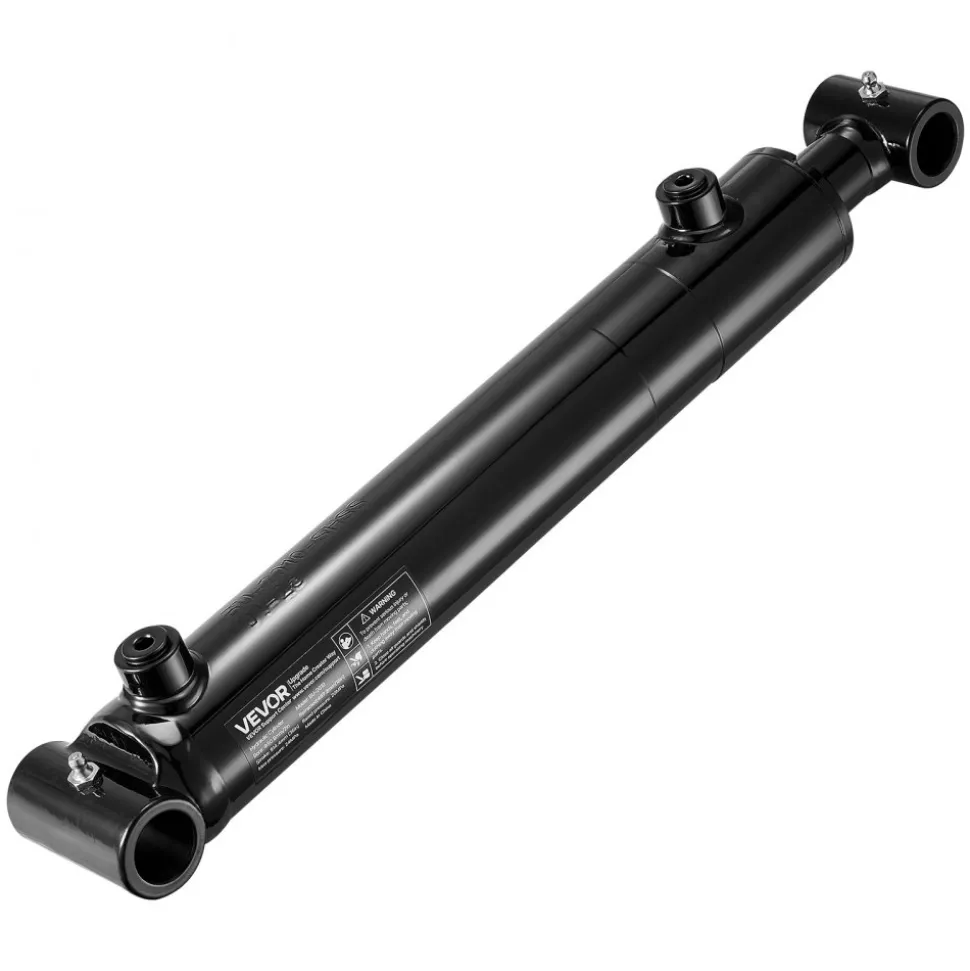

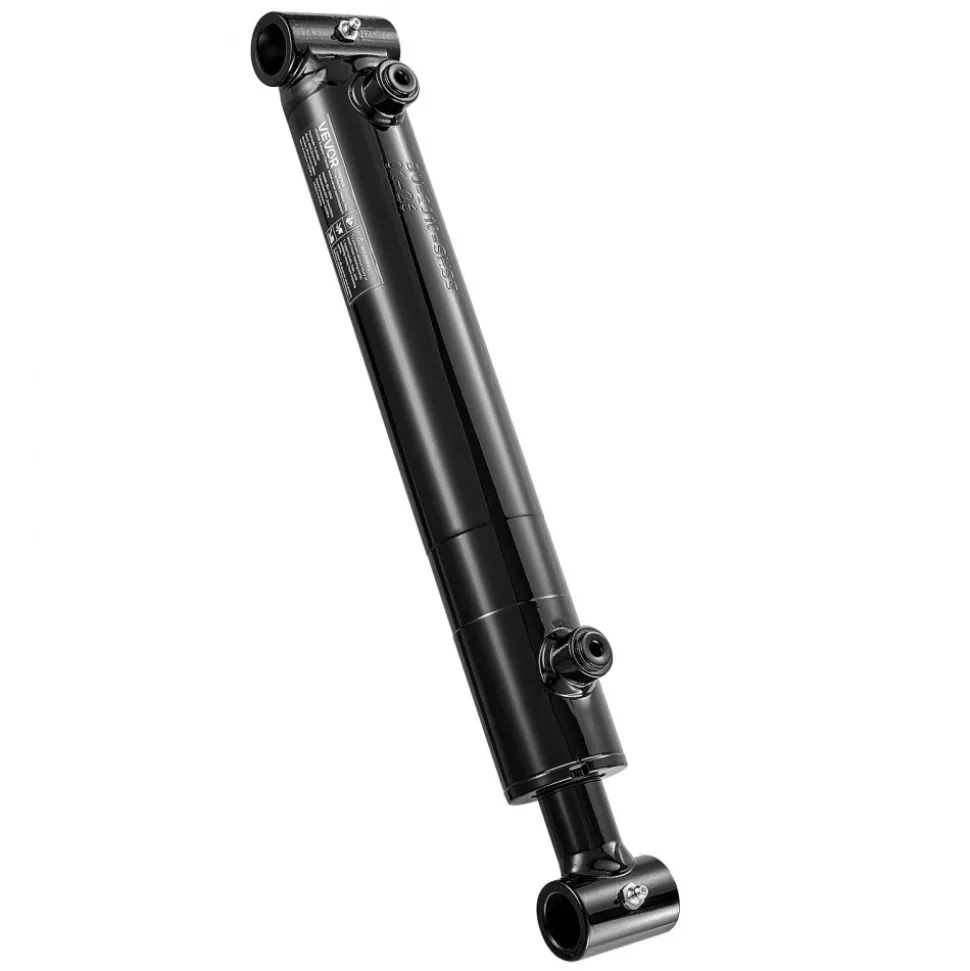

VEVOR Double Acting Hydraulic Cylinder, 2" Bore x 10" Stroke, Max 3500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 1" Pin Hole & SAE #6 Port for Agricultural Machinery, Tractors

VEVOR Double Acting Hydraulic Cylinder, 2″ Bore x 10″ Stroke, Max 3500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 1″ Pin Hole & SAE #6 Port for Agricultural Machinery, Tractors

$74.89

SKU: SKU4HYy7VvzIo Categories: Lawn & Garden, Outdoor Power Equipment, Outdoor Power Equipment Parts Tag: VEVOR Brand: VEVOR

Description
Reviews (0)

Key Specifications: Bore: 2 in (50.8 mm), Stroke: 10 in (254 mm), Retracted Length: 18 in (457 mm), Extended Length: 28 in (711 mm), Port Size: SAE #6, Pin Hole Diameter: 1 in

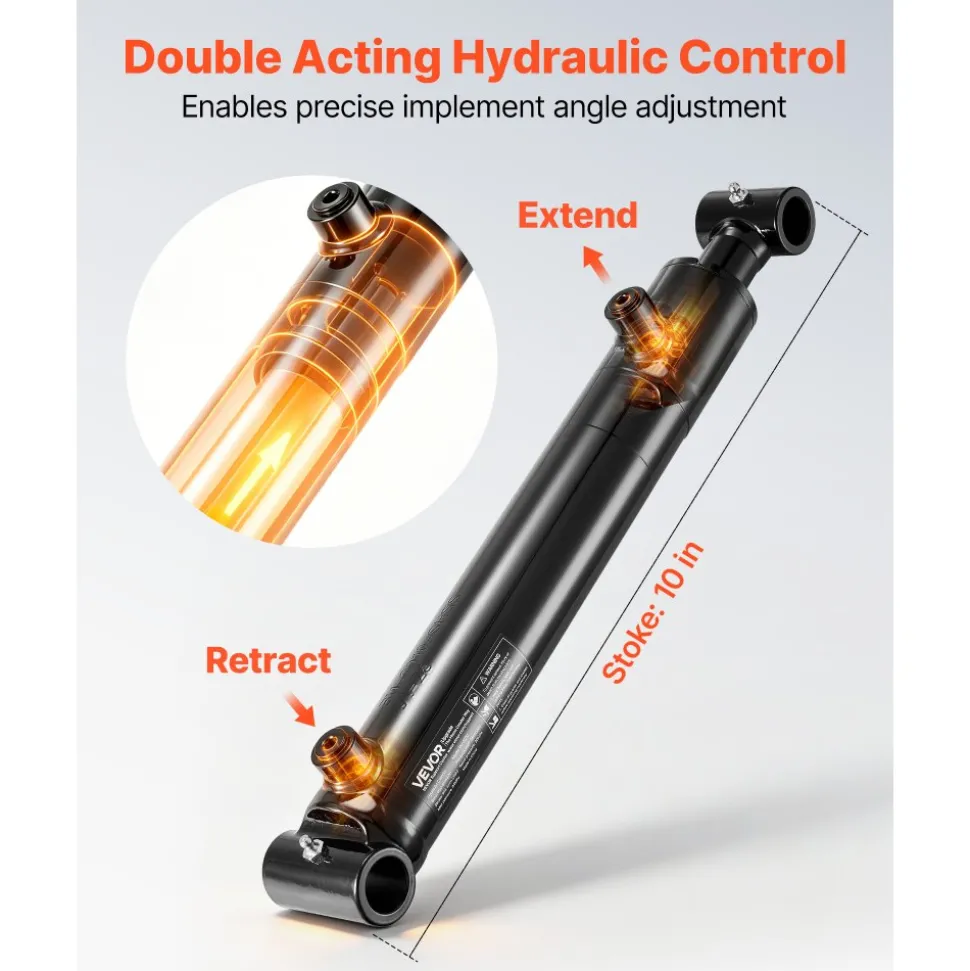

Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation
High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency

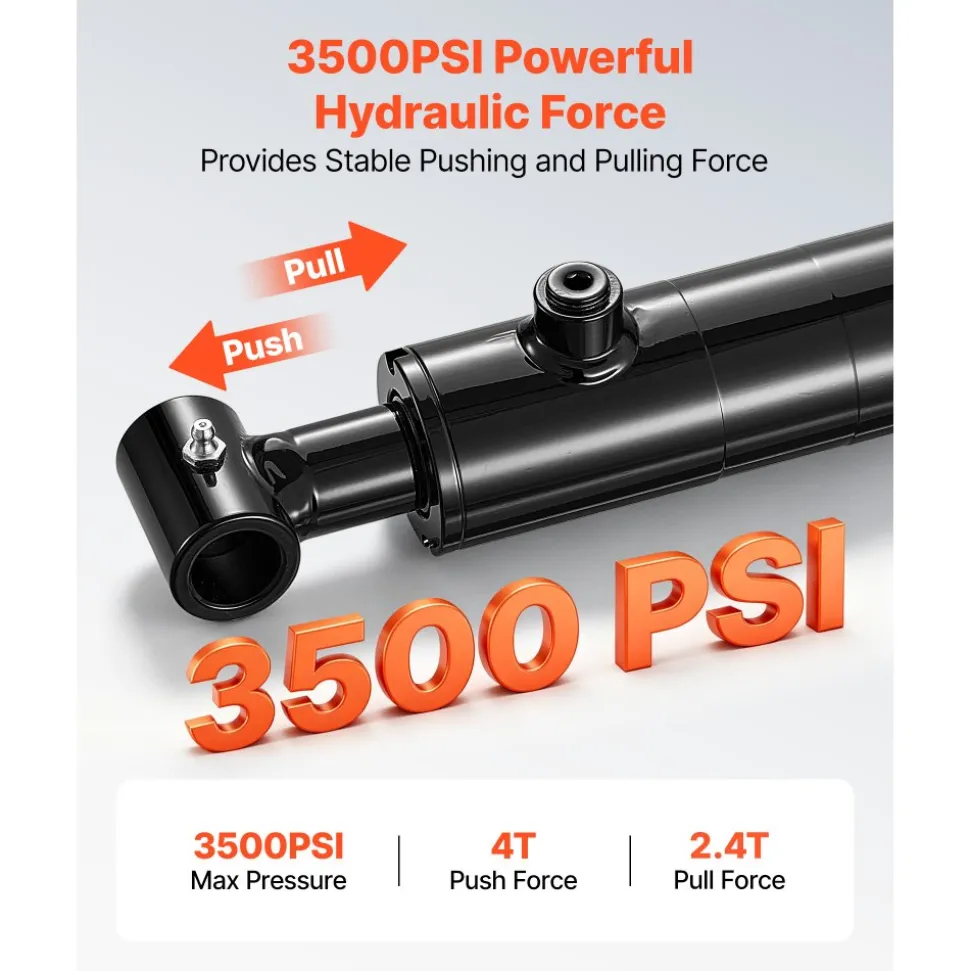

Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 8928 lbs (4 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications

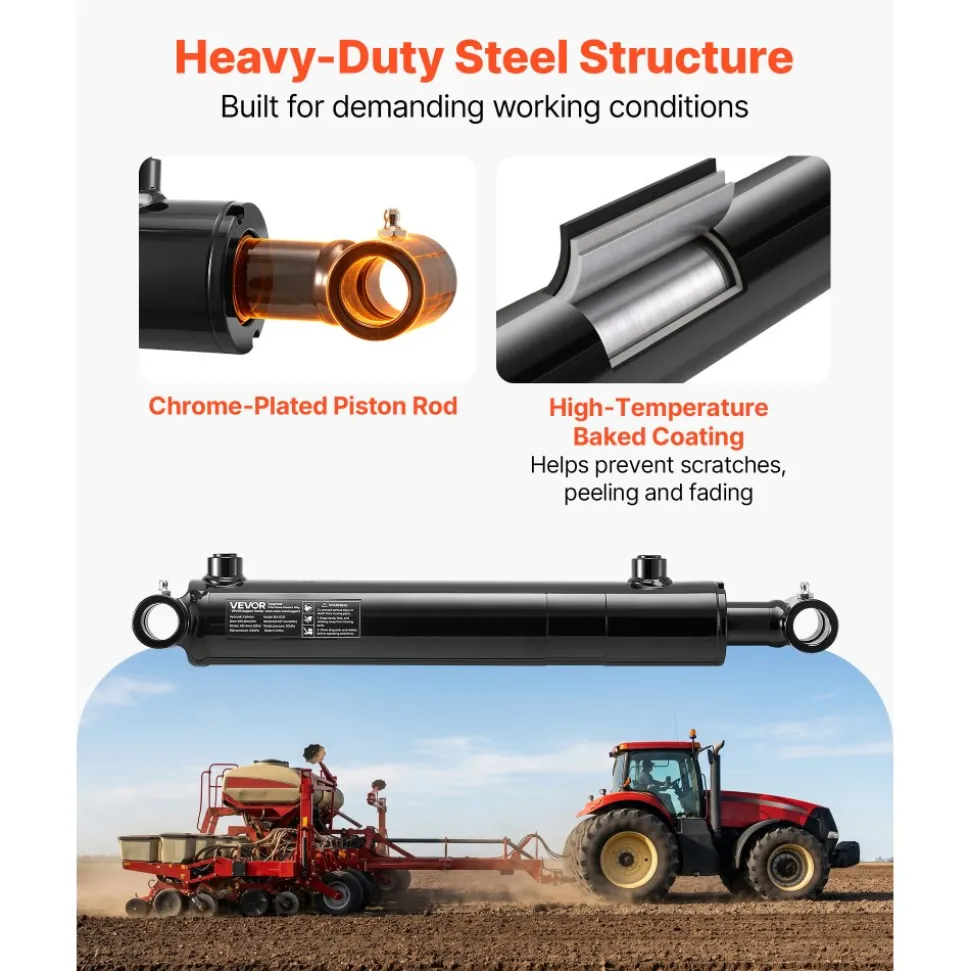

Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions

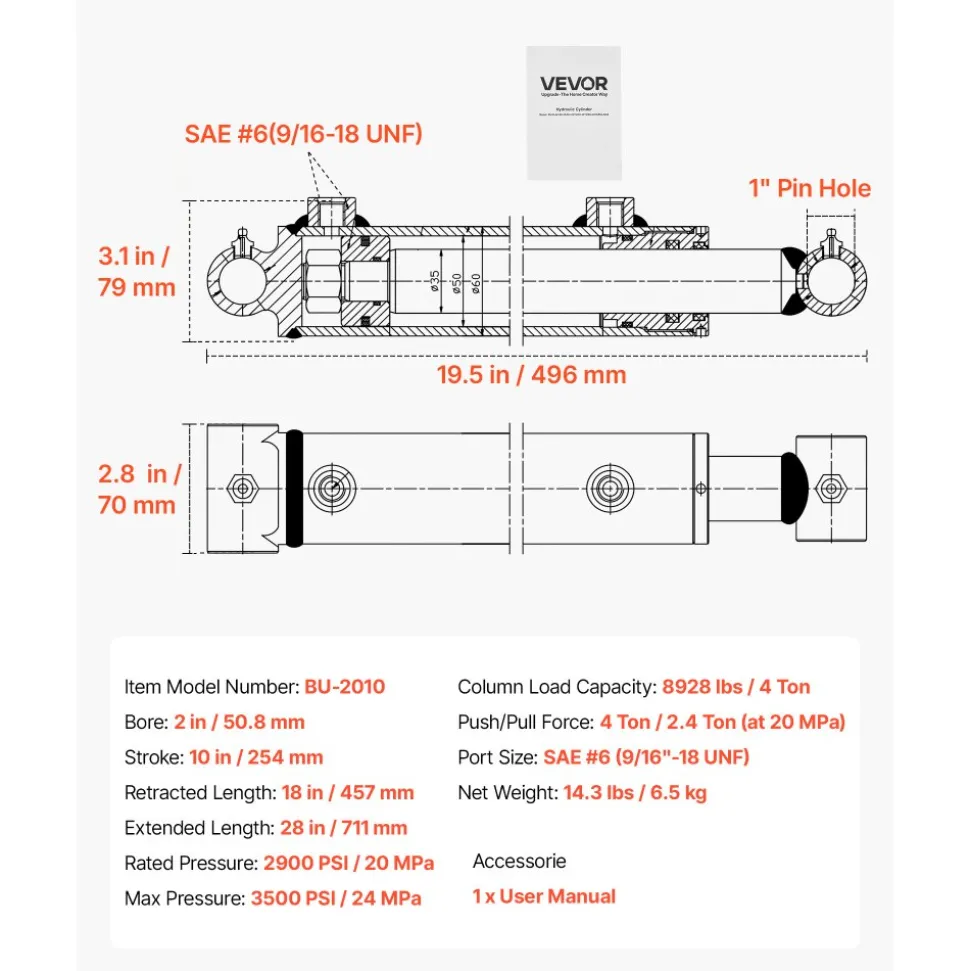

Item Model Number: BU-2010

Bore: 2 in / 50.8 mm

Stroke: 10 in / 254 mm

Retracted Length: 18 in / 457 mm

Extended Length: 28 in / 711 mm

Rated Pressure: 2900 PSI / 20 MPa

Max Pressure: 3500 PSI / 24 MPa

Column Load Capacity: 8928 lbs / 4 Ton

Push/Pull Force: 4 Ton / 2.4 Ton (at 20 MPa)

Port Size: SAE #6 (9/16″-18 UNF)

Net Weight: 14.3 lbs / 6.5 kg

Pro-level performance without the pro-level cost

With high-pressure capacity and powerful hydraulic force, this double acting hydraulic cylinder delivers smooth, powerful push-pull motion to help agricultural equipment operate more efficiently.

Performance HighlightsPowerful Hydraulic ForceDouble-Acting Control

Sturdy ConstructionHigh-Sealing System

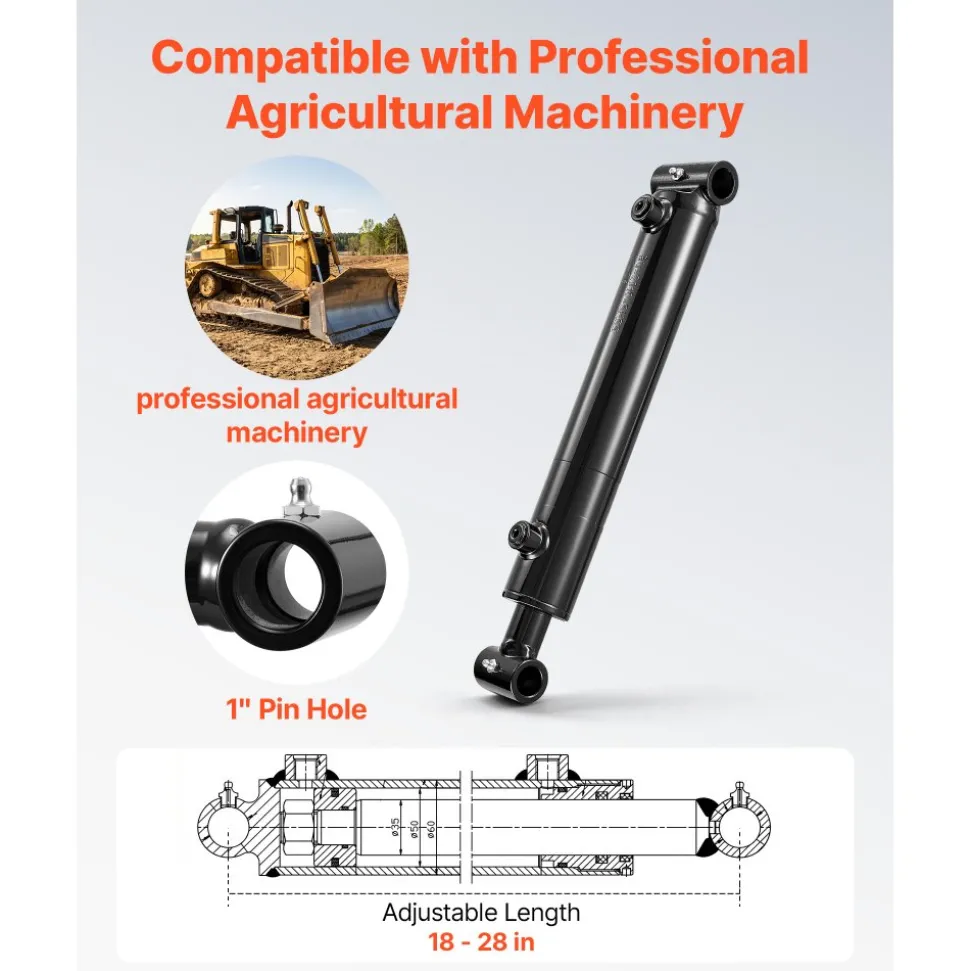

TractorsLand Leveling EquipmentAgricultural Machinery

Key Features

Chrome-Plated Piston Rod

Resists wear and corrosion for smoother movement and longer service life.

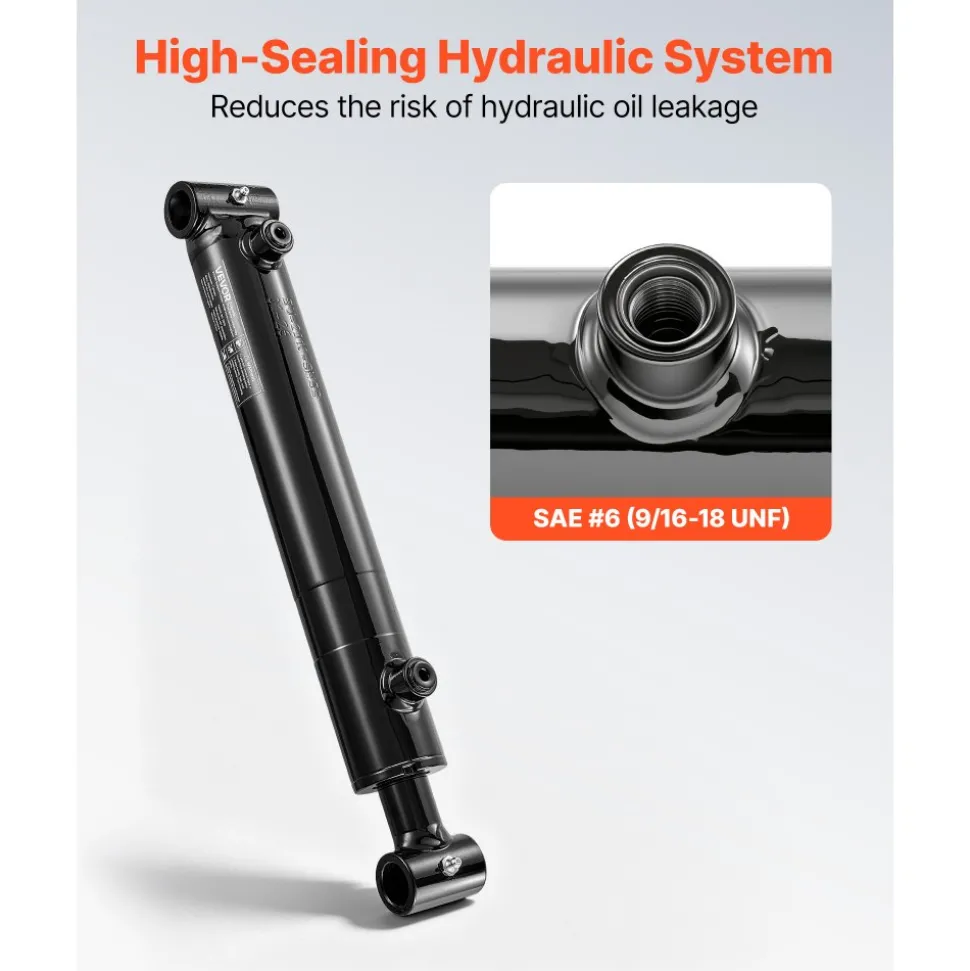

High-Performance Sealing System

Reduces hydraulic fluid leakage and maintains stable pressure output during operation.

High-Strength Construction

Built with durable steel to handle heavy-duty agricultural and industrial applications.
