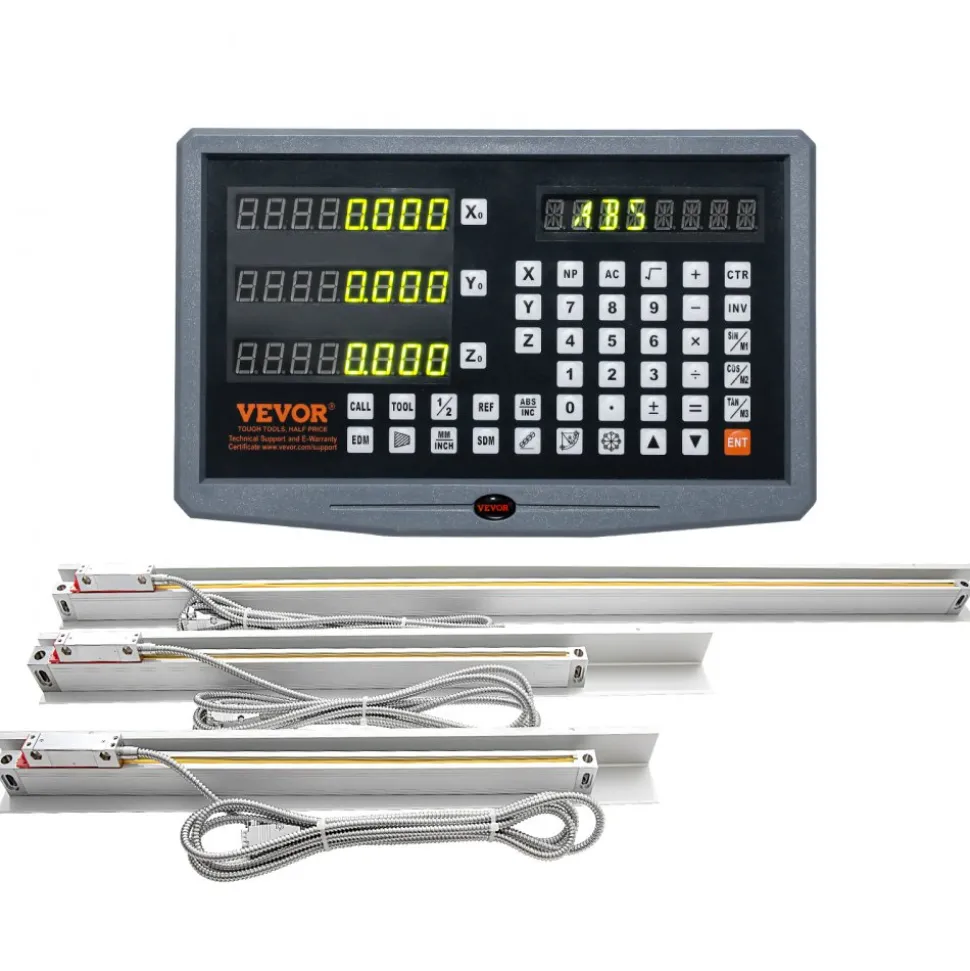

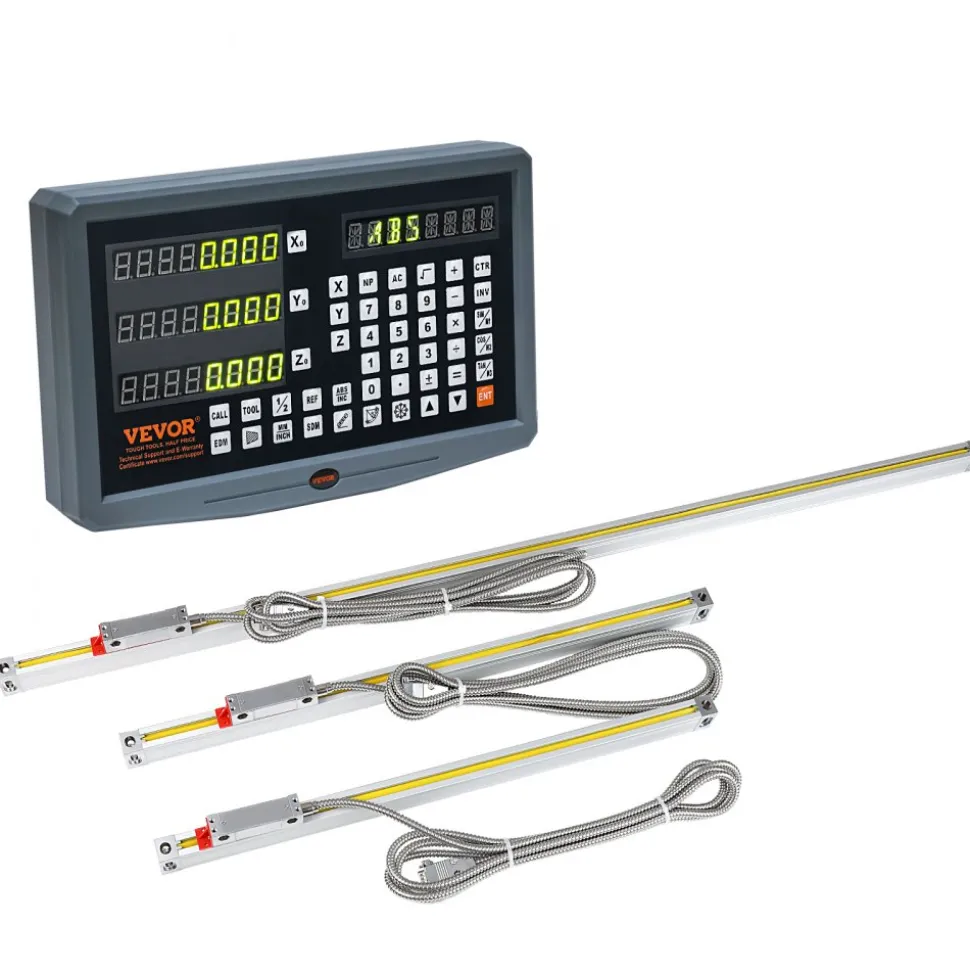

VEVOR Digital Readout 16 inch & 18 inch & 38 inch Linear Scale 3 Axis DRO Display Kit Multifunctional Crystal-Clear Display Precision 5μm Read Head
$118.99

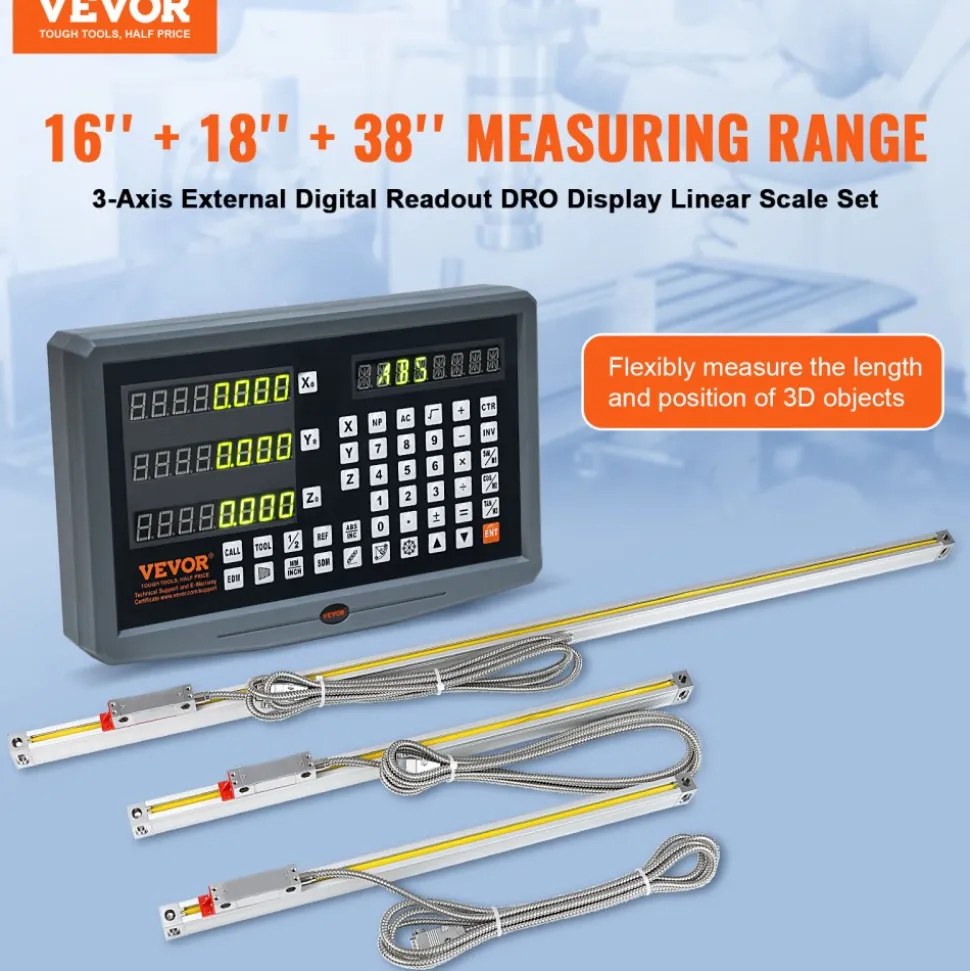

- 16” + 18” + 38” Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 16 in/400 mm, 18 in/450 mm, and 38 in/950 mm. Adapt to your specific needs on the X-axis (length), Y-axis (height), and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Facilitate high-precision processes such as circumference drilling.

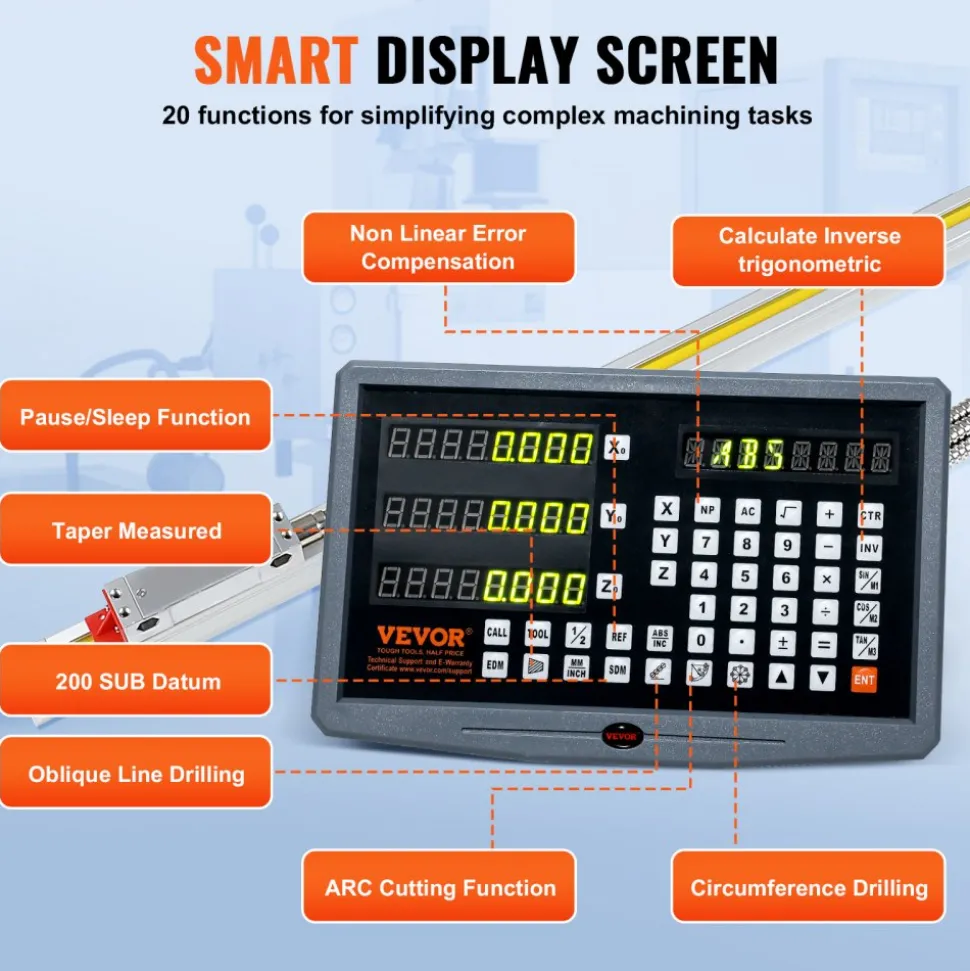

- Multifunctional Crystal-Clear Display: Our display screen offers many basic and specialized functions to ensure convenient measurement and positioning. The basic functions include standard data measurement, calculation, zeroing, unit conversion, pause sleep, power-off memory, non-linear error compensation, and more. Specialized functions encompass ARC cutting function, circumference drilling, oblique line drilling, and calculate inverse trigonometric.

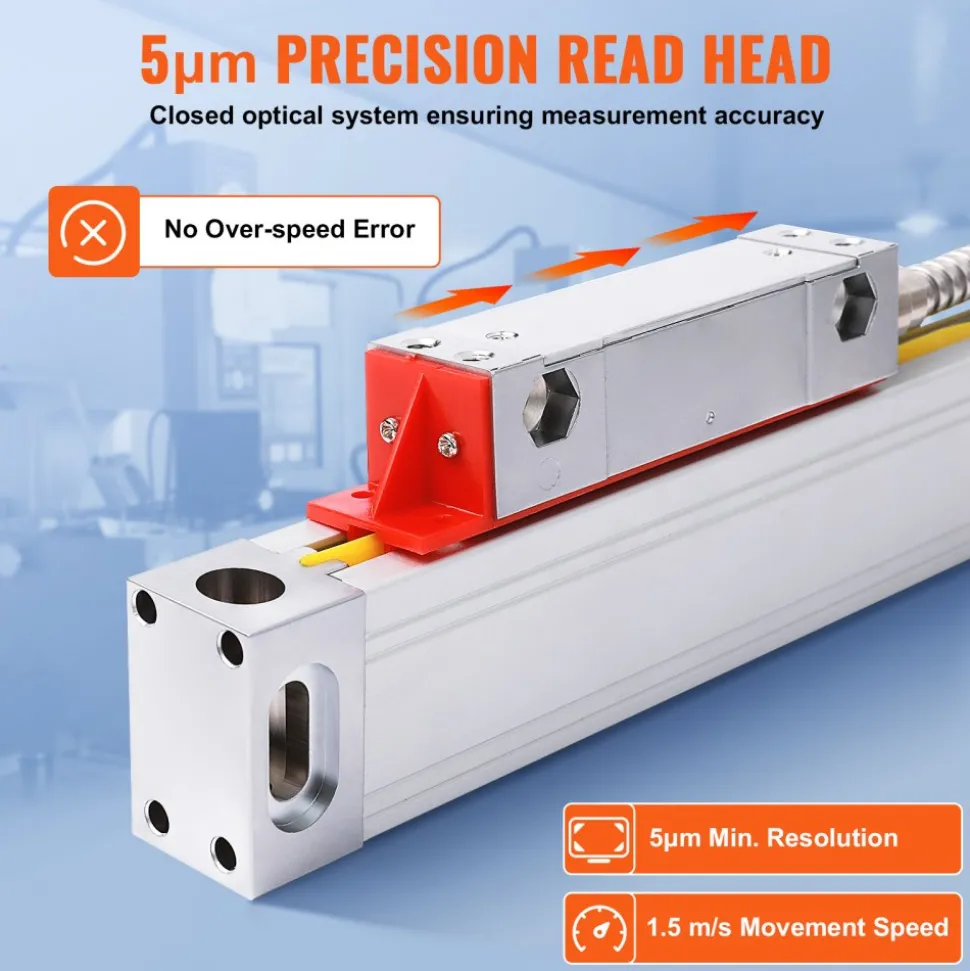

- Precision 5μm Read Head: Our linear scale boasts a remarkable 5μm minimum resolution. Even at the longest range of 38 in(950 mm), it exhibits an error of only 0.004 in (0.1 mm) during standard and repeated measurements. With a rapid read head movement speed of 1.5 m/s, it leaves no room for overspeed errors. Precision redefined, where every micron counts.

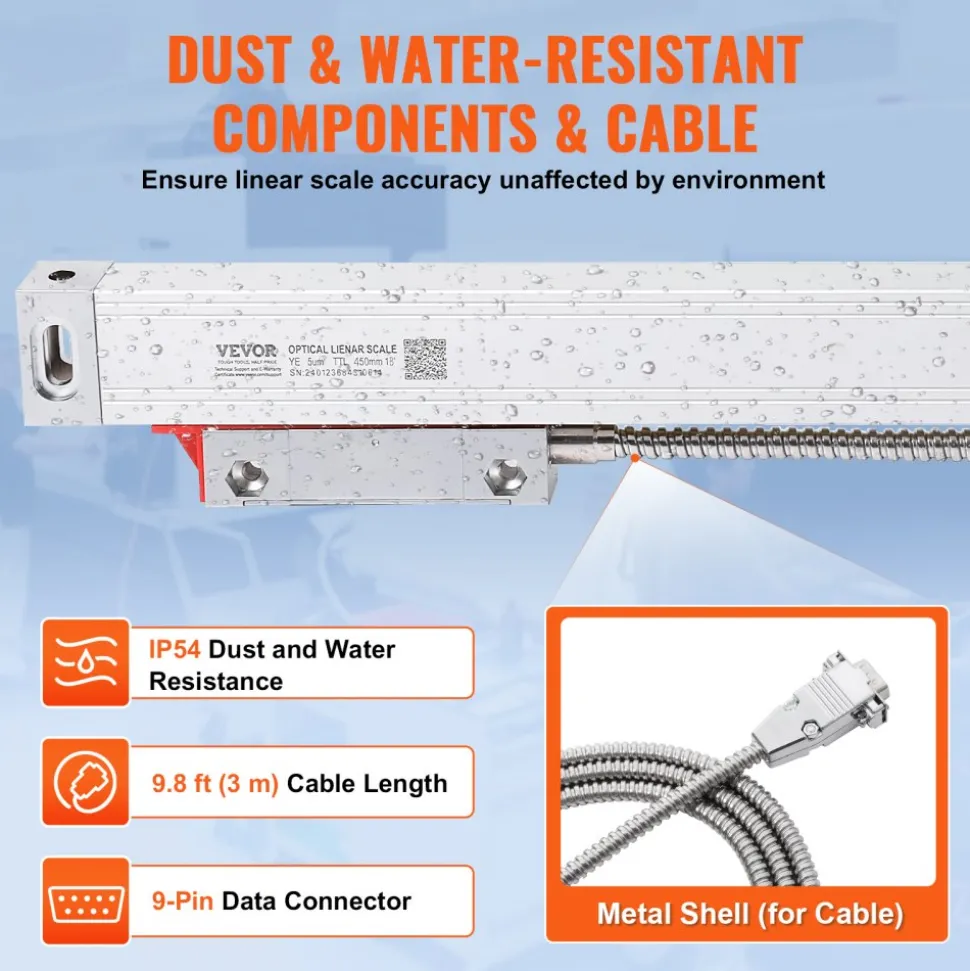

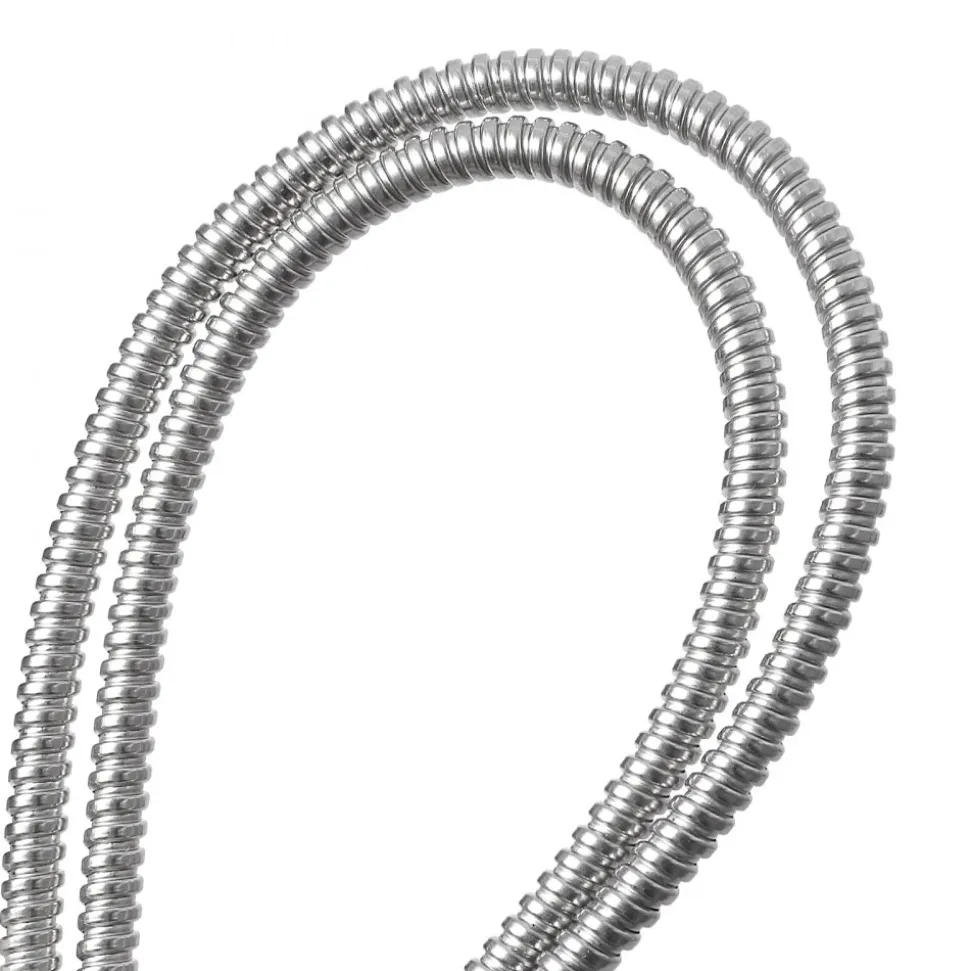

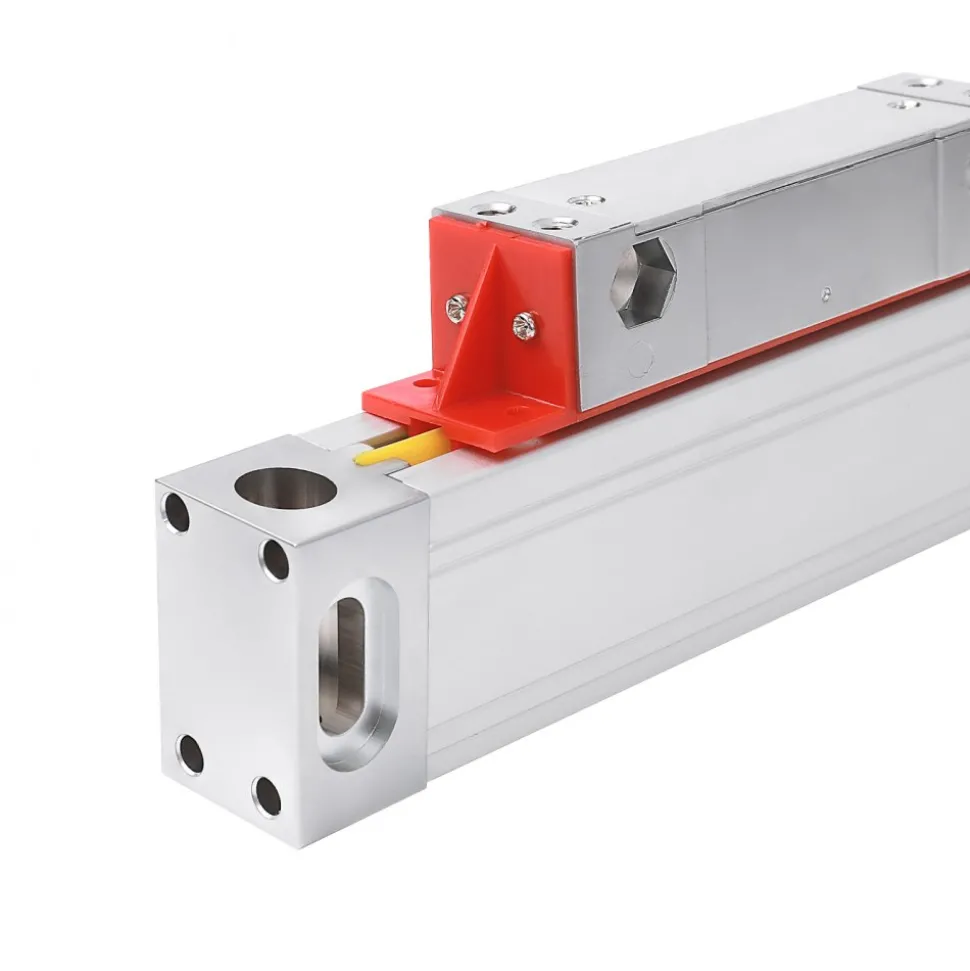

- Defense Against Debris and Liquids: With a dual-layer lubricated seal and thickened optical glass protection, our linear scale achieves an IP54 dust and waterproof rating. It avoids dust accumulation and shields against splashes from all directions. The 9.8 ft (3 m) signal cable, equipped with a 9-pin data connector, features multiple layers of shielded steel wires and a soft metal casing, providing outstanding waterproofing and interference resistance.

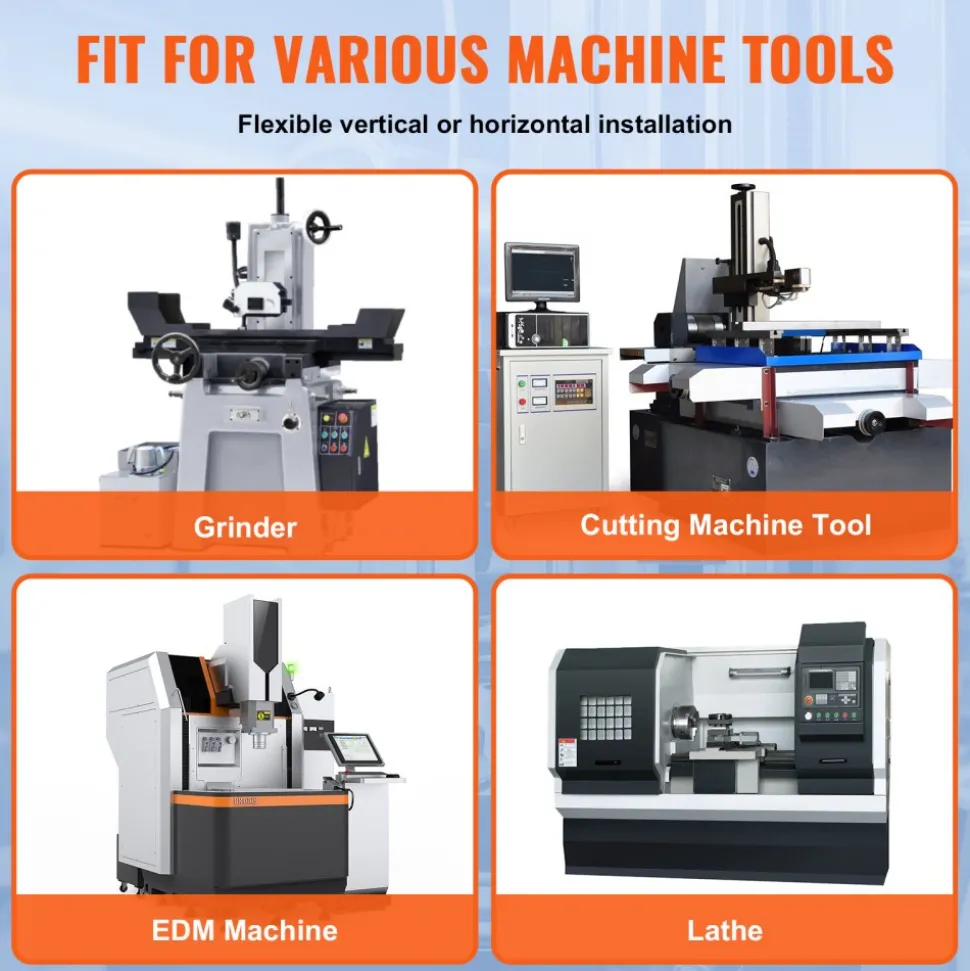

- Vertical or Horizontal Installation: Our linear scale is designed for both vertical and horizontal installation on various machine tools, including cutting and drilling machines. During scale installation, ensure that the height direction is parallel to the mounting surface of the workbench with a tolerance of less than 0.1 mm. Please note that when installing on non-machined surfaces, shims must be added to the back of the scale for stability. Your precision setup is made easy.

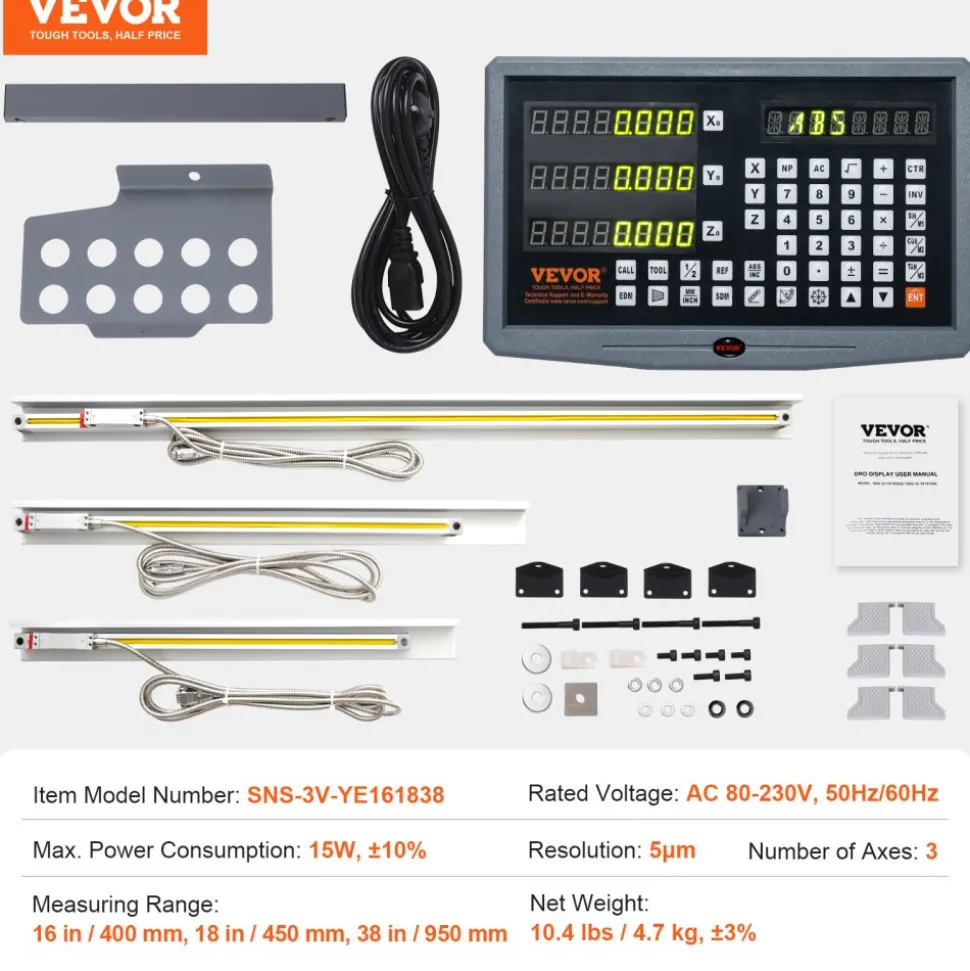

- Item Model Number
- SNS-3V-YE161838
- Rated Voltage
- AC 80-230V, 50 Hz/60 Hz
- Max. Power Consumption
- 15W, ±10%
- Resolution
- 5μm
- Number of Axes
- 3
- Measuring Range
- 16 in / 400 mm, 18 in / 450 mm, 38 in / 950 mm
- Net Weight
- 10.4 lbs / 4.7 kg, ±3%

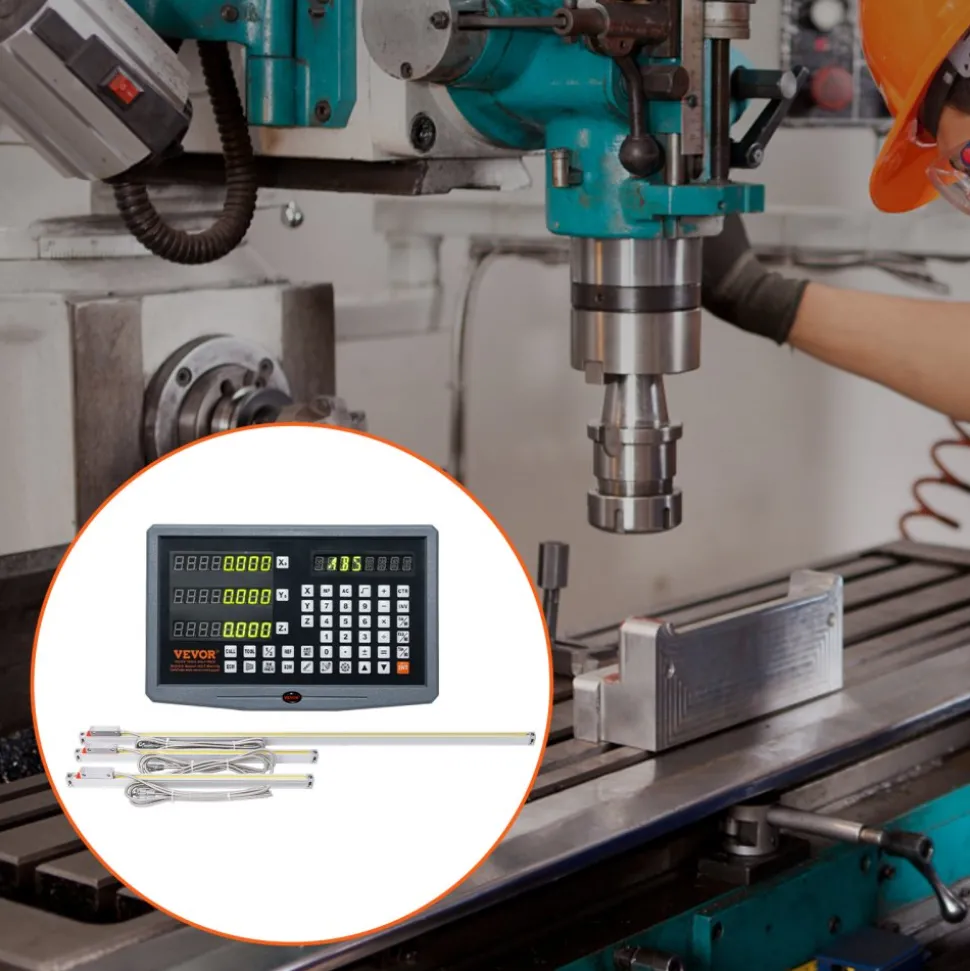

Digital Readout Enhances Milling Precision and Efficiency
This digital readout system is a valuable addition to any milling machine. With this system, you can achieve consistent results every time. You get more precision in your milling projects with ease. The digital readout system simplifies the work of complex tasks.
Affordable 3 Axis DRO Display Kit for Hobbyists and Professionals
This 3 Axis DRO display kit is affordable and versatile. It is perfect for hobbyists & professionals. The kit includes 16″, 18″, and 38″linear scales. This provides flexibility in your projects. You don’t need to spend a fortune for high accuracy. Our kit is designed to fit various machines. So, it works well with many people and is easy to use. Your easy adaptability to your existing equipment means you can get the best value from this toolkit. However, the low price does not compromise on quality. You get reliable performance at a fraction of the cost. Therefore, it is accessible to machinists of all levels.
Easy Installation with Versatile Mounting Options

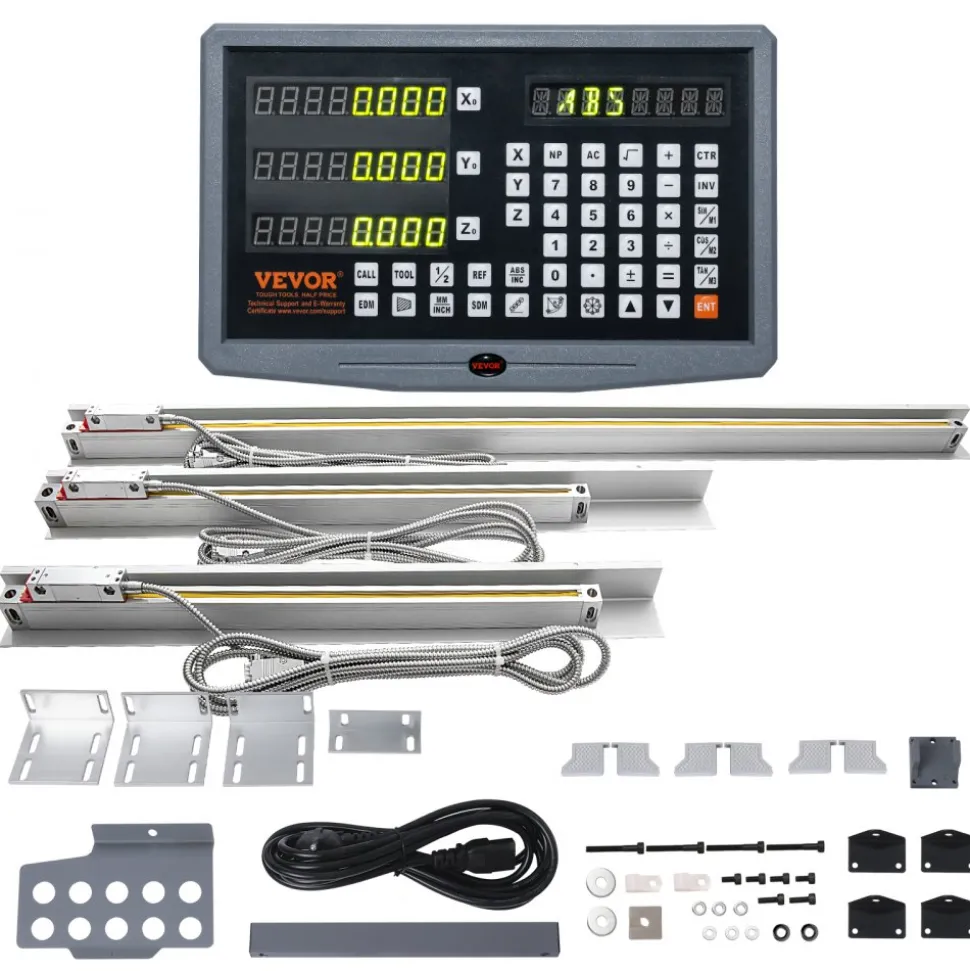

Installation of the VEVOR DRO kit is straightforward. The kit includes all necessary mounting hardware, but you might need to customize the brackets. This allows for a perfect fit on your machine. You can use 3D printing or standard hardware. It’s simple and quick. That means you can start using the system right away. The manual provides clear instructions for setup. No special skills are required to install it. So this makes it user-friendly for everyone. Different mounting options meet different needs. Therefore, there’s precise installation every time.
High Accuracy Linear Scales for Precision Milling
The linear scales in this kit offer high accuracy. They are made from durable materials. The scale is cut to fit your specific machine. This ensures precise measurements. An extruded cover protects these scales. It keeps them safe from fluids and debris. Also, the scale is accurate enough for most hobbyists. However, they can also meet professional standards. Hence, it makes them ideal for detailed work. Our scales are reliable and long-lasting. So, you get consistent performance over time. You can get high precision in your milling tasks with ease. Linear scales also enhance your machine’s capabilities.
User-Friendly Interface with Clear Display and Instructions
This is a user-friendly interface. The display is large and easy to read. These buttons are clearly labeled for easy use. The system includes a slack cover to protect the display. The manual is written in English, making it easy to understand. This ensures smooth setup processes. The interface is intuitive and simple to navigate. Even beginners can use it without difficulty. Clear instructions guide you through the setup. So this makes the system accessible to all users. You can enjoy the best hygienic experience with this DRO kit.
Versatile Compatibility with Various Milling Machines
It is compatible with various milling machines. It fits machines like the Grizzly G1126 PM-30. This makes it a versatile choice for many users. The kit includes different scale sizes for flexibility. You can use the scales separately if needed. This ensures optimum fit for your machine. The system adapts well to different setups. So, it’s perfect for various applications. Compatibility ensures you can easily upgrade your machine. This DRO kit meets the needs of different users and improves the capabilities of your miller.
Durable Build Quality Ensures Long-Lasting Performance
The build quality of this DRO kit is strong. The scales are made from optical glass. This ensures durability and accuracy. The system is designed to withstand regular use. These materials are high-quality and reliable. The display and buttons are easy to use, and a 110V outlet powers the system. It ensures consistent performance. Build quality ensures long-lasting performance in the systems. Built to last and endure tough conditions. So, it’s a dependable choice for all users.
