VEVOR Digital Readout 10'' & 20'' & 24'' Linear Scale 3 Axis DRO Display Kit

VEVOR Digital Readout 10” & 20” & 24” Linear Scale 3 Axis DRO Display Kit

$119.99

SKU: SKUaQ4PSxCgNU Categories: Hand Tools, Measuring Tools, Tools Tag: VEVOR Brand: VEVOR

Description
Reviews (0)

10” + 20” + 24” Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 10 in (250 mm), 20 in(500 mm), and 24 in (600 mm). Adapt to your specific needs on the X-axis (length), Y-axis (height), and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Facilitate high-precision processes such as circumference drilling.

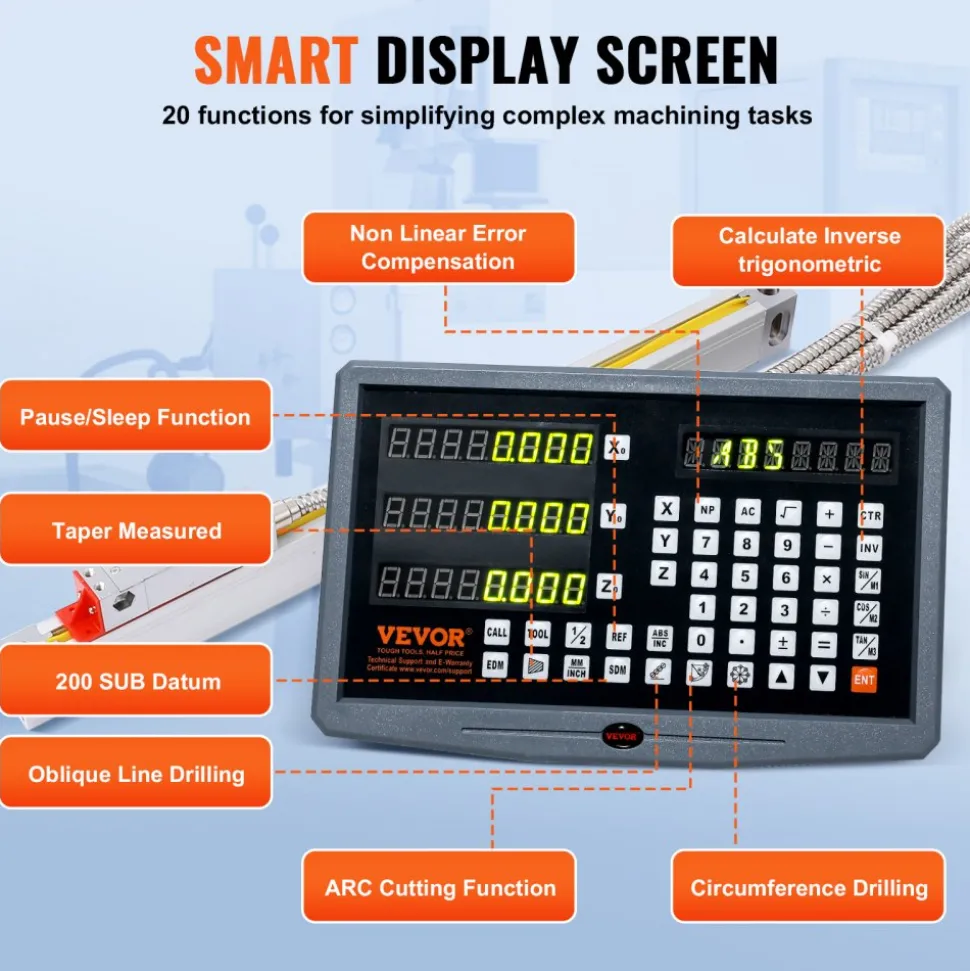

Multifunctional Crystal-Clear Display: Our display screen offers many basic and specialized functions to ensure convenient measurement and positioning. The basic functions include standard data measurement, calculation, zeroing, unit conversion, pause sleep, power-off memory, non-linear error compensation, and more. Specialized functions encompass ARC cutting function, circumference drilling, oblique line drilling, and calculate inverse trigonometric.

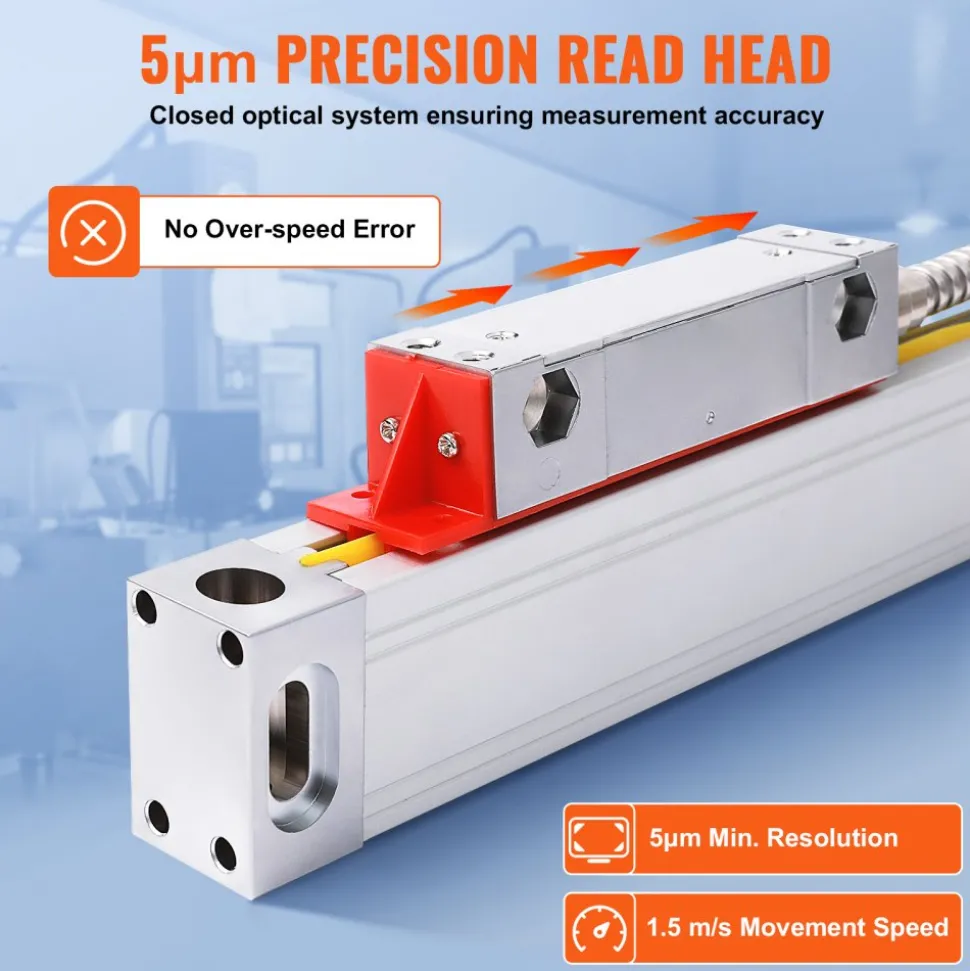

Precision 5μm Read Head: Our linear scale boasts a remarkable 5μm minimum resolution. Even at the longest range of 24 in(600 mm), it exhibits an error of only 0.004 in (0.1 mm) during standard and repeated measurements. With a rapid read head movement speed of 1.5 m/s, it leaves no room for overspeed errors. Precision redefined, where every micron counts.

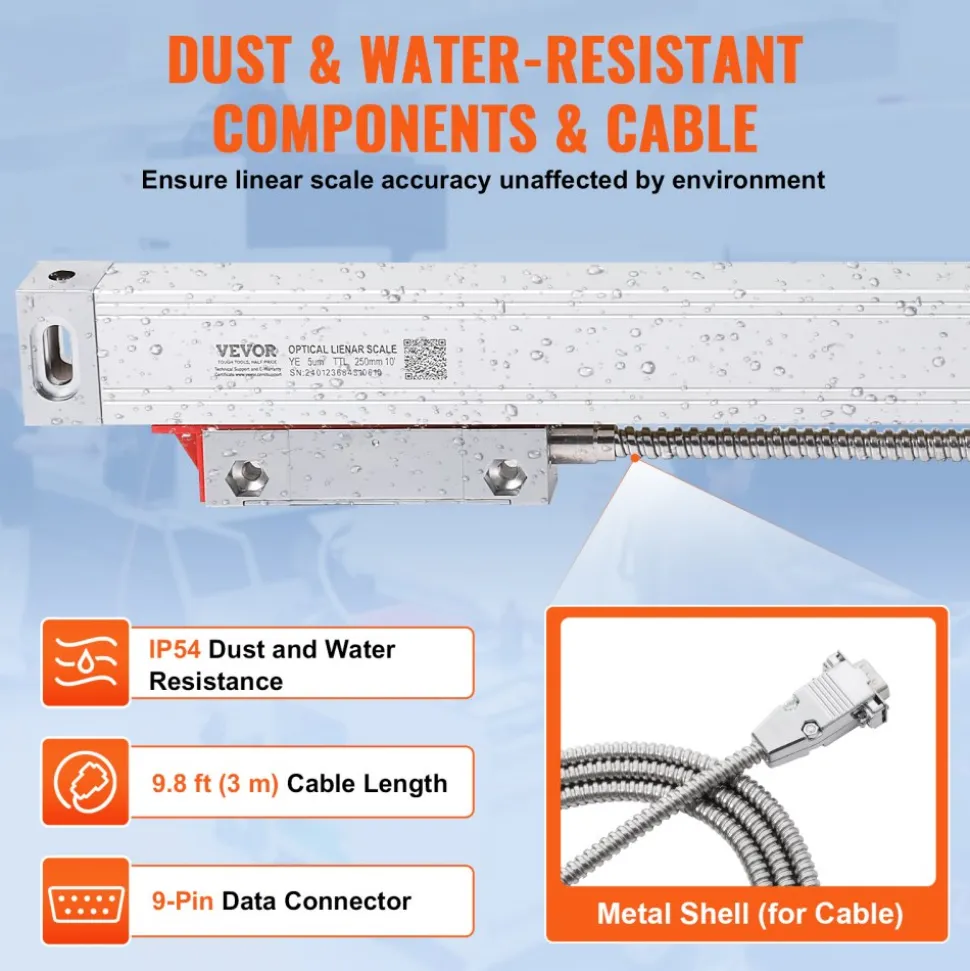

Defense Against Debris and Liquids: With a dual-layer lubricated seal and thickened optical glass protection, our linear scale achieves an IP54 dust and waterproof rating. It avoids dust accumulation and shields against splashes from all directions. The 9.8 ft (3 m) signal cable, equipped with a 9-pin data connector, features multiple layers of shielded steel wires and a soft metal casing, providing outstanding waterproofing and interference resistance.
Vertical or Horizontal Installation: Our linear scale is designed for both vertical and horizontal installation on various machine tools, including cutting and drilling machines. During scale installation, ensure that the height direction is parallel to the mounting surface of the workbench with a tolerance of less than 0.1 mm. Please note that when installing on non-machined surfaces, shims must be added to the back of the scale for stability. Your precision setup is made easy.

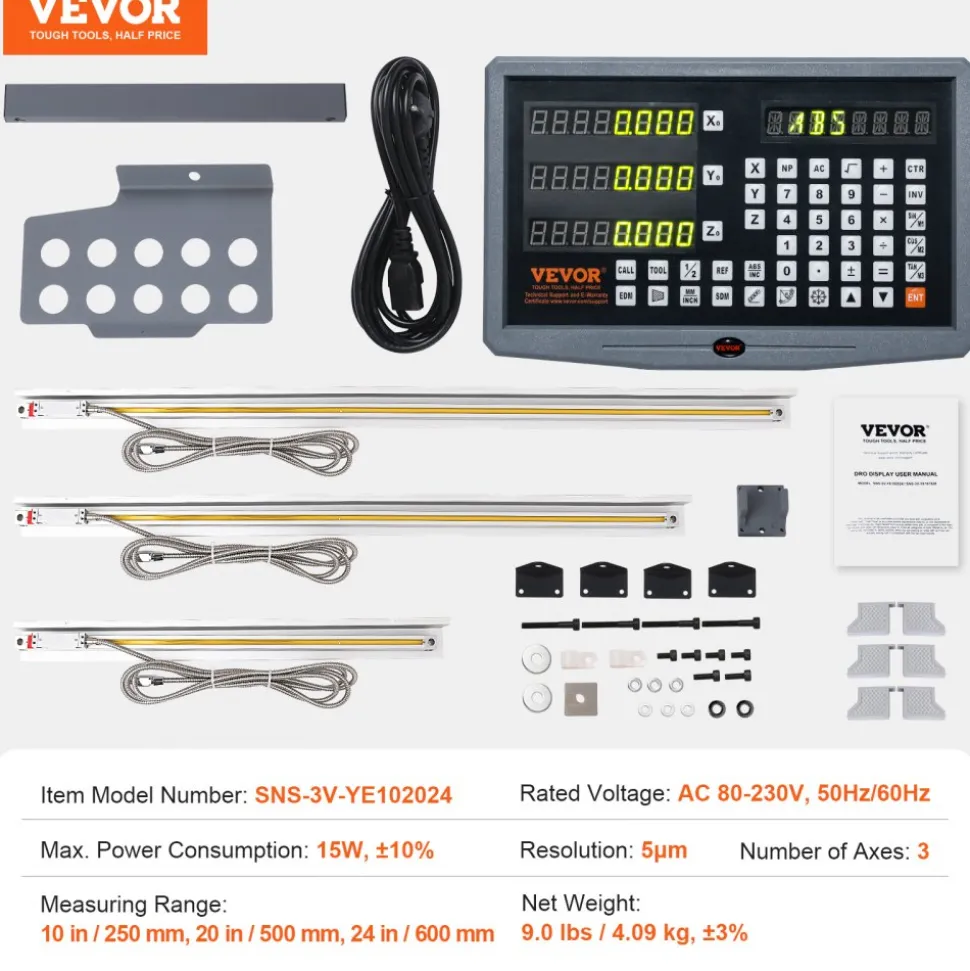

Item Model Number: SNS-3V-YE102024

Rated Voltage: AC 80-230V, 50 Hz/60 Hz

Max. Power Consumption: 15W, ±10%

Resolution: 5μm

Number of Axes: 3

Measuring Range: 10 in / 250 mm, 20 in / 500 mm, 24 in / 600 mm

Net Weight: 9.0 lbs / 4.09 kg, ±3%

3-Axis Linear Scale Set

Our 3-axis linear scale set delivers full-dimensional measurements of complex workpieces with 10μm resolution. It features a rapid-response display for instant, accurate data and 3 travel lengths of 10 in/250 mm, 20 in/500 mm, and 24 in/600 mm. Precision unleashed in 3d machining.

Choose from 3 travel lengths: 10 in/250 mm, 20 in/500 mm, 24 in/600 mm. If your needs extend beyond high-precision length measurements on machine tools, including complex tasks like arc cutting function and oblique line drilling, our linear scale set is the perfect match for you.

Our display screen simplifies operations with features like ARC cutting function and circumference drilling, in which the sleep function and power-off memory ensure that your settings and data remain intact even when leaving your work environment or experiencing power failure.

Our grating linear scale is the epitome of precision in measurements. With 5μm resolution, lightning-fast response, and real-time data displayed on the screen, it achieves astonishingly low errors of only ±15μm (0.0006”). Experience precision like never before.

Our linear scale boasts a comprehensive dust and waterproof design, safeguarding against environmental interference that could lead to data inaccuracies. Unlike ordinary single-layer seals, our linear scale features an optimized dual-layer sealing, enhancing its resistance to external factors.

VEVOR Digital Readout: Precision in Your Hands

The Linear Scale 3 Axis DRO display kit is a must-have tool for milling professionals who need precision in their mill tasks. It has a 5-micron resolution, so you can return to the same spot with high accuracy. This makes your work more efficient and precise. The scales are accurate enough for the average hobbyist, offering capabilities that exceed what many people can measure. That feature is especially appreciated by home hobbyists who use it for measuring without the need to stop and check every pass.

Exceptional Value and Affordability

VEVOR 3 Axis DRO display kit offers exceptional value for the money. It includes three scales, saving you money compared to buying them separately. Despite the low price, the build quality is commendable. There have been no complaints about this display. The display is large and clear; the buttons are easy to read and use. This kit stands out as an ideal solution for those looking for an economical DRO retrofit solution.

Versatility and Customization

The kit includes a variety of linear scale 10” options. They can be easily cut to fit your specific machine without the need to order separate scales. This feature saves you from the hassle of cutting the scales. With some creativity in mounting, you can get an optimum fit for your machine. The included mounting hardware, although basic, can also be replaced with custom brackets for extension.

Durable and Reliable Performance

Despite heavy use, this DRO kit is durable and reliable, ensuring long-lasting performance. It is designed for longevity, making it suitable for those who spend a great deal of time in their workshop. The linear scale 20” included are optical glass rods that require free travel with no binding or loading. These ensure true travel and mounting parallel to the axis.

Easy Installation and Setup

The installation process is simple. Our digital readout kit can be installed within an afternoon or in just a few minutes. Although the instructions may leave much to be desired, the operator’s manual for the DRO is very detailed. With some basic knowledge of what a DRO does, you can fill in the blanks and set it up successfully.

Comprehensive Functionality

The kit includes a variety of functions that can be used for various tasks. The buttons are easy to use, and the manual is in English, so you can easily understand it. Once you set the resolution of scales to the correct value, everything checks out fine, and the DRO works amazingly.

Excellent Value for Hobbyists and Professionals

This is a great value for both hobbyists and professionals. It offers high accuracy, versatility, and durability at a fraction of the cost of other DRO kits. With three linear scale 24” options included in the kit, it is an excellent value worth the money, completing your milling machine upgrade with a DRO system.

Clear and Protective Cover

Our Digital Readout kit comes with a clear cover for the DRO. This protects it from fluids and debris. It is especially important for those working where there is a risk of damage to the DRO from fluids or debris. The cover ensures that the DRO stays clear and readable, even in harsh environments.

User-Friendly Design

Our digital readout kit features a user-centric design. The buttons are easy to read and use, and the display is large and clear. You can see the operator’s manual in English, making it easier to understand and operate. The DRO is powered from a 110v outlet, which is convenient for those working in a workshop with limited power options.
