VEVOR Depth Gauge, Depth Micrometer 0-22 inch Measuring Range, 0.001″ Resolution, with 4 Anvils & 6 Standard Rods, Precision Easy to Read Mechanical Tool for Measuring Groove, Step, Hole

VEVOR Digital Depth Gauge Micrometer with 0.001″ Resolution Across 0–22 Inch Range

The VEVOR digital depth gauge micrometer can measure from 0 to 22 inches thanks to its modular 6-rod extension system. Each rod is calibrated to increase the measurement range without losing accuracy. The 0.001-inch resolution ensures that even the tiniest changes in groove, step, and blind-hole sizes are captured with the same level of accuracy every time.

This tool is designed for professionals who can’t stand measurement drift or unclear readings. This depth micrometer is good for checking engine parts, precision metalworking, and quality control processes where part performance depends on dimensional tolerance, as it has a 0.001-inch accuracy rating that remains consistent across the entire rod-extended range.

Digital Depth Gauge Micrometer 6 Modular Calibration Rods Combine for Full 0–22 Inch Depth Coverage

The six standard rods that come with the set are each machined and designed to be put together in a specific order. It lets the user measure from 1 inch to 22 inches. Each rod connection maintains its shape, so there is no cumulative error when putting the rods together at great depths.

This modular design makes the digital depth gauge micrometer versatile. Machinists who measure shallow sheet metal profiles between 1 and 2 inches use the same base unit as those who measure deep bores or cavities that are close to 22 inches deep. It means they don’t need any extra tools, which saves money on equipment and time setting up measurements on the shop floor.

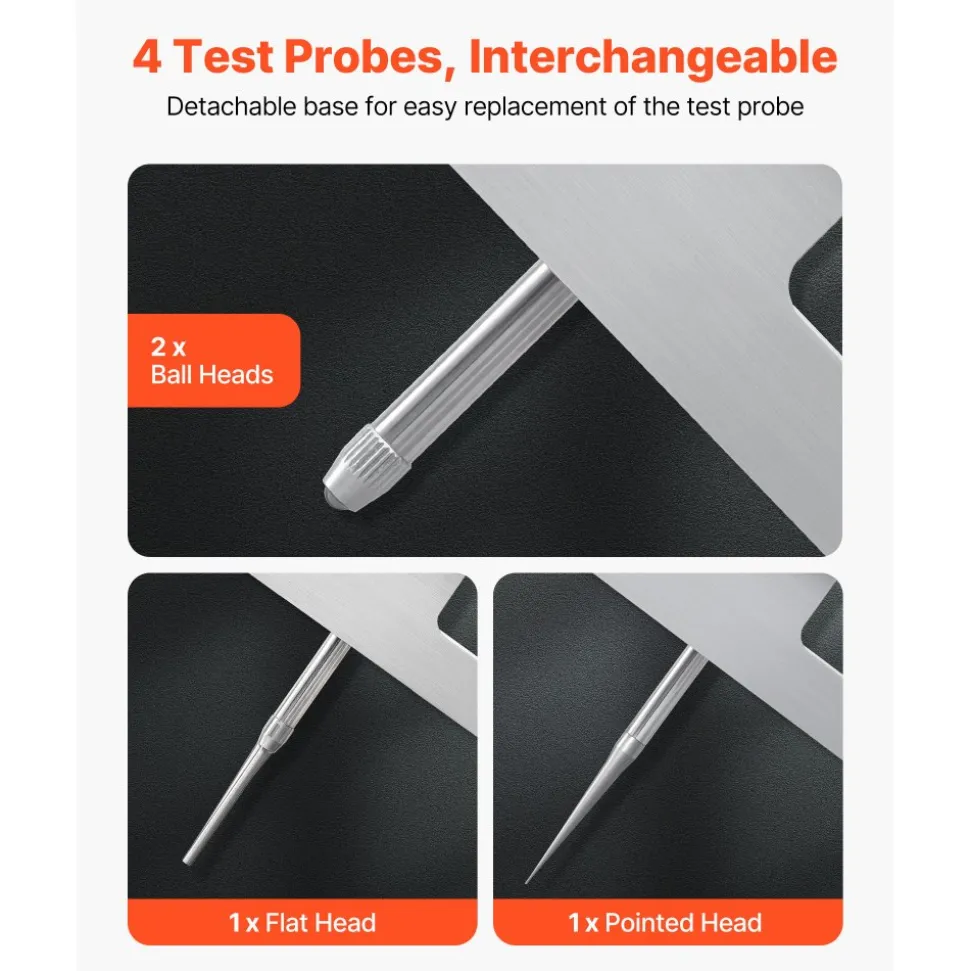

4 Interchangeable Stainless-Steel Anvils Adapt to Grooves, Steps, and Hole Profiles

This digital depth gauge micrometer comes with four stainless steel anvils. Each one has smooth, precision-ground reference faces that provide stable contact and eliminate surface contact errors that can degrade measurement accuracy. Different anvil shapes can accommodate flat-bottomed grooves, stepped recesses, cylindrical holes, and irregular cavity profiles common in real-world metalworking.

Each anvil is made of stainless steel that won’t rust, so it resists corrosion in workshop use. The secure anvil-seating mechanism stops the anvil from rotating while measuring. It is important when measuring with a 0.001-inch resolution because any wobble in the anvil will give you a false reading.

±0.001 Inch Accuracy Rating Supports Engine Parts and Precision Component Inspection

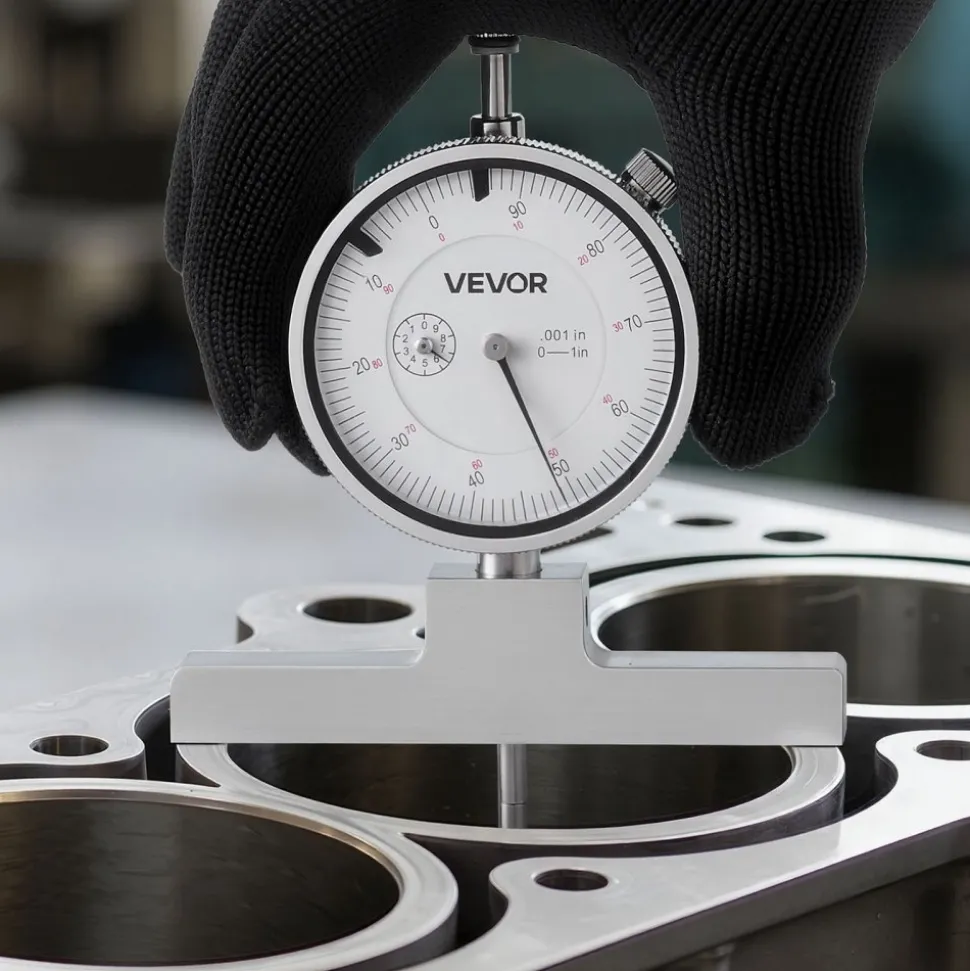

This depth micrometer meets the specifications required by automotive engine rebuilders, aerospace component inspectors, and toolroom machinists, with an accuracy of ±0.001 inch over its measuring range. This level of accuracy is good enough to check the height of the piston deck, the depth of the valve seat, the shoulders of the bearing journal, and the transitions between stepped bores.

The high-scratch, corrosion-resistant construction protects calibrated surfaces from the harsh, abrasive, and chemically aggressive conditions common in engine bays and metal fabrication areas. Maintaining the integrity of the measuring faces directly preserves accuracy over time, ensuring the ±0.001 inch specification remains true throughout the tool’s working life rather than degrading with use.

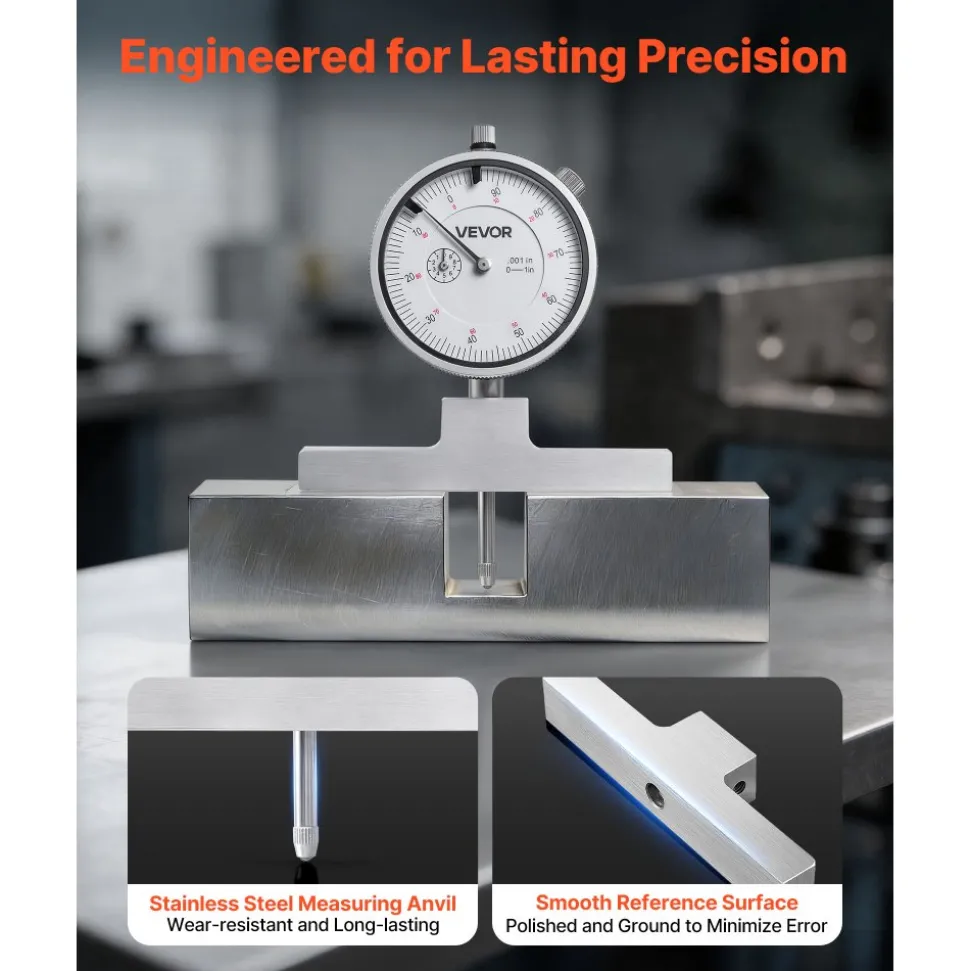

Solid Metal Frame with Wear-Resistant Construction Ensures Long-Term Workshop Stability

The frame of the depth gauge micrometer is made of metal, which gives it the strength to prevent bending while taking measurements. Flex in a measuring tool causes parallelism errors between the anvil face and the reference base. Even at very small magnitudes, this error makes precise readings impossible.

The choice of wear-resistant materials for the tool’s contact surfaces also helps it stay stable over time. Workshop tools take a lot of wear and tear from chips, coolant, and rough handling. This frame construction ensures that the base, spindle, and anvil maintain the same geometric relationship, which is what the 0.001-inch resolution depends on.

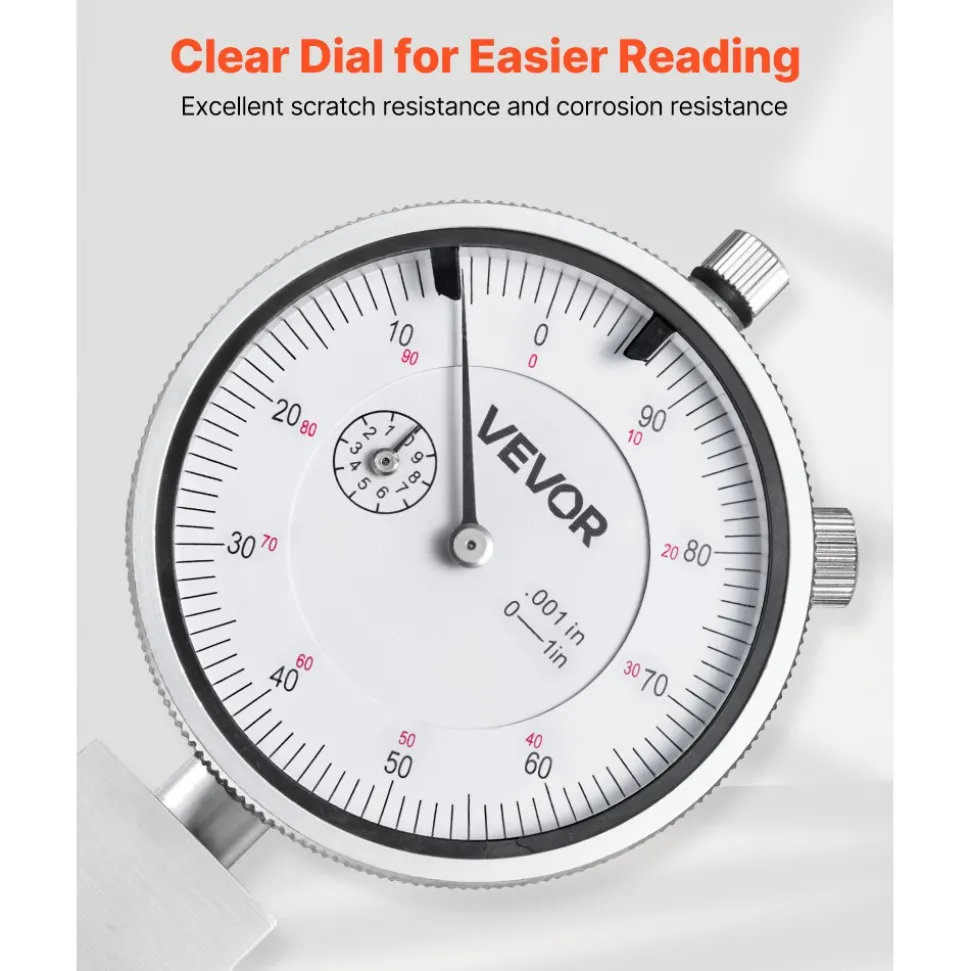

Clear Dial Markings and Ergonomic Design Enable Fast, Error-Free Field Readings

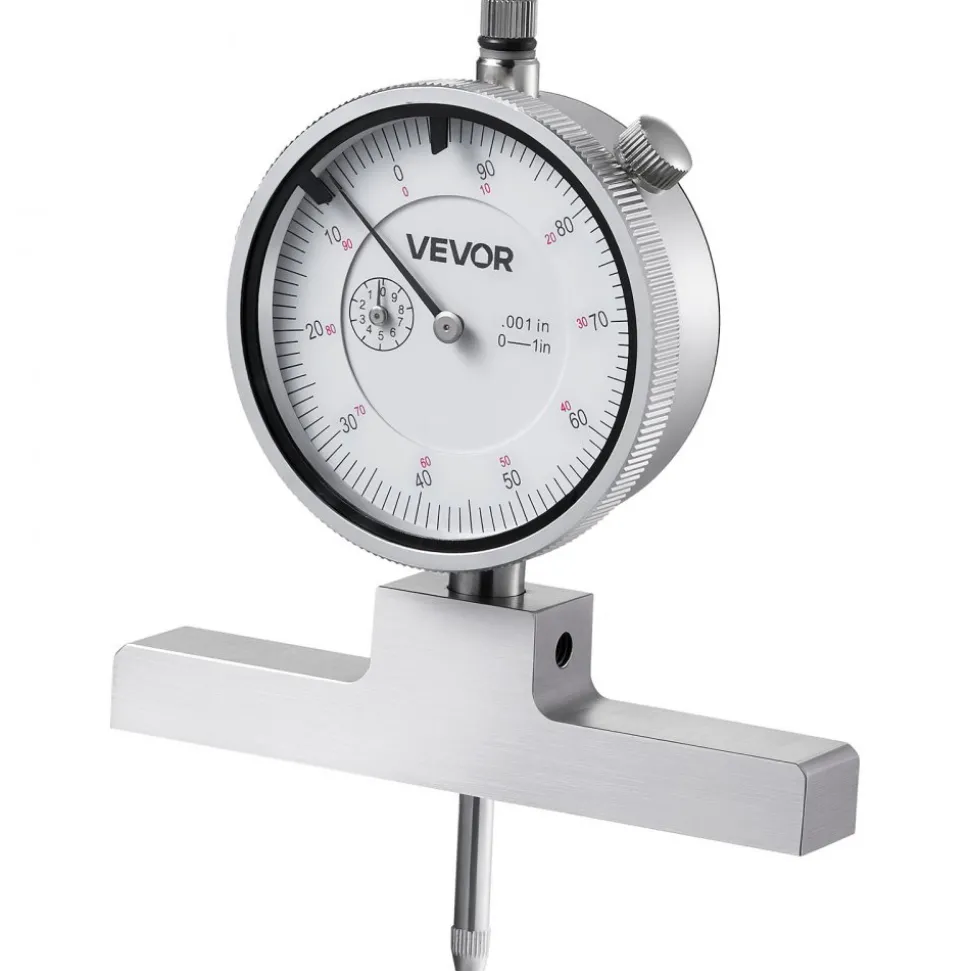

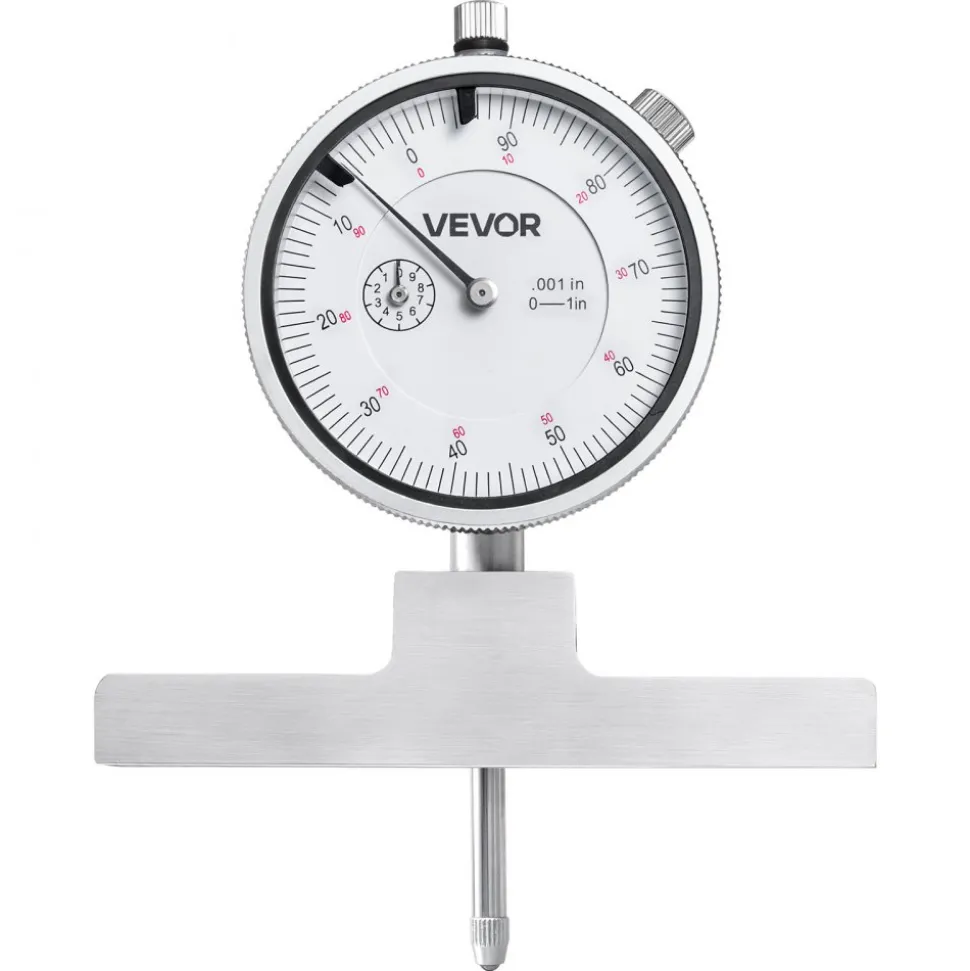

The micrometer dial face features high-contrast markings with 0.001-inch graduations. This feature makes it easy to see without using magnification aids. Clear indexing lines and a clear scale make it easier to read in workshop lighting, reducing transcription mistakes when there are many inspections to do.

The thimble is ergonomic, and the frame weight is evenly distributed, so the tool is easier to position over workpieces. For field technicians who need to measure parts in tight spaces, the combination of clear dial markings and a manageable size makes it much faster to measure each part than tools that require two hands to hold them steady.

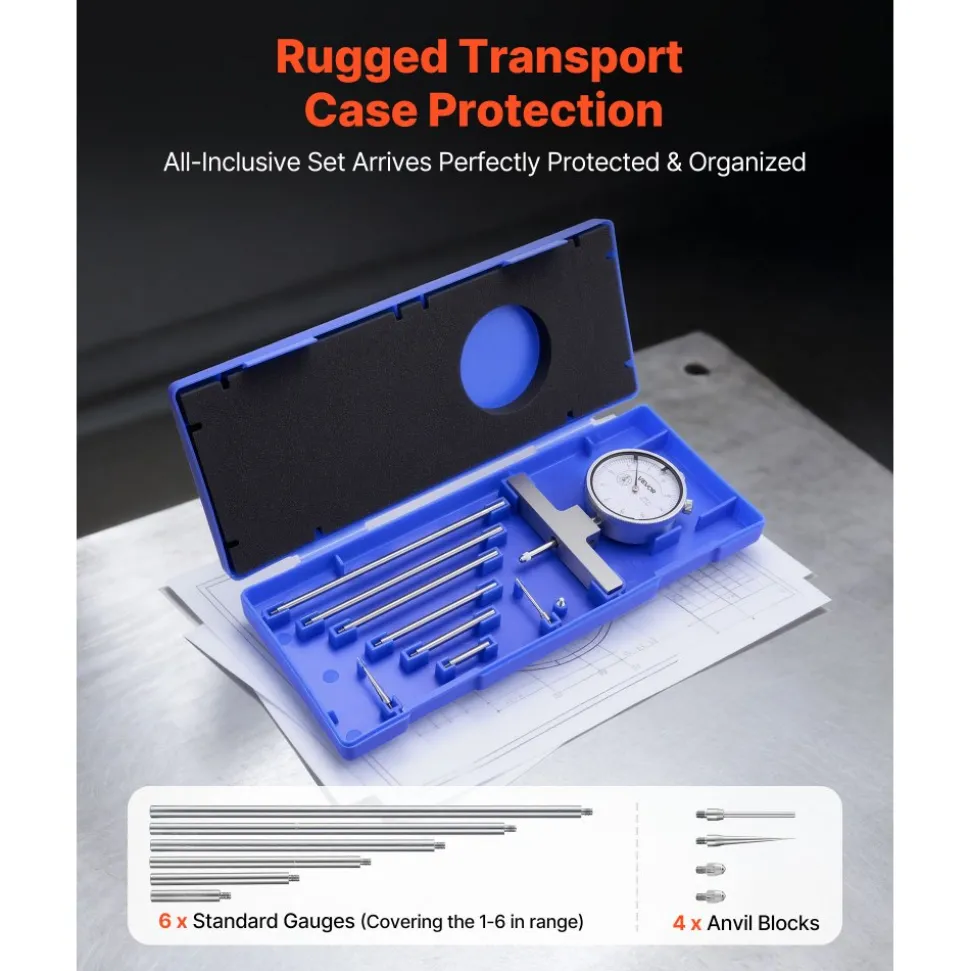

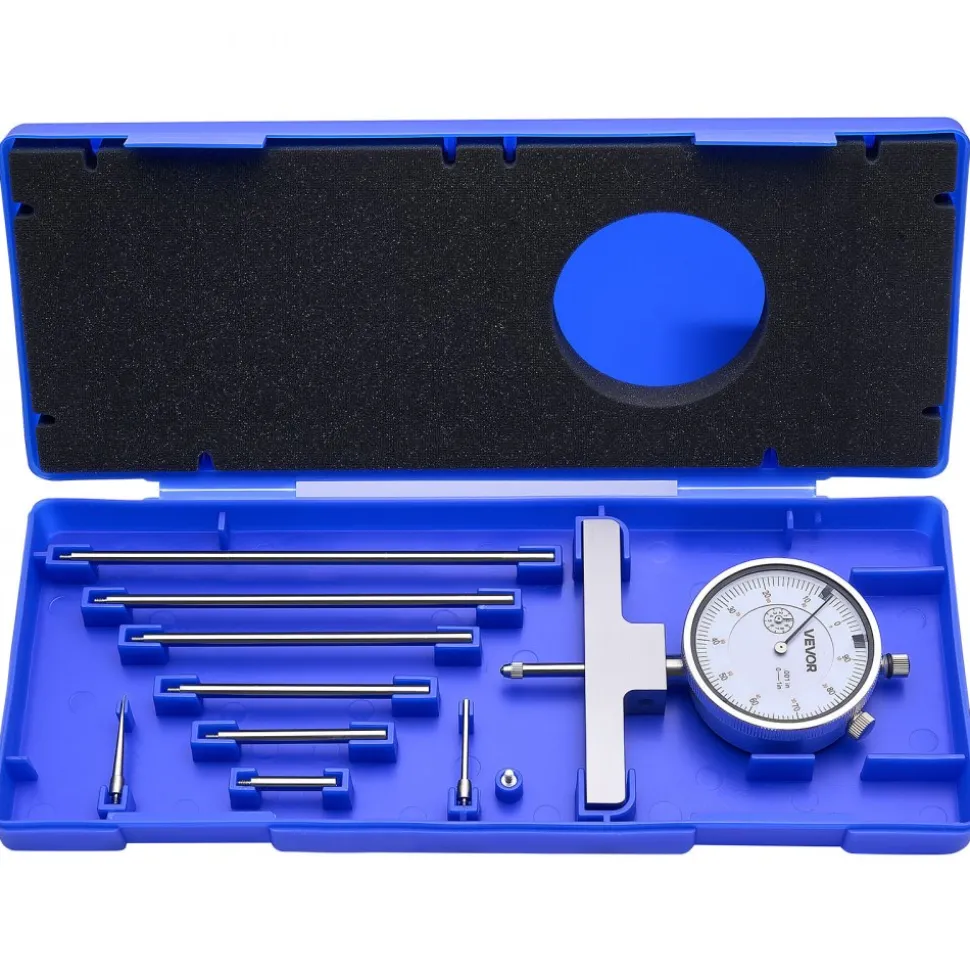

Hard Carrying Case Protects Complete 11-Piece Depth Gauge Micrometer Kit for Field Use

The whole kit comes in a hard case that was made just for it. It has a depth micrometer body, six extension rods, four anvils, and a printed set of instructions. Each piece fits into its foam cutout. The hard-shell case keeps precision-ground surfaces safe from damage, dirt, and misalignment when moving between job sites or storing them between shifts.

Field service engineers and traveling quality inspectors have a significant operational advantage when they can carry their full kit without losing any parts. The case system keeps all the parts together and ready to use, so you don’t have to get rods, anvils, and the micrometer body separately. You don’t need to have a list of parts before you start measuring. The entire digital depth gauge micrometer system is ready to use as soon as you open the case.
