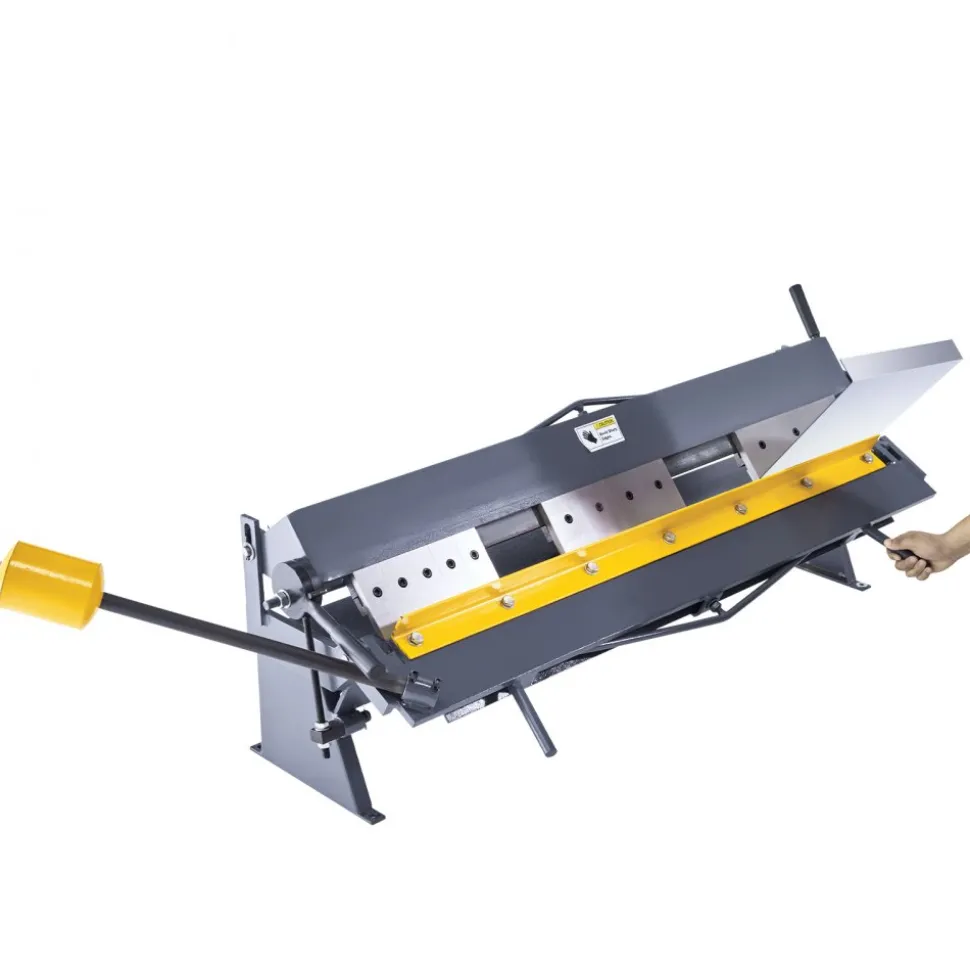

VEVOR Box and Pan Brake, 48 in Sheet Metal Bending Brake,16-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 16 Fingers, Heavy-Duty Aluminum Folder for Precise Bending

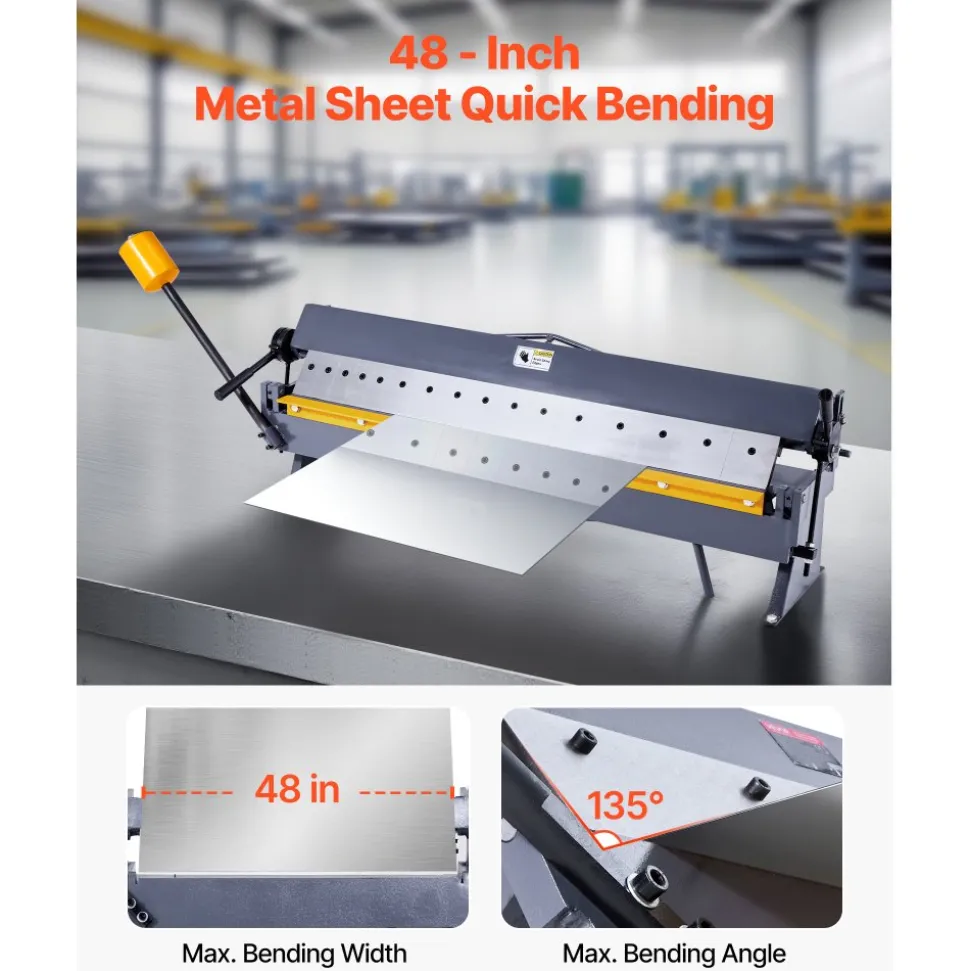

48 Inch Sheet Metal Bending Brake with 135° Bending Range for Large Projects

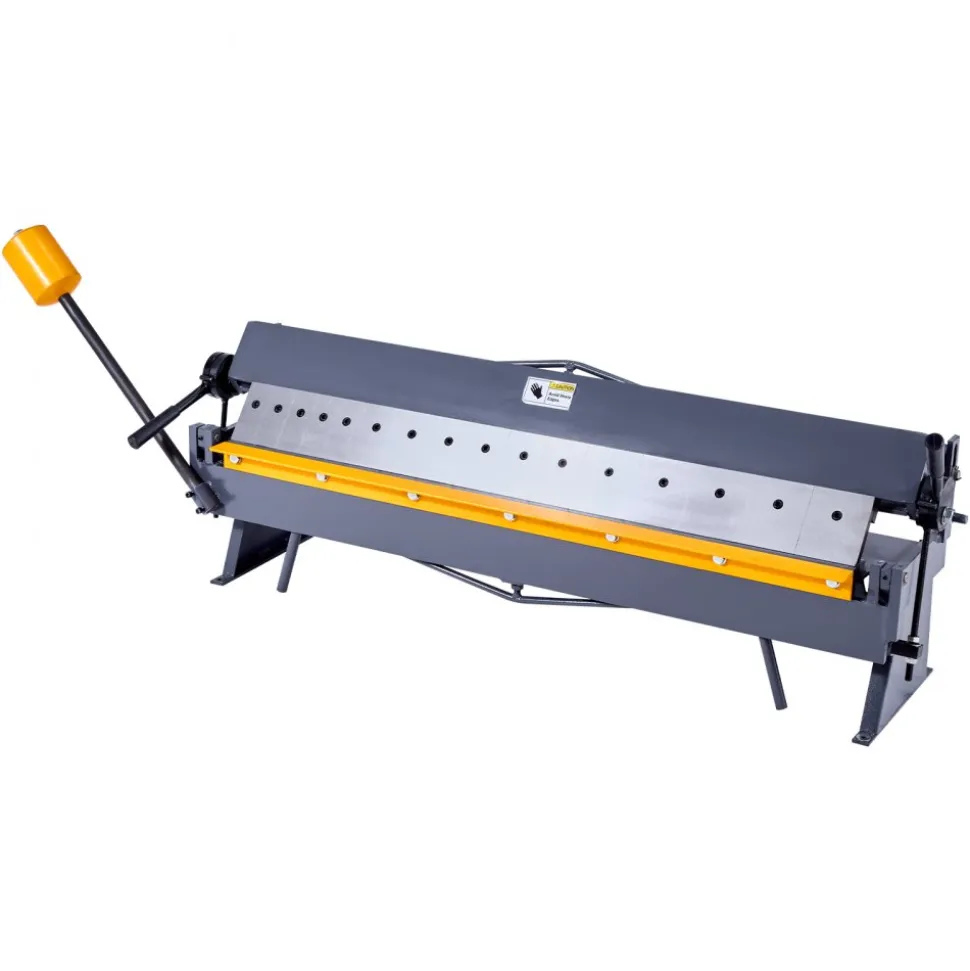

Model W1.5×1220Z VEVOR 48 inch sheet metal bending brake features a wide 48-inch bending surface ideal for professional fabrication. It provides a maximum bending angle of 135° for the accurate shaping of panels and enclosures. With a maximum thickness of 16 Ga (1.5 mm) for low-carbon steel, it handles many medium-duty metalworking applications effectively.

Its extra width ensures that large panels bend consistently, with no warping or uneven folds. The wide structure and precision-aligned hinges deliver smooth, repeatable performance on every job, for industrial or workshop use.

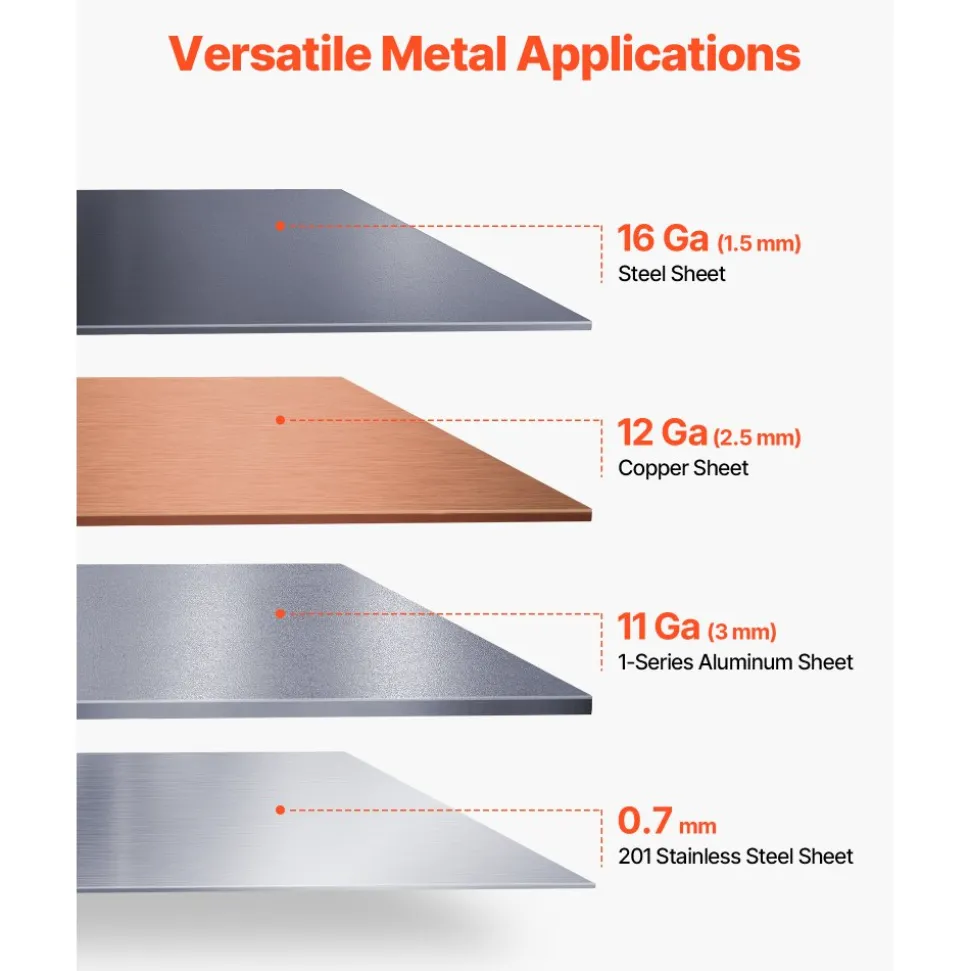

Supports Mild Steel, Stainless Steel, and Aluminum up to 16 Gauge Thickness

This brake’s low-carbon steel design ensures structural integrity and consistent clamping performance. It will support mild steel, stainless steel, aluminum, and copper sheets, providing flexibility for HVAC, roofing, and automotive applications. A rigid, manually operated press plate mechanism securely holds the sheet at every bend to produce sharp, clean results.

Another great advantage of this tool’s versatility is that fabricators can change materials with very few adjustments to the setup. Be it making electrical boxes or forming ducts, this tool delivers accuracy and durability thanks to its solid construction and yield strength throughout extended use.

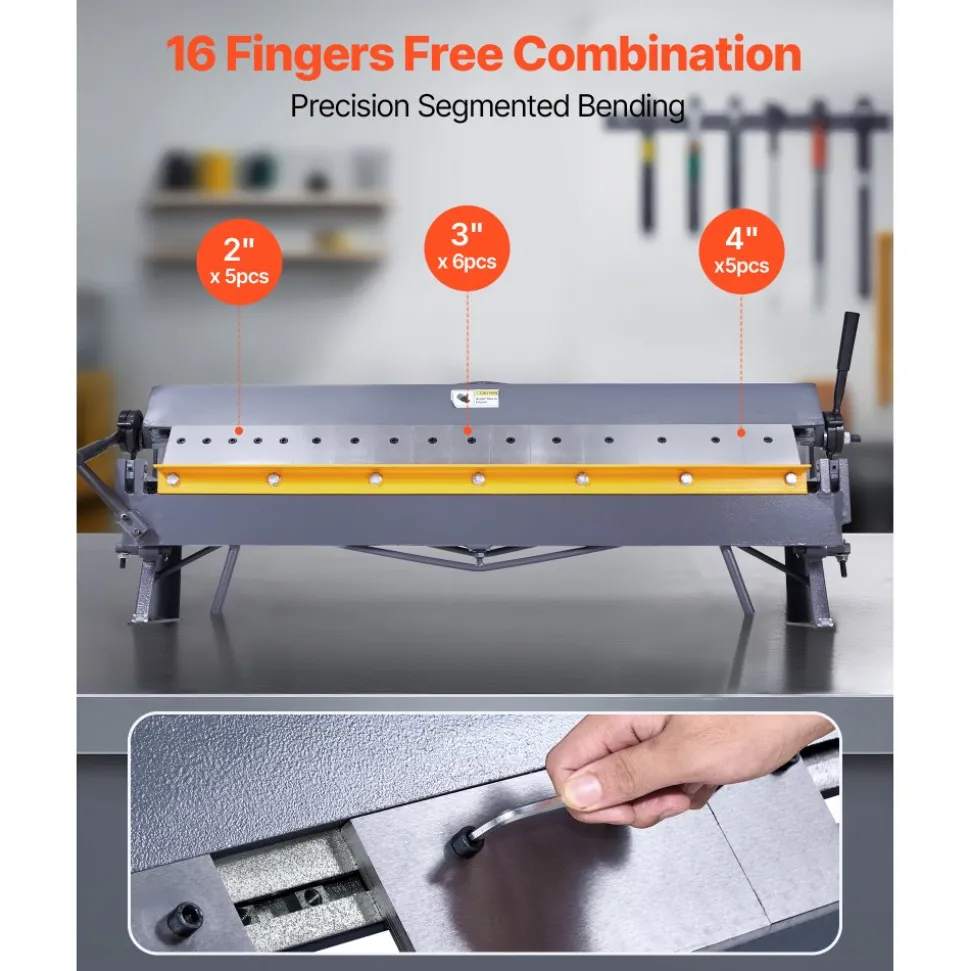

16 Removable Segment Fingers (2″, 3″, 4″) for Custom Box and Pan Bends

This model features 16 removable bending segments composed of five 2-inch, six 3-inch, and five 4-inch pieces that can be assembled to match the shape and dimensions of your project. The finger setup is modular, allowing the machine to perform box and pan bending, which enables operators to handle complex configurations.

Each segment securely locks into place, prohibiting movement during operation. The advantage of such modularity is that practitioners can accomplish complex work, such as housing, framing, and channel forming. At the same time, the hand-flanging feature provides flexibility for creating strengthened edges or seams in custom parts.

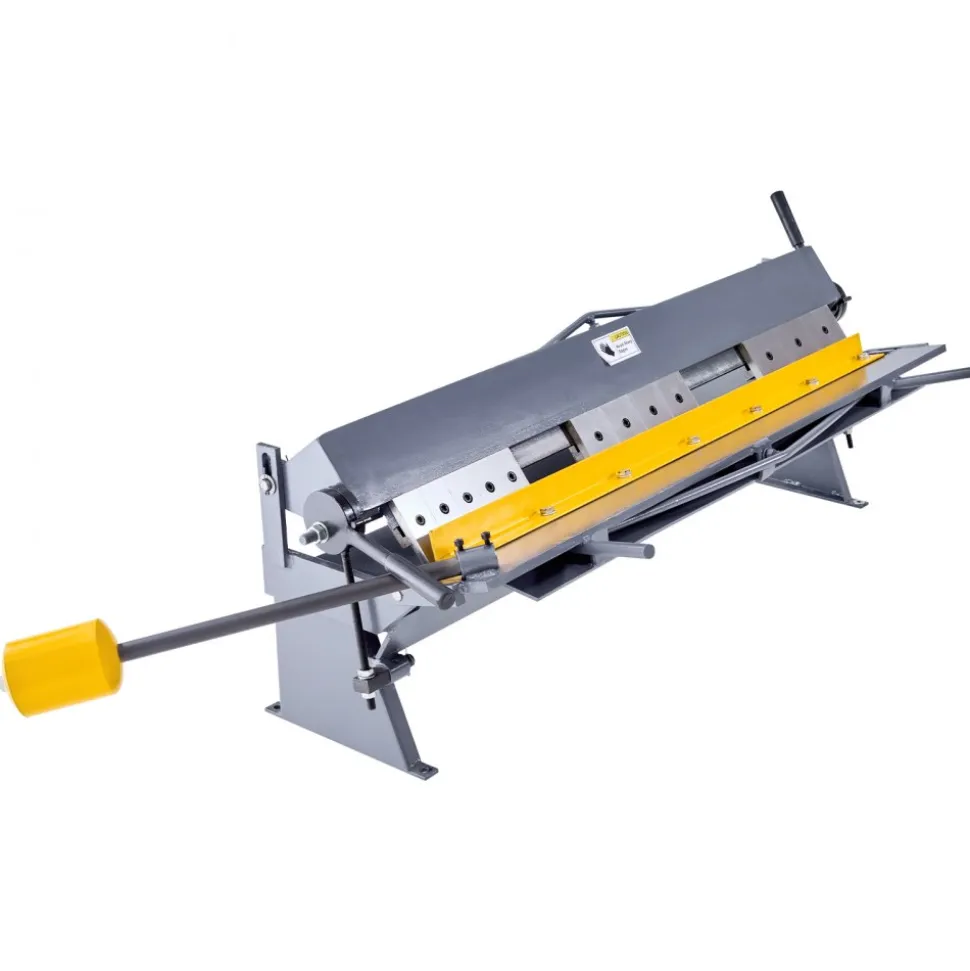

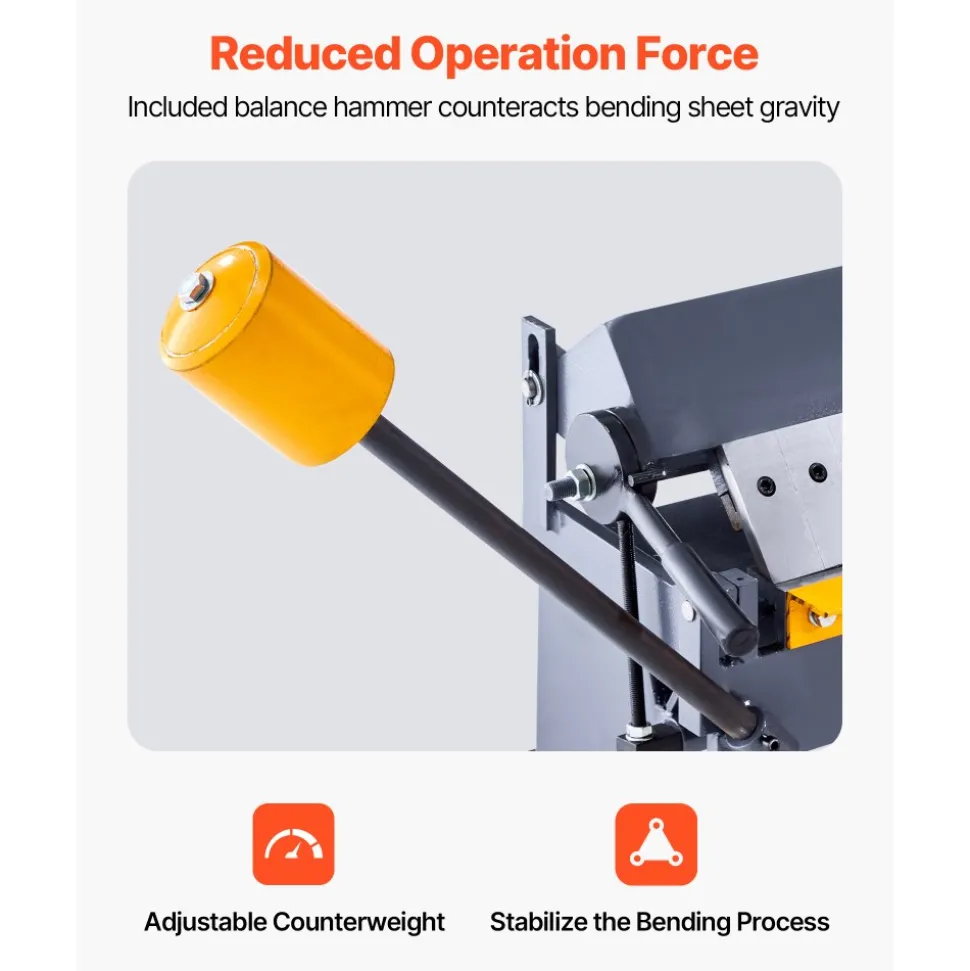

Single Balance Hammer Design for Effortless and Controlled Operation

The auxiliary bending mechanism in this design is a single-balance hammer system that uniformly distributes force across the material. This reduces the physical effort and allows for smooth, steady, and controlled movement throughout the full range of bending. Smooth handling and improved stability characterize every pass an operator makes.

Manually mounted, the hammer offers predictable motion, maintaining balance even under continuous use. Its ability to precisely control the bending angle helps prevent overbending, especially in parts that require consistent, professional-grade accuracy.

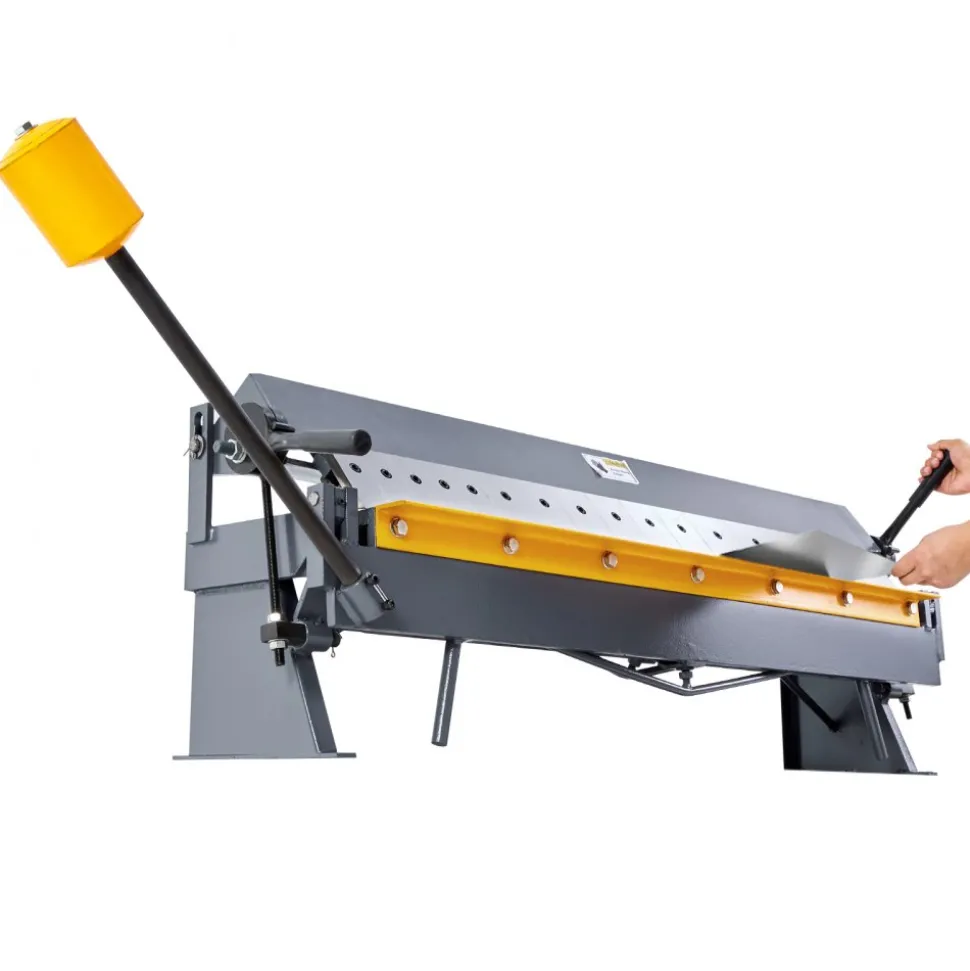

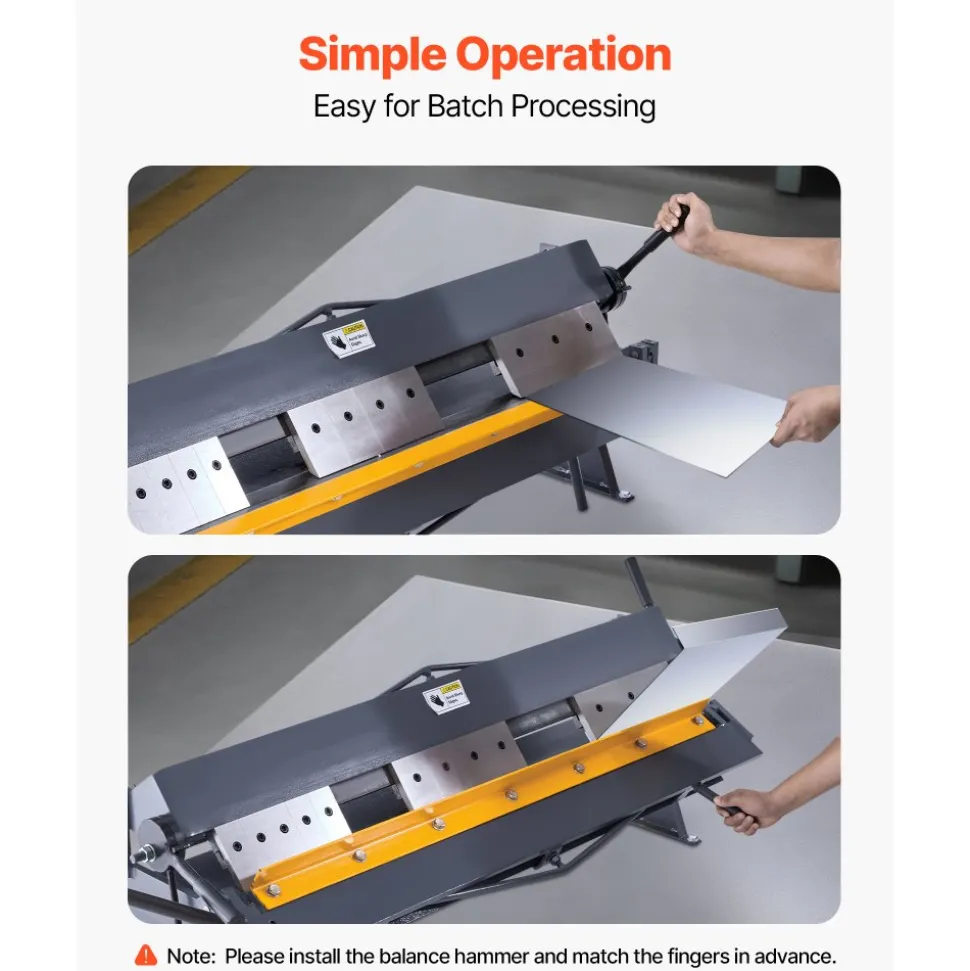

Manual Press Plate Mechanism for Accurate Angle Adjustments

The press plate’s mechanical mechanism provides users with tactile control at each step of bending. Simply lift the handle, position the sheet, and lower it to clamp securely. Then, lift the lever to the desired angle for a clean fold. The brake’s straightforward layout reduces the learning curve while increasing production efficiency.

Operators can easily compensate for springback by adding a few degrees beyond the target angle, like setting 92° for a 90° bend. However, this manual approach allows fine tuning without complex settings; hence, each piece will continue to stay within the limits of dimensional accuracy during production runs.

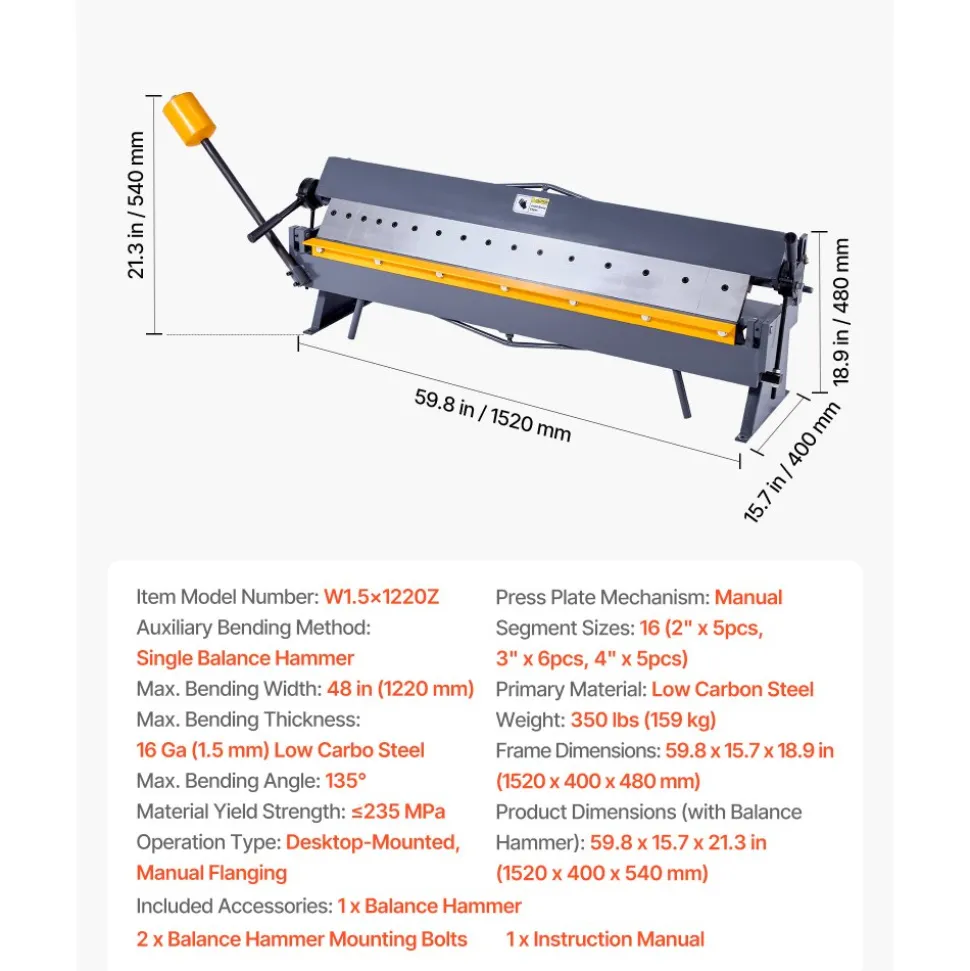

Low Carbon Steel Frame, 59.8 × 15.7 × 18.9 in., for Strength and Stability

Constructed from high-strength, low-carbon steel, the frame provides the rigidity required for consistent results under heavy workloads. At 59.8 x 15.7 x 18.9 inches (1520 x 400 x 480 mm) and 12.1 lbs (5.5 kg), it’s solid enough to handle day after day in a professional environment.

Because this powder-coated finish offers corrosion resistance, it keeps the brake clean and functioning in demanding shop environments. Furthermore, the addition of reinforced hinges and precisely machined edges enhances longevity, ensuring the brake will work as intended for a long time.

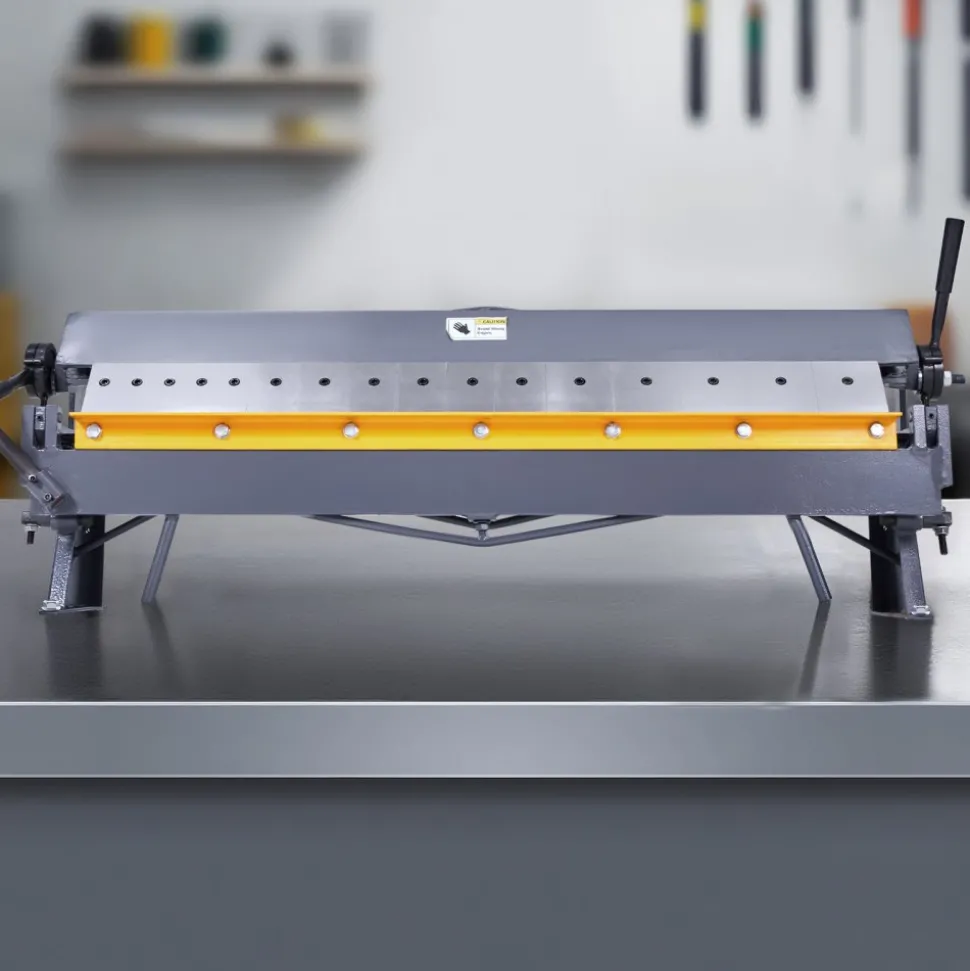

Desktop Mounted Setup with Pre-Drilled Holes for Secure Installation

This 48 inch sheet metal bending brake features a desktop-mounted design that allows users to attach it to any rigid workbench or fabrication table. It comes with pre-drilled holes so users can bolt the machine in place quickly; it doesn’t move during operation. The solid foundation eliminates vibration, thus allowing accurate bends without misalignment.

Product dimensions of 59.8 x 15.7 x 21.3 inches (1520 x 400 x 540 mm) with a balance hammer enable compact placement even in smaller workshops. The simple mounting design keeps it in place during operation and provides adequate workspace for comfortably handling large sheets of metal.

48 Inch Sheet Metal Bending Brake for Professional Fabrication

The VEVOR 48 inch sheet metal bending brake offers consistent, high-quality results across a wide array of materials and project types. It contains a balance hammer and a manual control system, designed for a modular die setup that enables professionals to perform precise, repeatable bends with full confidence.

The tool is ideal for HVAC, auto repair, and light industrial fabrication, which require accuracy and durability for professional results. With its solid low-carbon steel frame and adjustable design, the W1.5×1220Z model has remained a reliable asset for any workshop that values efficiency, precision, and longevity.
