VEVOR 4 Inch Wood Lathe Chuck, 4-Jaw, Bevel-Gear Self-Centering Wood Turning Chuck Set with 1″ x 8TPI Thread & Adapter, 5 PCS Jaws Round/Flat/Step/Pin, Carry Case, Nickel-Plated, for Woodworking Lathe

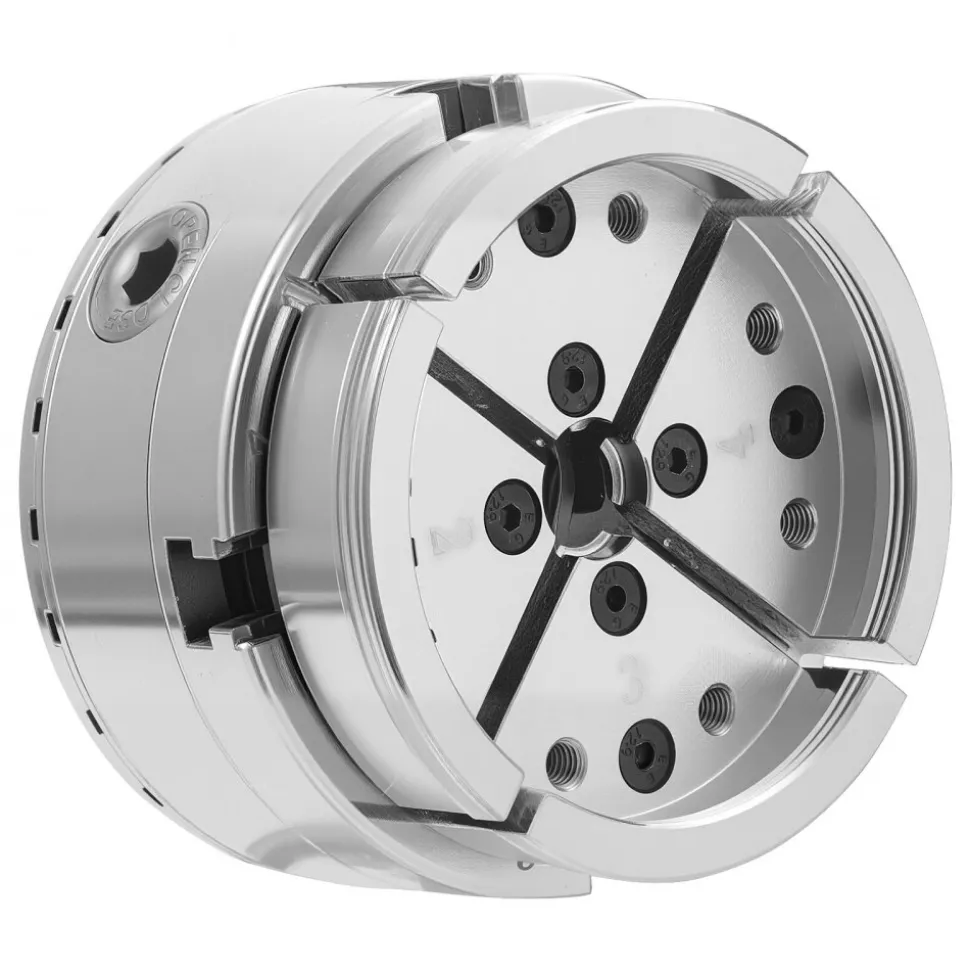

VEVOR 4 Jaw Wood Lathe Chuck with 4-Inch Outer Diameter & M33 x 3.5mm Internal Thread

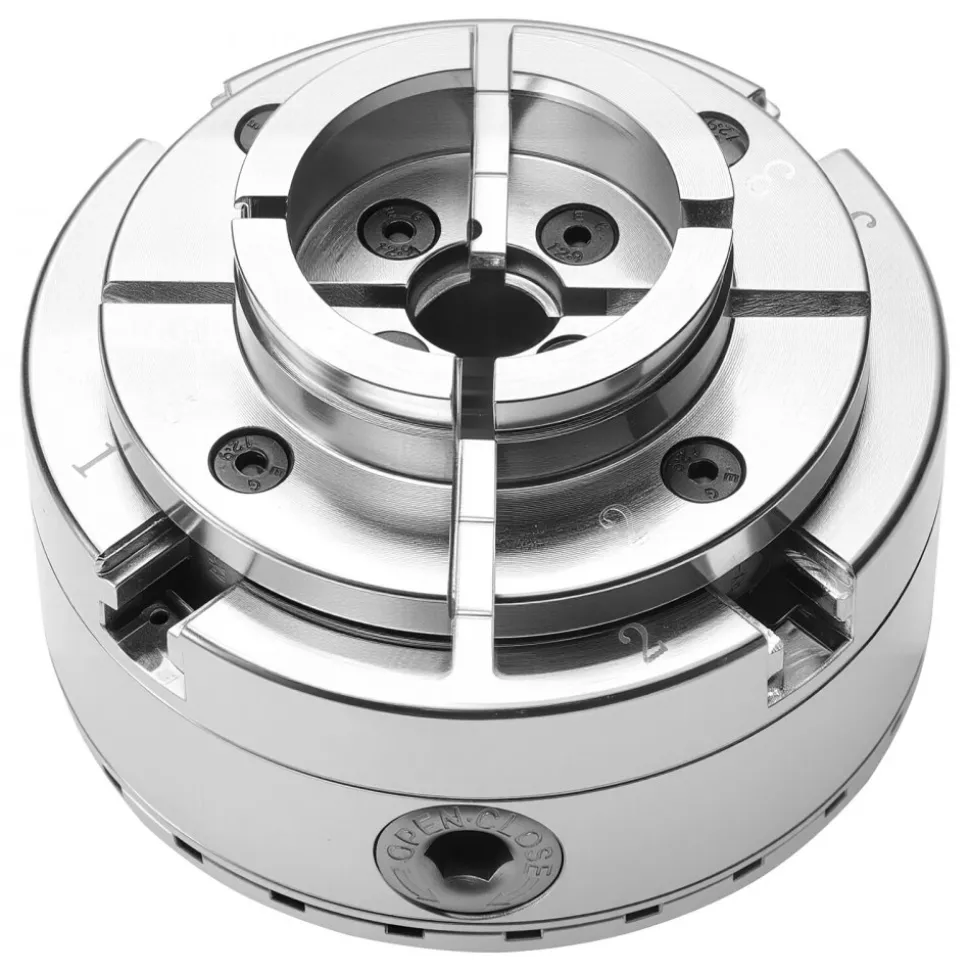

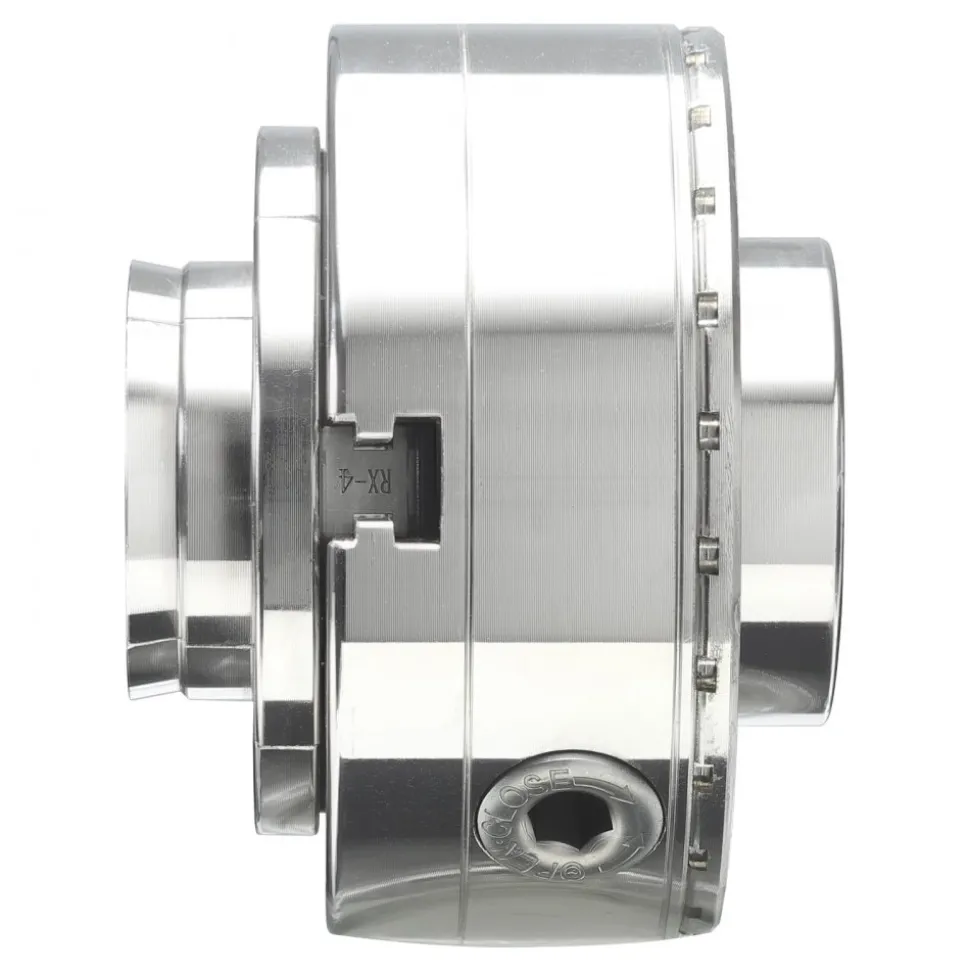

The VEVOR 4 jaw wood lathe chuck has a 4-inch outer diameter and an M33 x 3.5mm internal thread. This size works with many medium and large woodworking lathes in both home and professional shops. The 4-inch body diameter makes a sturdy base for clamping a wide range of workpieces.

The overall weight of the chuck body and all its parts is 11.8 lbs, which is appropriate for a 4-inch chunk of this quality of build. The robust steel body gives it the weight and strength it needs to stay still while spinning quickly. The M33 x 3.5mm thread fits the spindle well and helps reduce wobble. The 1″ x 8TPI adapter that comes with it makes it work with the most common spindle thread used on woodworking lathes in North America.

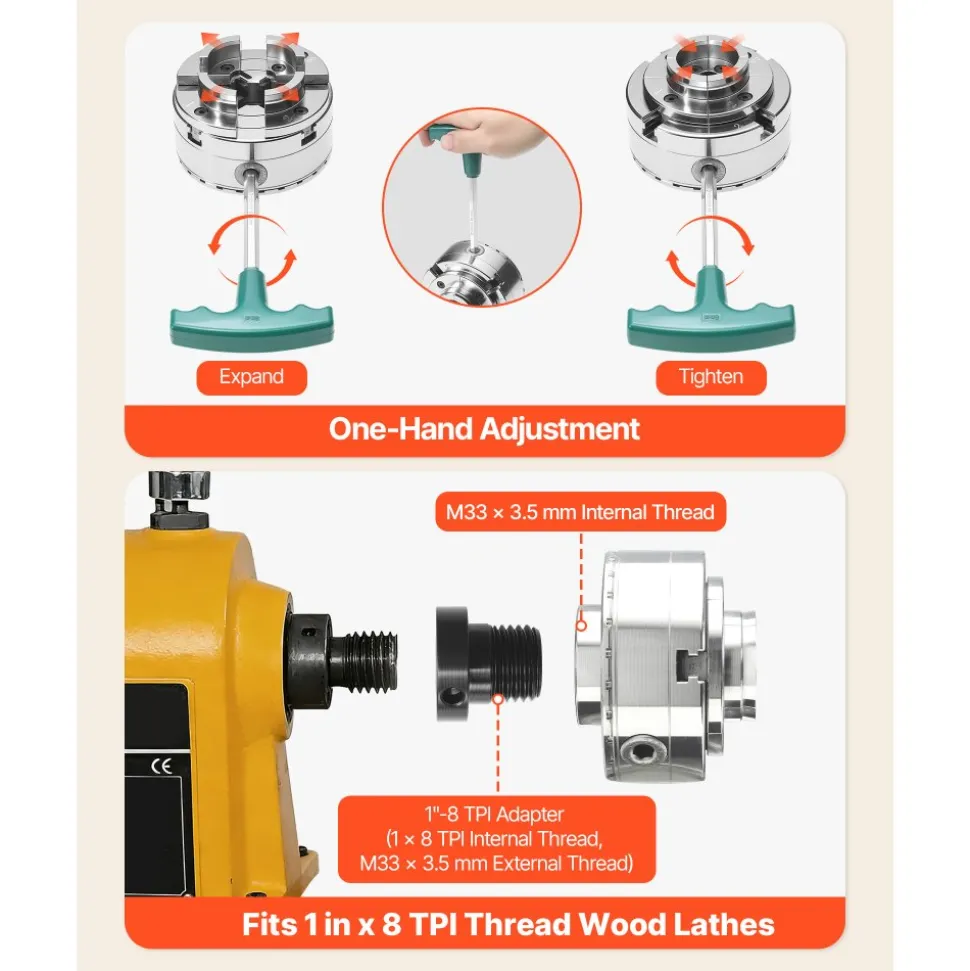

1″ x 8TPI Spindle Adapter for Instant Compatibility with Most Woodworking Lathes

The 4 jaw wood lathe chuck comes with an included 1″ x 8TPI thread adaptor. This thread specification is the most common spindle standard for woodworking lathes in North America, including several well-known brands in the mid-range and professional markets. The adapter screws onto the lathe spindle, and the chuck body screws onto the adapter.

The adapter is manufactured to very tight tolerances, so the chuck runs true, and there is no perceptible runout at the adapter interface. A badly fitted adaptor causes concentricity faults that worsen the chuck’s own runout and prevent the turned parts from fitting properly. This adapter fits properly, ensuring the chuck runs as accurately as the spindle allows.

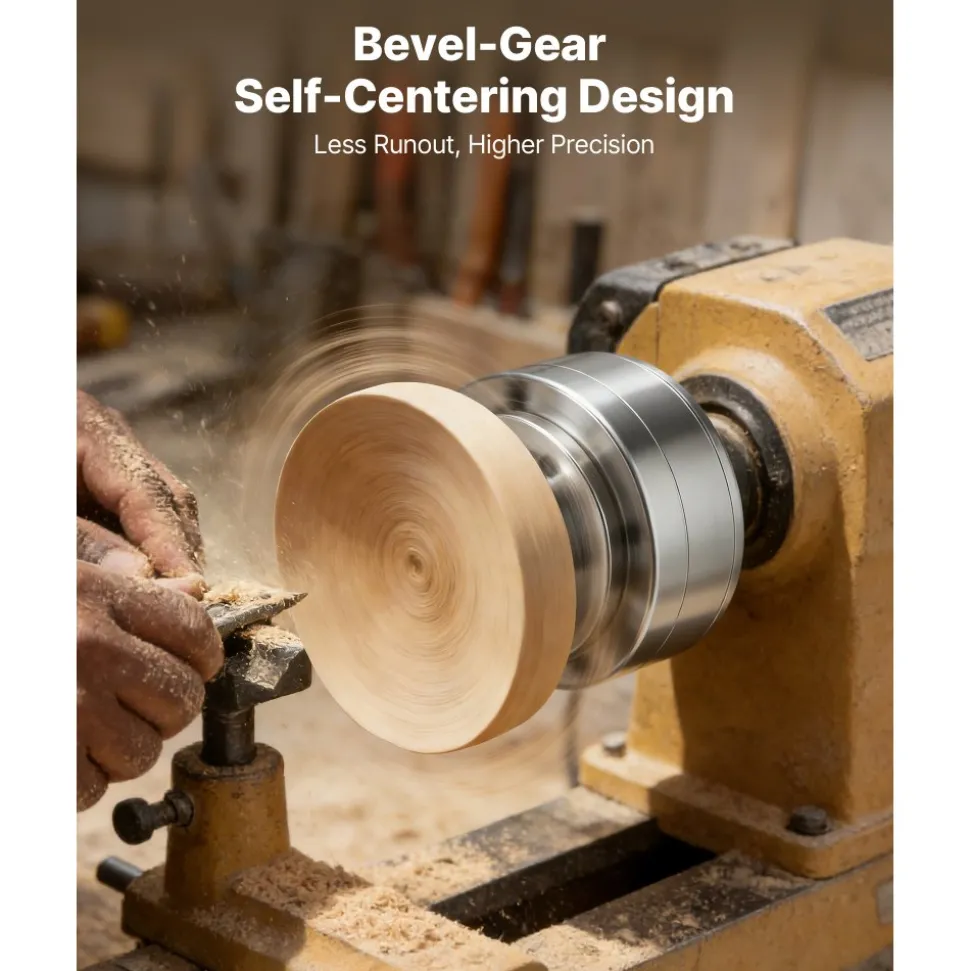

Bevel-Gear Self-Centering Mechanism That Automatically Centers Workpieces During High-Speed Rotation

The self-centering feature is the most important mechanical part of any 4-jaw wood lathe chuck. When all four jaws are driven at the same time by a single bevel-gear system, each jaw moves the same distance towards or away from the center as the T-wrench is twisted. This means the workpiece will be automatically centered when the chuck is tightened.

This automatic centering makes work go much faster. It takes a lot less time to load a new blank, tighten the chuck, and start turning than it does to adjust the jaws on their own. The bevel-gear design also maintains accurate centering even when the chuck opens and closes repeatedly. The way the jaws work together stays the same from one session to the next.

5-Piece Jaw Set Including Small Round, Large Round, Step, Pin, and Flat Jaws for Diverse Workholding

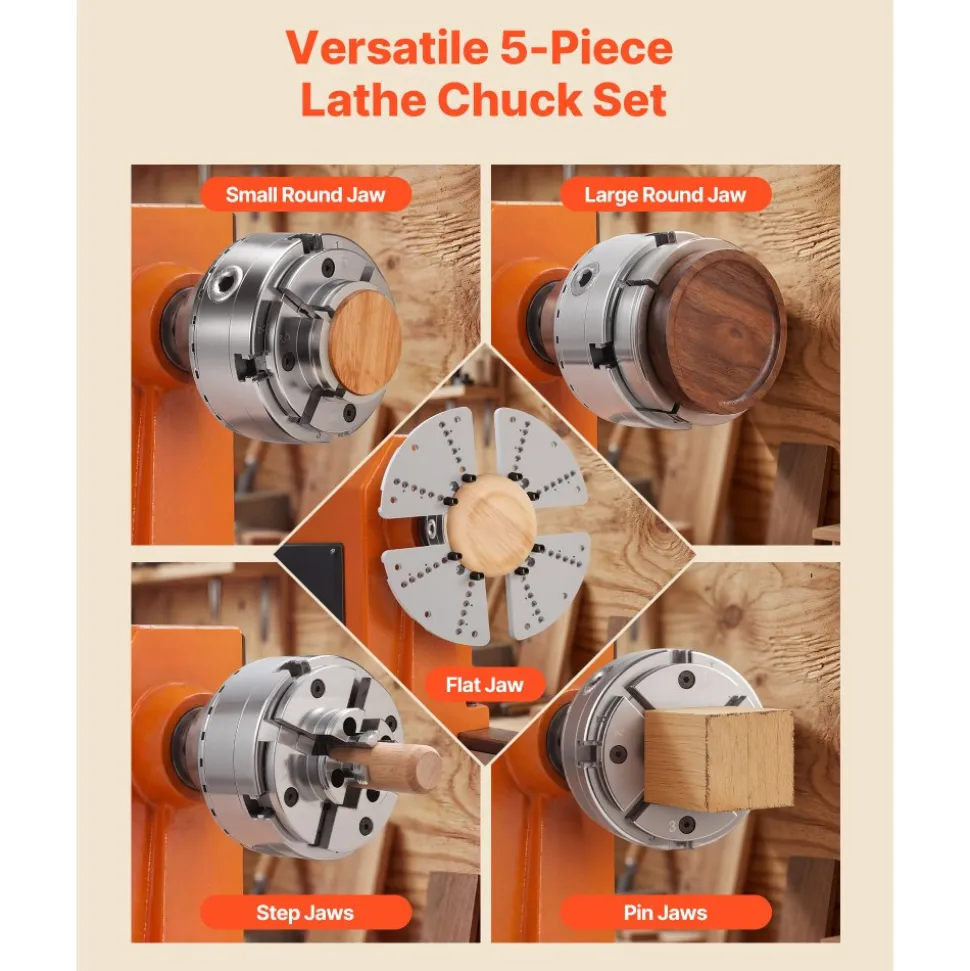

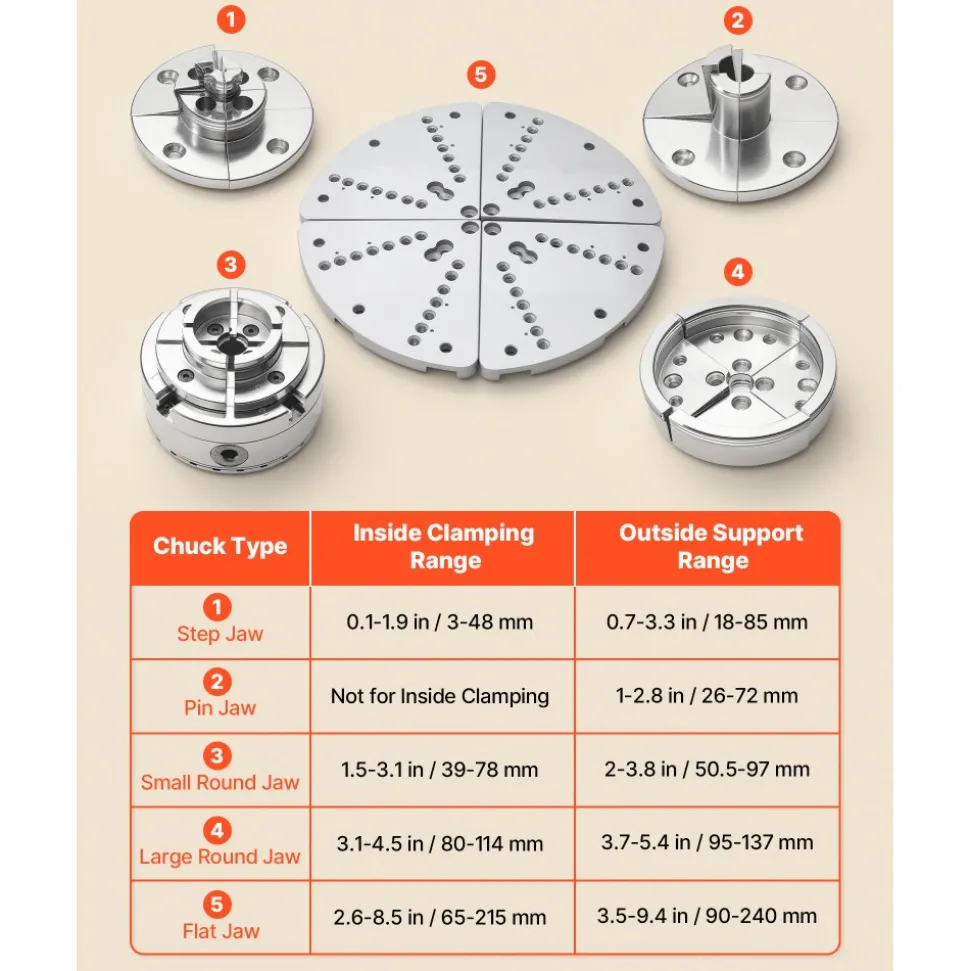

This 4 jaw wood lathe chuck has five jaw types. In expansion mode, small round jaws hold tenons and cylindrical workpieces with a smaller diameter. Large round jaws can hold bigger bowls and tenons. Step jaws have a stepped shape that allows them to hold a range of diameters without changing jaws. Pin jaws are great for working on small, delicate items that require careful handling.

Each type of jaw is designed to solve a distinct problem with holding workpieces that arises as you turn. You won’t have to buy jaw sets separately as your turning range grows if you have all five available from the start. The T-wrench-operated jaw slides on the chuck body, allowing the jaws to switch places. Changes to the jaw happen quickly, and every time you put the same jaw set back on, it fits perfectly.

T-Wrench Jaw Adjustment Supporting Both Inside Clamping and Outside Support Modes

The 4 jaw wood lathe chuck may hold work in two different ways. When the inside clamping mode is activated, the jaws close on a tenon turned on the base of the workpiece. The base tenon connects to the jaws in this form, which is the most usual for turning bowls and vessels. When you use the expansion mode, the jaws move outward into a recess or mortise that is turned in the base of the workpiece.

The T-wrench that works the chuck fits into two side ports on the chuck’s body. This dual-access design lets you use the wrench from either side of the machine, which is vital for comfortable ergonomic positioning when working on the chuck. The wrench provides the same torque to the bevel gear system, allowing the jaws to move smoothly and consistently in both directions when clamping.

4 Jaw Wood Lathe Chuck with High-Hardness Steel Body &Thick Nickel-Plated Finish

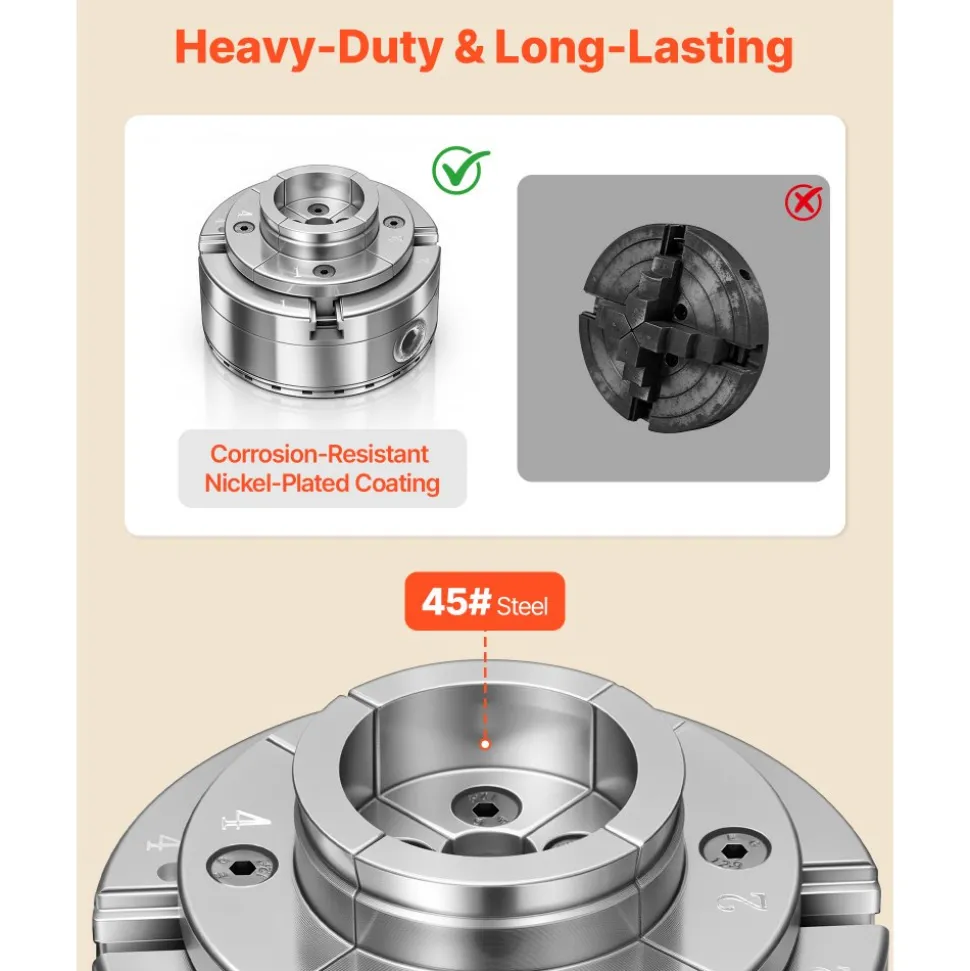

This 4 law wood lathe chuck is made of high-hardness steel for the body and jaws. Steel gives the structure the strength it needs to withstand the mechanical stresses of demanding woodturning. The chuck can endure repeated hits from cuts that aren’t straight or aren’t square without breaking or changing shape.

The nickel-plated finish effectively protects the entire exterior surface from corrosion. Tools in a workshop are exposed to damp, sawdust, humidity, and cutting debris. In these conditions, bare steel rusts quite quickly. Nickel plating protects the steel surface from moisture and is less likely to peel than regular paint or lacquer treatments.

Protective Carry Case Measuring 14.8 x 10.8 x 4.1 Inches Keeps All Components Organized.

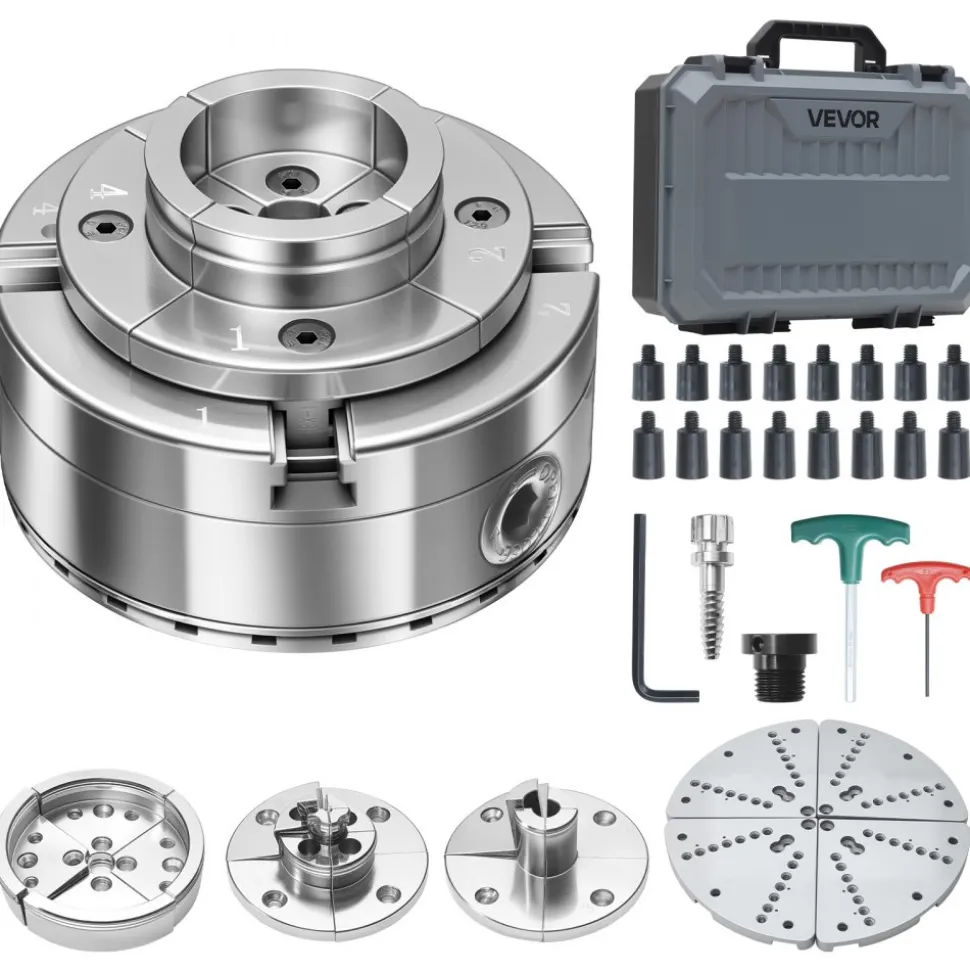

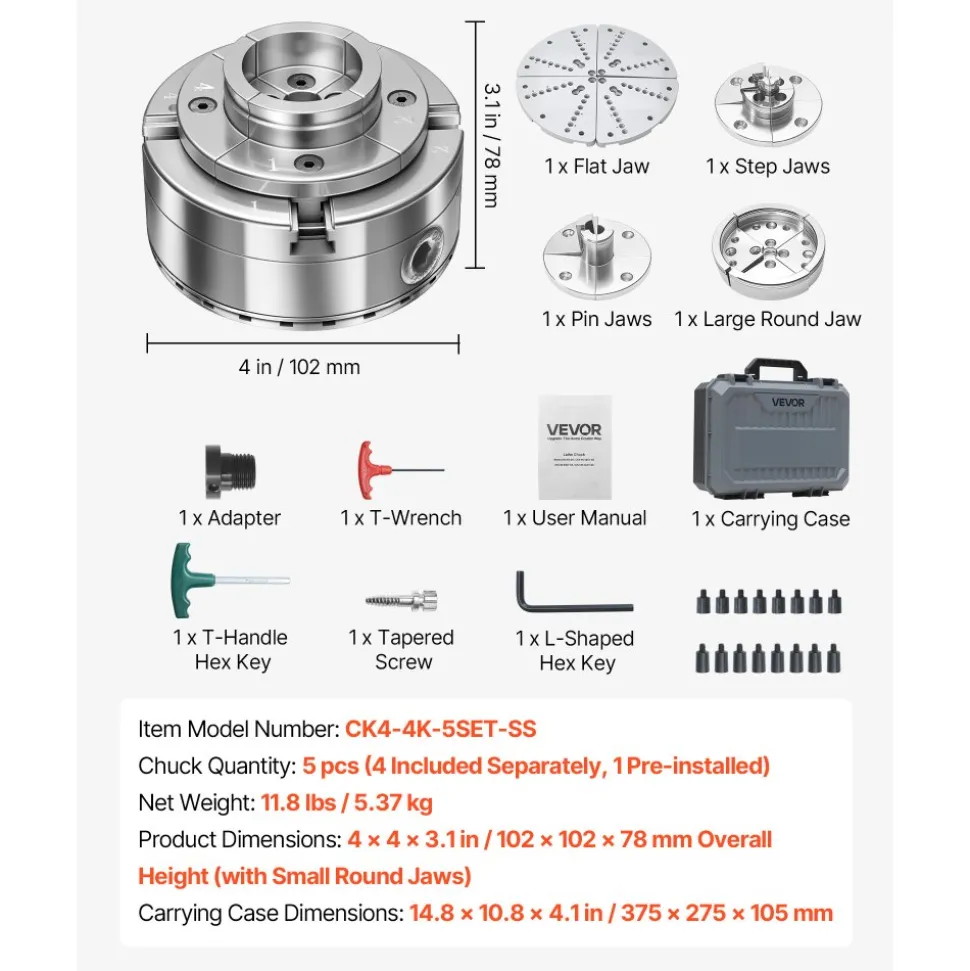

This 4 jaw wood lathe chuck comes with a protective case. The case is 14.8 x 10.8 x 4.1 inches and can hold the chuck body, all five jaw sets, the T-wrench, the 1″ x 8TPI adapter, and the wood screws that come with it. There is a dedicated place for each part inside the case. Nothing comes loose or is lost between turning sessions.

The case keeps the precision-machined jaw surfaces from being damaged by impacts during storage and movement. The jaw surfaces and dovetail contacts are the sections of the chuck that are most important and critical to fit. This makes this chuck really portable for turners who work at more than one shop, demonstrate at clubs, or bring tools to turning symposiums and workshops.
