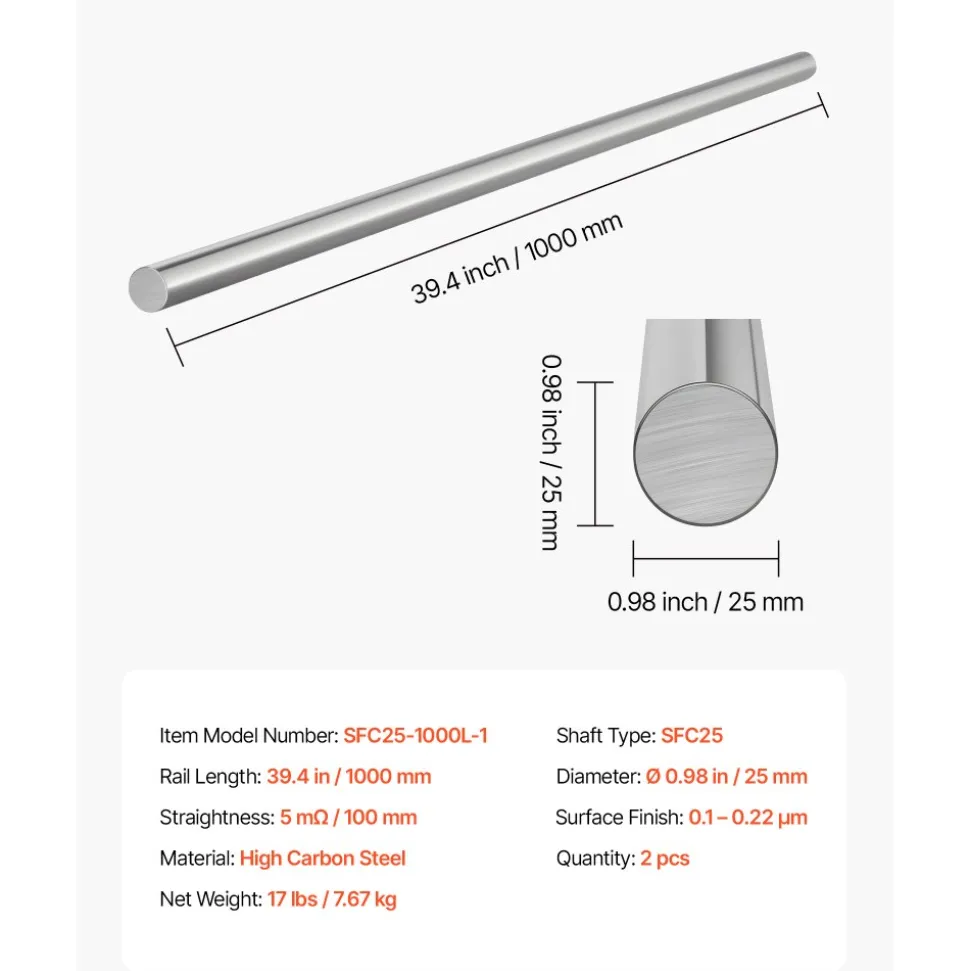

VEVOR 2PCS Linear Motion Rod, 25 mm x 1000 mm (0.98 x 39.4 in), SFC25 Carbon Steel Linear Rod Shaft, Anti Rust and High Precision, High Hardness Shaft, for Cutting Grinding Milling Drilling Machine

HRC58–62 Carbon Steel for Superior Hardness and Deformation Resistance

The SFC25 carbon steel shaft used to make this VEVOR rod linear rail shaft has a Rockwell hardness rating of HRC58–62. The shaft has excellent resistance to wear from repeated load cycles, surface indentation from bearing contact, and permanent deformation under radial and axial stresses produced during cutting, grinding, milling, and drilling operations, thanks to this hardness range. Throughout prolonged operation, the shaft consistently maintains its dimensional shape, which is crucial for preserving motion accuracy throughout the machine’s lifetime.

Additionally, high shaft hardness slows down surface deterioration at the bearing contact zone. The contact area undergoes concentrated stress when a bearing block continually moves along the shaft. To maintain the tight bearing fit and smooth movement necessary for precision machinery, a tougher surface resists pitting and microdeformation at these locations.

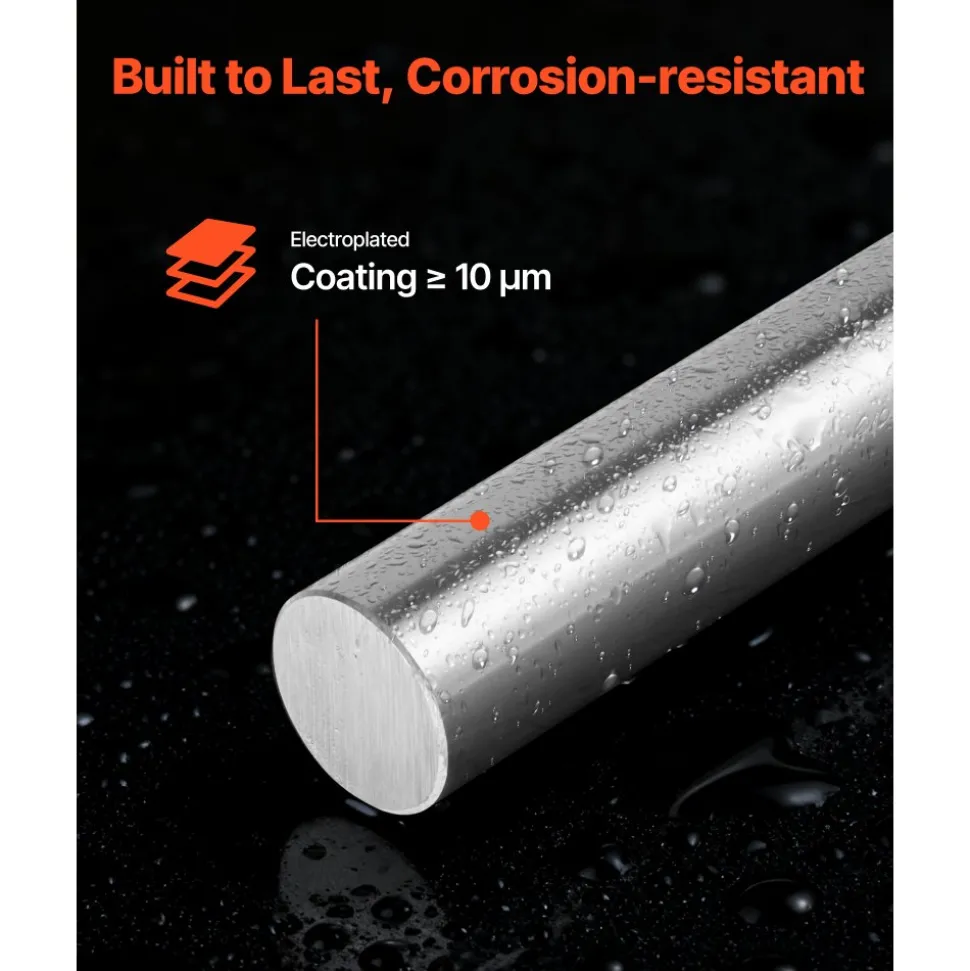

Rod Linear Rail Shaft with 10μm+ Chrome Plating for Anti-Rust Protection in Harsh Environments

The chrome electroplating layer on each rod linear rail shaft in this set is thicker than 10 micrometers. This coating helps protect the carbon steel surface from moisture, condensation, and the humidity found in outdoor machine enclosures, industrial floors, and basement workshops. Without this safeguard, carbon-steel shafts rapidly surface rust in moist environments, roughening the bearing contact zone and leading to binding, noise, and increased bearing wear.

Additionally, compared to bare steel, the chromium layer creates a smoother, less-frictional surface. This feature lessens the rolling resistance the carriage encounters when the machine is operating and directly contributes to quieter, more fluid bearing block transit. The consistency of the output finish for precision activities such as laser cutting and CNC engraving depends directly on the quality of the shaft surface.

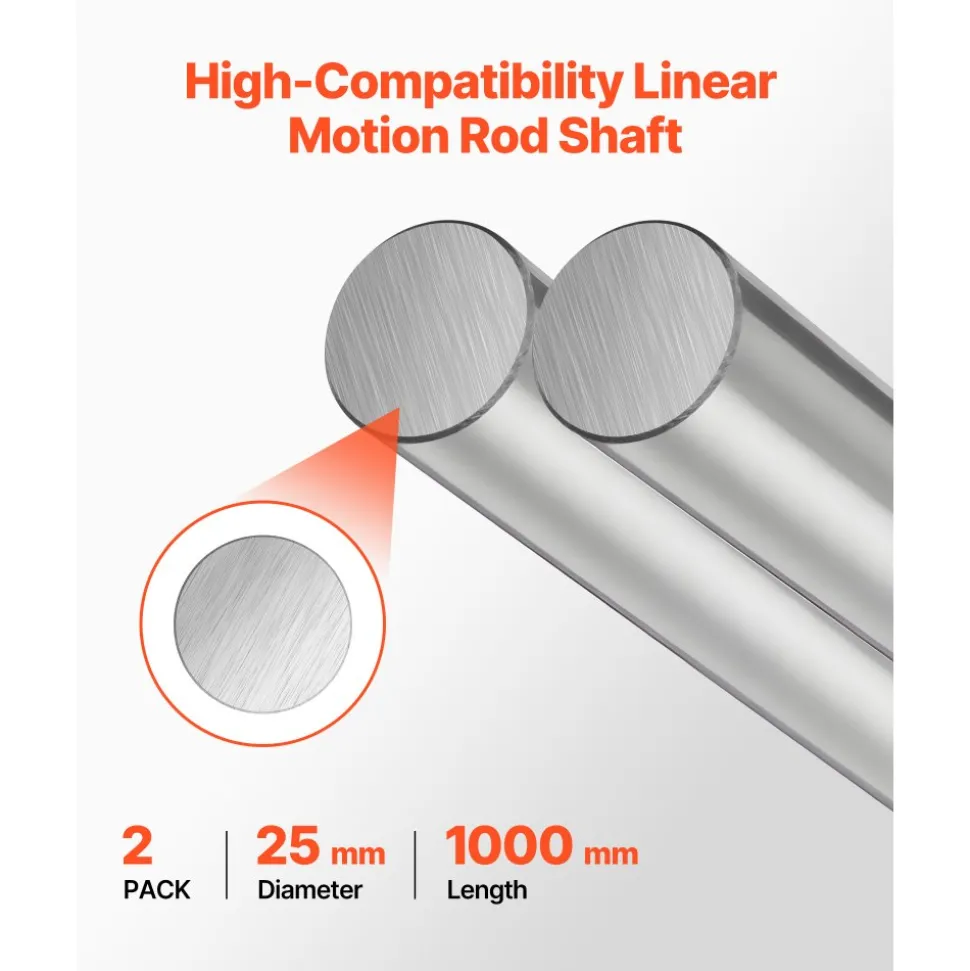

25mm Diameter for Higher Rigidity and Load Capacity in Medium-Heavy Applications

The SFC25 rod has a diameter of 25 mm, which is one size larger than the standard 20 mm and offers greater load-bearing capacity and cross-sectional rigidity. Under stronger carriage loads or when the bearing blocks are farther apart along the rod linear rail shaft, the larger diameter more successfully resists mid-span deflection. Because of this, the SFC25 is a superior option for machines with larger spindles or that apply higher cutting forces, where a 20mm shaft might flex noticeably under stress.

In addition to being directly compatible with off-the-shelf components without the need for adapters or special machining, the 25mm diameter also matches the standard SC25 bearing block and support unit dimensions. Without special-order components, machine builders can assemble a fully functional linear axis by combining these rods with SC25 bearing blocks and shaft supports.

1000mm Length Providing Practical Axis Travel for CNC Routers, Lathes, and Milling Machines

For medium-sized machine setups, the 1000mm (39.4 in) length provides a useful working travel range. This length easily covers the X or Y axis of a CNC router with a 700–800mm working envelope, taking into account the location of end supports and bearing blocks. For the majority of workshop-scale workpieces, 1000mm is an adequate guide length on a lathe or milling machine slide without the need for shaft joins or extensions.

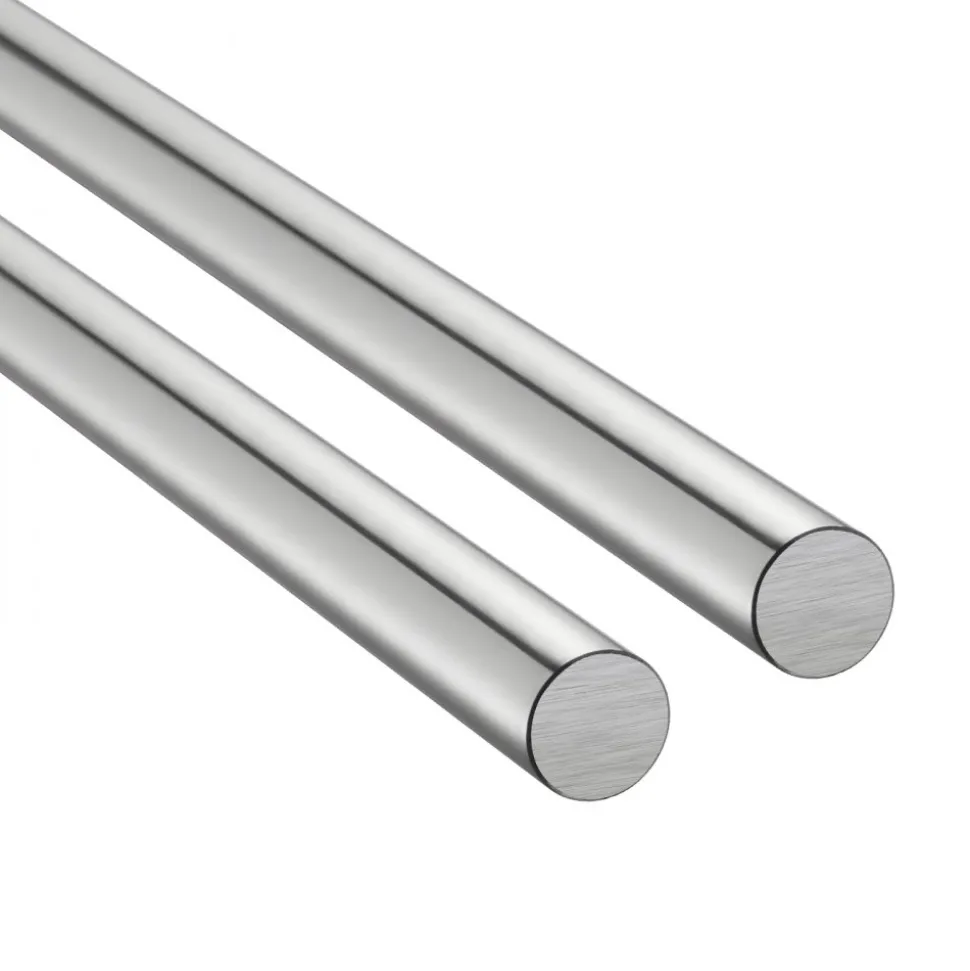

For a full single-axis linear guidance system, the two-rod set supplies both parallel shafts. This feature eliminates the need for customers to find various rods separately and provides everything they need for a complete axis in a single purchase. Because every rod has the same diameter and length, the parallel pair is matched for reliable performance in both guide positions.

Precision Ground Diameter and Straightness for Accurate Bearing Fit and Repeatable Positioning

To ensure a uniform fit with SC25 bearing blocks across the full 1000mm length, the rod linear rail shaft diameter is precision-ground. The basis for repeatable positioning is a uniform diameter, which ensures that the bearing block experiences the same preload throughout its travel. The carriage binds and loosens alternately as it moves, and if the diameter fluctuates, itce and position, immediately reducing the accuracy of manufactured parts.

During production, straightness is also controlled. The bearing block is forced off its intended linear path by a shaft that bows or deviates laterally, causing positioning inaccuracy at each location where the deviation occurs. Shaft straightness is just as crucial to achieving the desired output precision in CNC and automated applications, where the tool must follow a precisely programmed path and maintain dimensional accuracy.

Chamfered Ends for Safe Handling and Smooth Bearing Block Assembly with Rod Linear Rail Shaft

Each shaft has both ends chamfered or machined to a slight bevel to eliminate the sharp cut edge and provide a guided lead-in for the installation of bearing blocks. The chamfer protects the shaft surface and the bearing seals from installation damage by enabling the bearing block to gently slide onto the shaft without grabbing on a raw edge. The precise fit that the shaft’s ground tolerances are intended to achieve may be compromised by sharp unchamfered ends that cut the shaft surface or rip bearing seals during installation.

Additionally, this finishing touch lowers the possibility of handling accidents during machine maintenance and installation. A correctly chamfered shaft end is safer for machine builders who routinely install and remove bearing blocks during axis setup or reconfiguration, especially when working in confined locations inside a machine frame.
