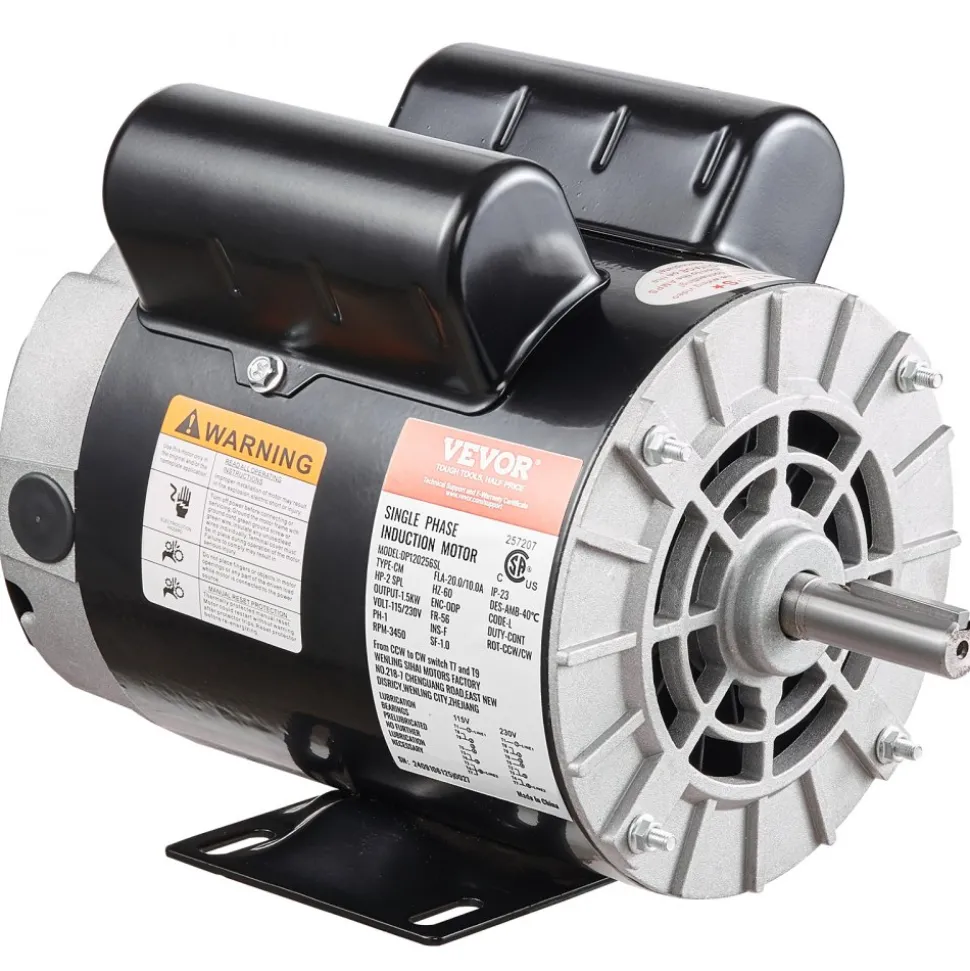

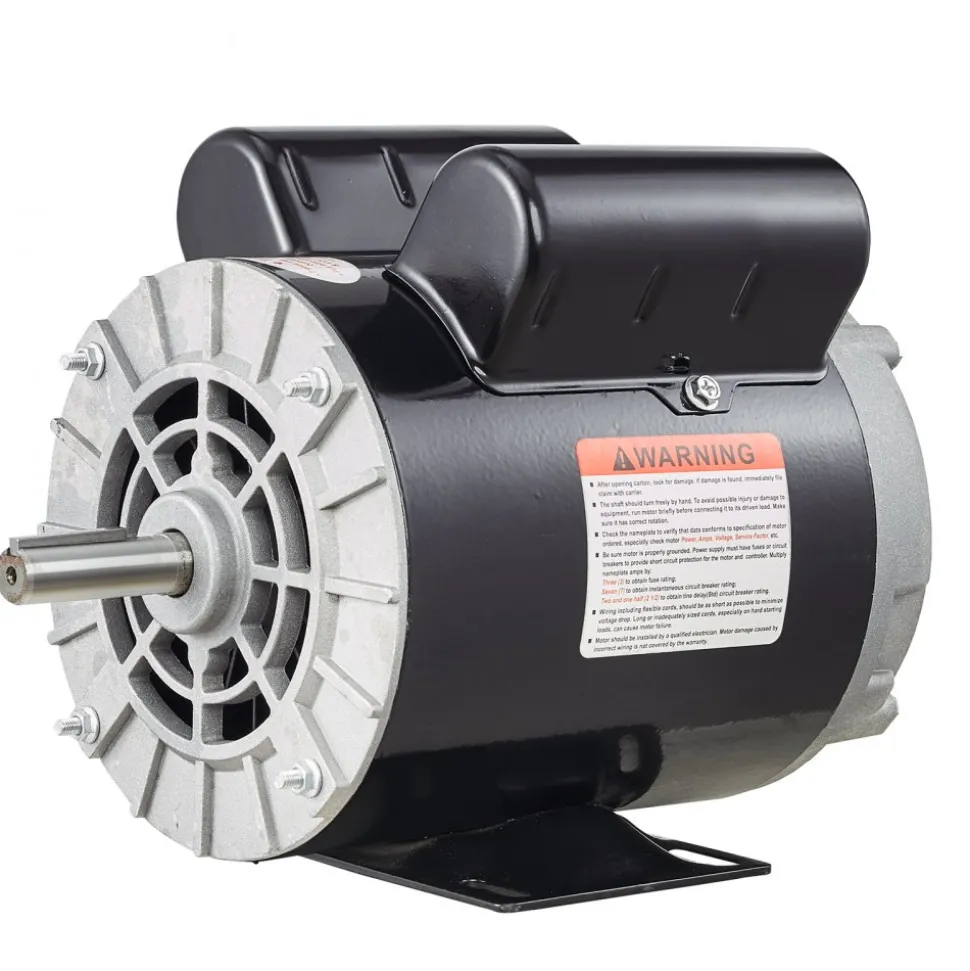

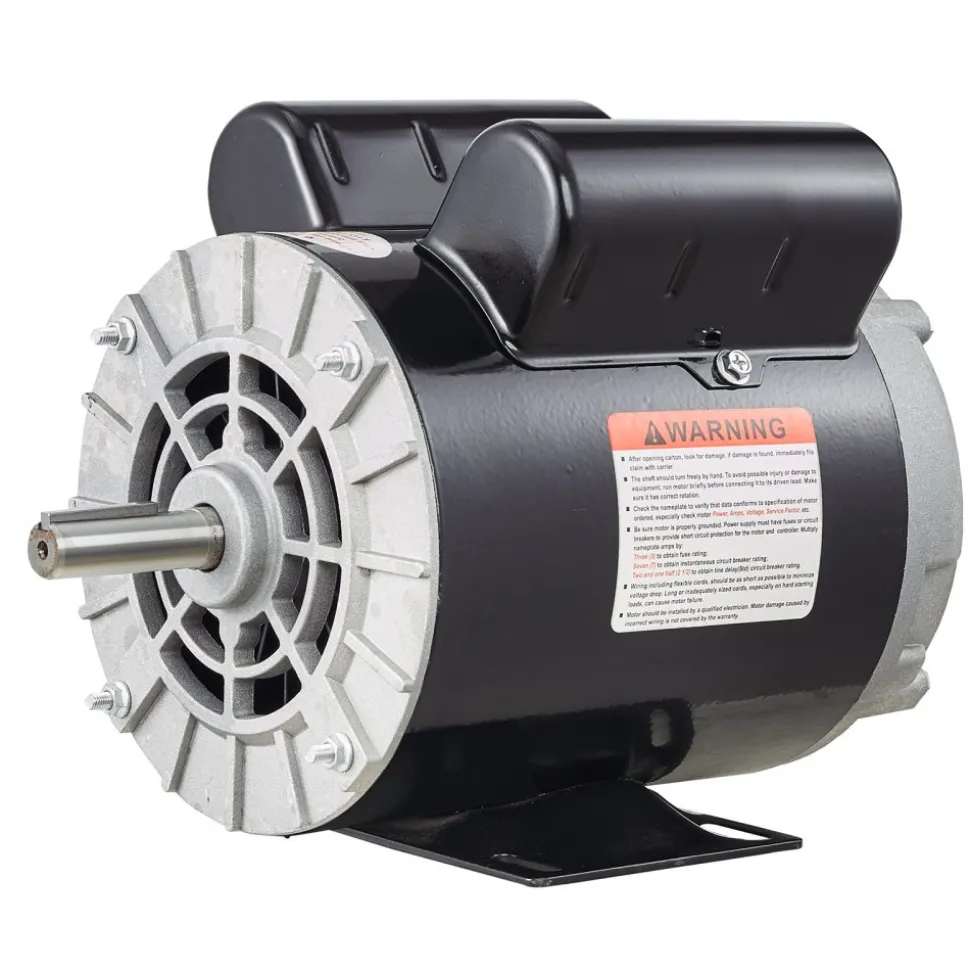

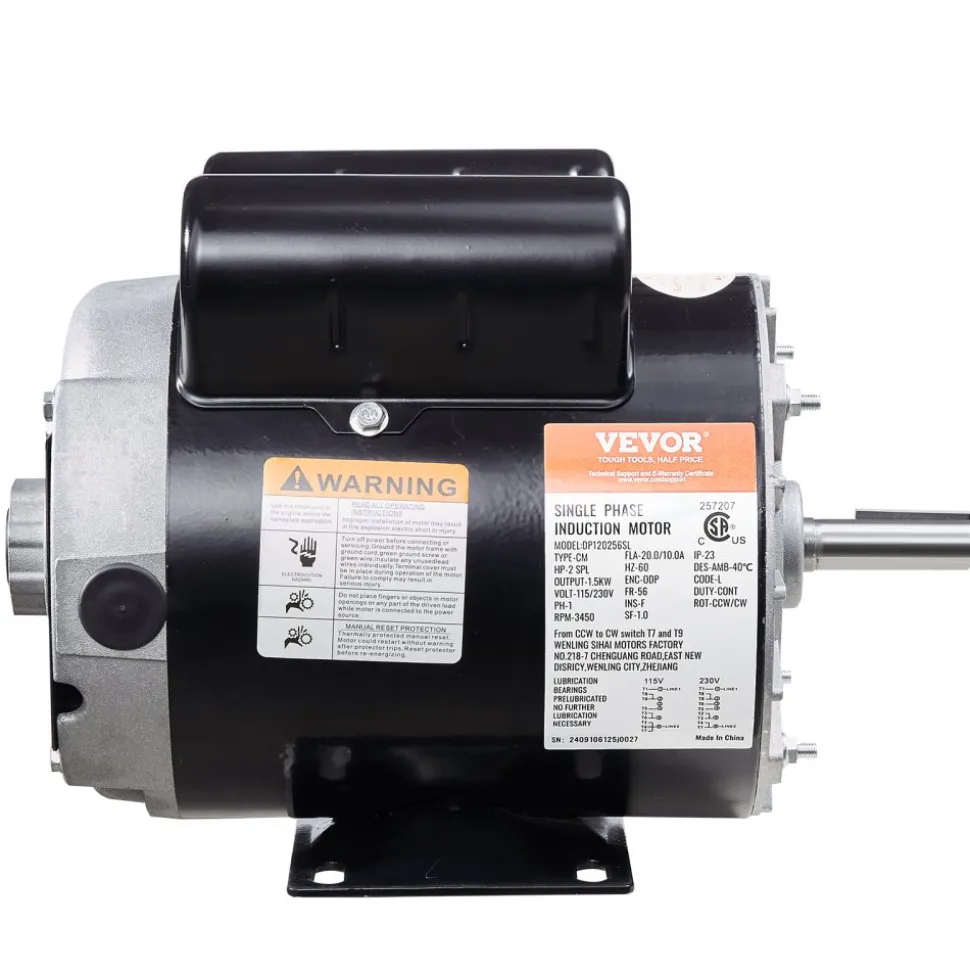

VEVOR 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8″ Keyed Shaft, 1.88″ Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

VEVOR 2 HP Air Compressor Motor – Built for Power and Reliability

VEVOR’s 2 HP Air Compressor Motor features a lightweight and compact design, combined with exemplary speed, strength, and durability, making the motor stand out from the rest. With dual-voltage capability, it runs smoothly at 3450 RPM, ensuring reliable performance in both home and light industrial settings. The air compressor motor is a single-phase motor, small in size but powerful, making it ideally suited for garages, workshops, and mini factories.

Installation and torque transfer are efficient with the 56-frame design featuring a keyed shaft. The motor comes in an open, drip-proof enclosure, which assists with cooling and ensures longer operational time. What sets the motor apart from others is its ability to adjust rotation direction, enhancing versatility for different compressor models.

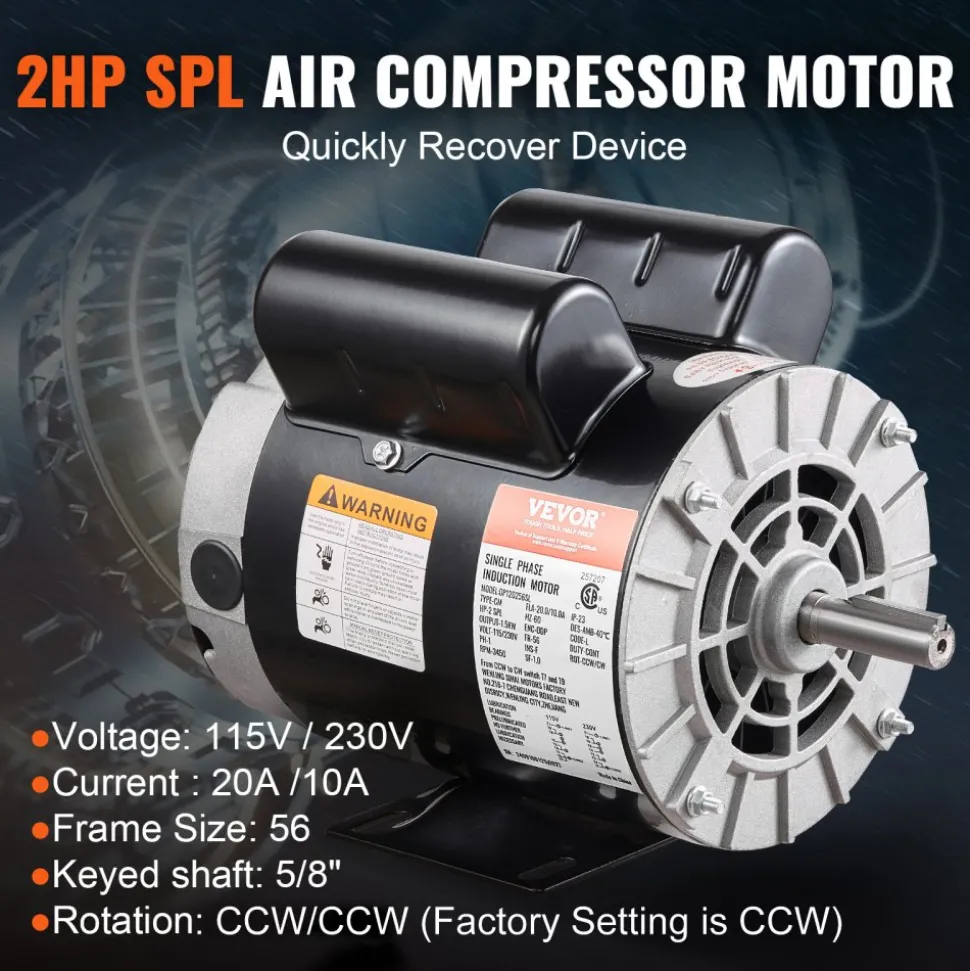

2 HP SPL Motor With 3450 RPM for Steady Output

The SPL rating of this motor is 2 horsepower, which means that it can easily handle the heavy loads of a compressor. It also has an RPM of 3450, which means that it operates smoothly on a single-phase motor system. With a compressor on, the motor smoothly builds pressure and maintains airflow.

This motor supports multiple power systems. It is capable of a 20-amp / 10-amp load at 115V/230V. The motor works at its best in a small garage compressor or a mid-size shop compressor, with no risk of overheating.

Dual Voltage 115/230V With 20/10 Amp Full Load Capacity

This 2 HP air compressor motor also operates on 115V at 20 Amps or 230V at 10 Amps, giving it the flexibility to work with different wiring systems. Its dual-voltage capability lets you connect it to a home electricity outlet or to a more powerful shop circuit.

A service factor of 1.0 allows the motor to carry rated loads smoothly and effortlessly. It also allows reliable and consistent performance. Having two voltages in 1 unit also reduces additional purchases for separate motors, which streamlines installation if power arrangements change.

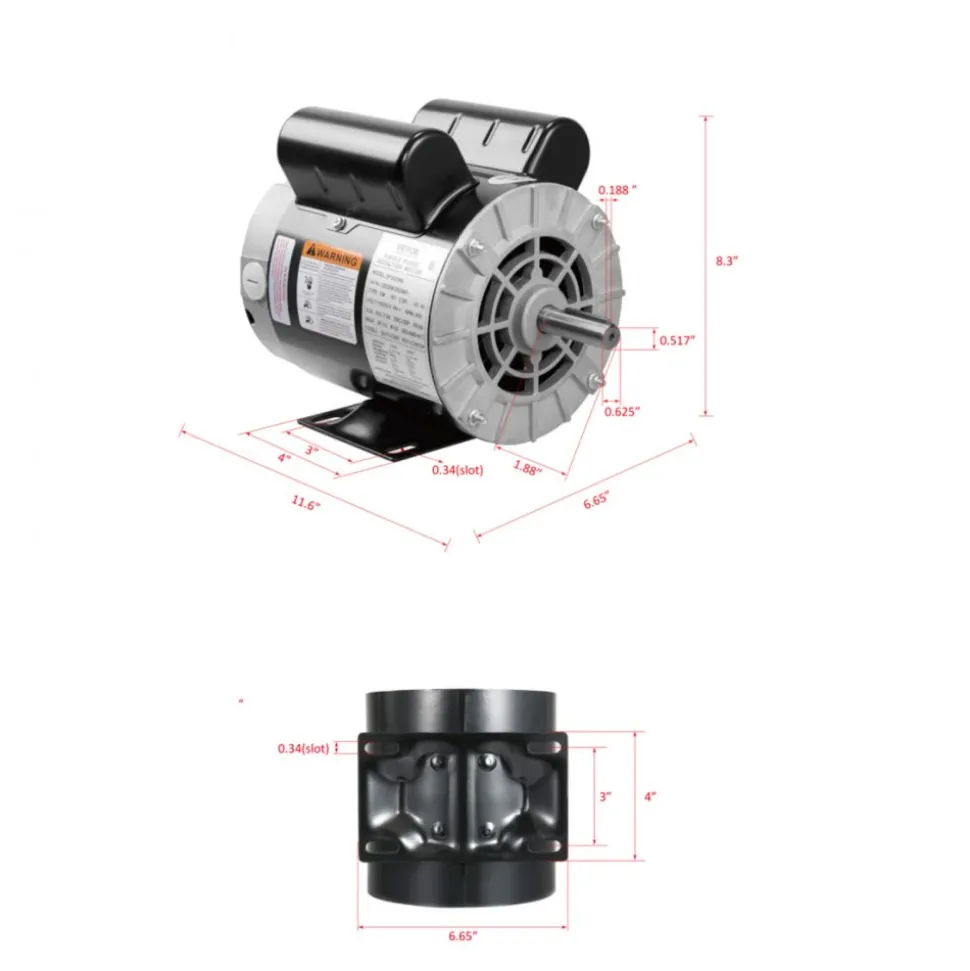

356 Frame With 5/8″ Keyed Shaft and 1.88″ Shaft Length

The 56 frame size works with different types of compressors. It works with standard mounts with small to minimal modifications. The motor includes a 5/8-inch keyed shaft with a 1.88-inch length and a 0.188-inch keyway, ensuring secure connections with pulleys or couplings.

There is minimizes power loss in transmission. This means the setup is handy for a professional or for a DIY project. The setup is straightforward and efficient. When the motor is aligned correctly, you can mount it securely, and this also saves time for replacement or upgrades.

2 HP Air Compressor Motor ODP Design for Better Cooling

The motor’s open, drip-proof case allows air to circulate and cool the components, protecting them from overheating. ODP motors are best used in clean and dry environments, where dust and moisture are limited. The high-quality steel housing protects the motor from damage and wear.

The ODP design extends service life considerably. For users working in controlled spaces such as workshops, garages, and indoor factories, the ODP enclosure provides reliable cooling without added maintenance.

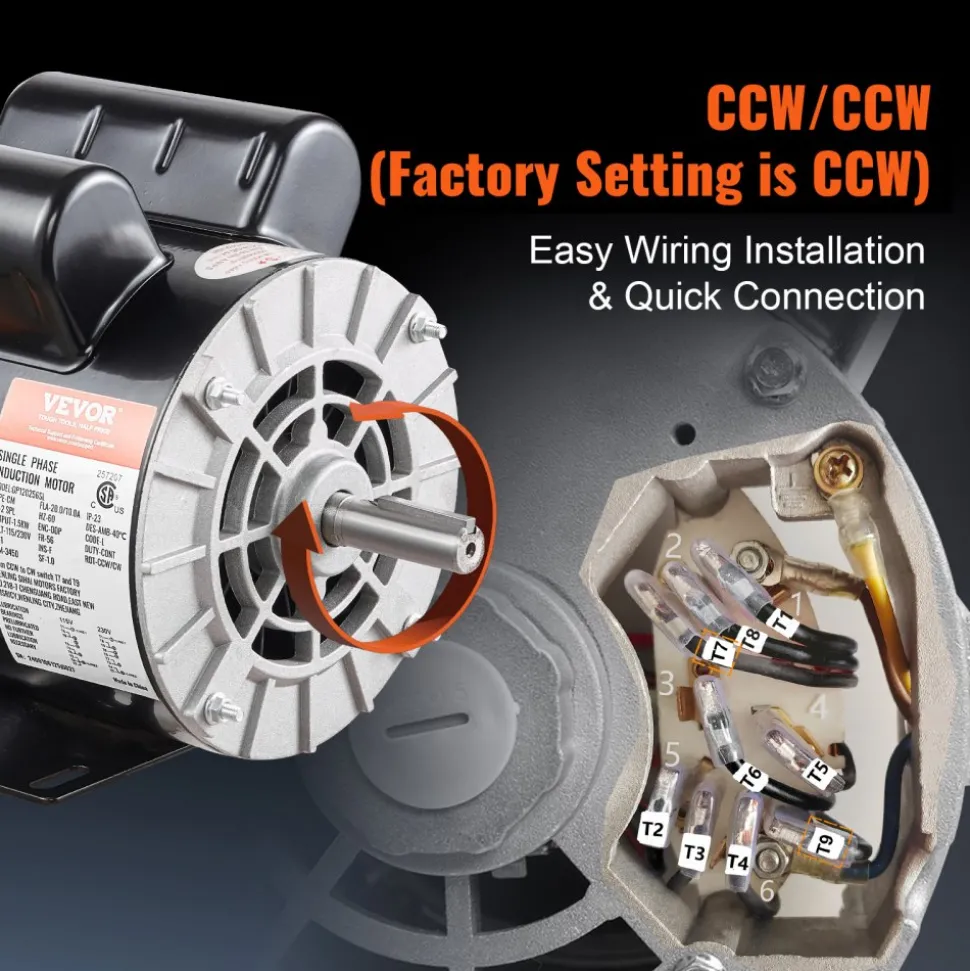

Reversible Rotation With CCW/CW Setup

The motor supports both counter-clockwise (CCW) and clockwise (CW) rotation. The factory default rotation is CCW; however, it can be easily rewired for CW rotation. This means the motor can be installed in any orientation and adjusted to the compressor’s rotation direction easily without complicated changes.

Having both rotation options saves time and minimizes the chances of compatibility issues. Whether your compressor requires a CCW or CW drive, this motor can be set up accordingly, ensuring smooth operation in varied applications.

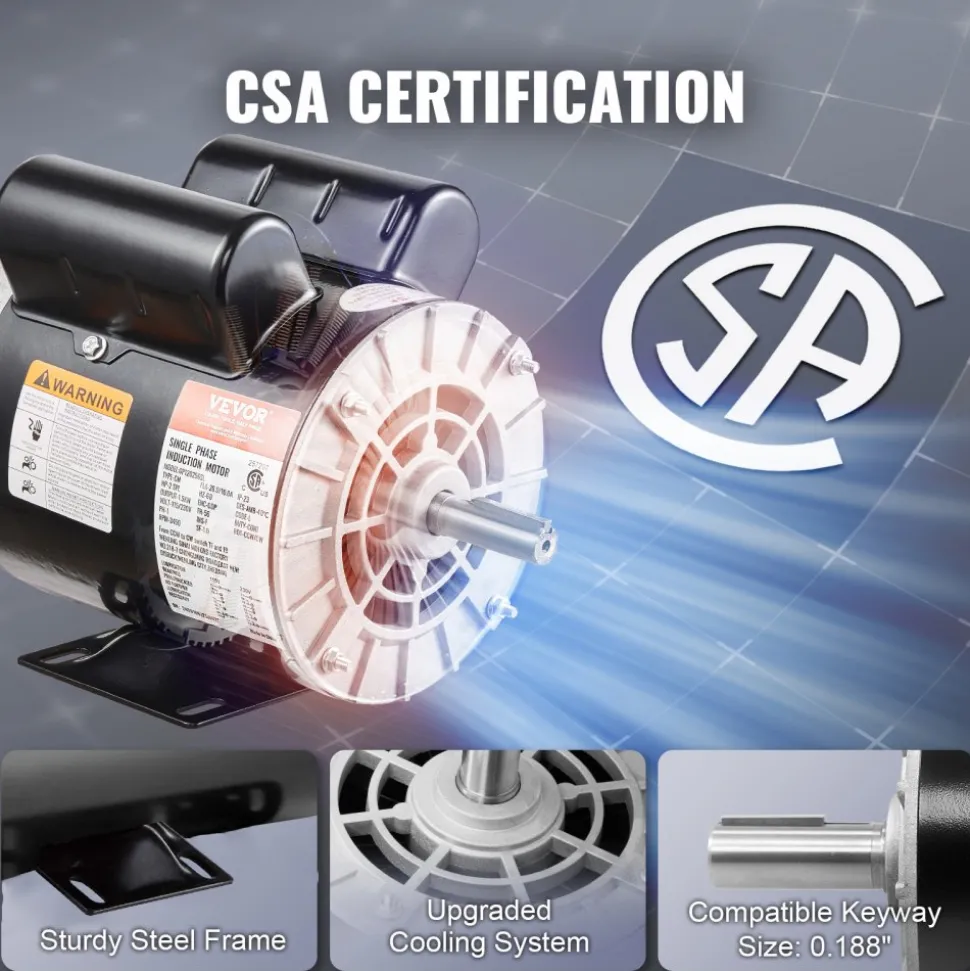

2 HP Air Compressor Motor with Steel Frame Built for Long Service Life

The rigid steel frame protects the motor, reduces vibrations, and safeguards the internal parts. This sturdy structure improves stability and enhances heat dissipation during operation. The steel body also provides resistance to wear, ensuring durability under continuous workloads.

The steel enclosure prevents a loss of motor alignment and balance, which is crucial during heavy compressor cycles. The frame extends the lifespan of the motor, making it a reliable choice for both professional and home users.

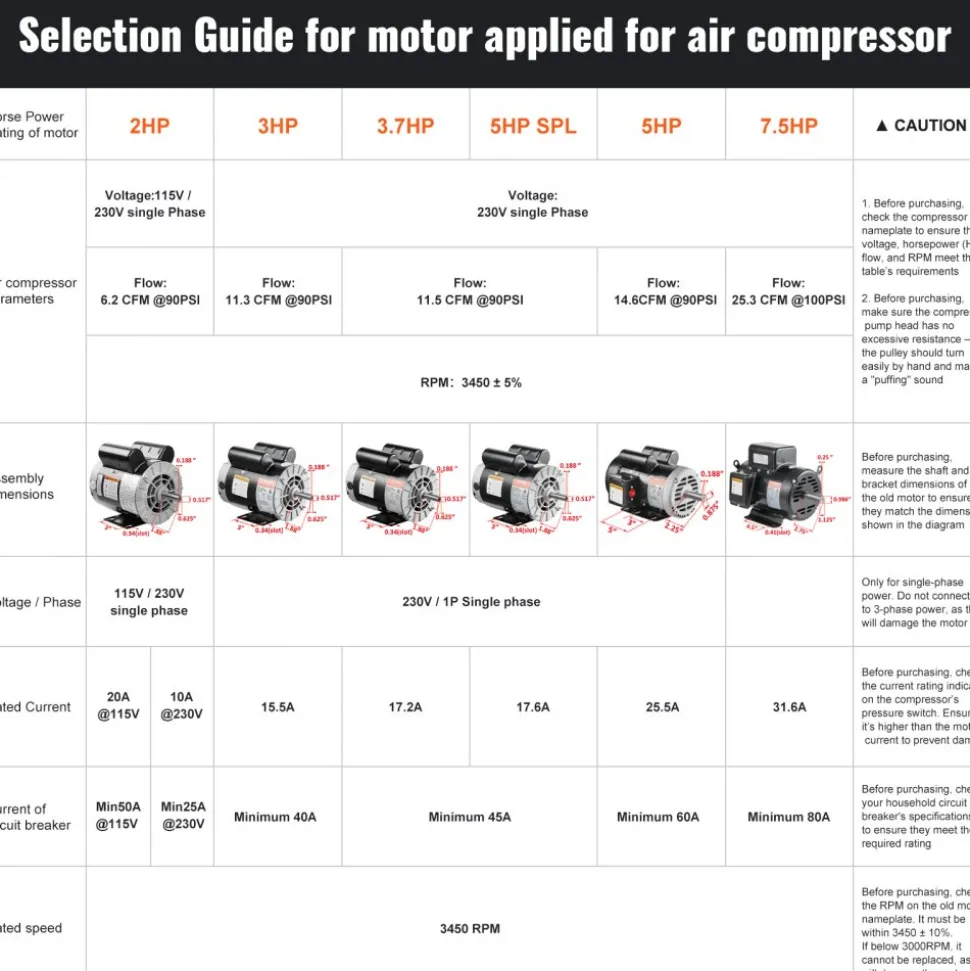

Circuit Breaker Guidelines for Safe Operation

The motor service protection requires a 50 Amp breaker for 115V and a 25 Amp breaker for 230V. This setup prevents electrical overloads and ensures efficient performance. Correct breaker sizing allows the motor to run without interruption and without tripping.

This measure protects the motor and the entire compressor system. With the provided breaker, users can rely on stable and safe operation during normal operation.

Wide Applications in Home and Commercial Compressors

This 2 HP air compressor motor serves both home and commercial purposes. It powers compressors that operate air tools, spray equipment, tyre inflating systems, woodworking machines, and other light industrial processes. Its dual-voltage configuration makes the motor convenient for use in garages, auto repair shops, workshops, and small factories.

The motor drives pneumatic wrenches, nail guns, sprayers, and shop compressors. It supports consistent compressor performance and reliable power. Its balance of size, strength, and adaptability provides users with long-lasting compressor performance.
